  1. According to research done by ARC, the primary objectives of Manufacturers today is to improve business performance No visibility of manufacturing and production information 90% No alignment between production and business dynamics 80% Business applications of different business process domain are disconnected 80% 52.3% Information inputted manually 48.2% Lack of linkage between systems Performance data from the production site has not been correctly inputted 44.0%

  2. Data collection and database connectivity between the business and plant floor was not part of the systems design Visualization Tools & Business Applications were used for functions outside of their capability Traditional Solutions

  3. Multi-layer architecture OPC Server Issues Data Delay Data Loss Plant Floor PC’s Input Errors Increased TCO Decreased OEE Database Servers Enterprise Resource Planning Manufacturing Execution RSSQL & RSBizWare Information Flow RSView SE/ME & RSView32 RSLinx Communication Communication Interface Sequence Controller Problems with Traditional Solution

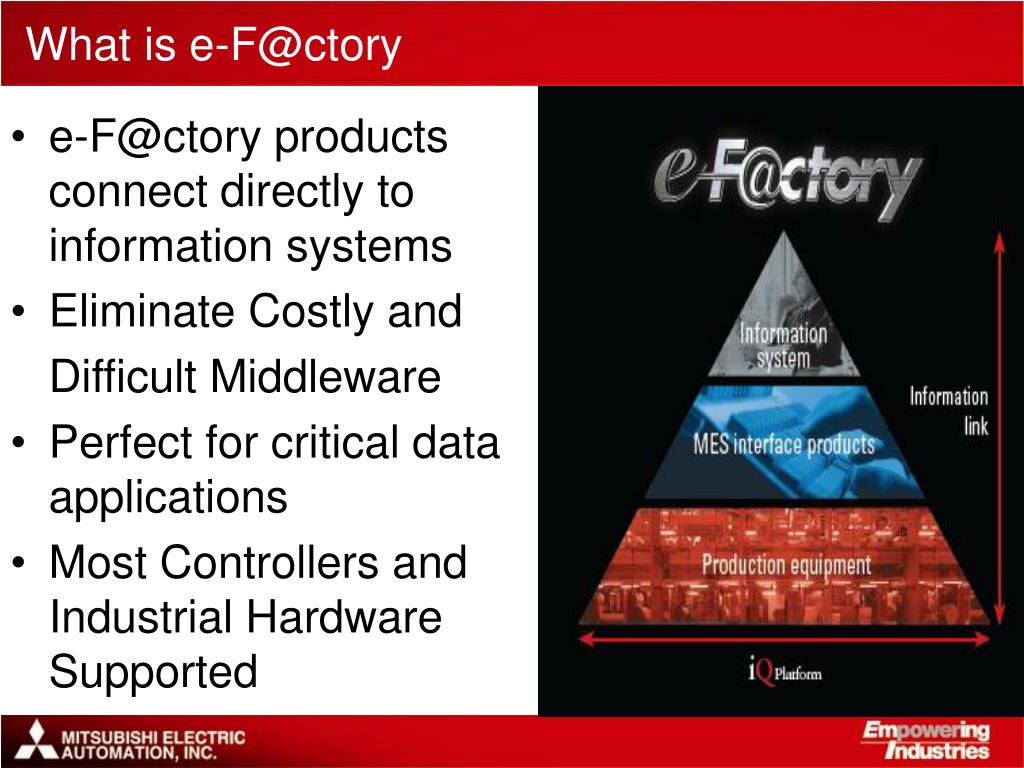

  4. e-F@ctory products connect directly to information systems Eliminate Costly and Difficult Middleware Perfect for critical data applications Most Controllers and Industrial Hardware Supported What is e-F@ctory

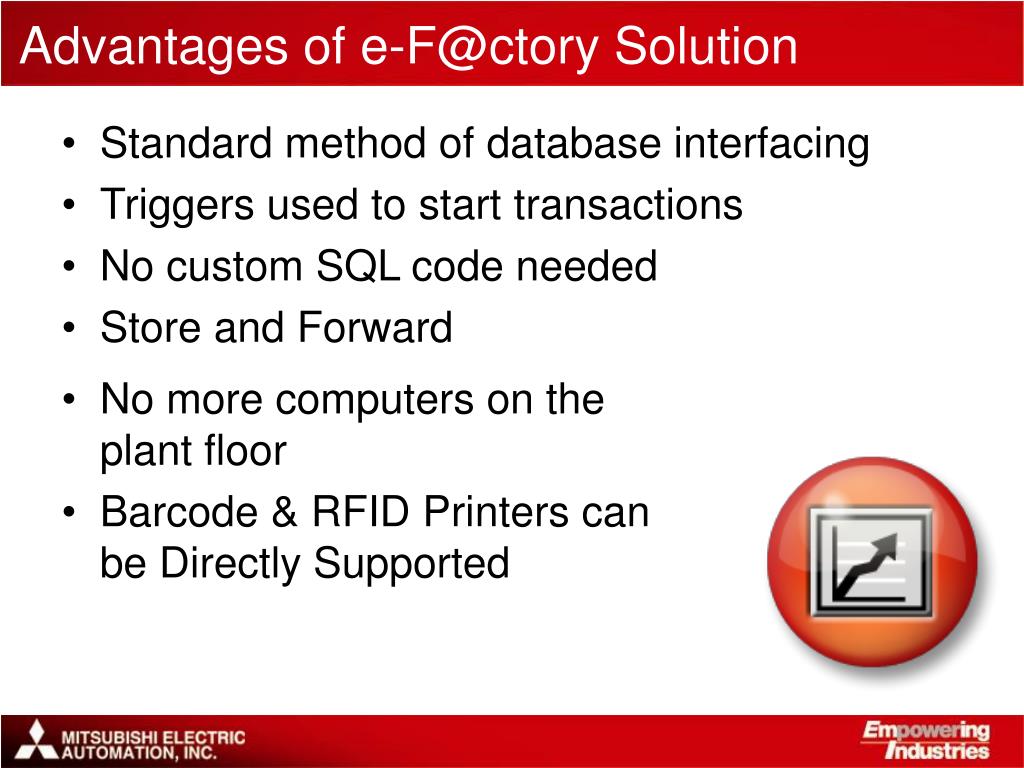

  5. Standard method of database interfacing Triggers used to start transactions No custom SQL code needed Store and Forward Advantages of e-F@ctory Solution • No more computers on the plant floor • Barcode & RFID Printers can be Directly Supported

  6. Partner with other Best in Class suppliers to compliment our e-F@ctory solution e-Factory Partner Strategy Business Layer Application Open Networks Controller Platforms Open field network Field Devices Partners

  7. Today Mitsubishi is excited to announce our new partnership with… New Partnership

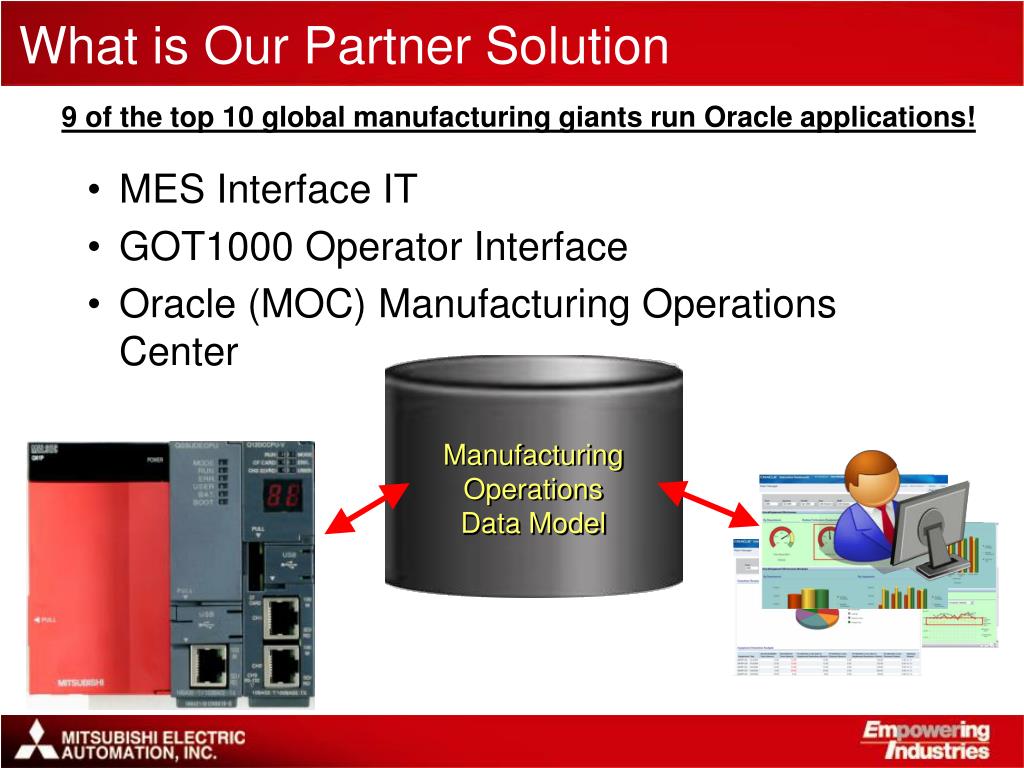

  8. What is Our Partner Solution 9 of the top 10 global manufacturing giants run Oracle applications! • MES Interface IT • GOT1000 Operator Interface • Oracle (MOC) Manufacturing Operations Center ManufacturingOperations Data Model

  9. Real Time Intelligence Role-based Dashboards Analyze Loss and OEE Increase Production Throughput Improve Manufacturing Service Levels Monitor Production Quality Integration with Legacy systems Advantages of ORACLE MOC

  10. MOC “IN A BOX” Provides customers a way to test drive the system and functionality. MOC “IN A BOX” Solution • System Configuration • Server • MOC Software Configured with Sample Dashboards • Pre Configured MES Transports to MOC • MES Interface IT (30 Day license) • Rockwell, Omron, Siemens Drivers MOC IN A BOX

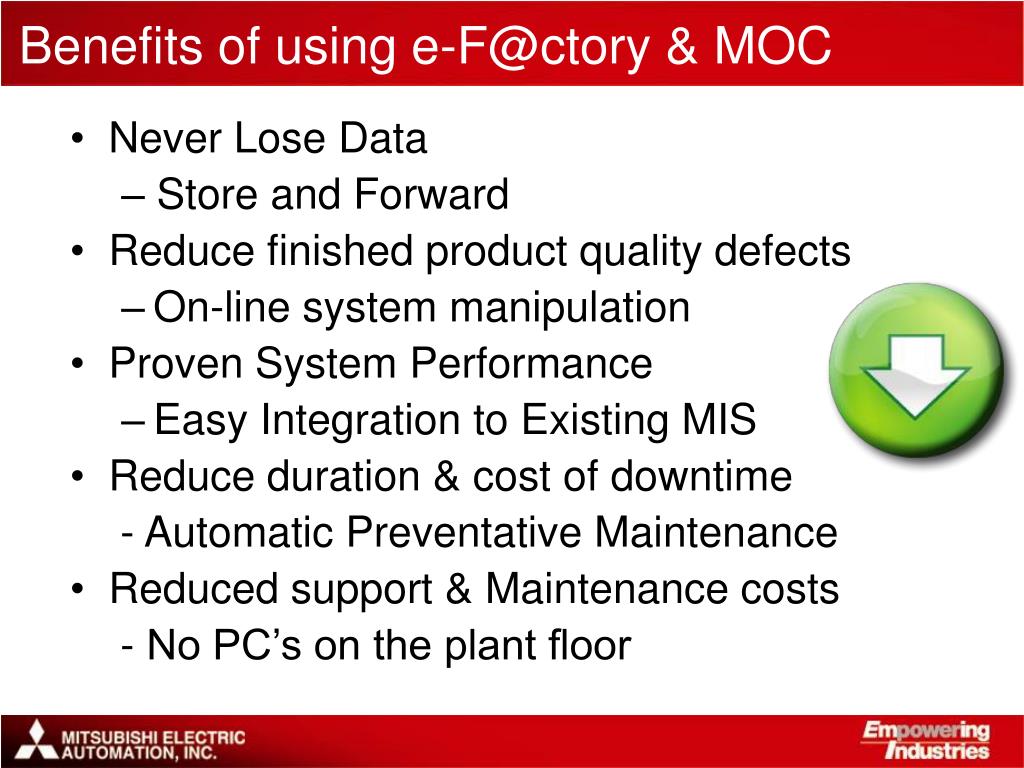

  11. Never Lose Data – Store and Forward Reduce finished product quality defects On-line system manipulation Proven System Performance Easy Integration to Existing MIS Reduce duration & cost of downtime - Automatic Preventative Maintenance Reduced support & Maintenance costs - No PC’s on the plant floor Benefits of using e-F@ctory & MOC

  12. Primarily objectives categorized in three areas No visibility of manufacturing and production information 90% No alignment between production and business dynamics 80% Business applications of different business process domain are disconnected 80% 52.3% Information inputted manually 48.2% Lack of linkage between systems Performance data from the production site has not been correctly inputted 44.0% Benefits of using e-F@ctory & MOC Improved Manufacturing Information Visibility Increased OEE Increased Productivity Reduce Scrap Improve cross-domain business processes Eliminate Manual Entry Reduce Paperwork Increased Data Integrity Better Alignment with Dynamic Business Environment Increased Production Reduce Inventory Shorter Delivery Times Reduce Implementation Cost Faster ROI Reduced TCO

  13. E-F@ctory and Oracle can help Customers achieve their operational goals by partnering technologies from the Market Leaders in Industrial Automation and Enterprise Software Conclusion The Mitsubishi & ORACLE Value Proposition… Empowering Excellence Through • Greater Overall Equipment Effectiveness (OEE) • Lower Total Cost of Ownership (TCO)

  14. 15
