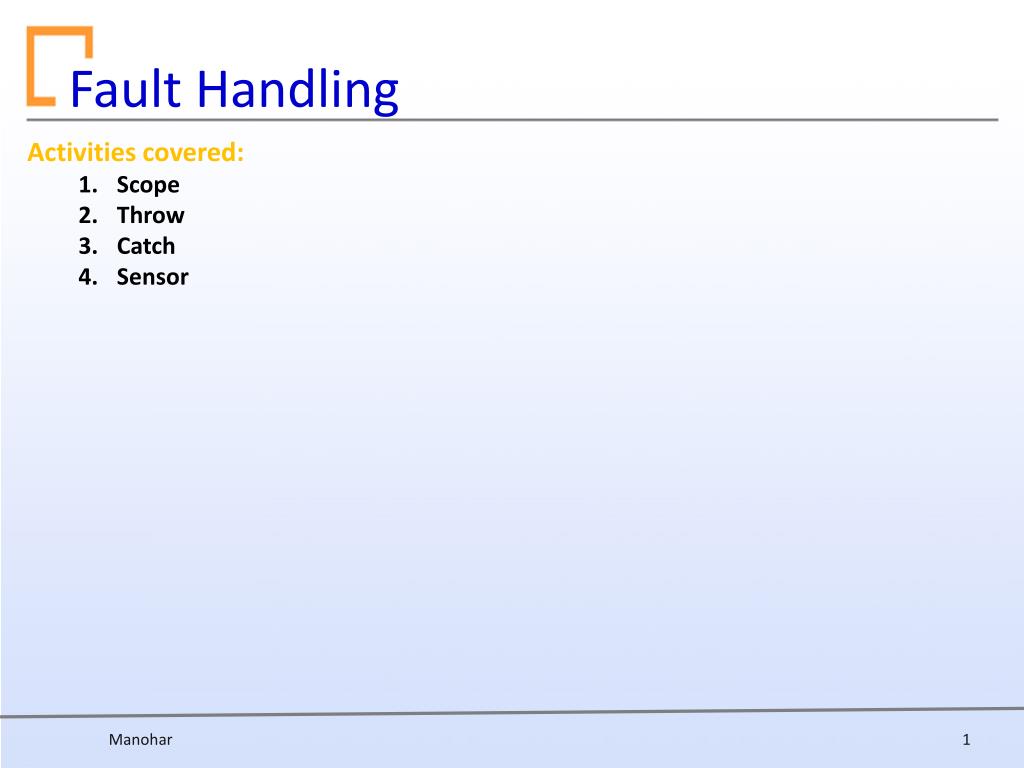

  1. Fault Handling • Activities covered: • Scope • Throw • Catch • Sensor

  2. Fault • Fault is an disturbance occurred during the happy path execution of a process which result in a signal being sent from the system. • Disturbance can for various reason like • Technical Error • Programming Error • Faulty Operation by Client • Exceptional business behavior • Fault Handling allows a BPEL process service component to handle error messages or other exceptions returned by outside web services, and to generate error messages in response to business or runtime faults. • You can also define a fault management framework to catch faults and perform user-specified actions defined in a fault policy file.

  3. Fault Types • Business Faults: Fault generated in business scenario’s. • 1. From Partner Link • 2. From Process • Technical Faults: Faults generated from system • 1. Standard Faults • 2. Runtime Faults • - Binding Fault • - Remote Fault

  4. Business Fault • Business faults are application-specific faults that are generated when there is a problem with the information being processed (for example, when a social security number is not found in the database). • A business fault occurs when an application executes a throw activity or when an invoke activity receives a fault as a response. The fault name of a business fault is specified by the BPEL process service component • The messageType, if applicable, is defined in the WSDL. A business fault can be caught with a faultHandler using the faultName and a faultVariable. • <catch faultName="ns1:faultName" faultVariable="varName">

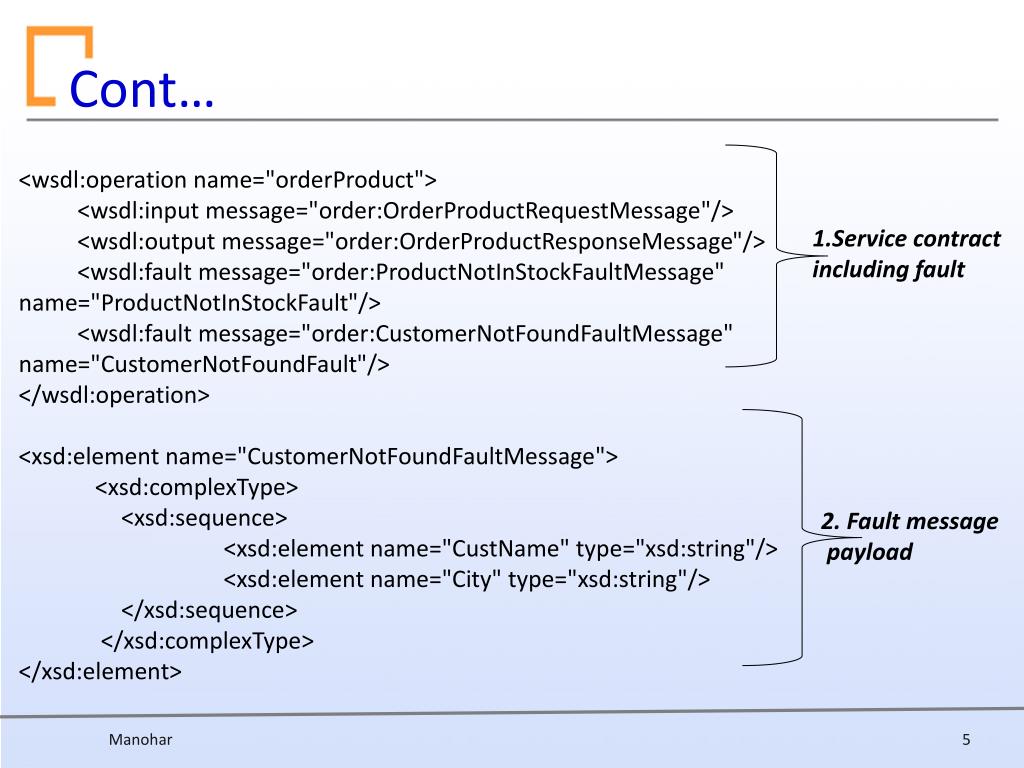

  5. Cont… <wsdl:operation name="orderProduct"> <wsdl:input message="order:OrderProductRequestMessage"/> <wsdl:output message="order:OrderProductResponseMessage"/> <wsdl:fault message="order:ProductNotInStockFaultMessage" name="ProductNotInStockFault"/> <wsdl:fault message="order:CustomerNotFoundFaultMessage" name="CustomerNotFoundFault"/> </wsdl:operation> <xsd:element name="CustomerNotFoundFaultMessage"> <xsd:complexType> <xsd:sequence> <xsd:element name="CustName" type="xsd:string"/> <xsd:element name="City" type="xsd:string"/> </xsd:sequence> </xsd:complexType> </xsd:element> 1.Service contract including fault 2. Fault message payload

  6. Cont… <soap:Envelope> <soap:Header/> <soap:Body> <soap:Fault> <faultcode>CST-1234</faultcode> <faultstring>Customer not found</faultstring> <detail> <CustomerNotFoundFault> <CustName>John Doe</CustName> <City>Long Beach</City> </CustomerNotFoundFault> </detail> </soap:Fault> </soap:Body> </soap:Envelope> 3Actual service response

  7. Technical Fault – Standard fault • Standard Faults: Are the faults that directly from BPEL Specification. • BPEL4WS specification defines the following standard faults in the namespace of http://schemas.xmlsoap.org/ws/2003/03/business-process/ • Standard faults are defined as follows: • Typeless, meaning they do not have associated messageTypes • Not associated with any Web Services Description Language (WSDL) message • Caught without a fault variable • <catch faultName="bpws:selectionFailure">

  8. Cont… • bindingFault and remoteFault(BPEL extension fault defined in http://schemas.oracle.com/bpel/extension) • conflictingReceive • conflictingRequest • correlationViolation • forcedTermination • invalidReply • joinFailure • mismatchedAssignmentFailure • repeatedCompensation • ambiguousReceive • completionConditionFailure • invalidBranchCondition • invalidExpressionValue • invalidVariables • missingReply • missingRequest • scopeInitializationFailure • selectionFailure • uninitializedPartnerRole • uninitializedVariable • unsupportedReference • xsltInvalidSource • xsltStylesheetNotFound

  9. Technical Fault – Runtime Fault • Runtime Faults: • - Runtime faults are the result of problems within the running of the BPEL component. • Runtime faults are not user-defined, and are thrown by the system. We need to define parts in the process to handle them. • Are generated if the process tries to use a value incorrectly, a logic error occurs (such as an endless loop), a Simple Object Access Protocol (SOAP) fault occurs in a SOAP call, an exception is thrown by the server, and so on • In BPEL we will use catch activity to handle them. <soap:Body> <soap:Fault> <faultcode>S:Server</faultcode> <faultstring>Could not connect to URL 127.0.0.1 on port 8001</faultstring> </soap:Fault> </soap:Body> Actual service response

  10. Cont… Binding Fault Binding Fault A binding fault is thrown inside an activity if the preparation of the invocation fails. A bindingFault is not retryable. This type of fault usually must be fixed by human intervention. Eg: the WSDL of the process fails to load.

  11. E.g. of Binding Faults

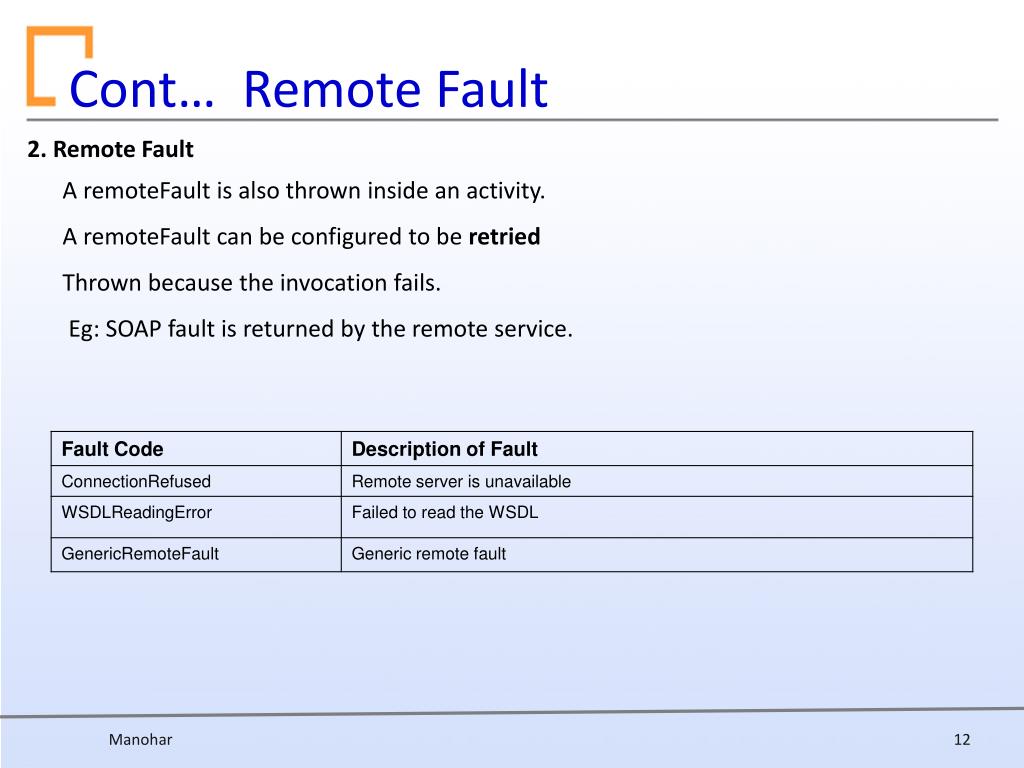

  12. Cont… Remote Fault 2. Remote Fault A remoteFault is also thrown inside an activity. A remoteFault can be configured to be retried Thrown because the invocation fails. Eg: SOAP fault is returned by the remote service.
