actin. troponin. actin. tropomyosin. troponin. actin. tropomyosin. troponin. actin. myosin binding site. tropomyosin. troponin. actin. Ca 2+. Ca 2+. Ca 2+. Ca 2+. Ca 2+. Ca 2+. Ca 2+. Ca 2+. Calcium ions are released from the sarcolemma after stimulation from the T system.

Anita
Télécharger la présentation

actin

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

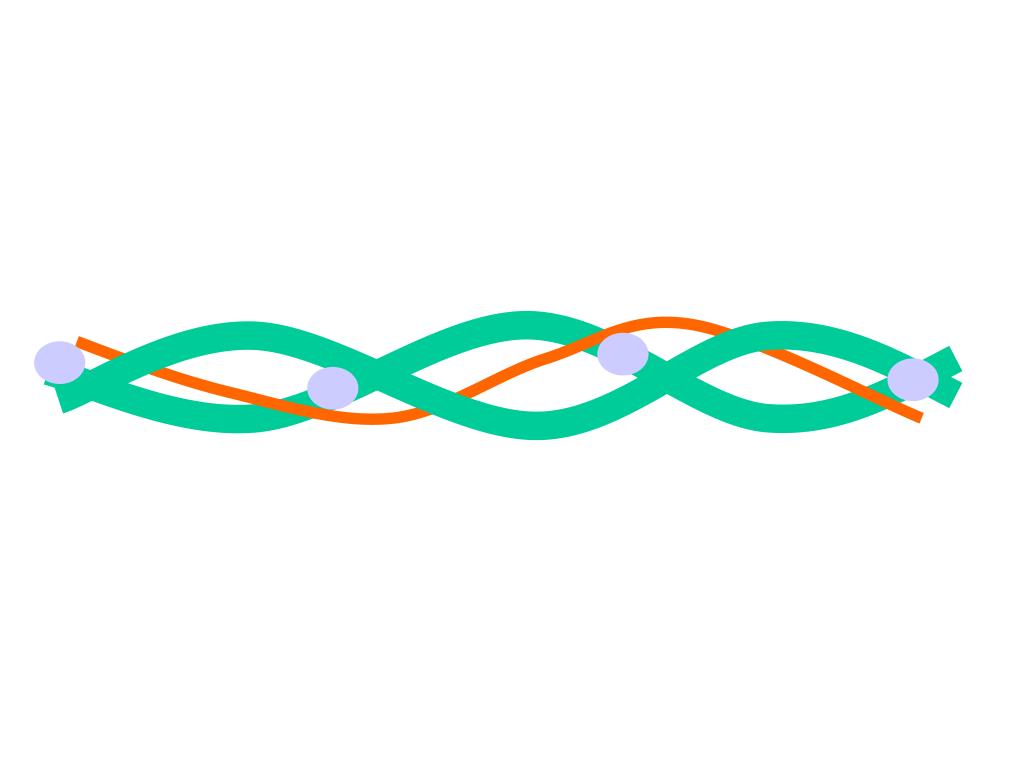

  1. actin

  2. troponin actin

  3. tropomyosin troponin actin

  4. tropomyosin troponin actin

  5. myosin binding site tropomyosin troponin actin

  6. Ca2+ Ca2+ Ca2+ Ca2+

  7. Ca2+ Ca2+ Ca2+ Ca2+ Calcium ions are released from the sarcolemma after stimulation from the T system

  8. Ca2+ Ca2+ Ca2+ Ca2+

  9. Ca2+ Ca2+ Ca2+ Ca2+ the calcium ions bind to the troponin and changes its shape

  10. Ca2+ Ca2+ Ca2+ Ca2+ the calcium ions bind to the troponin and changes its shape

  11. Ca2+ Ca2+ Ca2+ Ca2+

  12. Ca2+ Ca2+ Ca2+ Ca2+

  13. Ca2+ Ca2+ Ca2+ Ca2+ the troponin displaces the tropomyosin and exposes the myosin binding sites

  14. Ca2+ Ca2+ Ca2+ Ca2+

  15. Ca2+ Ca2+ Ca2+ Ca2+

  16. Ca2+ Ca2+ Ca2+ Ca2+ the bulbous heads of the myosin attach to the binding sites on the actin filaments

  17. Ca2+ Ca2+ Ca2+ Ca2+

  18. Ca2+ Ca2+ Ca2+ Ca2+

  19. Ca2+ Ca2+ Ca2+ Ca2+ the myosin heads change position to achieve a lower energy state and slide the actin filaments past the stationary myosin

  20. Pi Pi Pi Pi Pi Pi Pi Pi Pi A A A Ca2+ Ca2+ Ca2+ Ca2+

  21. Pi Pi Pi Pi Pi Pi Pi Pi Pi A A A Ca2+ Ca2+ Ca2+ Ca2+

  22. Pi Pi Pi Pi Pi Pi Pi Pi Pi A A A Ca2+ Ca2+ Ca2+ Ca2+ ATP binds to the bulbous heads and causes it to become detached

  23. Pi Pi Pi Pi Pi Pi Pi Pi Pi A A A Ca2+ Ca2+ Ca2+ Ca2+ ATP binds to the bulbous heads and causes it to become detached

  24. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ Ca2+ Ca2+ Ca2+ hydrolysis of ATP provides the energy to “re-cock” the heads

  25. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ Ca2+ Ca2+ Ca2+ hydrolysis of ATP provides the energy to “re-cock” the heads

  26. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ Ca2+ Ca2+ Ca2+

  27. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ Ca2+ Ca2+ Ca2+ calcium ions are re-absorbed back into the T system

  28. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ calcium ions are re-absorbed back into the T system

  29. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ the troponin reverts to its normal shape and the tropomyosin move back to block the myosin binding sites

  30. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ the troponin reverts to its normal shape and the tropomyosin move back to block the myosin binding sites

  31. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ the troponin reverts to its normal shape and the tropomyosin move back to block the myosin binding sites

  32. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ phosphocreatine regenerates ATP

  33. Pi Pi Pi A Pi Pi Pi Pi A Pi Pi A Ca2+ phosphocreatine regenerates ATP

  34. Pi Pi Pi A Pi Pi Pi A Pi Pi Pi A Ca2+ phosphocreatine regenerates ATP
