1. RapidIO Technology Applied in Multifunction Phased Array Radar (MPAR)(Introduction and literature Review)  Yu Sun Department of Electrical and Computer Engineering Radar Innovations Laboratory University of Oklahoma Final Presentation of ECE5990 031 Special Study Advisor: Dr. Yan Zhang

2. RapidIO: High-speed Interconnect technology Other High-speed transaction technologies: Giga-bye Ethernet, PCI Express …… Question: Why RapidIO is preferred in Multifunction Phase Array Radar?

3. Future MPAR architecture • Transmit-Receive Elements (TR) --- partitioned into “sub-arrays” • Overlapped Sub-Array Beamformer --- controlled by analog circuitry • Digital Transceiver --- A/D conversion • Digital Beamforming (DBF) --- all beams are computed concurrently ~1 Tera (1012) operations per second • Radar Signal processor --- Data analysis, processing

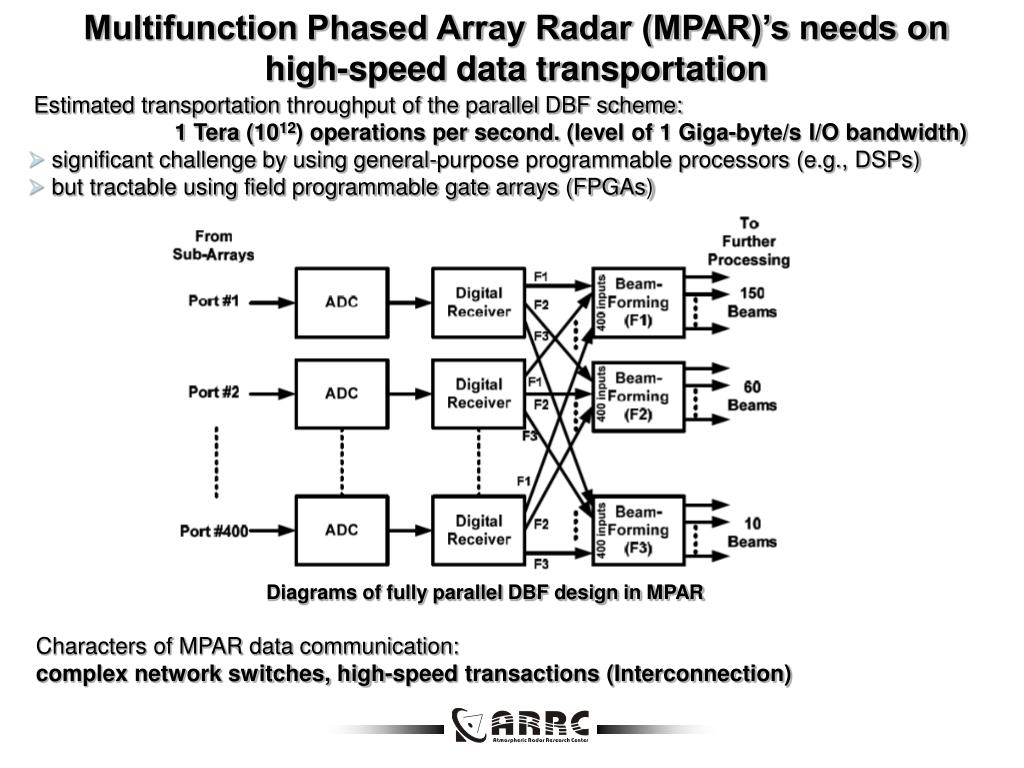

4. Multifunction Phased Array Radar (MPAR)’s needs on high-speed data transportation Estimated transportationthroughput of the parallel DBF scheme: 1 Tera (1012) operations per second.(level of 1 Giga-byte/s I/O bandwidth) • significant challenge by using general-purpose programmable processors (e.g., DSPs) • but tractable using field programmable gate arrays (FPGAs) Diagrams of fully parallel DBF design in MPAR Characters of MPAR data communication: complex network switches, high-speed transactions (Interconnection)

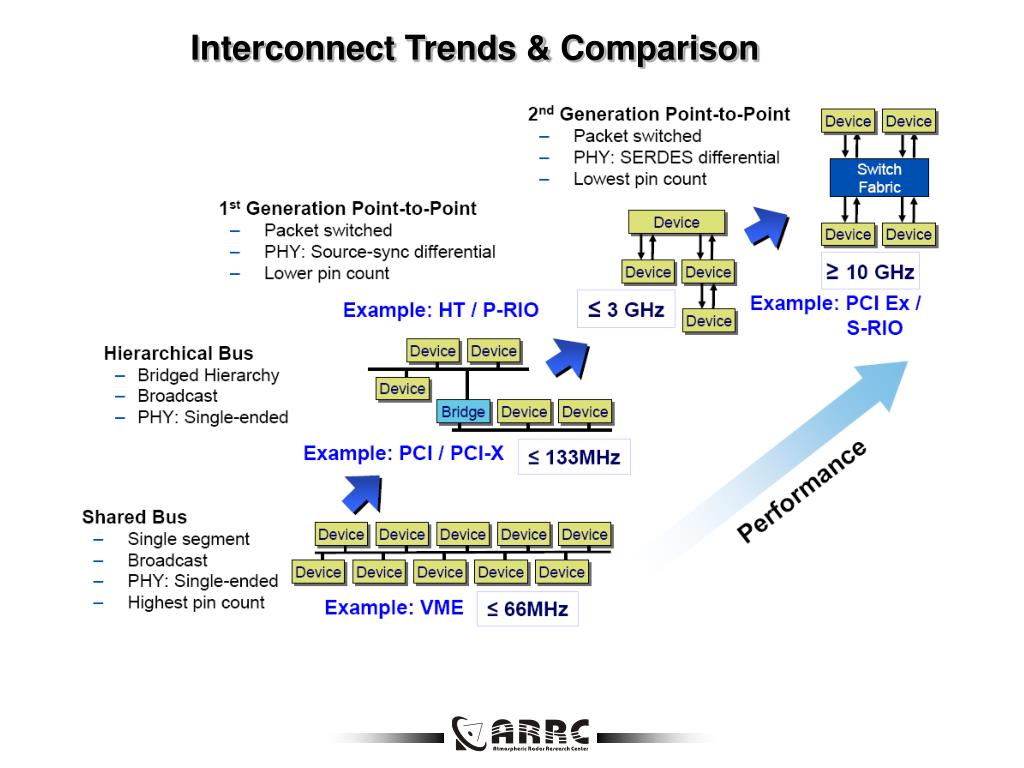

5. Interconnect Trends & Comparison

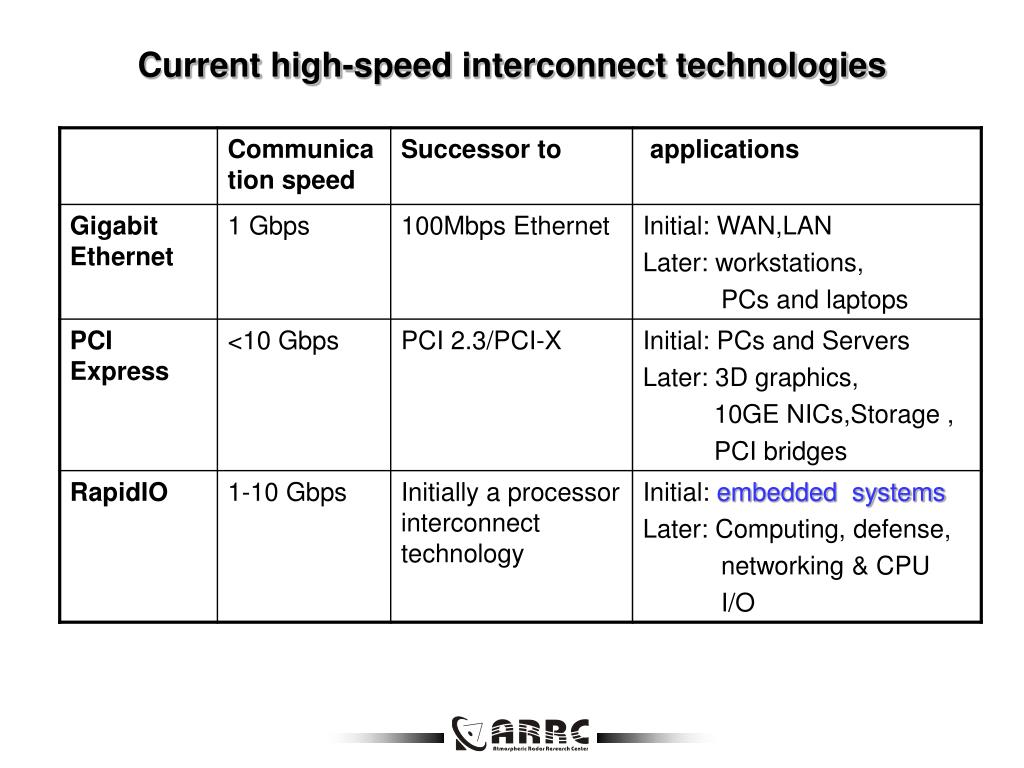

6. Current high-speed interconnect technologies

7. Advantage of RapidIO Protocol Efficiency comparison (RapidIO, Gigabit-Ethernet and PCI Express) Effective Bandwidth comparison

8. Example RapidIO Architecture:interconnection between systems & devices

9. Our Current Plan: Applying High-Speed Serial I/O to Phased Array Radar Multifunction Phase Array Radar signal processing diagram a. Acquire digital data from ADC ( in Phase Array Radar) b. Implement RapidIO on FPGA • Use RapidIO to transfer data within & between FPGA boards • Build RapidIO physical channel on PCB

10. Overall design steps FPGA computer-aided system design design tools: Xilinx ISE 8.2 Modelsim challenges: understand, simulate and synthesize high-speed serial protocols 1. 2. RapidIO FPGA hardware realization FPGA board: Xilinx Virtex II – Pro with RocketIO transceivers challenges: Place & Route, hardware debugging RapidIO signal integrity design& Test Design tools: HFSS 10.1 Ansoft Designer 3.5 multi-layer PCB (OrCAD) challenges: design layout of differential pairs on PCB, minimize noise & crosstalks, optimize signal quality 3.

11. FPGA board: Xilinx Virtex II Pro Virtex-II Pro Generic Architecture Overview Processor blocks: Xilinx Power PC CLB block: RAMs, LUT, MUX, ADDERs, Block Select RAMS, DCMs …… RocketIO blocks --- the basis of Xilinx's RapidIO technology & protocol --- 3.125 Gb/s maximum serial communication speed

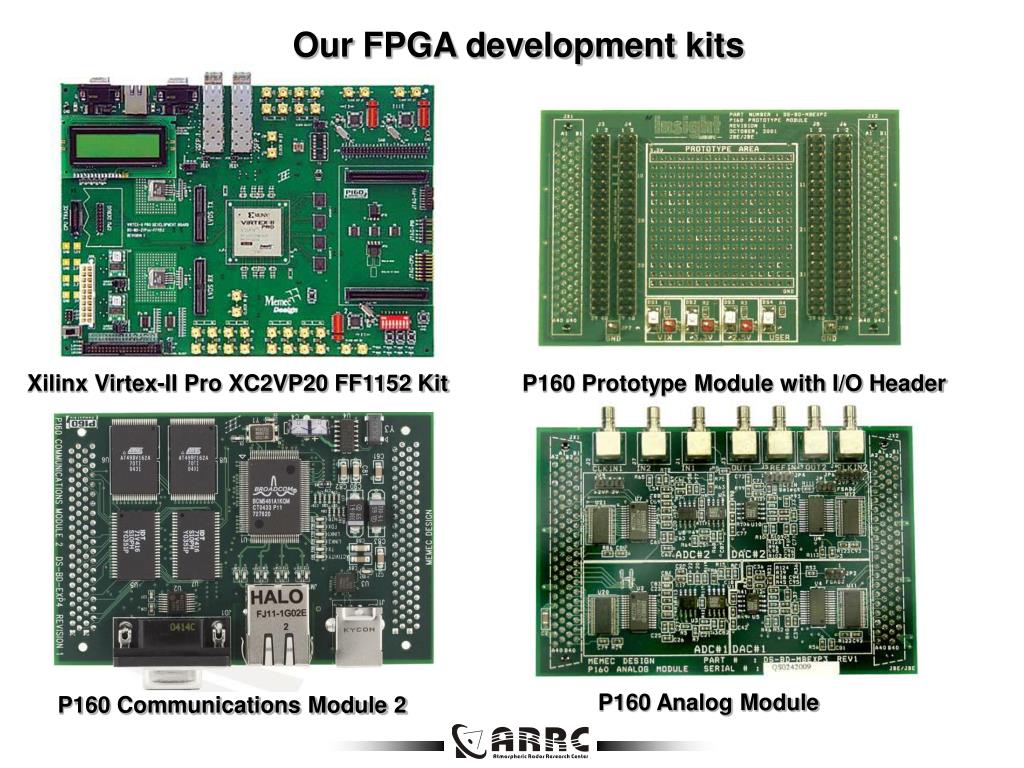

12. Our FPGA development kits Xilinx Virtex-II Pro XC2VP20 FF1152 Kit P160 Prototype Module with I/O Header P160 Analog Module P160 Communications Module 2

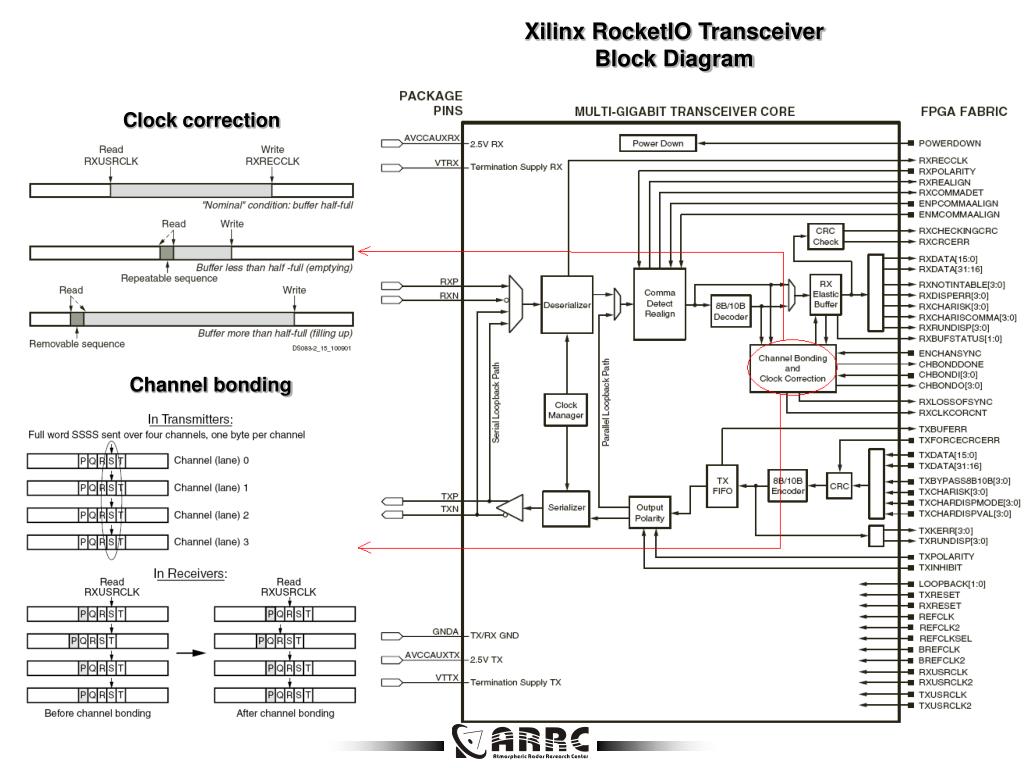

13. Xilinx RocketIO Transceiver Block Diagram Clock correction Channel bonding

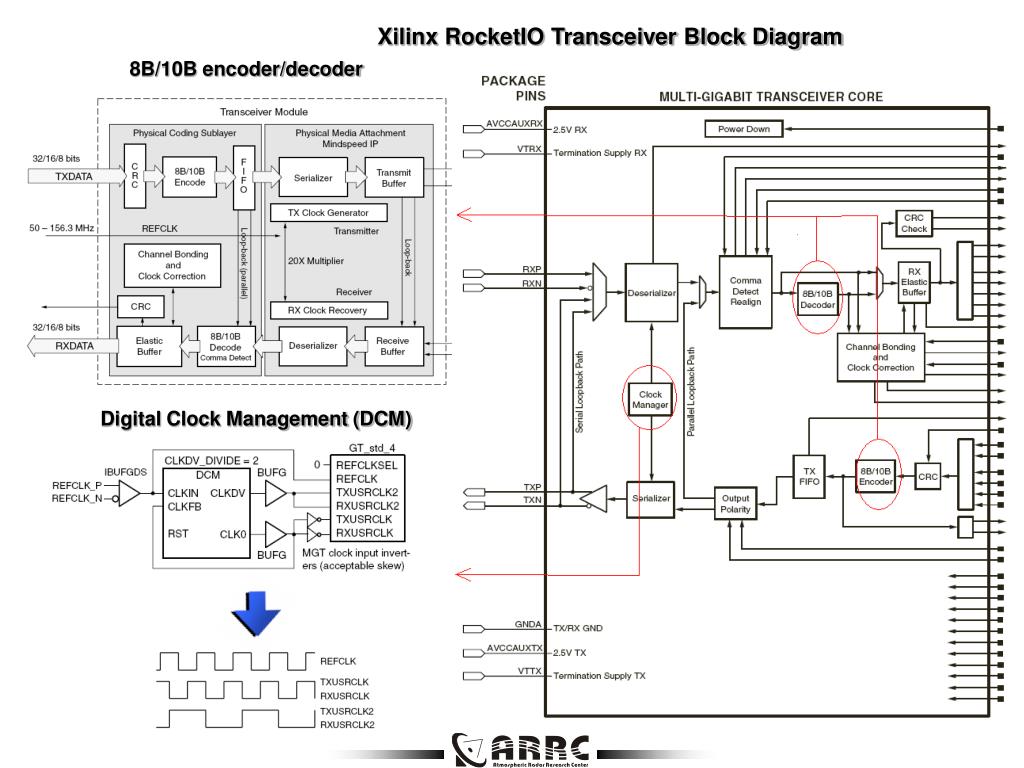

14. Xilinx RocketIO Transceiver Block Diagram 8B/10B encoder/decoder Digital Clock Management (DCM)

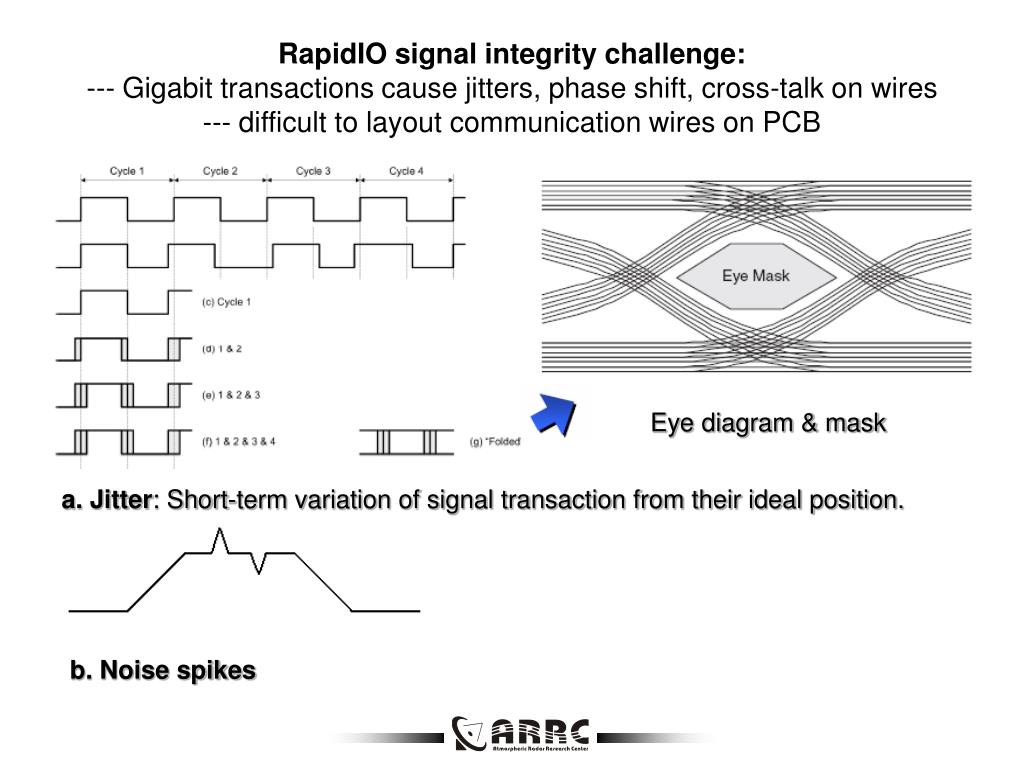

15. RapidIO signal integrity challenge:--- Gigabit transactions cause jitters, phase shift, cross-talk on wires--- difficult to layout communication wires on PCB Eye diagram & mask a. Jitter: Short-term variation of signal transaction from their ideal position. b. Noise spikes

16. Differential Pairs Basis Transmit (TX) & Receive (RX) differential pair N & P nodes of differential pair Differential pair carry complementary signals Advantage: less susceptible to noise, jitters, and cross-talks Better Signal Integrity EMI generation is greatly reduced. This becomes more important as edge rates increase and higher frequencies appear in I/O system.

17. Differential pair’s effect on noise Example: Multi-layer PCB Stack-up If two pair routed very closely together: noise will affect both wires identically Receiving gate: Only interested in difference between two signals ---- less susceptible to noise Outer Trace Width 5.25 mil Inner Trace Width 4.00 mil Differential Spacing 6.75 mil 50 ohm single-ended 100 ohm differential

18. Scope eye diagram of normal test stimulus by 10 inch using conventional twisted line Better eye diagram of Vertex II test platform differential channel with 2 feet of co-ax (Data Rate = 3.125 Gbps)

19. Conventional Differential Pair wires: • Coupled microstrip • Coplanar strip • Strip lines Still have problems: • Crosstalk • Radiated emission New differential pair technology: Twisted Differential Pair : Overcome Crosstalk, Radiated emission Twisted differential line on multi-layer PCB

20. Twisted Differential Pair : Overcome Crosstalk, Radiated emission Comparison of the measured crosstalk voltage waveforms of the two differential line structures: Coulpled microstrip & TDL Measured radiated emission spectrum from the differential lines on a PCB. (a) Radiation from the conventional differential line (b) radiation from the proposed Twisted Differential Line.

21. Black box of the left specific Differential Pair Differential output with different output capacitances Differential Pair Models & Simulation results Tools: Avnet Designer 3.5 HFSS 9.1

22. Conclusion • High-speed serial links are preferable in Phased Array Radar Large data flow rate in MPAR High-speed serial transceiver Save FPGA pin counts • How to implement RapidIO FPGA Physical layer PCB • Challenges in RapidIO design How to keep good signal integrity? Minimize noise, crosstalks, jitters…… • Serial link technologies for RapidIO Clock Correction, 8B/10B converter, Channel Bonding……
