A Brief History of Weather Forecasting

1. A Brief History of Weather Forecasting

2. The Beginning: Weather Sayings • "Red Sky at night, sailor's delight. Red sky in the morning, sailor take warning." • "Mare's tails and mackerel scales make tall ships take in their sails." • "Clear moon, frost soon." • . • "Halo around the sun or moon, rain or snow soon." • "Rainbow in the morning gives you fair warning." • "When the stars begin to huddle, the earth will soon become a puddle."

3. By the late 1700s, reasonable weather instruments became available

4. More and more people took observations….and even some early networks were started

5. The First Weather Forecaster?

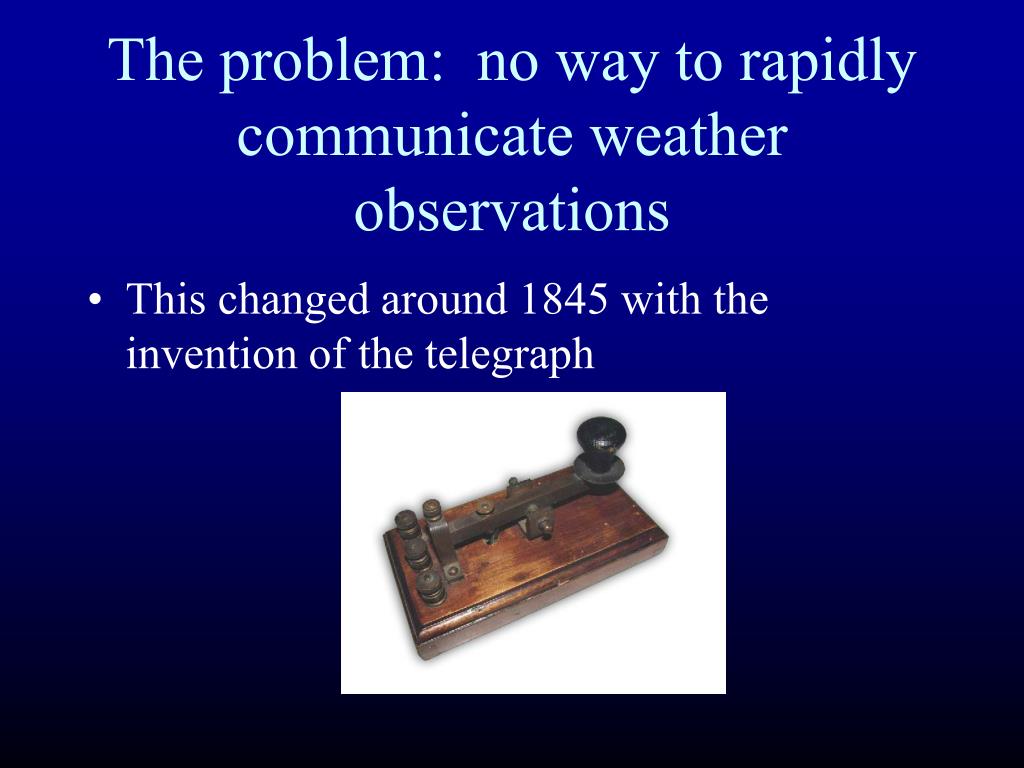

6. The problem: no way to rapidly communicate weather observations • This changed around 1845 with the invention of the telegraph

7. First Real-Time Weather Maps

9. Weather Prediction Began • The main approach to weather prediction during the late 1800s and early 1900s…simple extrapolation using simple schematic “models”

10. L L L

11. “Ol Probs” Cleveland Abbe (“Ol’ Probabilities”), who led the establishment of a weather forecasting division within the U.S. Army Signal Corps, Produced the first known communication of a weather probability to users and the public. Professor Cleveland Abbe, who issued the first public “Weather Synopsis and Probabilities” on February 19, 1871

12. On May 7, 1869, Abbe proposed to the Cincinnati Chamber of Commerce "to inaugurate such a system, by publishing in the daily papers, a weather bulletin, which shall give the probable state of the weather and river for Cincinnati and vicinity one or two days in advance”. Cleveland Abbe released the first public weather forecast on September 1, 1869. Following the signing by President Ulysses S. Grant of an authorization to establish a system of weather observations and warnings of approaching storms, on February 19, 1871, Abbe issued the first “official” public Weather Synopsis and Probabilities based on observations taken at 7:35 a.m.

13. An early example of a report: "Synopsis for past twenty-four hours; the barometric pressure had diminished in the southern and Gulf states this morning; it has remained nearly stationary on the Lakes. A decided diminution has appeared unannounced in Missouri accompanied with a rapid rise in the thermometer which is felt as far east as Cincinnati; the barometer in Missouri is about four-tenths of an inch lower than on Erie and on the Gulf. Fresh north and west winds are prevailing in the north; southerly winds in the south. Probabilities [emphasis added]; it is probable that the low pressure in Missouri will make itself felt decidedly tomorrow with northerly winds and clouds on the Lakes, and brisk southerly winds on the Gulf."

14. The Next Major Advance • The Norwegian Cyclone Model around 1920

15. Next Major Advance: Upper Air Observations Became Available from Radiosonde in the 1920’s, 30s, and 40s

16. 1940s: Upper Air Charts Using the New Data • Gave a 3D picture of what was happening • Learned how the upper flow steered storms, and thus provided a tool for forecasting cyclone movement.

17. Upper Level Chart

18. The Development of Numerical Weather Prediction (NWP) • Vilhelm Bjerknes in his landmark paper of 1904 suggested that NWP was possible. • A set of equations existed that could predict the future atmosphere (primitive equations) • But it wasn’t practical then because there was no reasonable way to do the computations and sufficient data for initialization did not exist.

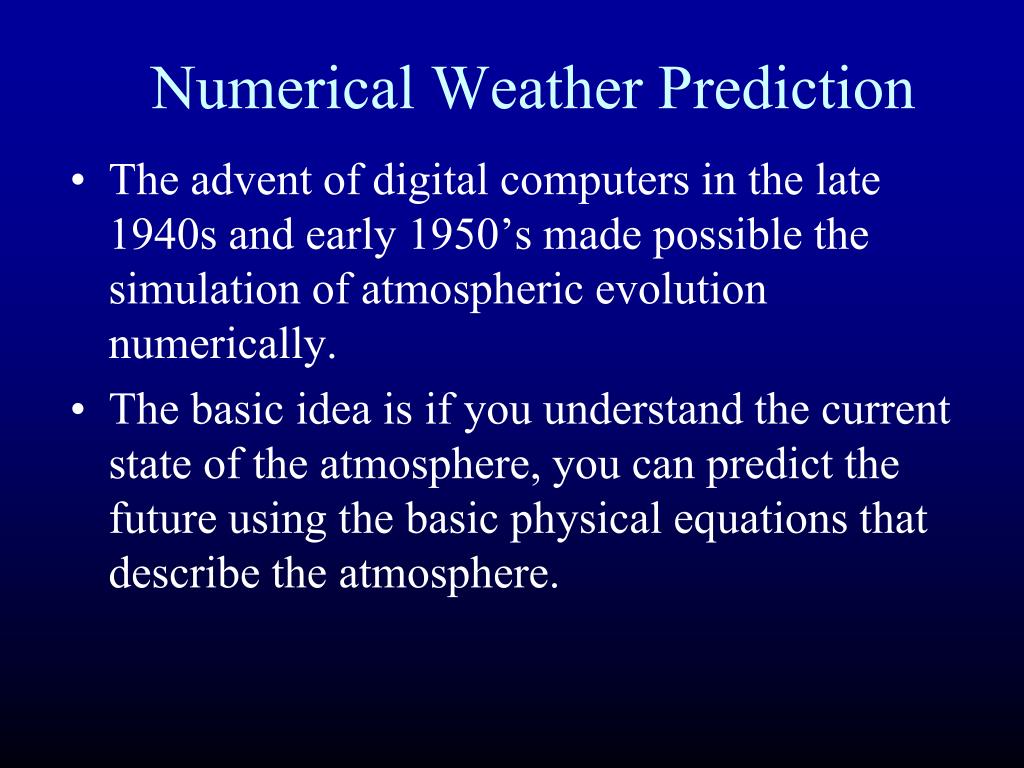

20. Numerical Weather Prediction • The advent of digital computers in the late 1940s and early 1950’s made possible the simulation of atmospheric evolution numerically. • The basic idea is if you understand the current state of the atmosphere, you can predict the future using the basic physical equations that describe the atmosphere.

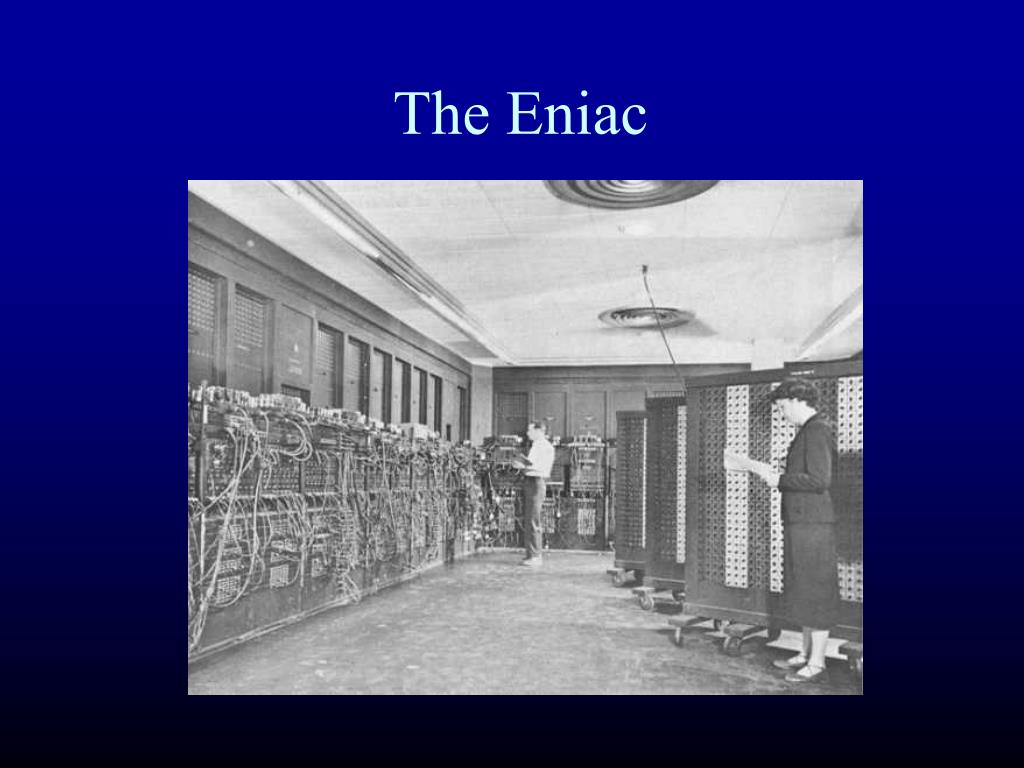

21. The Eniac

22. Numerical Weather Prediction One such equation is Newton’s Second Law: F = ma Force = mass x acceleration Mass is the amount of matter Acceleration is how velocity changes with time Force is a push or pull on some object (e.g., gravitational force, pressure forces, friction) This equation is a time machine!

23. Numerical Weather Prediction Using a wide range of weather observations we can create a three-dimensional description of the atmosphere… known as the initialization

24. Numerical Weather Prediction • Observations give the distribution of mass and allows us to calculate the various forces. • Then… we can solve for the acceleration using F=ma • This gives us the future since the acceleration can be used to calculate the velocities in the future. • Similar idea with temperature and humidity.

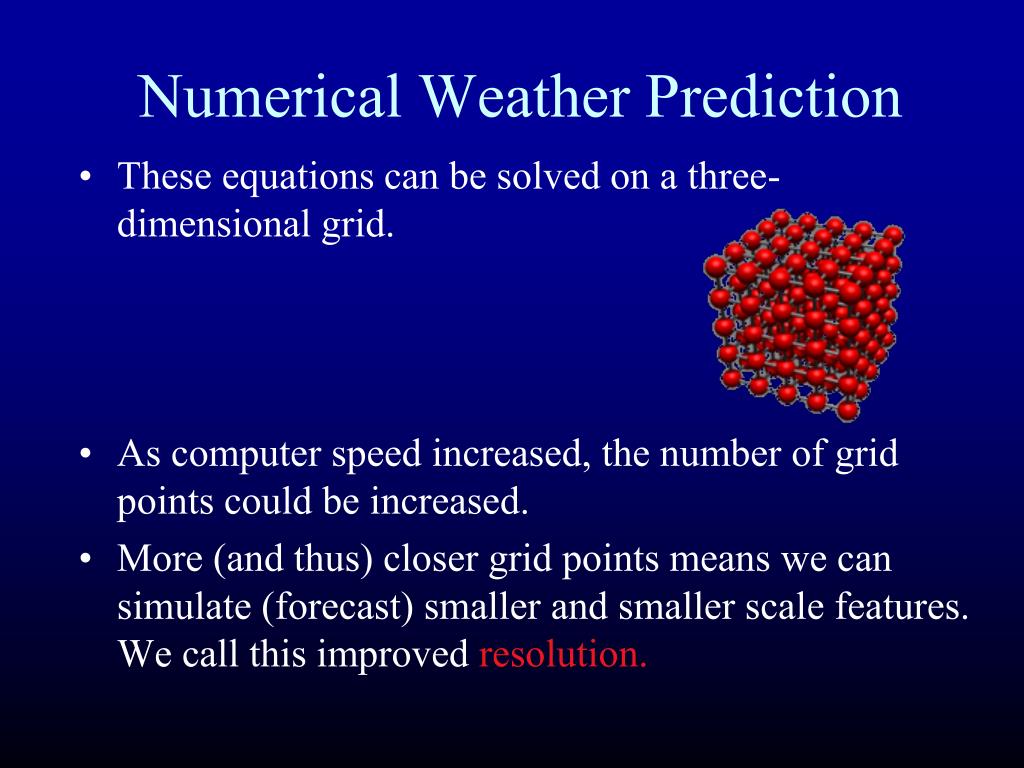

25. Numerical Weather Prediction • These equations can be solved on a three-dimensional grid. • As computer speed increased, the number of grid points could be increased. • More (and thus) closer grid points means we can simulate (forecast) smaller and smaller scale features. We call this improved resolution.

26. A Steady Improvement • Faster computers and better understanding of the atmosphere, allowed a better representation of important physical processes in the models • More and more data became available for initialization • As a result there has been a steady increase in forecast skill from 1960 to now.

27. Forecast Skill Improvement National Weather Service Forecast Error Better Year

28. Satellite and Weather Radars Give Us a More Comprehensive View of the Atmosphere

29. Before Satellites We Had a VERY Poor Knowledge of What Was Happening Over the Oceans! • As a result, forecasts were often very poor, particularly in coastal locations. The 1938 Hurricane was basically unforecast

30. Better than Star Trek!

31. Weather Satellites Give Us Much More than Pretty Pictures • We start with imagery in several wavelengths: • Visible • Infrared • Water vapor (wavelengths where we see the water vapor distribution) • Plus many new capabilities

32. Each wavelength gives us information

33. Cloud and Water Vapor Track Winds Based on Geostationary Weather Satellites

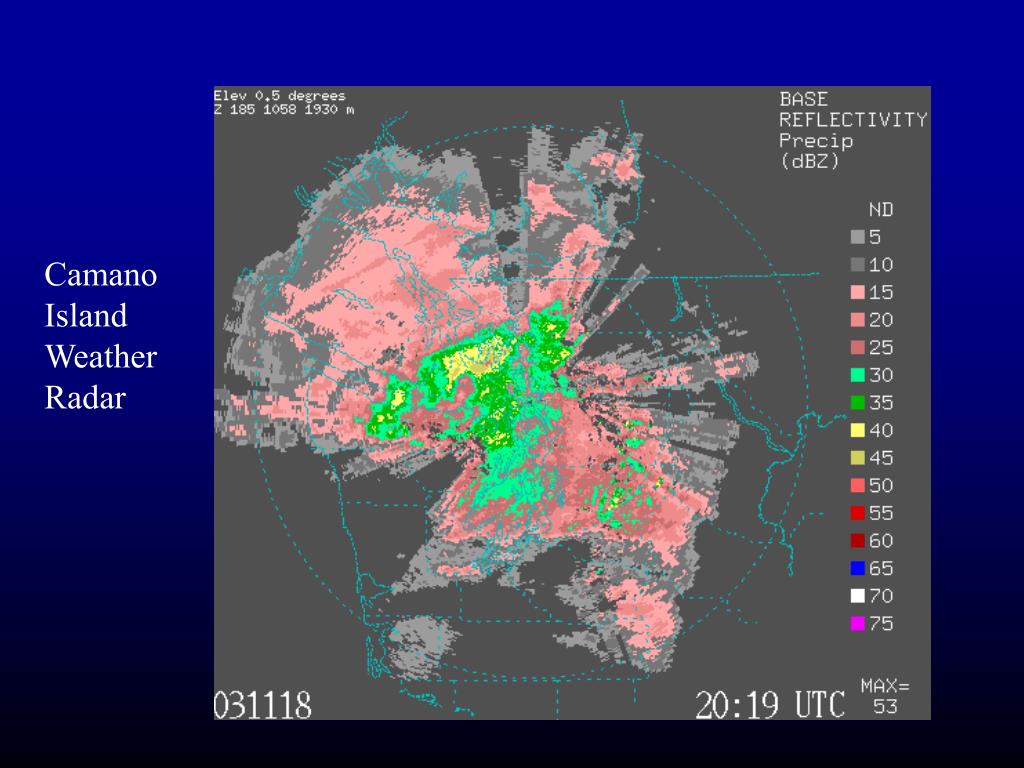

35. Camano Island Weather Radar

37. 1995-2003+The computers models become capable of simulating/forecasting local weather. As the grid spacing decreased to 15 km and below… it became apparent that many of the local weather features could often be simulated and forecast by the models.

42. The National Weather Service Forecaster at the Seattle National Weather Service Office

43. But even with all this improving technology, some forecasts fail or are inadequate. Why?

44. Problems with the Models • Some forecasts fail due to inadequacies in model physics…. How the model handles precipitation, friction, and other processes. Example: too much precipitation on mountain slopes • Intensive work at the UW to address this problems.

45. Some forecasts fail due to poor initialization, i.e., a poor starting description of the atmosphere. This is particularly a problem for the Pacific Northwest, because we are downstream of a relatively data poor region…the Pacific Ocean.

46. Pacific Analysis At 4 PM 18 November 2003 Bad Observation

47. Eta 48 hr SLP Forecast valid 00 UTC 3 March 1999 3 March 1999: Forecast a snowstorm … got a windstorm instead

48. The problem of initialization should lessen as new observation technologies come on line and mature.New ways of using or assimilating the data are also being developed.

50. A More Fundamental Problem • In a real sense, the way we have been forecasting is essentially flawed. • The atmosphere is a chaotic system, in which small differences in the initialization…well within observational error… can have large impacts on the forecasts, particularly for longer forecasts. • Not unlike a pinball game….
