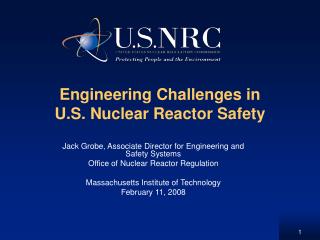

  1. Engineering Challenges in U.S. Nuclear Reactor Safety Jack Grobe, Associate Director for Engineering and Safety Systems Office of Nuclear Reactor Regulation Massachusetts Institute of Technology February 11, 2008

  2. Agenda • NRC Overview • NRC Educational Support Activities • NRR Overview • Operating and New Reactors • Operating Reactor Trends and Technical Issues • Digital Instrumentation & Control Issues

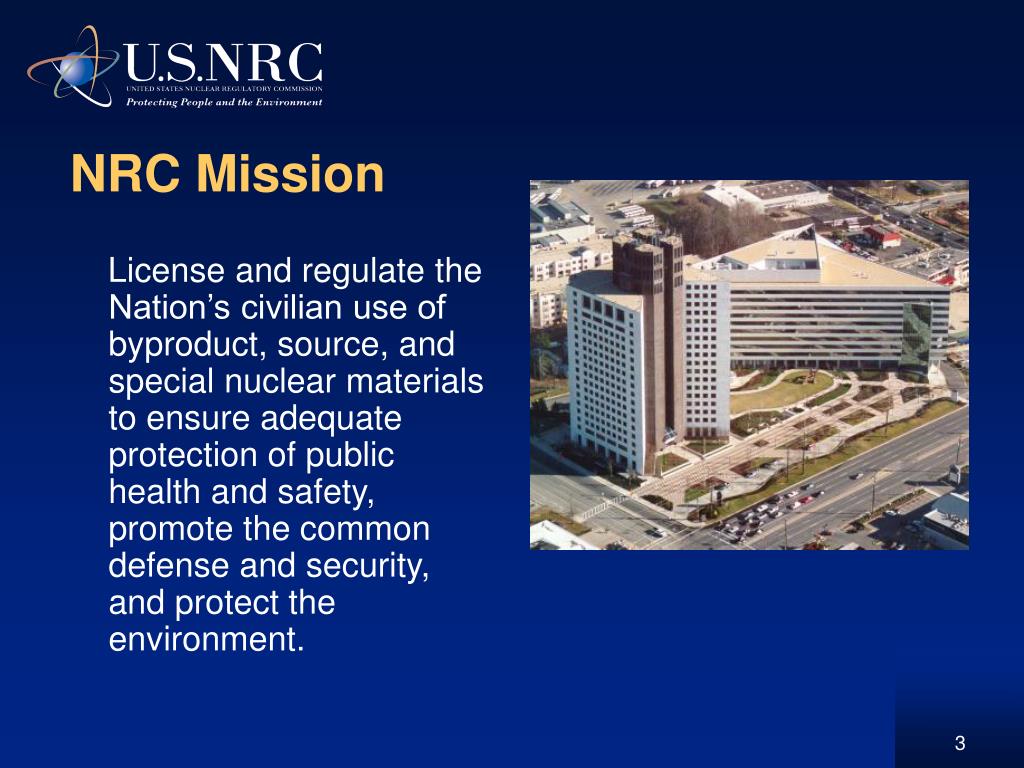

  3. NRC Mission License and regulate the Nation’s civilian use of byproduct, source, and special nuclear materials to ensure adequate protection of public health and safety, promote the common defense and security, and protect the environment.

  4. NRC Regulatory Functions • Establish standards, regulations and requirements • Issue licenses for nuclear facilities and users of nuclear materials • Inspect facilities and users of nuclear materials to ensure compliance with requirements

  5. NRC Organization • Two Major Programs • Nuclear Reactor Safety Program • Accounted for 74% of NRC’s costs in FY 2007 • Nuclear Materials and Waste Safety Program • Accounted for 26% of NRC’s costs in FY 2007

  6. NRC Budgetary Authority FY 2002-2008 (In millions)

  7. NRC Personnel Ceiling FY 2002-2008 (Staff)

  8. NRC Grant Opportunities • NRC FY 2008 Budget includes $ 19.7 million in educational support to colleges, universities, and trade schools. • NRC Grant Programs: • Nuclear Education Grant Program • $4.7 million towards curriculum development. • Scholarships and Fellowship Grant Program • $15 million towards scholarships and fellowships at colleges, universities, and trade schools.

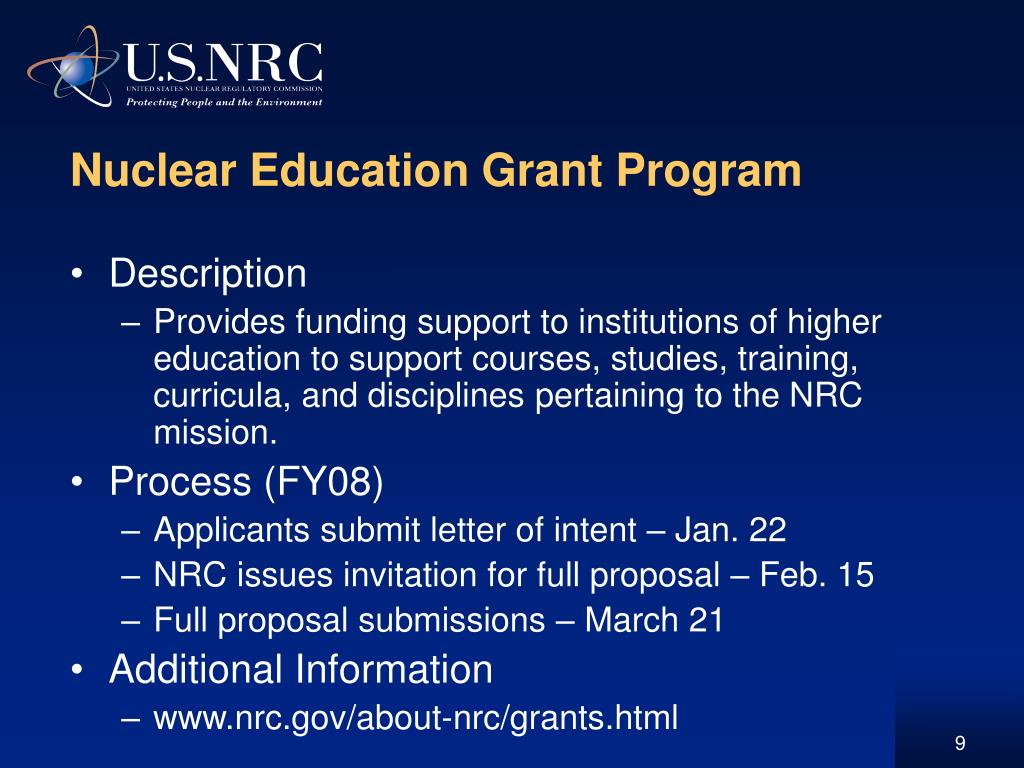

  9. Nuclear Education Grant Program • Description • Provides funding support to institutions of higher education to support courses, studies, training, curricula, and disciplines pertaining to the NRC mission. • Process (FY08) • Applicants submit letter of intent – Jan. 22 • NRC issues invitation for full proposal – Feb. 15 • Full proposal submissions – March 21 • Additional Information •

  10. Scholarship and Fellowship Grant Program • Description • Allows students to pursue an education in science, engineering, or other fields or study related to the NRC mission. • Requirements • Recipients agree to 1 year employment for each full or partial year of academic support. • Eligible applicants attend regionally accredited 4-year U.S. public and private institutions of higher education. • Strong interest in areas of probabilistic risk, thermodynamics, mechanics, fuels, and digital instrumentation and controls. • Additional Information • Solicitation will be posted on during the week of February 11, 2008.

  11. Office of Nuclear Reactor Regulation • What does NRR do? • Contributes to the NRC mission to protect public health, safety, and the environment for reactors regulated under 10 CFR Part 50 • How does NRR do this? • By developing and implementing the following major reactor programs: - Rulemaking - Licensing - Oversight, and - Incident Response

  12. Operating Power Reactors

  13. Research & Test Reactors

  14. EPR Amarillo Power Ameren UE PPL Generation UNISTAR AP1000 Duke NuStart Progress Energy S.C. Electric & Gas Southern Co. US APWR TXU Power US ABWR NRG Energy ESBWR Dominion Entergy NuStart Potential New Reactor Applicants

  15. Recent NRR Activities • Safety of Operating Reactors • Recent Trends • Operating Experience • Safety Culture • Extended Power Uprates (EPU) – Steam Dryer Analysis • Alloy 82/182 Dissimilar Metal Butt Weld (DMBW)

  16. 7 Cornerstones of ROP

  17. 2006 Average Industry Performance(Secy-07-0063 / 4-3-07 / ML070660099)

  18. 2006 Average Industry Performance(Secy-07-0063 / 4-3-07 / ML070660099)

  19. 2006 Average Industry Performance(Secy-07-0063 / 4-3-07 / ML070660099)

  20. Action Matrix Trends

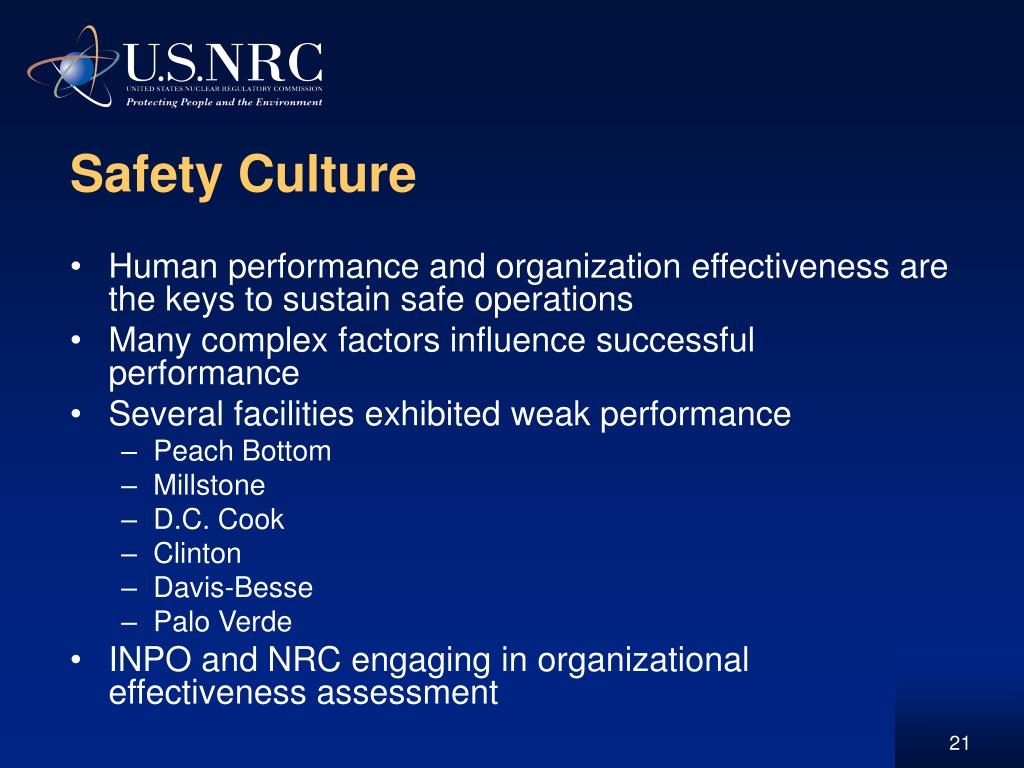

  21. Safety Culture • Human performance and organization effectiveness are the keys to sustain safe operations • Many complex factors influence successful performance • Several facilities exhibited weak performance • Peach Bottom • Millstone • D.C. Cook • Clinton • Davis-Besse • Palo Verde • INPO and NRC engaging in organizational effectiveness assessment

  22. Safety Culture • Fall 2002 – INPO SOER • Immediate requirement • All facilities perform assessment • Report results to INPO • IAEA Documents • INSAG-15, “Key Practical Issues in Strengthening Safety Culture.” • INSAG-4, “Safety Culture.” • INSAG-13, “Management of Operational Safety in Nuclear Power Plants.” • NRC Regulatory Information Summary 2006-13, “Information on the Changes Made to the Reactor Oversight Process to More Fully Address Safety Culture” • Evaluate safety culture weaknesses • Structured process for assessing results • Cross cutting attributes

  23. Extended Power Uprates- Steam Dryers • Many licensees have been implementing power uprates to increase nuclear power electric output. • Some boiling water reactors have experienced adverse flow effects on safety related and non-safety related equipment during power uprate operation. • Most significant problems occurred at Quad Cities Units 1 and 2, which experienced failures of steam dryers and electromatic relief valves during Extended Power Uprate (EPU) operation. • Licensees need to consider potential adverse flow effects when planning to implement a proposed power uprate.

  24. Boiling Water Reactor Pressure Vessel

  25. QC1 Steam Dryer FailureNovember 2003(close-up) Missing portion of outer bank vertical plate, approx. 6 in. x 9 in.

  26. QC2 Steam Dryer FailureMarch 2004 Tie bar to attachment welds Plate attachment stitch weld Tip of gusset plate

  27. Singing Safety-Relief Valve

  28. Quad Cities Unit 2 Spring 2006 MSL B Strain Gage Data Compared to Pre-ASB Data

  29. ASB Modification Relief valve ASB

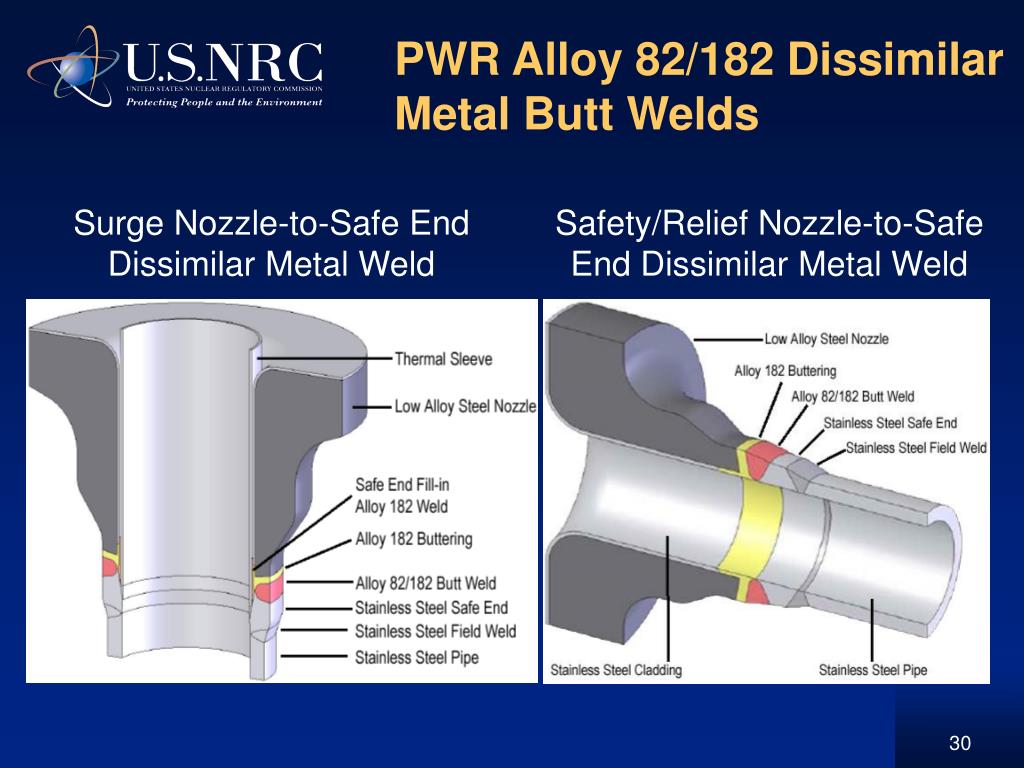

  30. PWR Alloy 82/182 Dissimilar Metal Butt Welds Surge Nozzle-to-Safe End Dissimilar Metal Weld Safety/Relief Nozzle-to-Safe End Dissimilar Metal Weld

  31. Alloy 82/182 Dissimilar Metal Butt Welds • Stress corrosion cracking • Residual stress • Challenging environment • Susceptible material • NDE identified flaws in Alloy 82/182 welds due to PWSCC beginning in 2000. • Circumferential involvement was limited until 2006. • 5 circumferential indications discovered in Wolf Creek pressurizer nozzle welds in October 2006: • Up to 50 percent circumferentially; 40 percent through-wall • One weld contained three circumferential cracks NRC concerns: • First case of multiple, long, circumferential flaws

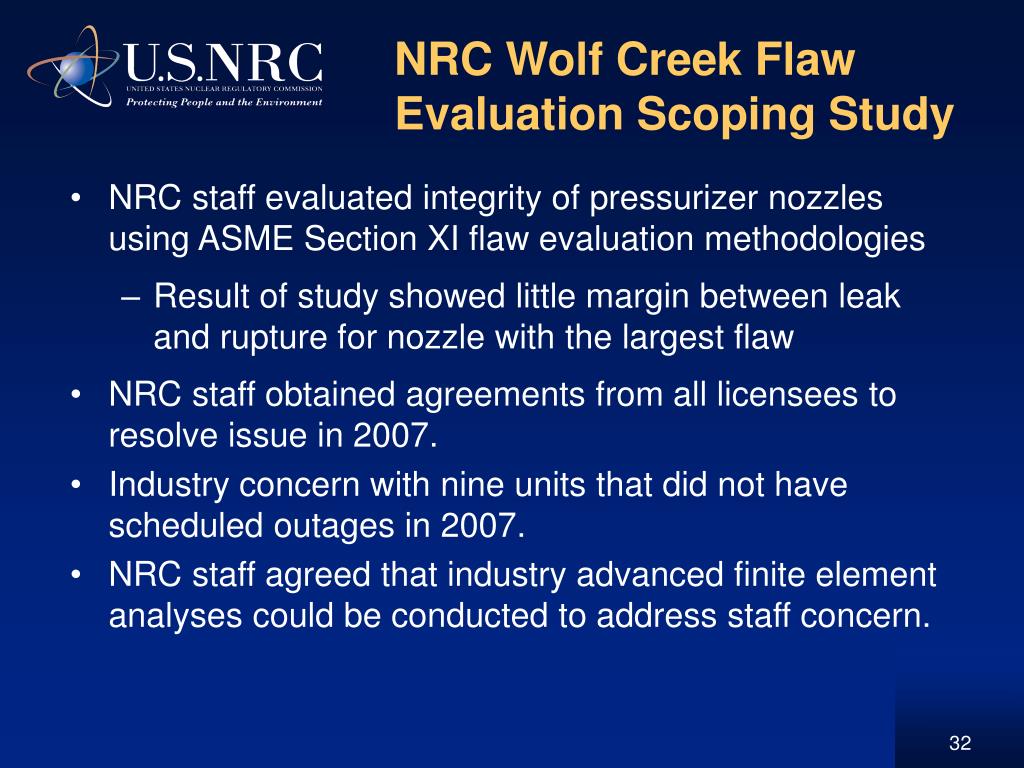

  32. NRC Wolf Creek Flaw Evaluation Scoping Study • NRC staff evaluated integrity of pressurizer nozzles using ASME Section XI flaw evaluation methodologies • Result of study showed little margin between leak and rupture for nozzle with the largest flaw • NRC staff obtained agreements from all licensees to resolve issue in 2007. • Industry concern with nine units that did not have scheduled outages in 2007. • NRC staff agreed that industry advanced finite element analyses could be conducted to address staff concern.

  33. Advanced Finite Element Analyses • Industry’s advanced finite element analyses were completed in August 2007 (ML072410240) • NRC staff completed confirmatory analyses (ML072470394) • NRC staff issued safety assessment (ML072400199) concluding reasonable assurance that PWSCC in pressurizer nozzles of the nine plants would not lead to rupture without adequate time to shutdown the facility • allowed operation to the spring 2008 outages to complete pressurizer nozzle inspections

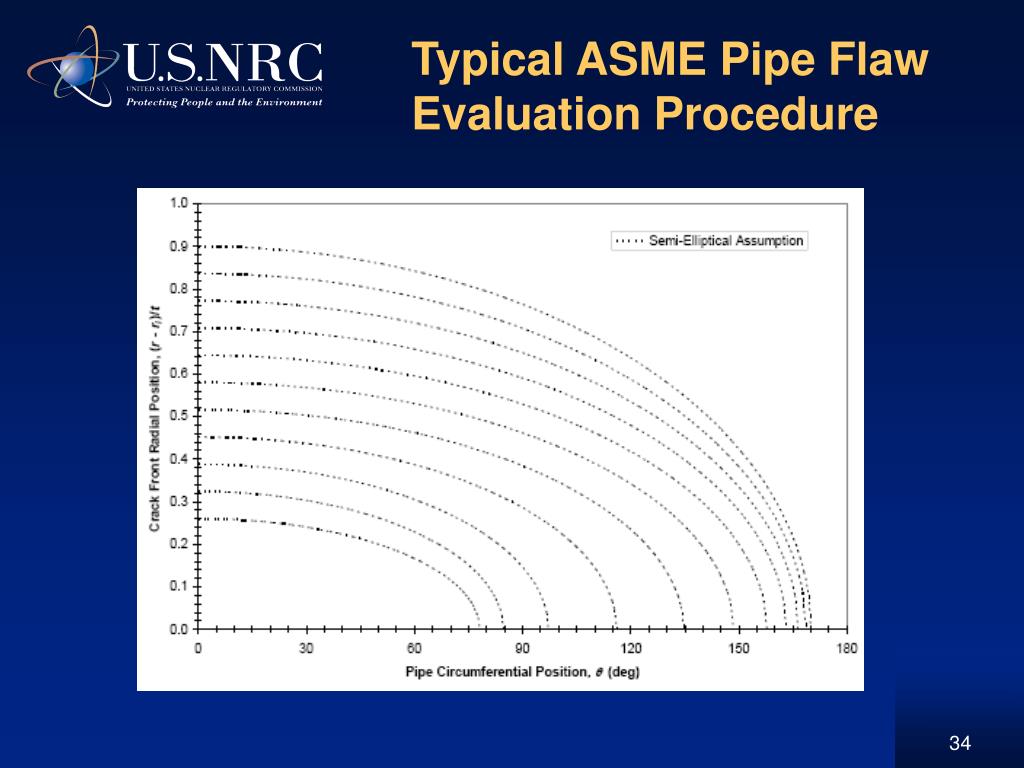

  34. Typical ASME Pipe Flaw Evaluation Procedure

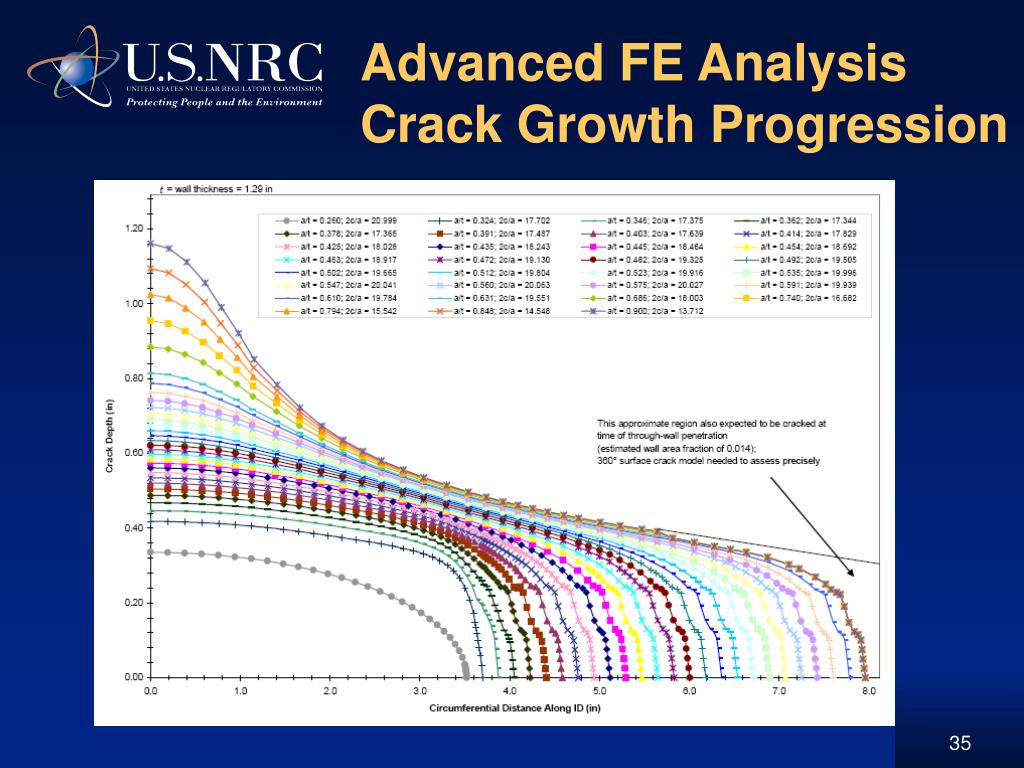

  35. Advanced FE Analysis Crack Growth Progression

  36. Advanced FE Analysis Crack Growth 36

  37. Technical Issues: Operating Reactors • Fire Protection • Proactive materials degradation assessment • Integrated digital I&C and human- machine interface

  38. Fire Protection • Fire barrier performance • Potential issues with performance of Thermo-Lag and other barrier systems • Confirmatory studies • HEMYC performance • Cable performance • Potential for multi-conductor cable failures in fires • Confirmatory studies • CAROLFIRE tests

  39. Technical Issue: Materials Degradation • Materials degradation has been experienced worldwide since the inception of nuclear power plant operation • Degradation is expected to continue as plants age • Develop technical basis for proactive materials degradation management • Identify components where degradation can reasonably be expected in the future • Coordinate research for effective implementation of proactive materials degradation management

  40. Digital I&C Issues

  41. Current Technology

  42. Future Technology

  43. Digital I&C Challenges • Increased complexity • Consolidation of discrete analog functions into single digital system • Potential consolidation of independent safety systems into a single digital system • Potential new failure modes • Limited operational history in nuclear applications • Specialized staff skills

  44. Digital I&C Project • Steering Committee established January 2007 • Seven Task Working Groups (TWGs) have been formed: • Cyber Security • Diversity and Defense-In-Depth • Risk-Informed Digital I&C • Highly Integrated Control Room – Communications • Highly Integrated Control Room – Human Factors Issues • Licensing Process Issues • Fuel Cycle Facilities • Goal is to develop Interim Staff Guidance (ISG) licensing guidance for digital issues • Developed Digital I&C Website:

  45. Cyber Security ISG • Clarifies the NRC staff’s guidance on cyber security requirements • Addresses entire plant including safety and nonsafety systems programmatically • Reg. Guide 1.152 positions 2.1 through 2.9 address cyber security licensing criteria for safety systems • ISG issued and placed on Digital I&C Website on December 31, 2007

  46. Diversity and Defense-in-Depth (D3) ISG • Clarifies what is adequate diversity • Clarifies applicability of Common Cause Failure (CCF) in digital systems • CCF even though beyond design basis requires diverse RPS (RTS and ESFAS) for digital systems • Clarifies time required (30 minutes) for taking credit for manual actions • Clarifies position on system level vs. component level actuation • ISG issued and placed on Digital I&C Website on 9/26/2007

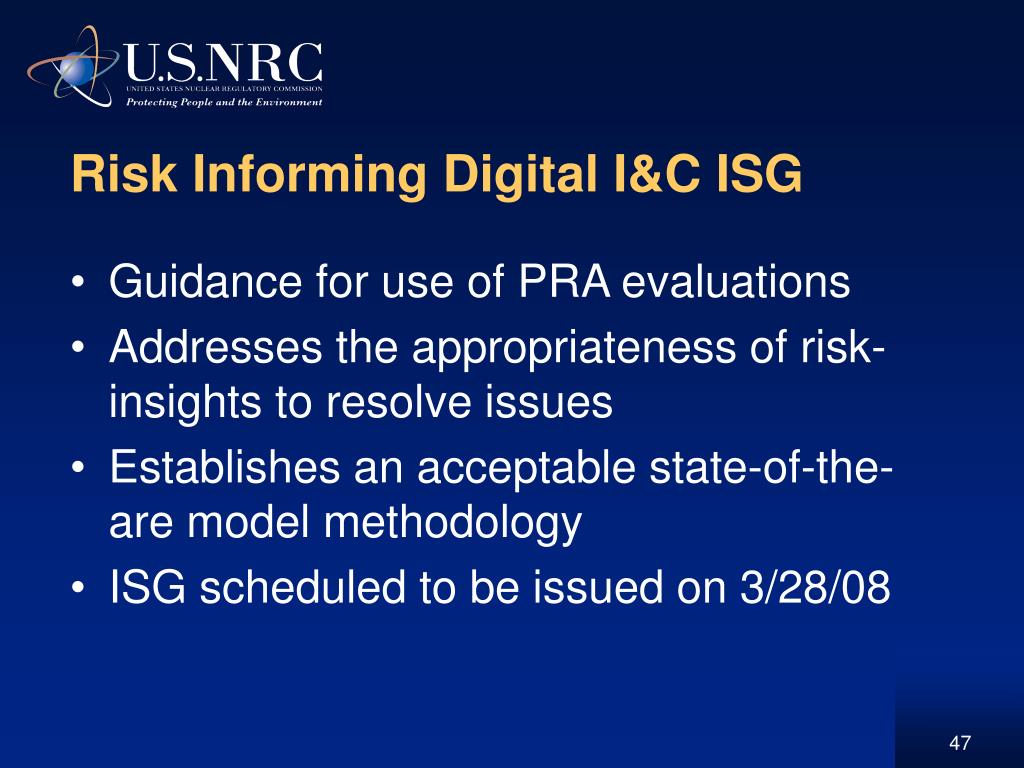

  47. Risk Informing Digital I&C ISG • Guidance for use of PRA evaluations • Addresses the appropriateness of risk-insights to resolve issues • Establishes an acceptable state-of-the-are model methodology • ISG scheduled to be issued on 3/28/08

  48. Highly Integrated Control Room - Communications ISG • Addresses communication between different safety divisions and between safety division and non-safety equipment • Provides guidance for command prioritization • Provides guidance for Multidivisional Control and Display Stations • ISG was issued on 9/28/2007 and placed on the Digital I&C Webpage

  49. Highly Integrated Control Room – Human Factors Issues ISG • Clarifies approach the NRC staff would use to evaluate acceptable human factors aspects of highly-integrated control rooms • Guidance on minimum inventory for the Main Control Room and the Remote Shutdown Facility • Guidance on development, use, update (including software controls), and automation of Computer-Based Procedures System • ISG was issued on 9/28/2007 and placed on the Digital I&C Webpage

  50. Licensing Process Issues ISG • Clarifies the level of detail necessary for licensing reviews • Guidance on applicability of SRP, Ch. 7 • Clarifies protocols for licensing action application development • Guidance on cyber security • ISG (w/o cyber security) scheduled to be issued on 7/31/08
