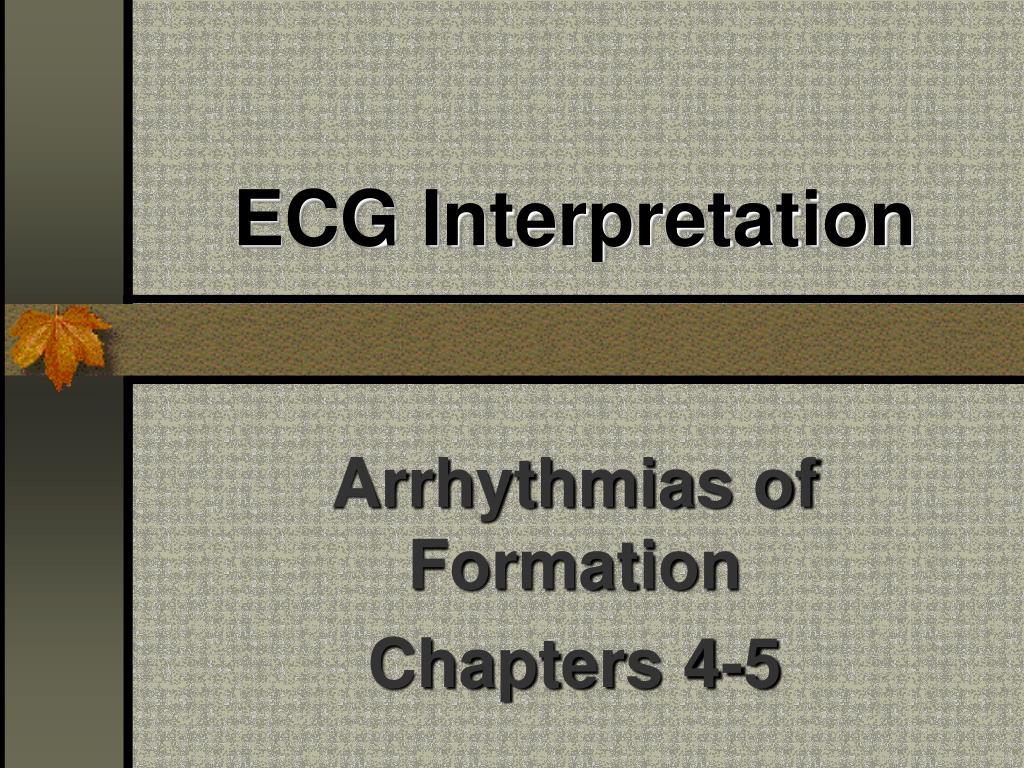

  1. ECG Interpretation Arrhythmias of Formation Chapters 4-5

  2. Types of Arryhthmias: • Sinus Problems: Formed in the sinus node, but irregular • Ectopic Problems: Formedoutside of the sinus node • Conduction Problems: Formed in the sinus node, but conduction in error • Pre-Excitation Problems: “Short circuits” in normal conduction

  3. Causes of Arrhytmias: • Hypoxia: Lung disease • Ischemia: CAD, angina (local hypoxia) • Sympathetic Stimulation: Nervous, exercise, CHF, hyperthyroidism • Drugs: Caffeine, cocaine, stimulants…many antiarryhtmic drugs… • Electrolyte Disturbances: K+, Ca++, Mg++ • Bradycardia: “Escape” rhythms… • Stretch: CHF, hypertrophy, valve disease

  4. Rhythm ID: Algorithm • P-Wave: rate and rhythm • QRS: rate and rhythm - shape • P-R Interval: Is AV conduction normal? P:QRS regular? • T Wave and QT Interval • Any unusual complexes? • IS IT DANGEROUS?

  5. Clinical Manifestations: • Asymptomatic – generally benign • Palpitations – Awareness may cause anxiety • Compromised CO – Syncope • Myocardial Ischemia – tachy • CHF – Chronic insufficiency • Sudden Death – Cardiac arrest

  6. Define “Normal” • Regular Atrial and Ventricular Rhythms: 1P : 1 QRS • Rates: 60-100 • P Morphology: small, round, regular and positive in Lead II • QRS Morph: Similar size and shape • Positive T waves in Lead II

  7. P-Wave: • 1.SA Node “fires” • 2. Right and Left Atria Depolarize • 3. AV Node “pauses” • Questions: • P waves present? • Regular rhythm? • 1/QRS? AV Node SA Node LA/RA Depol

  8. Sinus Rhythms • Normal Sinus Rhythm: 1P/QRS: 60-100 bpm • Sinus brady: 1P/QRS: <60 bpm • Sinus tachy: 1P/QRS: >100 bpm • Sinus Arrhythmia: 1P/QRSNormalIrregularities caused by inspiration/expiration – more noticeable in children / elderly

  9. ABSENT PQRS Complex: Sinus Arrest: • Causes: • Heart disease, acute infection, VAGAL stimulation (Bush’s Pretzel Problem?) • Sick Sinus Syndrome: Usually in elderly – more irregular • DANGER? • Rare and asymptomatic • Frequent and symptomatic

  10. Atrial Arrhythmias: • PAC: Premature Atrial Contraction • Atrial Tachycardias: SVT – with or without blocks, PAT • Atrial Flutter: • Atrial Fibrillation

  11. Premature Atrial Contractions: • Ectopic • Triggered by: Alcohol, nicotine, anxiety, fatigue, fever, and infections • Usually benign • Clinical Manifestations: Palpitations or “skipped beats”

  12. PAC - ID: • Irregular P-R rhythms • Premature, irregular P waves (sometimes “lost” in the T wave)

  13. Atrial Tachycardias: • Also: Supra Ventricular Tachycardia (PSVT) • Rates: 100-250 bpm • Regular Rhythms • “Hidden” P waves (could be inverted – indicating a Junctional focus PSVT) • PAT = Common in warm-up/cool down and doesn’t respond to Carotid Massage (don’t try this!)

  14. Afib – Aflut…

  15. Atrial Fibrillation: Atrial Fib and/or PSVT?

  16. Atrial Flutter: 2:1 Ventricular “capture” Ventricles can only respond to every other Atrial conduction

  17. Multi-focal origins -chaotic Rate: >400 bpm IRREGULAR-R Atrial Cardiac Output is lost : One focus - organized Rate: 200-400 bpm Atrial Cardiac Output is compromised Fibrillation vs. Flutter? Atria contribute ~20% of the total Cardiac output: A-Fib is non-lethal

  18. Summarize: Sinus and Atrial Rhythms • Sinus: Normal, Tachy, Brady • Absent P: Sinus Arrest, A-fib, Junctional (PSVT), PAT • Weird P: A-Flut, PAC

  19. Formation Arrhythmias Junctional and Ventricular Chapters 6-7

  20. Junctional: • Form in the AV (Junction) Node • May be an “Escape” rescue if SA node fails to fire or conduct • Escape Rate ~40-60 bpm • May be an “Ectopic” Irritable Focus • Ectopic Rate ~ 60-100 bpm • Responds to vagal stimulus • P Waves inverted, missing or after the QRS

  21. Ventricles: QRS Rhythms • Regular rhythms? • R-R intervals equivalent • Regular “irregular” rhythms? • R-R intervals equivalent with occasional irregularities • Irregular rhythms? • R-R intervals irregular

  22. Regular “Irregular” • Premature Beats: PVC • Widened QRS, not associated with preceding P wave • Usually does not disrupt P-wave regularity • T wave is “inverted” after PVC • Often Followed by compensatory ventricular pause

  23. Notice a Pattern in the PVC’s?

  24. PVC Patterns: • PVC: 1 Isolated beat • Couplet: 2 consecutive PVC’s • Bigeminy: PVC every other beat • Non-Sustained VT: >3 beats for less than 1 minute • Sustained VT: > 1 minute of ventricular tachycardia

  25. Irregular Ventricular Rhythms: CHAOTIC • Ventricular Fibrillation: • Multi-focal origins • Irregular wave morphologies • Cardiac Output = 0 • Coarse vs. Fine V-Fib

  26. Clinical Manifestations – PVC’s • Often benign BUT • Compromised CO • Possibly precipitate a lethal arrhythmia: Vtach, VFib

  27. More on PVC’s • Cardiac Output: Pulse deficit = reduced CO (~20%) • One PVC usually asymptomatic • Symptoms: LOC or dizziness demand treatment • Risk of Lethal Arrhythmias: V-Tach more dangerous in CAD

  28. Rules of Malignancy: • Frequency: > 6 / minute • Runs: 3+ consecutive • Multiform • “R on T” • PVC’s during MI

  29. What is the threat of sustained Ventricular Tachycardia?1. What happens to diastole? 2. What happens to Cardiac Output? 3. What happens to myocardial perfusion?4. What happens to myocardial VO2?

  30. Winslow Homer: “The Stile”
