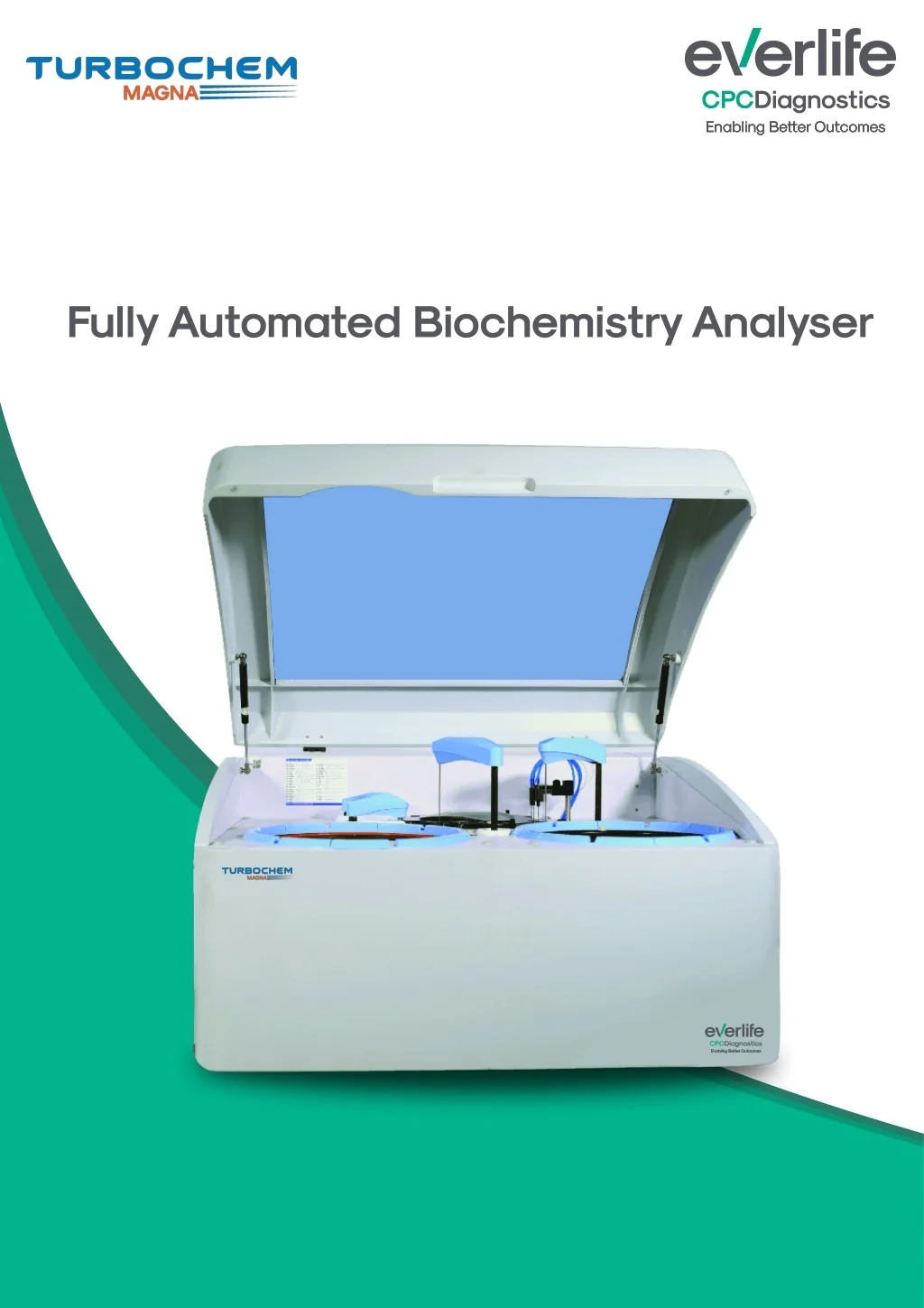

1. Fully Automated Biochemistry Analyser

2. Key Features: Constant throughput of 300 Test/Hour Guarantees output in any combination : Reagent and Sample Tray Load more reagents and samples simultaneously : Intelligent QC Management Enable QC rules that suit you : Bi-directional LIS connectivity Ensures superior lab process : Specially designed Mixer Ensures homogeneous mixing of reagents and samples : LAUNDRY SYSTEM A5-step laundry mechanism, ensuring guaranteed accuracy and precision and longer cuvette life. PIPETTING MECHANISM The probe features digital liquid level detection and vertical collision protection. The probe is made of stainless steel to minimize reagent and sample cross-contamination. CALIBRATION & QC Linear and non-linear calibration options. Quality Control (QC) plots follow the Westgard multi-rules and include L-J charts for daily and cumulative statistics. REAGENT CAROUSEL 80 reagent and 120 sample positions - highest among this segment. Continuous and efficient cooling ensures superior reagent on-board stability. www.cpcdiagnostics.in

3. Feel  the power of remote connectivity Real time online Application & Service support Dedicated technical team offering support in 8 languages.  Power of system pack Guaranteed number of tests ensuring zero wastage Enhanced on-board and calibration stability Wider Test menu Renal Profile: Lipid / Cardiac Profile: Minerals: Diabetic Profile: Urea CK MB & CK NAC Calcium Glucose Creatinine HDL Direct Magnesium HbA1c Uric Acid LDL Direct Phosphorus Microalbumin Triglycerides Enzymatic Creatinine Cholesterol LDH Ultra Sensitive CRP Immuno Turbidimetry: Liver Function Test: Other Enzymes: And Many More.... SGOT Alkalin Phosphatase ASO SGPT Amylase CRP Lipase Biliubin Total & Direct Lipase RF Albumin Protein GGT www.cpcdiagnostics.in

4. Specifications System Random access Bio chemistry analyser Throughput Constant, 300 Tests/Hour Sampling System No. of positions 120 2-30 µl Aspiration volume STAT Facility Available, anytime, any position can be used Reagent System No. of positions 80 20-300 µl Aspiration volume Onboard Cooling Available with 2-8°C Independent probes for reagents and samples Probe Reaction System 81 (semi disposable) Reaction Cuvettes Reaction Temperature 37°C ± 0.1°C 8 filters (340, 405, 450, 510, 546, 578,630,670)nm Photometry Optical Source Tungsten Halogen Lamp Available ,Pre-dilution and Post-dilution Automatic Sample Dilution Mixing 2 independent mixers 5 steps washing with drying Onboard Washing Water consumption 11L/hr 200~240V Interface Operating System Windows 10 Available for reagents and samples (optional) Barcode LIS facility Bi-directional Dimension 978mm(W)x784mm(D)x773(H) Footprint 89kgs Weight CPC Diagnostics Pvt. Ltd. 4th Floor, westminster, 108, Dr. Radhakrishnan Salai, Mylapore Chennai- 600 004 +91 8754468400 marketing@cpcdiagnostics
