  1. The Hand Bucky Boaz, ARNP-C

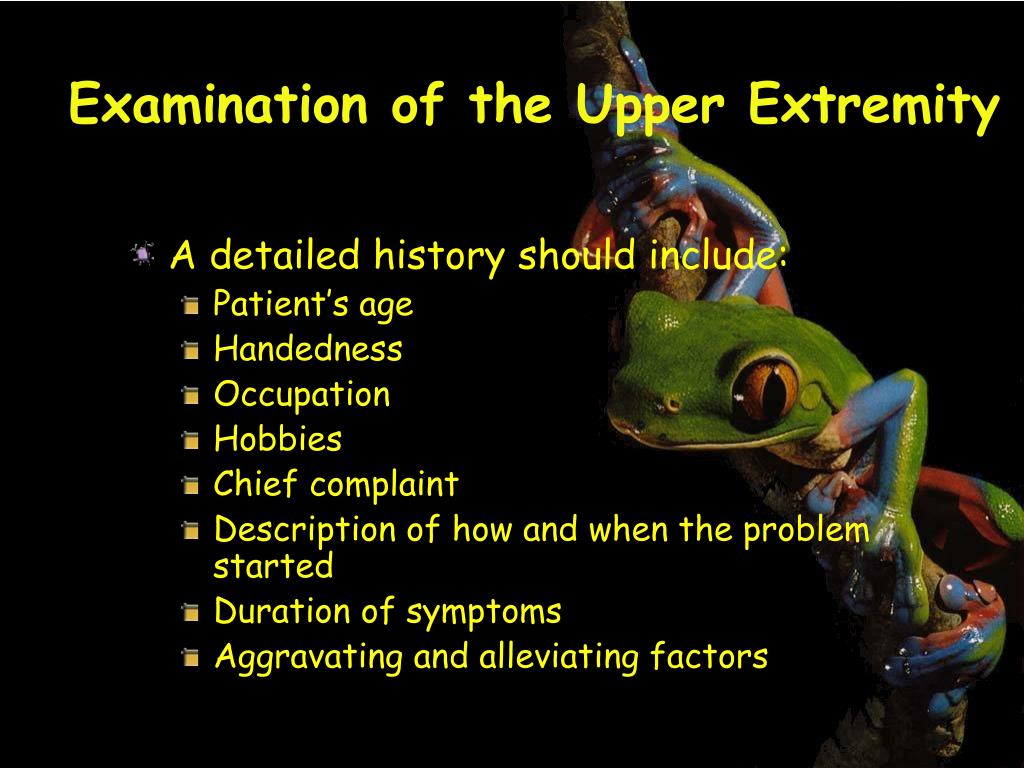

  2. Examination of the Upper Extremity • A detailed history should include: • Patient’s age • Handedness • Occupation • Hobbies • Chief complaint • Description of how and when the problem started • Duration of symptoms • Aggravating and alleviating factors

  3. Examination of the Upper Extremity • If an injury is involved: • The environment in which the injury or insult occurred should be determined. • If crush injury, are heat or chemicals involved? • Was the environment clean or dirty? • Past medical history is useful in the presence of systemic conditions that have manifestations in the hand.

  4. Anatomy Review • Bones • Distal radius and ulna • Carpals metacarpals • Phalanges • Proximal • Middle • Distal

  5. Anatomy Review • Joints • DRUJ • Carpal-Metacarpal • Metacarpal-Phalangeal • Proximal Interphalangeal • Distal Interphalangeal DIP PIP M-P C-M DRUJ

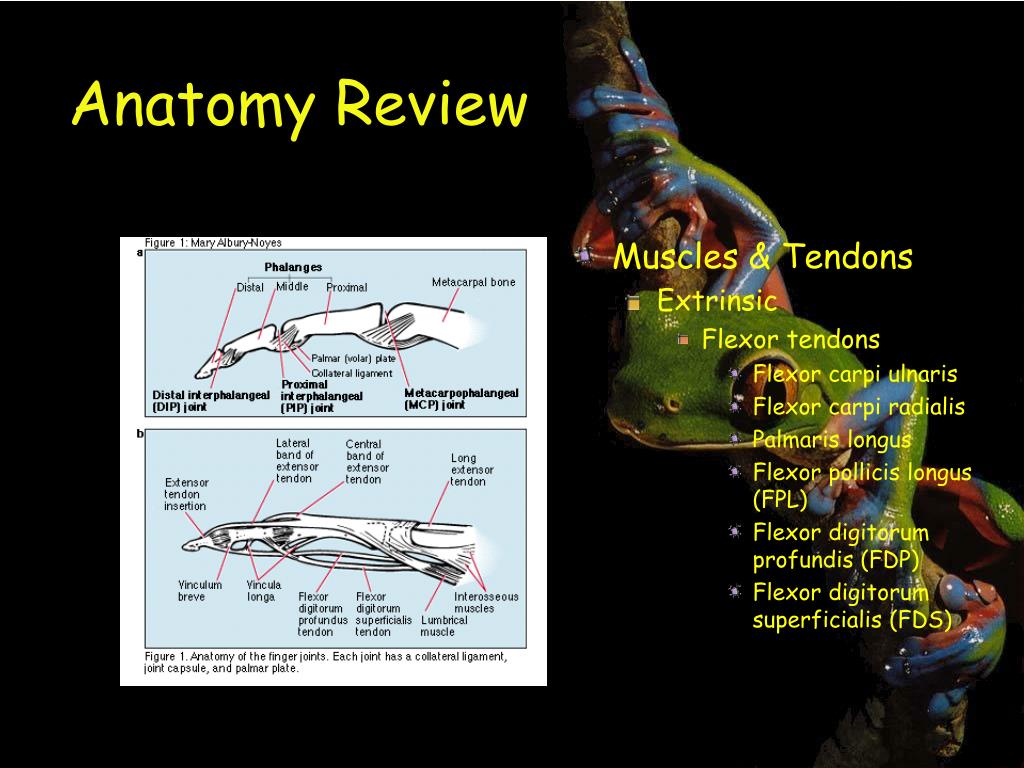

  6. Anatomy Review • Muscles & Tendons • Extrinsic • Flexor tendons • Flexor carpi ulnaris • Flexor carpi radialis • Palmaris longus • Flexor pollicis longus (FPL) • Flexor digitorum profundis (FDP) • Flexor digitorum superficialis (FDS)

  7. Anatomy Review • Muscles & Tendons • Extrinsic • Extensor tendons • Abductor pollicis longus • Extensor pollicis brevis • Extensor carpi radialis longus and brevis • Extensor digitorum • Extensor digiti minimi • Extensor carpi ulnaris

  8. Anatomy Review • Muscles & Tendons • Extrinsic • Extension of MP • Flex of IP • Intrinsic • Abduct and adduct fingers • Flexion of MP • Extension of IP

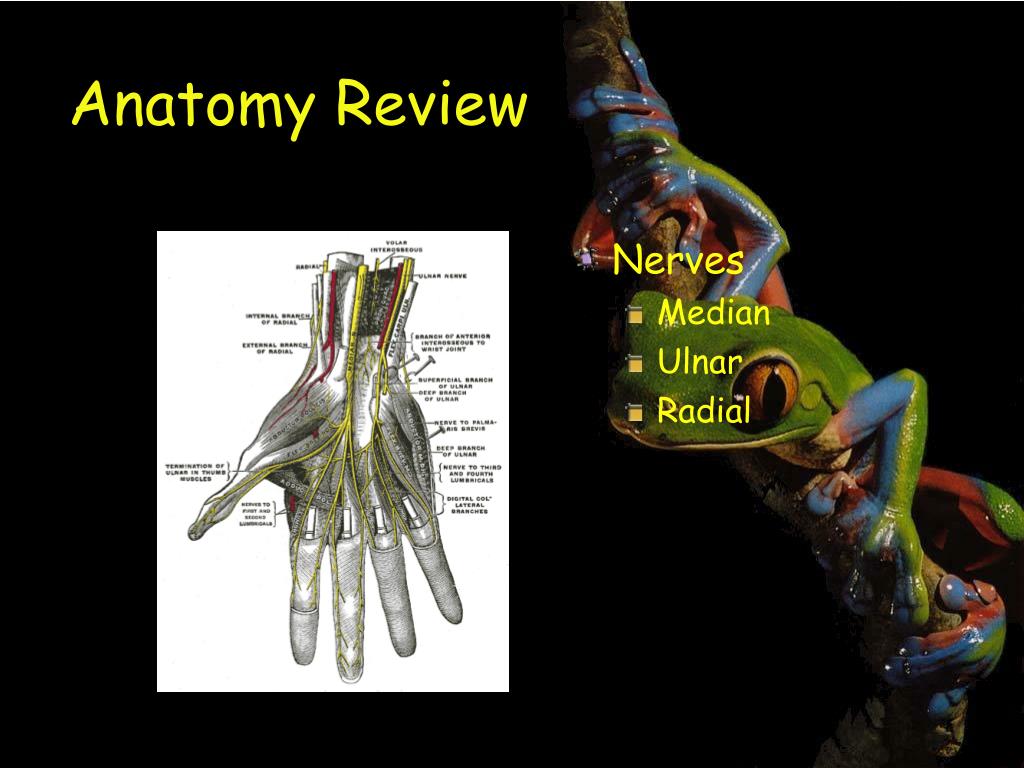

  9. Anatomy Review • Nerves • Median • Ulnar • Radial

  10. Examination of the Hand and Wrist • Complete exam: • Observation • Palpation • Range of motion • Neurologic testing • Vascular assessment • Stability testing

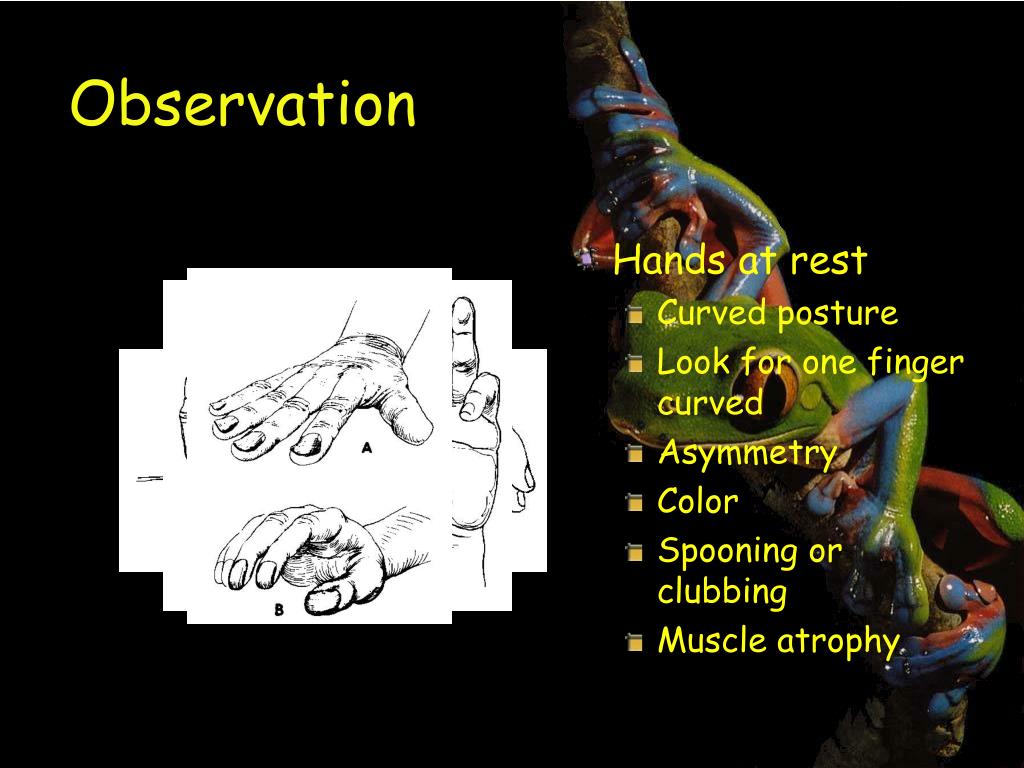

  11. Observation • Hands at rest • Curved posture • Look for one finger curved • Asymmetry • Color • Spooning or clubbing • Muscle atrophy

  12. Palpation • Lateral epicondyle • Radial head • Groove of ulnar nerve • Olecranon • Lister’s tubercle • Radial/ulna styloid • Snuffbox • Carpals • Metacarpals • Phalanges

  13. Neurologic Testing • Sensory • Light touch – pin prick • Two-point descrimination • Motor • Median • Ulnar • Radial

  14. Neurologic Testing • Motor testing • OK sign • FDP • FDS • FPL

  15. Vascular Examination • Radial artery • Located radial to the FCR • Ulnar artery • Located radial to the FCU • Allen test

  16. Stability Testing • Ulnar collateral ligaments • Radial collateral ligaments • Gamekeeper’s/ skier’s thumb

  17. TAP Special Tests • Finklestein’s test • Froment’s sign • Watson test • Shuck test • Basal joint grind • Compression test • Phalen’s test • Tinel’s sign

  18. Common Traumatic Injuriesof the Hand Bone and Soft Tissue

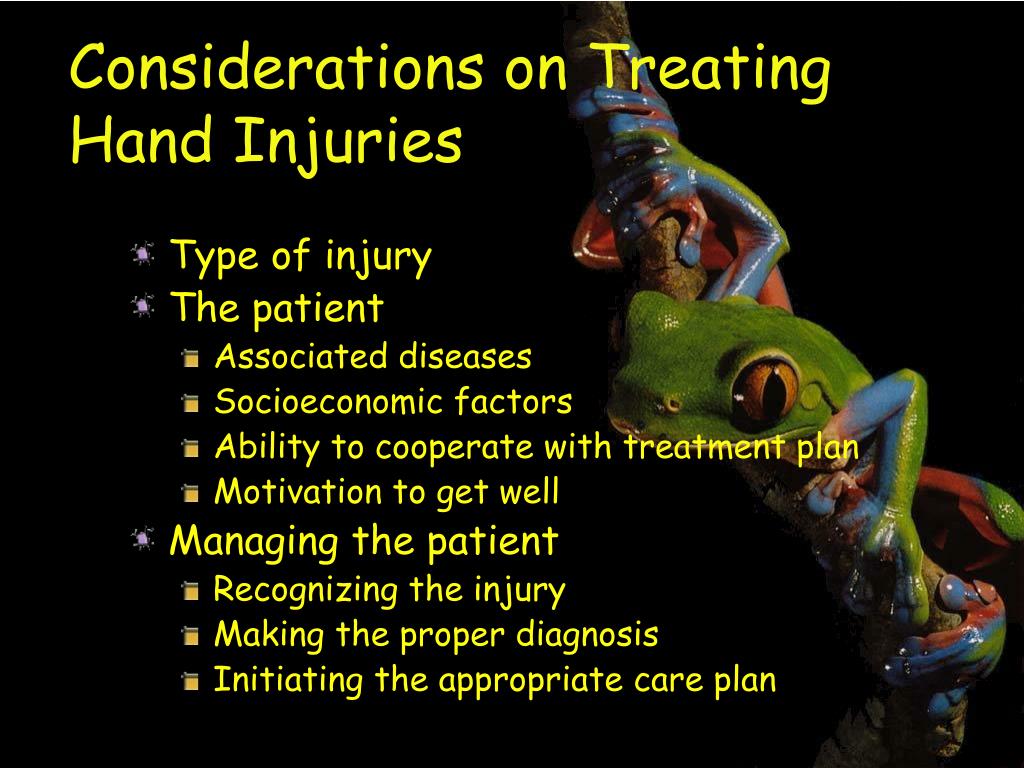

  19. Considerations on Treating Hand Injuries • Type of injury • The patient • Associated diseases • Socioeconomic factors • Ability to cooperate with treatment plan • Motivation to get well • Managing the patient • Recognizing the injury • Making the proper diagnosis • Initiating the appropriate care plan

  20. Referrals • Emergent referrals • Open fractures • Fractures with neurovascular compromise • Significant soft tissue injury • Irreducible dislocations or fractures with significant deformity

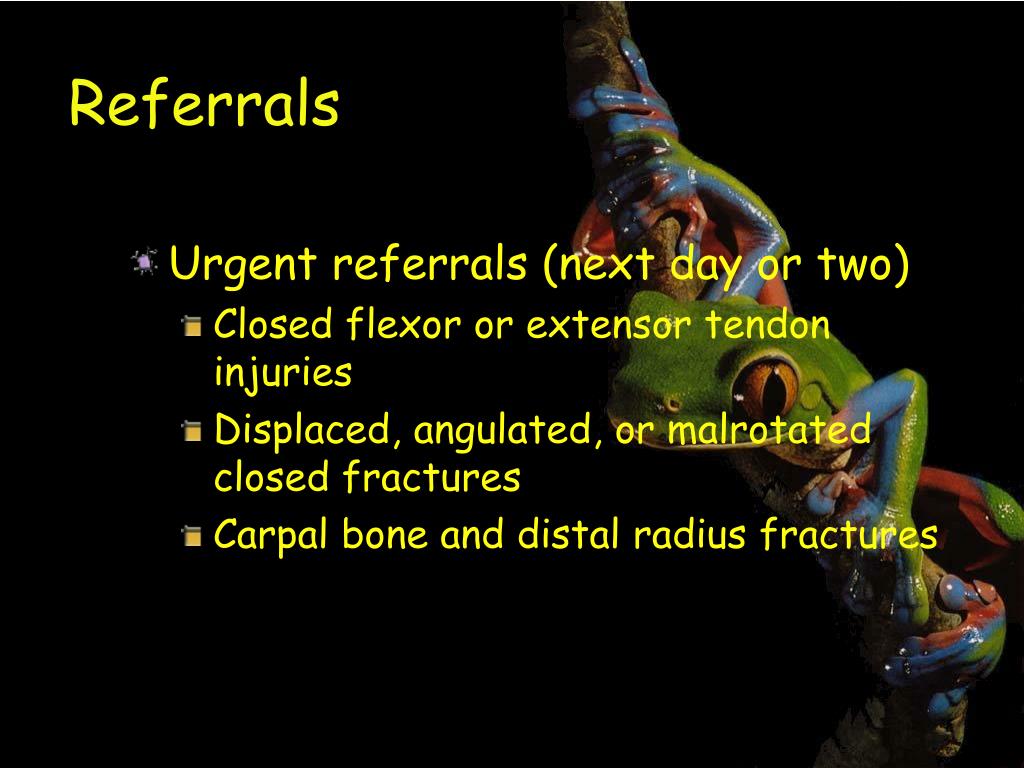

  21. Referrals • Urgent referrals (next day or two) • Closed flexor or extensor tendon injuries • Displaced, angulated, or malrotated closed fractures • Carpal bone and distal radius fractures

  22. History • Complete history • Hand dominance • Occupation • Avocations • Circumstances surrounding the injury • When and where • Mechanism of injury • Location and character of pain • Numbness or tingling

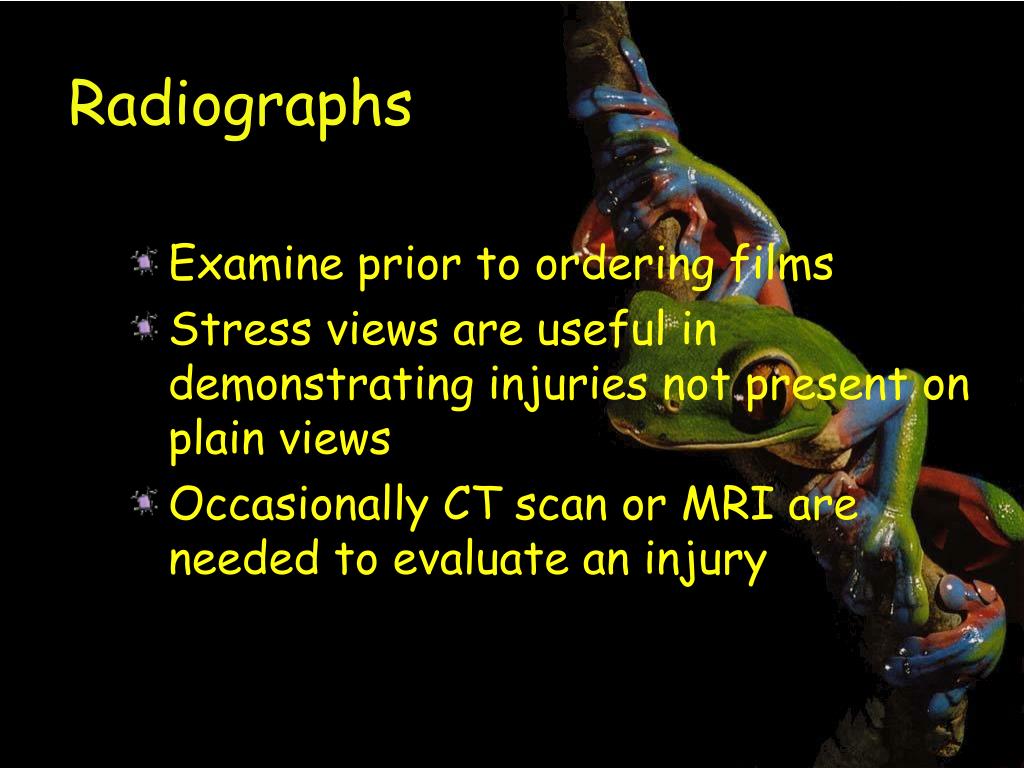

  23. Radiographs • Examine prior to ordering films • Stress views are useful in demonstrating injuries not present on plain views • Occasionally CT scan or MRI are needed to evaluate an injury

  24. Description of Fractures • Be able to accurately describe a radiograph to a colleague • Correct name of bone or joint involved • Open or closed fracture • Intraarticular or extraarticular • Whether the fracture is shortened, displaced, malrotated, or angulated • Fracture pattern

  25. Description of Dislocations • Be able to accurately describe a dislocation • Described with the position of the distal bone relative to the proximal bone • Dorsal vs volar dislocation • Radial vs ulnar dislocation • Can have a combination of two

  26. Complications • By far, the largest potential problem with any hand or wrist injury is stiffness. • Soft tissue complications: • Tendon adhesions • Capsular contractures • Fracture healing time • Hand: 3-4 weeks • Distal radius: 5-7 weeks

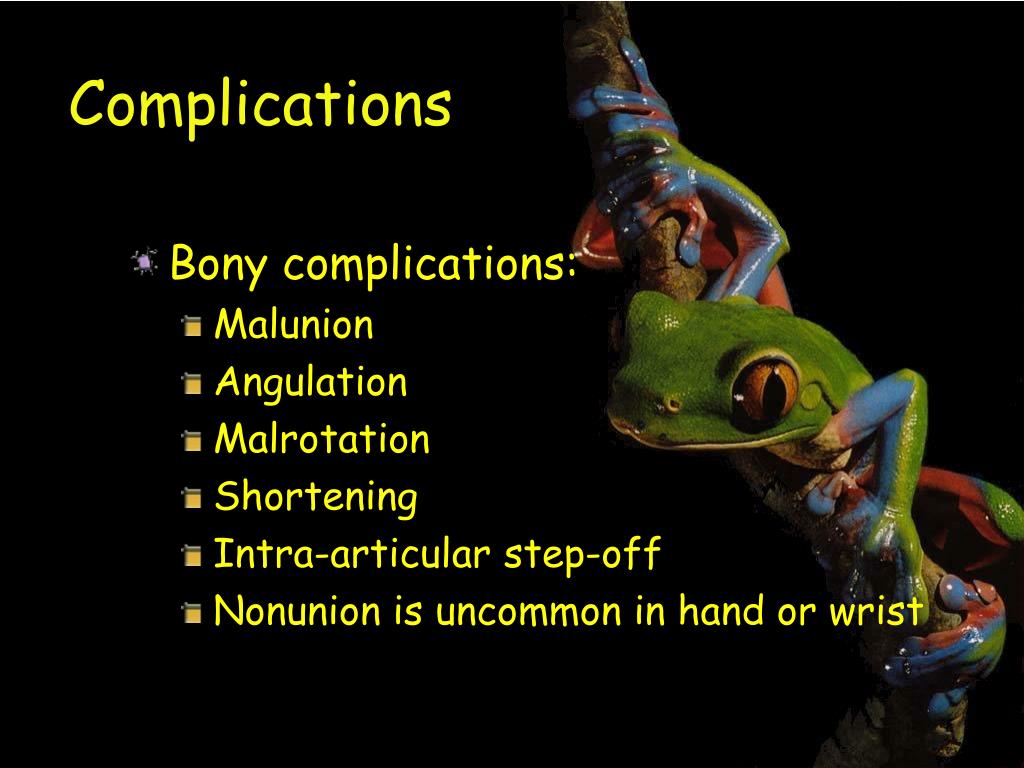

  27. Complications • Bony complications: • Malunion • Angulation • Malrotation • Shortening • Intra-articular step-off • Nonunion is uncommon in hand or wrist

  28. Fractures of the Distal Phalanx • The distal phalanx is the most common fracture in the hand, accounting for approximately 50% of hand fractures

  29. Fractures of the Distal Phalanx • Applied Anatomy • Extensor and flexor tendons insert into the base of the distal phalanx • Routinely not a deforming fracture

  30. Fractures of the Distal Phalanx • Mechanism of Injury • Crush injury • Sudden extension against a flexed finger (rugger jersey) • Sudden flexion against an extended finger (baseball hitting end of extended finger)

  31. Associated Injuries Nailbed lacerations Nail plate avulsion Skin lacerations Subungal hematoma History and Physical Exam Check both flexor and extensor function Document sensory exam Fractures of the Distal Phalanx

  32. Radiographs 2 – 3 views to look for fracture Use hot light if needed Classification Longitudinal Transverse comminuted Treatment Non-displaced or minimally displaced can use variety of splints Immobilize the DIP only Reduce displaced fractures Open wounds may need more definitive treatment Fractures of the Distal Phalanx

  33. Outcomes Cold intolerance Tip sensitivity Stiffness Nailplate irregularities When to refer Open fractures in need of nail bed repair Large skin loss Suspected flexor or extensor tendon involvement Fractures of the Distal Phalanx

  34. Nailbed Injury • Nailbed lacerations need to be repaired • Use 6-0 absorbable to repair matrix • Prevents nail growth problems • Reinsert nail and secure

  35. Subungual Hematoma • Results from blunt trauma to nail • Very painful • Relieved by • Cautery • Heated paperclip • 18g needle

  36. Subungual Hematoma • Clean with alcohol • Instrument of choice • Pierce nail • Gauze for 24 hours

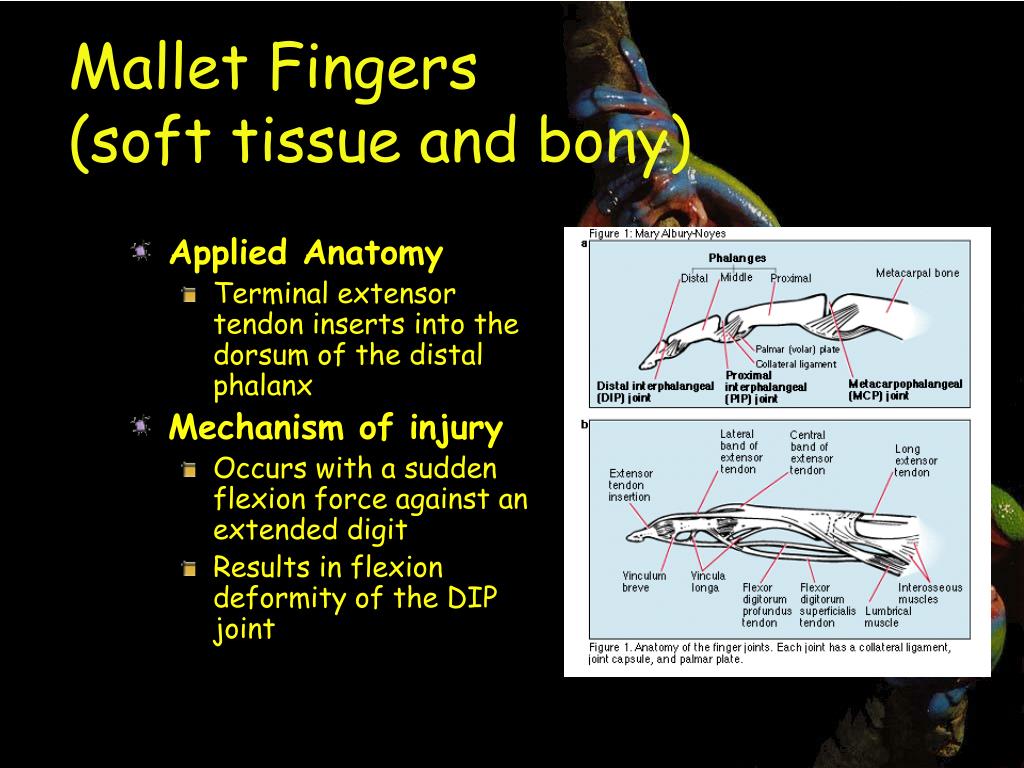

  37. Mallet Fingers(soft tissue and bony) • Applied Anatomy • Terminal extensor tendon inserts into the dorsum of the distal phalanx • Mechanism of injury • Occurs with a sudden flexion force against an extended digit • Results in flexion deformity of the DIP joint

  38. Mallet Fingers(soft tissue and bony) • History and Physical Exam • Pain and deformity of the DIP joint after bumping the end of the finger • Inability to straighten the end joint • Test for tendon function

  39. Mallet Fingers(soft tissue and bony) • Radiographs • 2 views looking for dorsal avulsion fragment • May be negative • Classification • Soft tissue (- x-ray) • Bony (+ x-ray) • Fleck • Dorsal articular piece • Subluxation of DIP joint

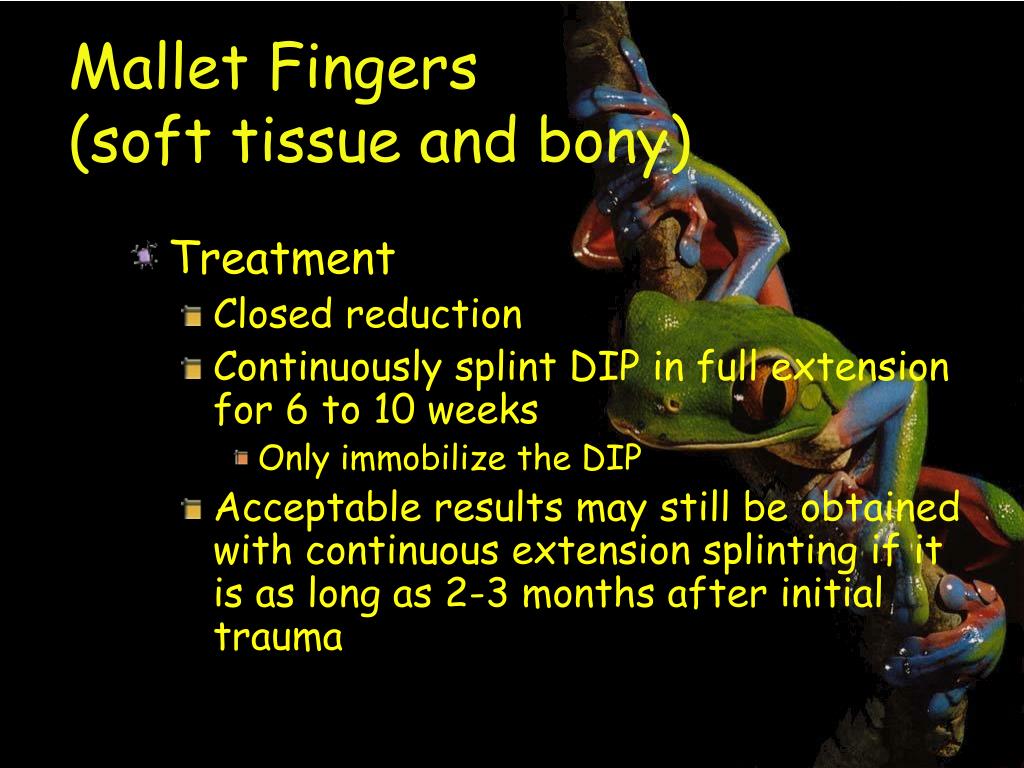

  40. Mallet Fingers(soft tissue and bony) • Treatment • Closed reduction • Continuously splint DIP in full extension for 6 to 10 weeks • Only immobilize the DIP • Acceptable results may still be obtained with continuous extension splinting if it is as long as 2-3 months after initial trauma

  41. Flexor Tendon Avulsion • Applied Anatomy • Flexor digitorum profundus tendon inserts into the base of the distal phalanx

  42. Flexor Tendon Avulsion • Mechanism of Injury • Hyperextension against a flexed DIP joint • Relatively uncommon, but devastating is missed • Ring finger most commonly involved

  43. Flexor Tendon Avulsion • Associated injuries • None • History and Physical Exam • Pain on volar surface of digit • May extend into palm with eccymosis • Cannot flex tip • Resting hand has extension of DIP joint • No active flexion

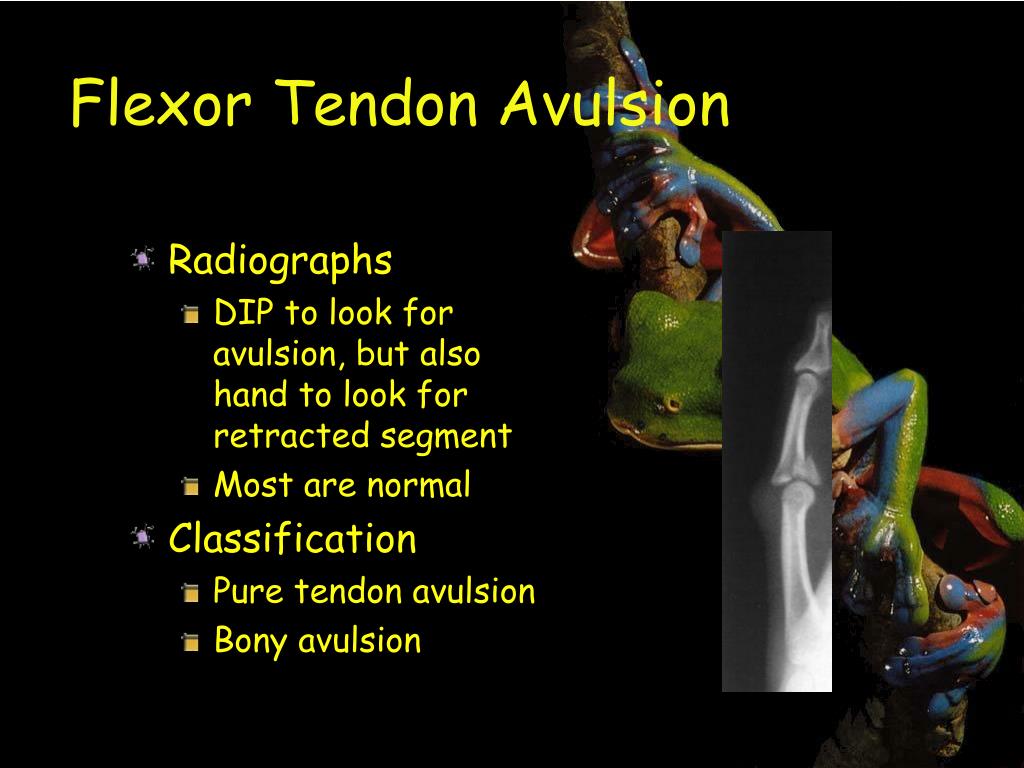

  44. Flexor Tendon Avulsion • Radiographs • DIP to look for avulsion, but also hand to look for retracted segment • Most are normal • Classification • Pure tendon avulsion • Bony avulsion

  45. Treatment Should be splinted and referred in a semi-urgent fashion Surgery is required Outcomes Results correlate with delay in treatment Early do well Postoperative hand therapy is important Flexor Tendon Avulsion

  46. Middle and Proximal Phalangeal Fractures • Applied Anatomy • The central slip inserts into the proximal dorsal middle phalanx • The flexor digitorum superficialis (FDS) inserts into each side of the base of the middle phalanx

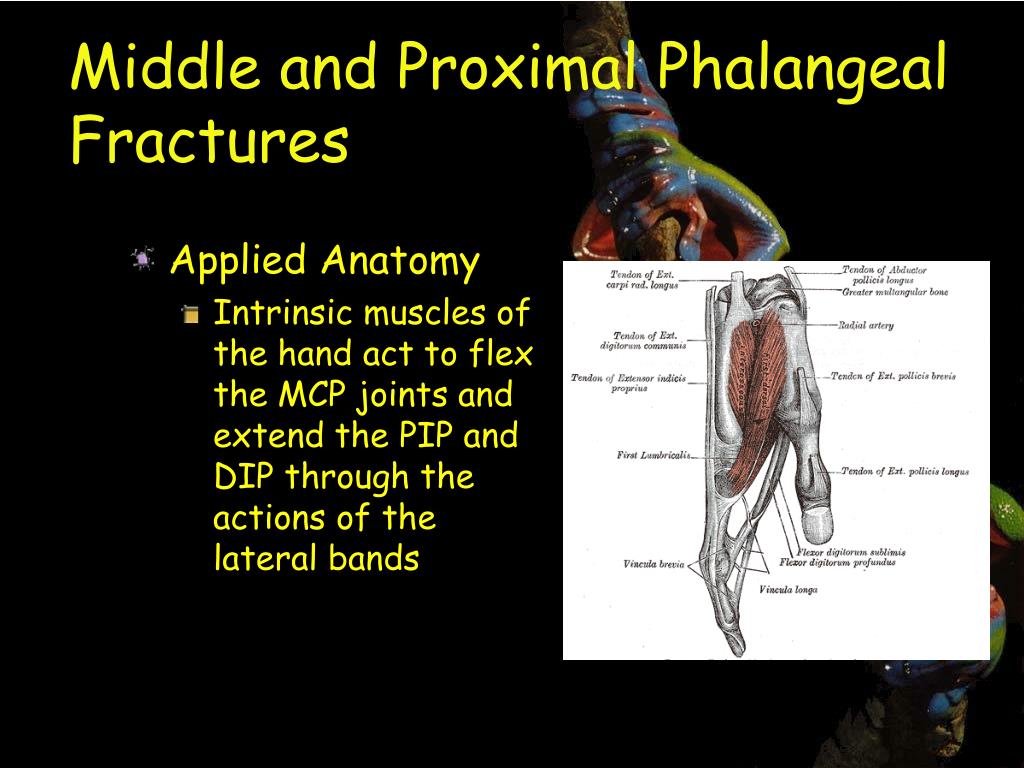

  47. Middle and Proximal Phalangeal Fractures • Applied Anatomy • Intrinsic muscles of the hand act to flex the MCP joints and extend the PIP and DIP through the actions of the lateral bands

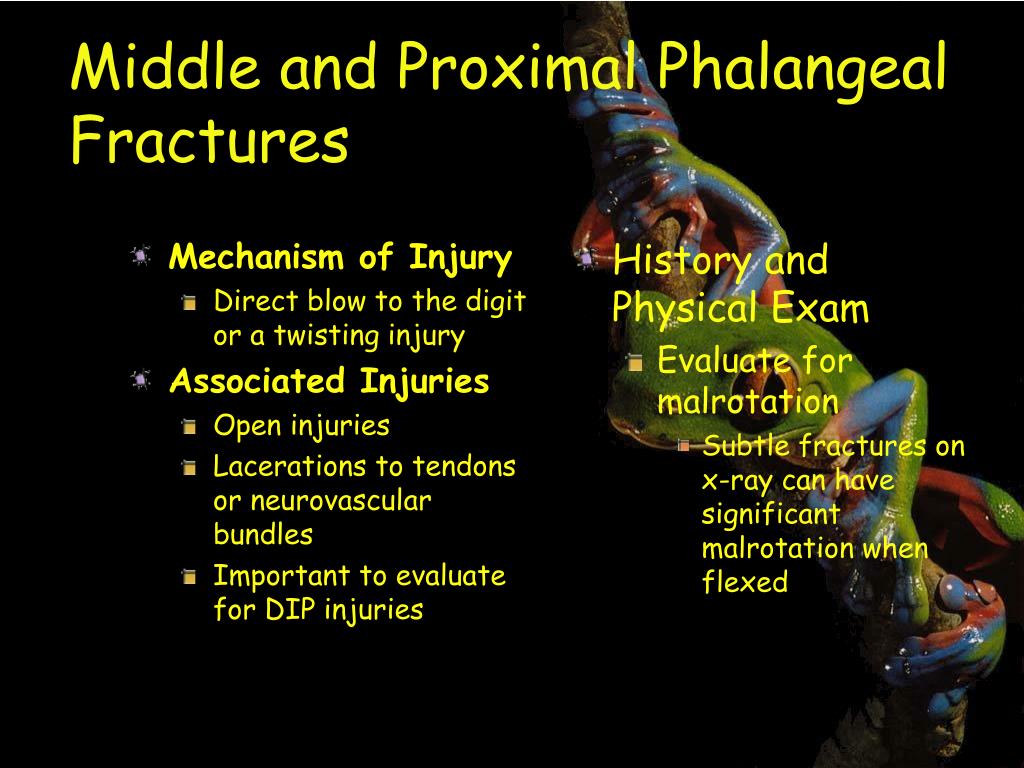

  48. Mechanism of Injury Direct blow to the digit or a twisting injury Associated Injuries Open injuries Lacerations to tendons or neurovascular bundles Important to evaluate for DIP injuries History and Physical Exam Evaluate for malrotation Subtle fractures on x-ray can have significant malrotation when flexed Middle and Proximal Phalangeal Fractures

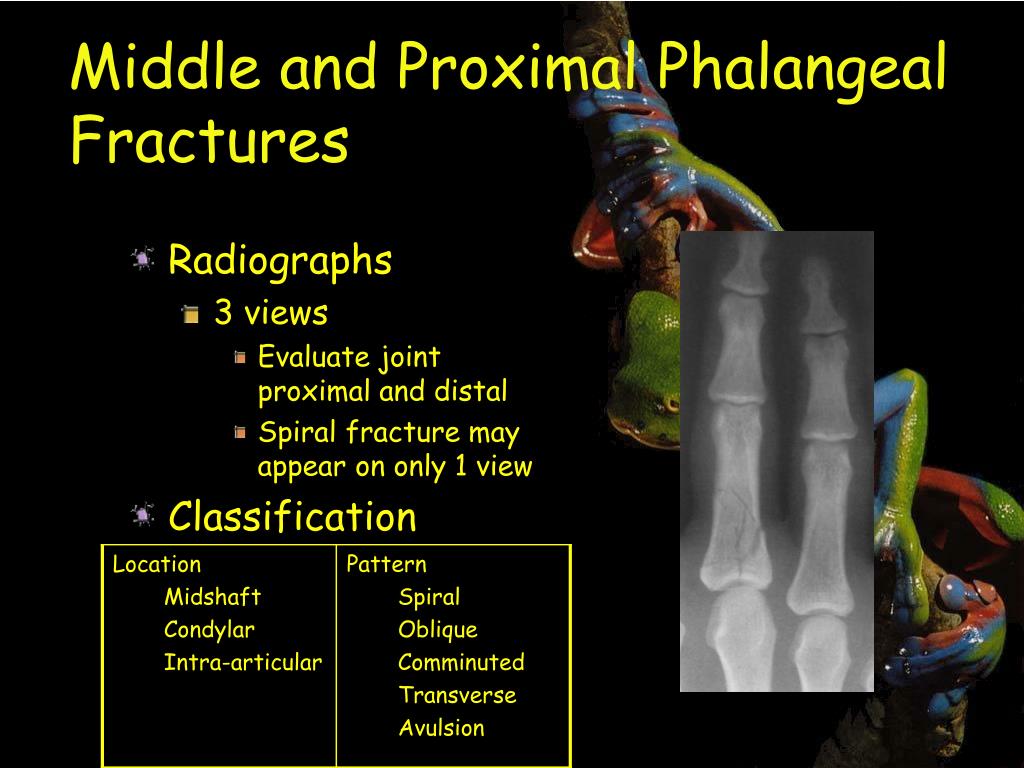

  49. Middle and Proximal Phalangeal Fractures • Radiographs • 3 views • Evaluate joint proximal and distal • Spiral fracture may appear on only 1 view • Classification

  50. Middle and Proximal Phalangeal Fractures • Treatment • Most can be treated non-surgically • Protect range of motion • Buddy tape • What to refer • Displaced, malrotated, joint involvement • Comminuted, spiral, and oblique are unstable • Stable nondisplaced • Splint 8-10 days followed by buddy tape • Follow-up x-ray 8-10 days to ensure no displacement
