Frog Dissection

Frog Dissection. Index to Frog Dissection. Index to Frog muscles dissection Frog mouth Frog internals Internals 1 Internals 2 Male female. Frog muscles. Ventral view Full view Upper body Back legs- medial view Superficial muscles Dissection 1 Dissection 2 (deep muscles)

Leo
Télécharger la présentation

Frog Dissection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Frog Dissection

  2. Index to Frog Dissection • Index to Frog muscles dissection • Frog mouth • Frog internals • Internals 1 • Internals 2 • Male • female

  3. Frog muscles • Ventral view • Full view • Upper body • Back legs- medial view • Superficial muscles • Dissection 1 • Dissection 2 (deep muscles) • Key to all muscles • Dorsal view • Full view • Shoulder and head area • Shoulder lateral • Shoulder dorsal • Anterior dorsal view • Upper body • Back legs • Lateral muscles

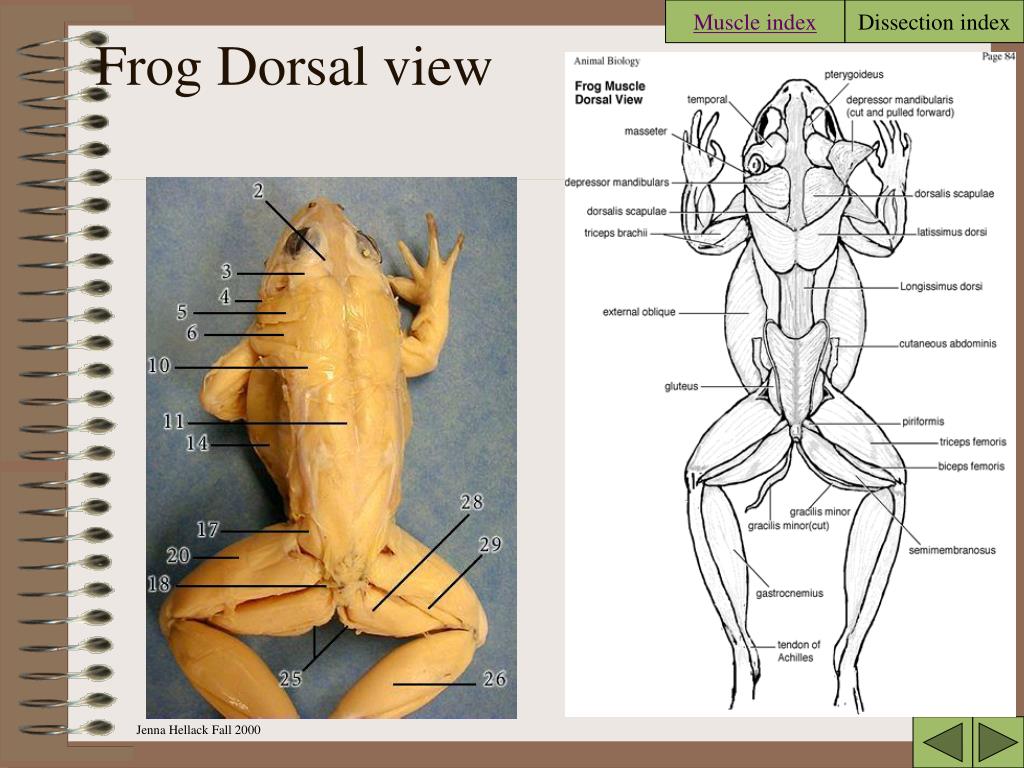

  4. Muscle index Frog Dorsal view

  5. Muscle index Muscles contrasted Tympanic membrane 10 4 6 5 Frog shoulder lateral view 4. Masseter 5. Depressor mandibularis 6. Dorsalis scapulae 10. Latissimus dorsi Mouse click once for key

  6. Muscle index Muscles contrasted 10 4 6 5 2 7 Frog shoulder dorsal view 2. Pterygoideus 4. Masseter 5. Depressor mandibularis 6. Dorsalis scapulae 7. Deltoid 10. Latissimus dorsi Mouse click once for key

  7. Muscle index Muscles contrasted 2 Anterior Dorsal view Mouse click once for key Pterygoideus Temporal Masseter Depressor mandibularis Dorsalis scapulae Latissimus dorsi Longissimus dorsi 14. External oblique

  8. Muscle index Legs lateral muscles Muscles contrasted Mouse click once for key Gluteus Piriformis Triceps femoris Gracilis minor Gastrocnemius Tendon of Achilles Semimembranous Biceps femoris

  9. Muscle index Ventral muscles Contrasted muscles Mouse click once for key Deltoid Pectoralis Linea alba Triceps femoris Adductor magnus Sartorius Gracilis major Gracilis minor Gastrocnemius Tendon of Achilles 30. Mylohoid

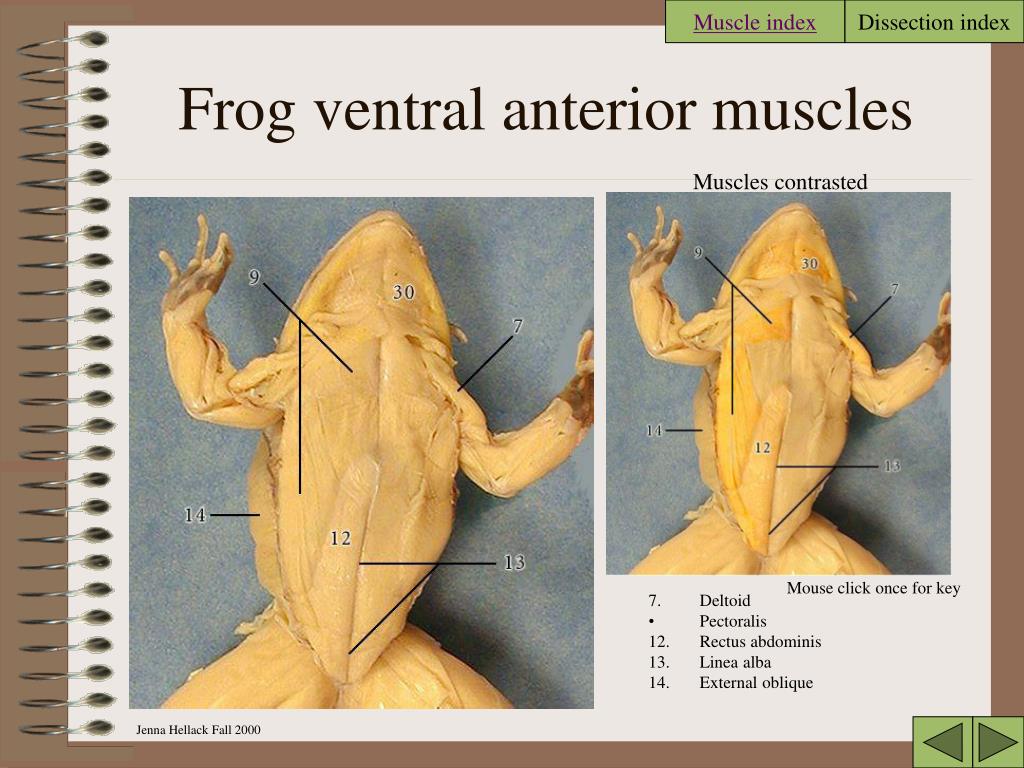

  10. Muscle index Frog ventral anterior muscles Muscles contrasted Mouse click once for key 7. Deltoid • Pectoralis • Rectus abdominis • Linea alba • External oblique

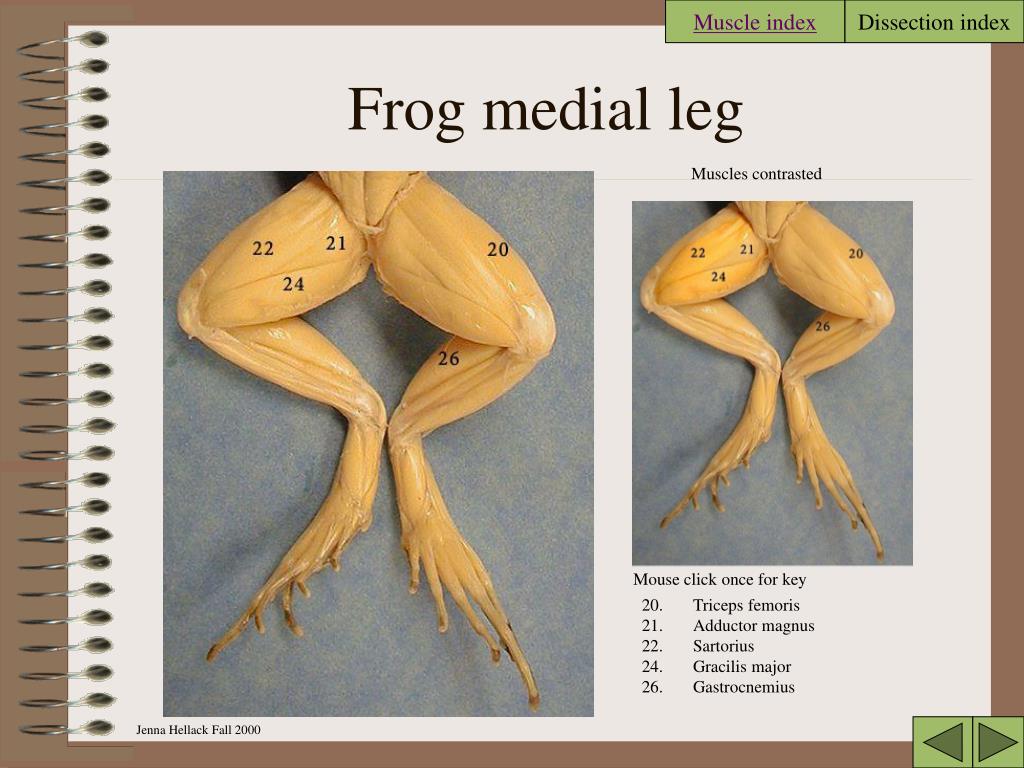

  11. Muscle index Frog medial leg Muscles contrasted Mouse click once for key 20. Triceps femoris 21. Adductor magnus Sartorius Gracilis major 26. Gastrocnemius

  12. Muscle index Legs medial muscles Mouse click once for key 19. Adductor longus 20. Triceps femoris 21. Adductor magnus 22. Sartorius 23. Not shown here 24. Gracilis major 25. Gracilis minor 26. Gastrocnemius 27. Tendon Achilles

  13. Muscle index Sartorius (cut) Adductor longus (cut) Triceps femoris Adductor magnus Gracilis major Gracilis minor Semitendinosus (double belly) 12. Rectus abdominis • External oblique • Adductor longus • Triceps femoris • Adductor magnus • Sartorius 23. Semitendinosus 24. Gracilis major Gastrocnemius 28. Semimebranosus Medial leg muscles (deep) Mouse click once for key

  14. Muscle index Key to Frog muscles 16.---- 17. Gluteus Piriformis Adductor longus Triceps femoris Adductor magnus Sartorius Semitendinosus Gracilis major Gracilis minor Gastrocnemius 27. Tendon Achilles 28. Semimembranous 29. Biceps femoris Mylohyoid Pterygoideus Temporal Masseter Depressor mandibularis Dorsalis scapulae Deltoid Triceps brachii Pectoralis Latissimus dorsi Longissimus dorsi 12. Rectus abdominis Linea alba 15. Cutaneous abdominis

  15. Frog mouth 30. Maxillary teeth 31. Vomerine teeth 33. Eustachian tubes • Tongue • Glottis • Esophagus Mouse click one time for answers

  16. Frog internals 1 One mouse click for answers Ventricle Auricle (atrium) Conus arteriosus Aortic arches Liver Fat bodies Urinary bladder

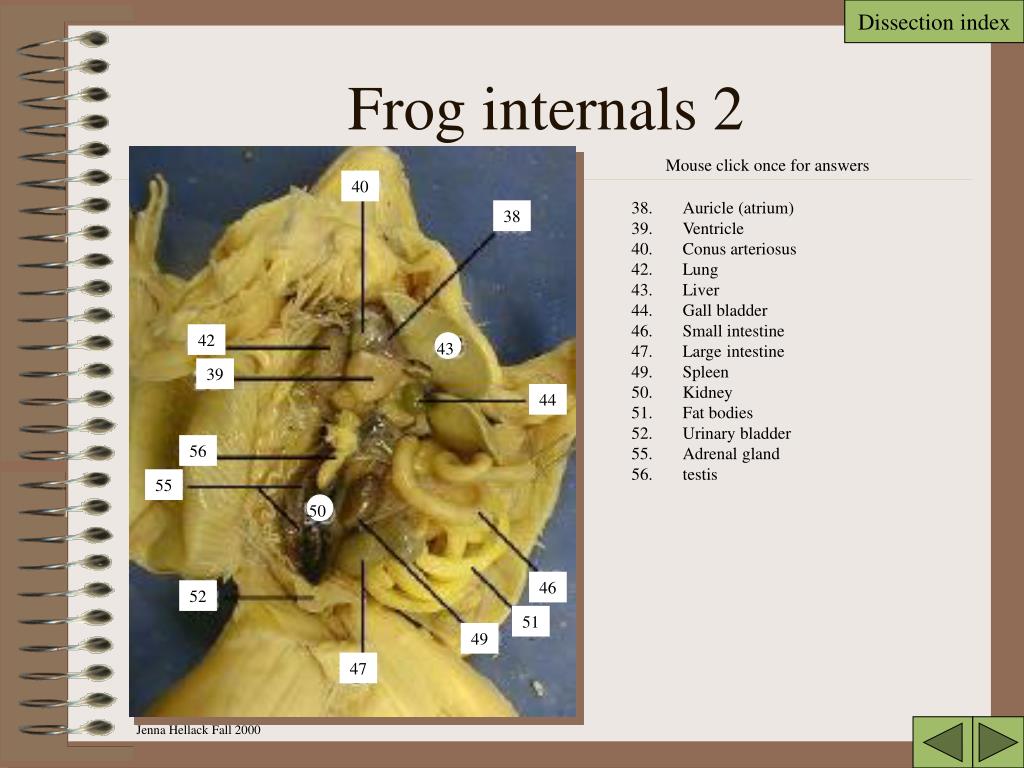

  17. 40 38 42 39 44 56 55 43 46 52 50 51 49 47 Frog internals 2 Mouse click once for answers Auricle (atrium) Ventricle Conus arteriosus Lung Liver Gall bladder Small intestine Large intestine Spleen Kidney Fat bodies Urinary bladder Adrenal gland testis

  18. 45 48 49 56 46 55 50 47 57 Frog internals- male Stomach Small intestine Large intestine Pancreas Spleen Kidney Adrenal Testis Vestigial oviducts

  19. Frog internals- female Mouse click one time for answers 45. Stomach 46. Small intestine 47. Large intestine 48. Pancreas 49. Spleen 51. Fat bodies 52. Urinary bladder 58. Ovary 59. Oviduct Last slide
