FOCUS. FOCUS. FOCUS. FOCUS. FOCUS. Portable Computer Projector System Operator Training. Prepared by Peter Richey August 29, 2002 First Presbyterian Church Wheaton, Illinois. Overview. Infocus LP530 Projector. Laptop Computer. Stereo VHS VCR. 70”x70” Screen. Fixed Height Cart – 40”.

Michelle
Télécharger la présentation

FOCUS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. FOCUS FOCUS FOCUS FOCUS FOCUS

  2. Portable ComputerProjector SystemOperator Training Prepared by Peter Richey August 29, 2002 First Presbyterian Church Wheaton, Illinois

  3. Overview

  4. Infocus LP530 Projector

  5. Laptop Computer

  6. Stereo VHS VCR

  7. 70”x70” Screen

  8. Fixed Height Cart – 40”

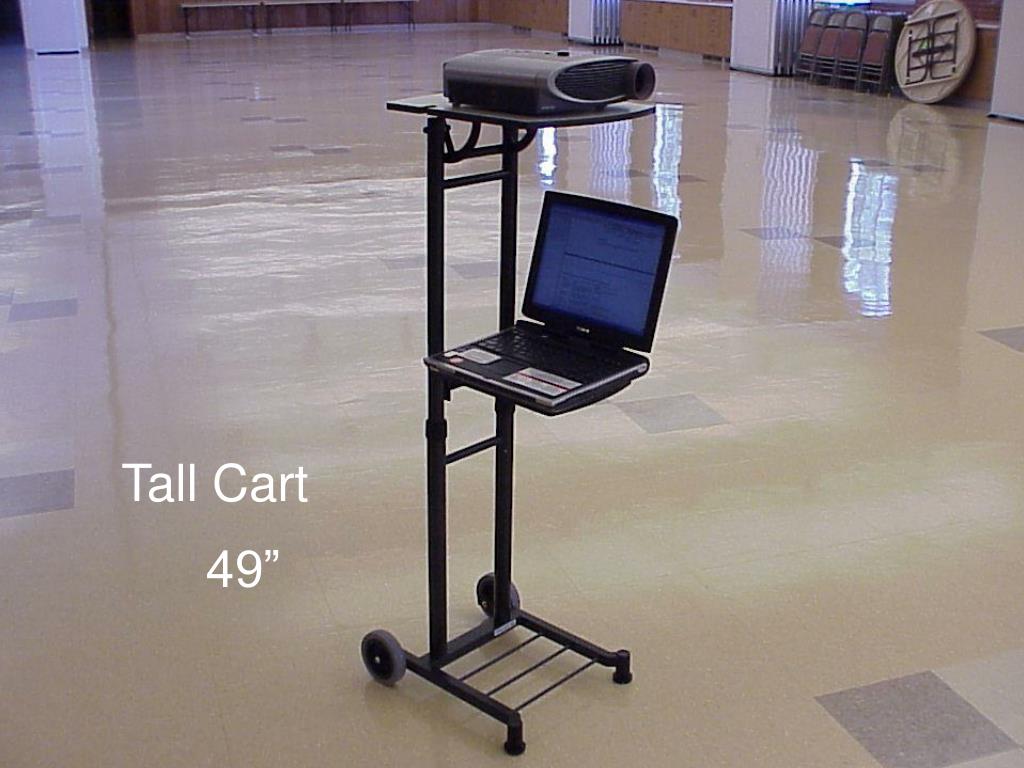

  9. Tall Cart 49”

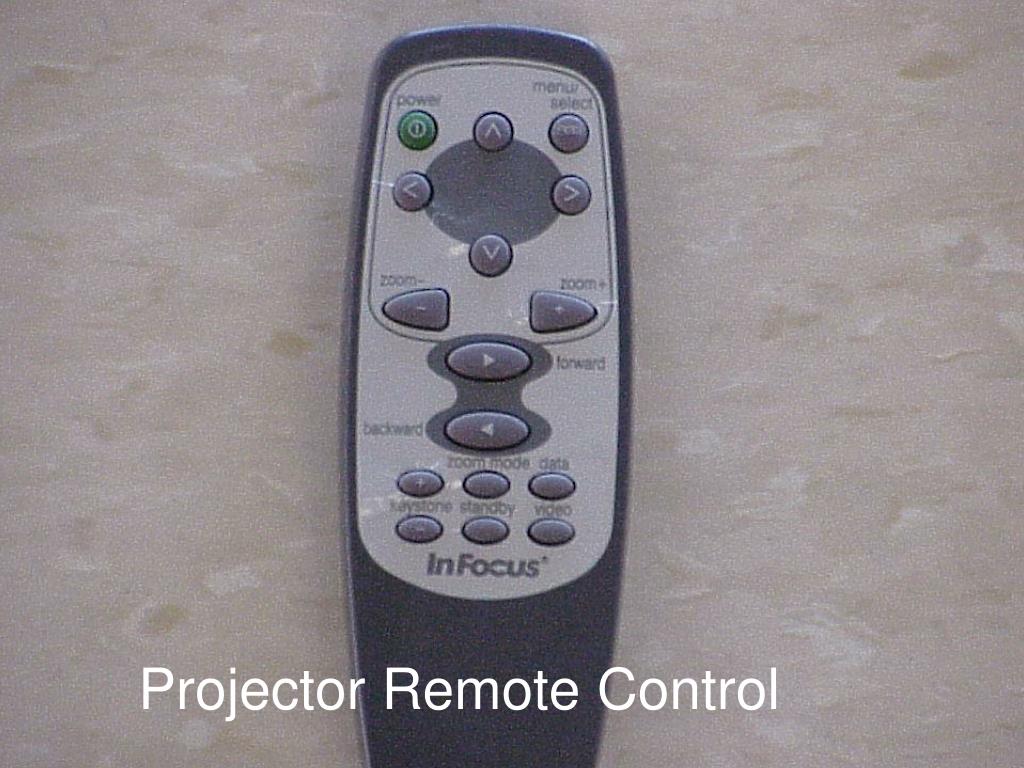

  10. Projector Remote Control

  11. VCR Remote Control

  12. Essential Steps

  13. Projector Start-up

  14. Remove the Lens Cap

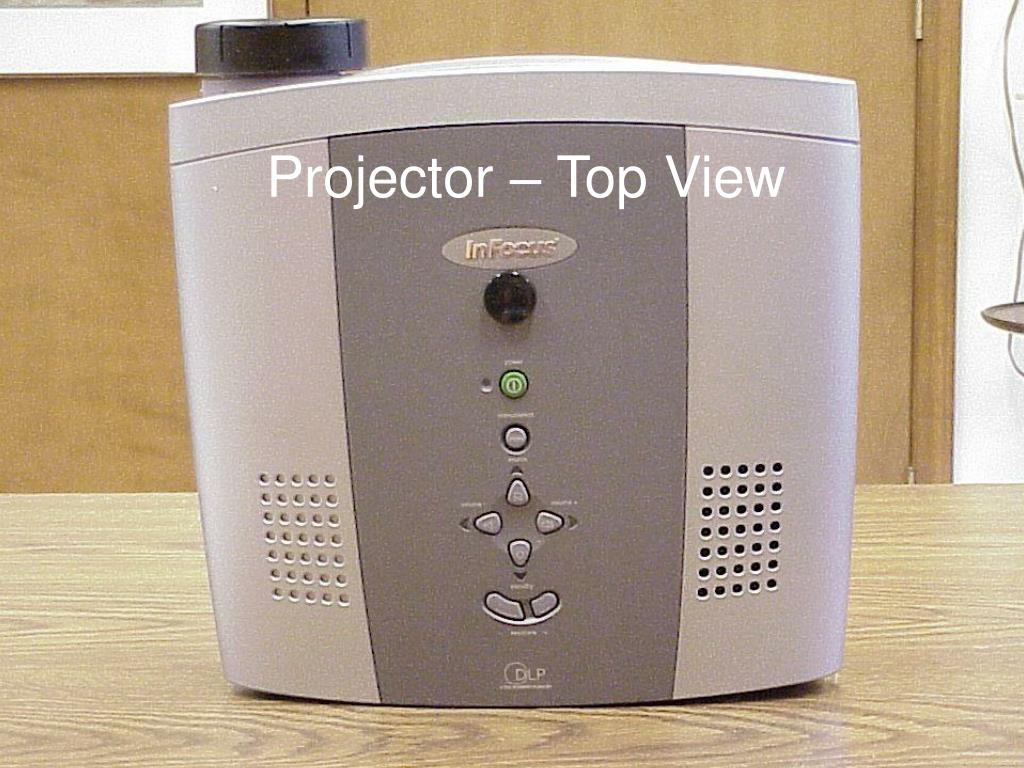

  15. Projector – Top View

  16. Press Power Button once to start Power-up

  17. Focus Ring Zoom Ring Leg Release Adjust front leveling leg

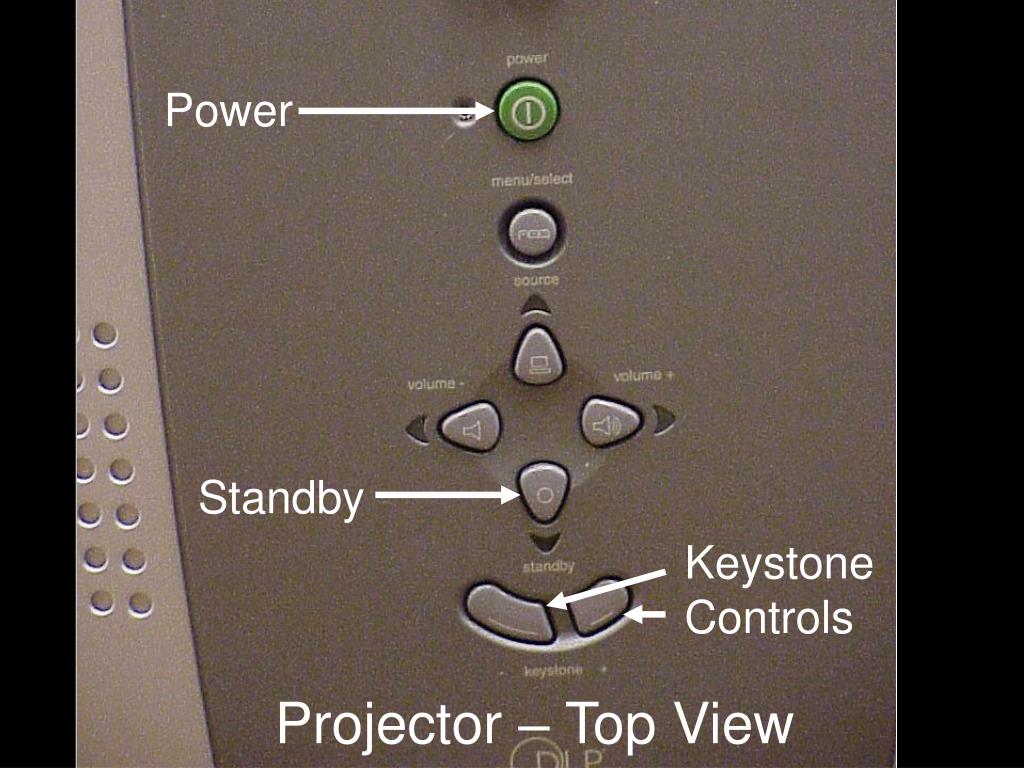

  18. Power Standby Keystone Controls Projector – Top View

  19. Power Page Down (forward)Page Up (backward) Keystone Controls Standby Projector Remote Control

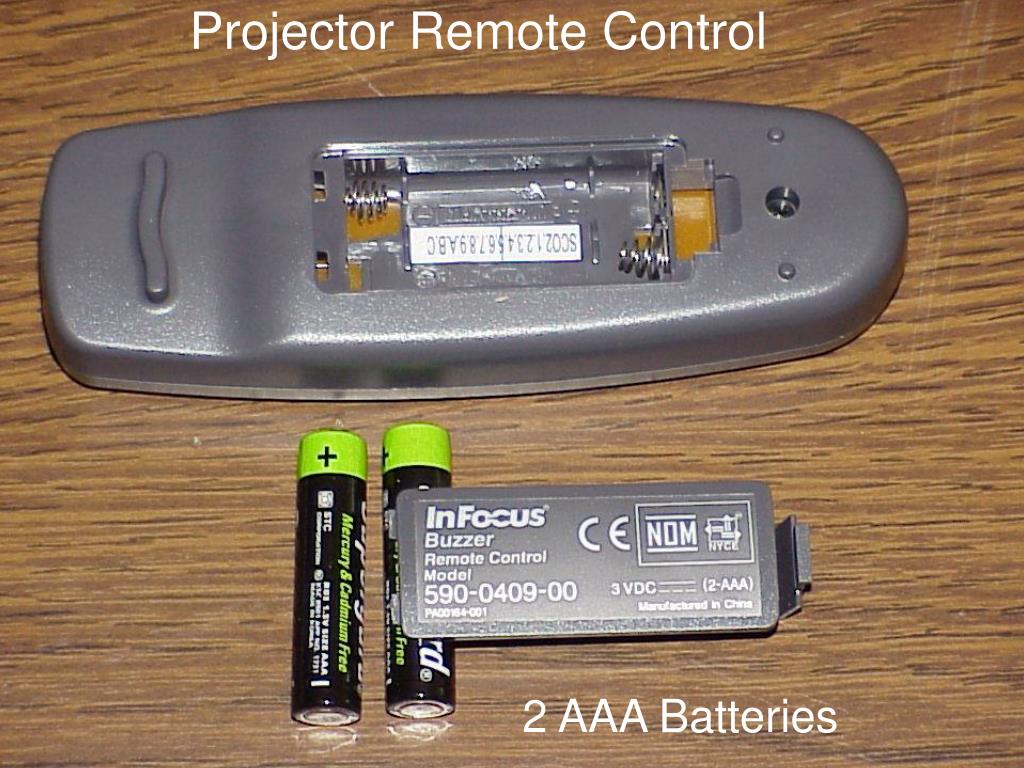

  20. Projector Remote Control 2 AAA Batteries

  21. Computer Start-up

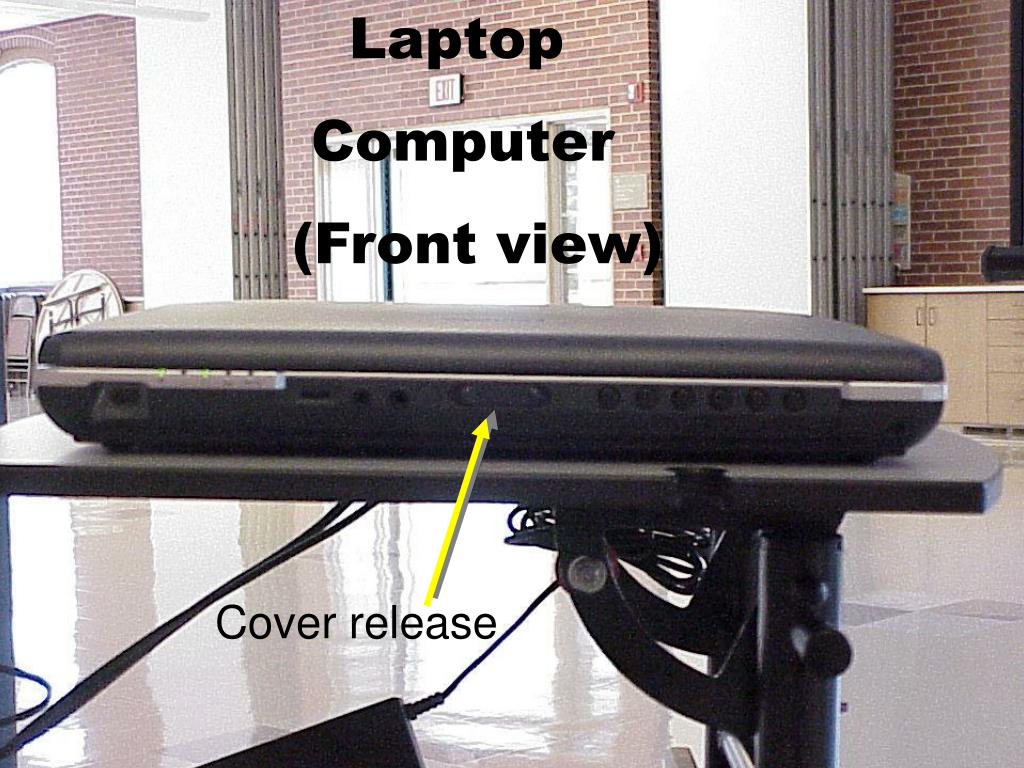

  22. Laptop Computer (Front view) Cover release

  23. Laptop Computer Power Switch Glide Pad Mouse

  24. Laptop Computer Power Button Power up (boot) the computer and log on. Start presentation program.

  25. Screen Setup

  26. Carry Handle Leg Release

  27. Leg Release Release and Deploy legs

  28. Upper Screen Release Knob

  29. Stem Upper Screen Release Knob Raise Stem while pulling out Upper Screen Release Knob

  30. Top of Projector Screen Stem Latch Pin securing screen Stem

  31. Turn screen housing to horizontal. Raise screen and hook on top of stem..

  32. Adjust bottom of screen height while pulling out Carry Handle Release Knob.

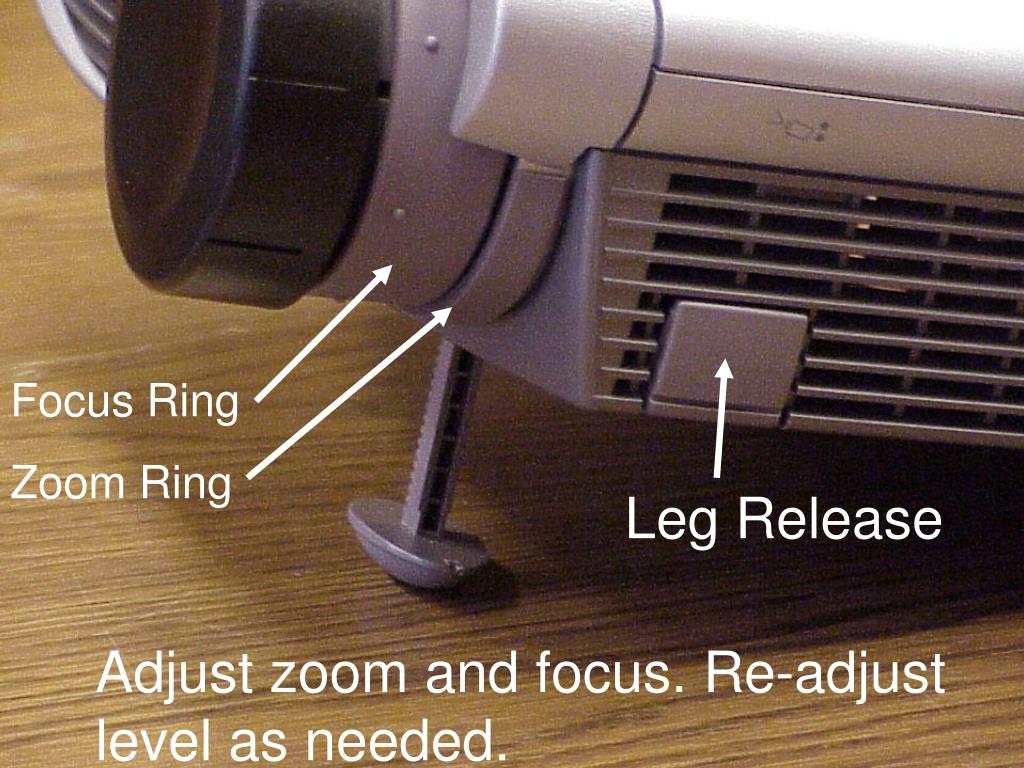

  33. Focus Ring Zoom Ring Leg Release Adjust zoom and focus. Re-adjust level as needed.

  34. Adjust Keystone using Remote or Projector controls.

  35. Shutting Down

  36. Press Power Button once to start Power-Down sequence.

  37. Close presentation. Log off and Shutdown.

  38. Retract Leveling Leg.

  39. Replace Lens Cap

  40. Collapse Screen.

  41. Tall Cart Setup

  42. Tall Cart ready for use.

  43. Tall Cart ready for storage or transport.

  44. Tall Cart (Rear view)

  45. Upper Shelf Horizontal Latch Pins Vertical Release Lever Upper Shelf Release Knob
