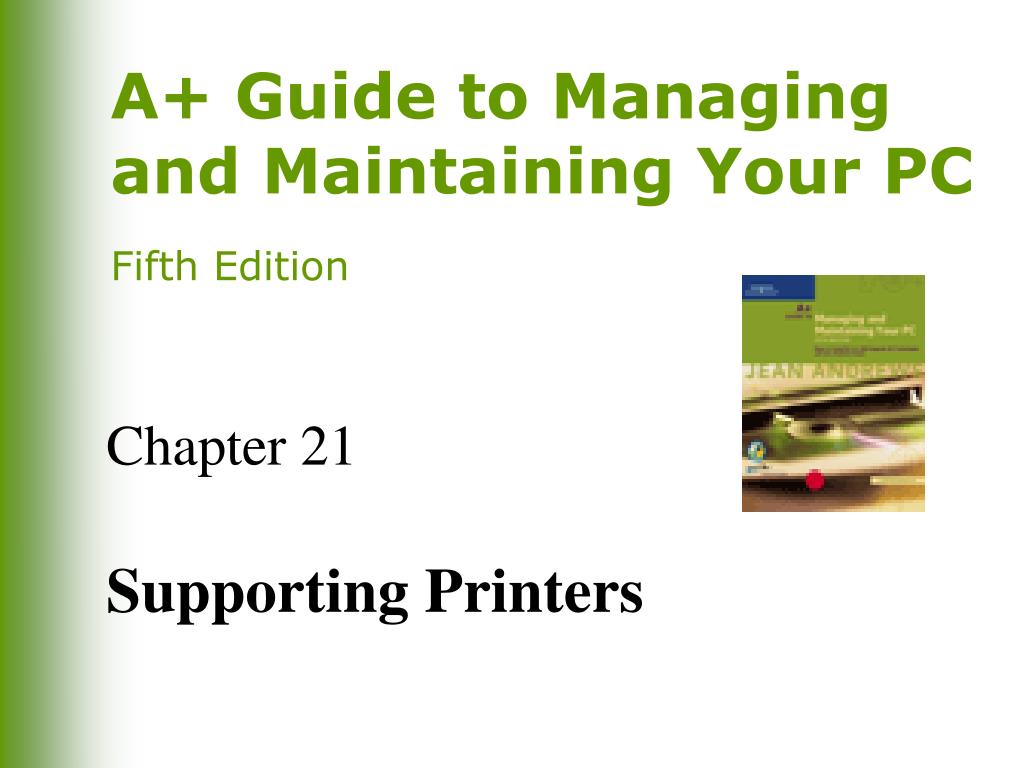

Chapter 21. Supporting Printers. You Will Learn…. How printers work How to install printers and share them over a local area network How to troubleshoot printer problems. How Printers Work.

MikeCarlo
Télécharger la présentation

Chapter 21

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 21 Supporting Printers

  2. You Will Learn… • How printers work • How to install printers and share them over a local area network • How to troubleshoot printer problems A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  3. How Printers Work • Connect to a PC by parallel, serial, USB, IEEE 1394, or SCSI port, or by infrared, wireless, PC Card, or network connection • Can be combined with fax machines, copiers and scanners in the same machine • Most often use AC power A+ Guide to Managing and Maintaining Your PC, Fifth Edition

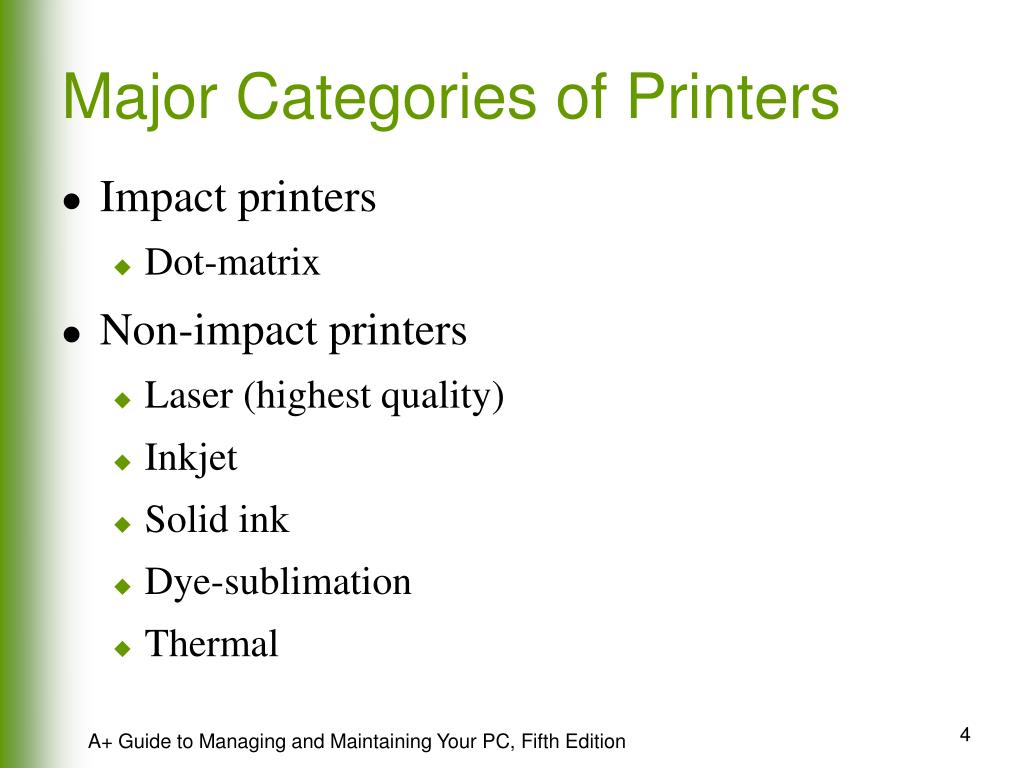

  4. Major Categories of Printers • Impact printers • Dot-matrix • Non-impact printers • Laser (highest quality) • Inkjet • Solid ink • Dye-sublimation • Thermal A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  5. Laser Printers A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  6. How a Laser Printer Works • Places toner on electrically charged rotating drum • Deposits toner on paper as paper moves through system at same speed the drum is turning A+ Guide to Managing and Maintaining Your PC, Fifth Edition

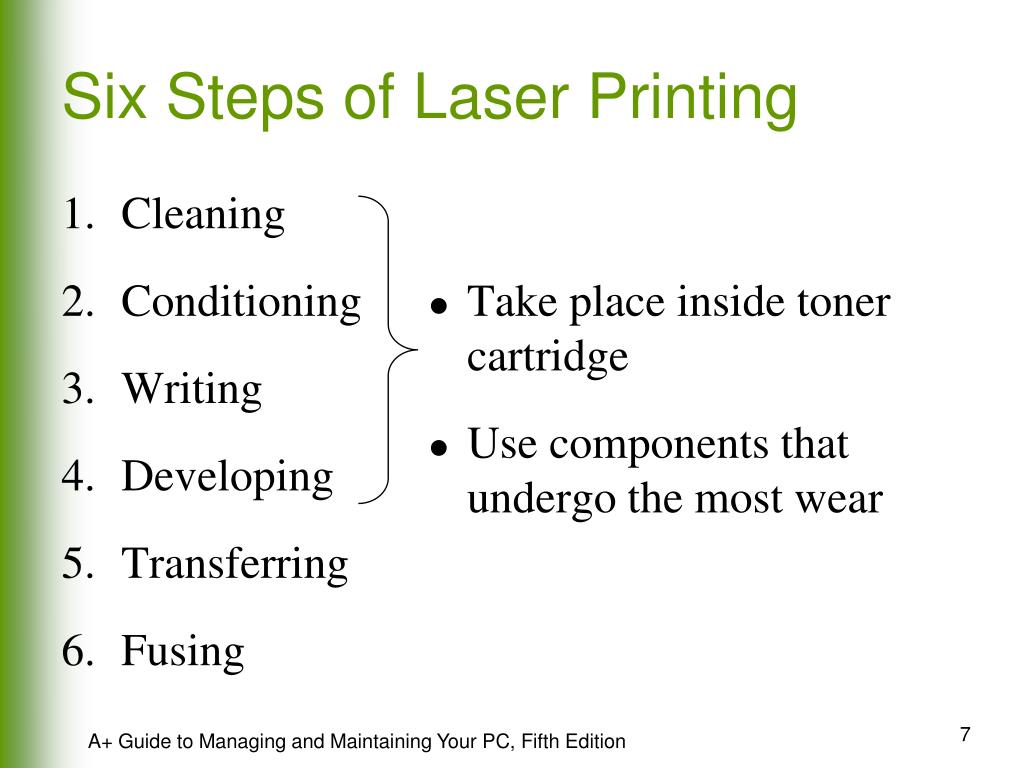

  7. Cleaning Conditioning Writing Developing Transferring Fusing Take place inside toner cartridge Use components that undergo the most wear Six Steps of Laser Printing A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  8. Six Steps of Laser Printing (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  9. Six Steps of Laser Printing (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  10. Step 1: Cleaning A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  11. Step 2: Conditioning A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  12. Step 3: Writing A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  13. Step 3: Writing • Data from PC is received by formatter (1) and passed to DC controller (2) which controls laser unit (3) • Scanning mirror (4) is turned clockwise by scanning motor • Laser beam is reflected off scanning mirror, focused by focusing lens (5) and sent to the mirror (6) • Mirror deflects laser beam to a slit in removable cartridge and on to the drum (7) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  14. Step 3: Writing (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  15. Step 4: Developing A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  16. Step 4: Developing (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  17. Step 5: Transferring A+ Guide to Managing and Maintaining Your PC, Fifth Edition

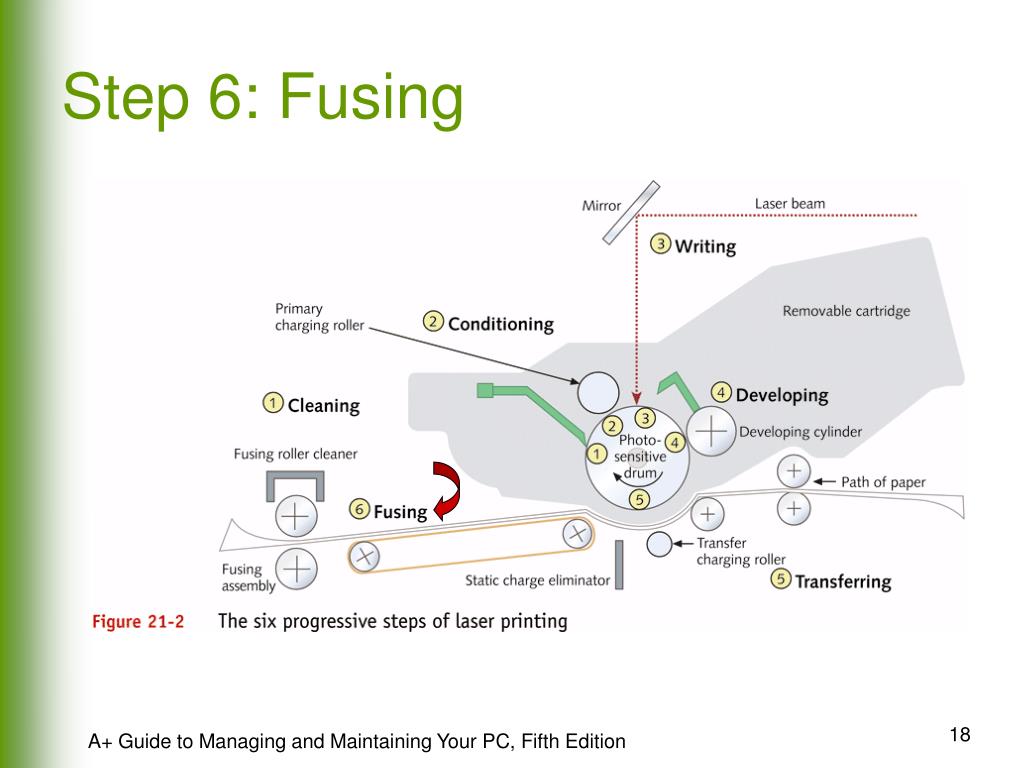

  18. Step 6: Fusing A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  19. Inkjet Printers A+ Guide to Managing and Maintaining Your PC, Fifth Edition

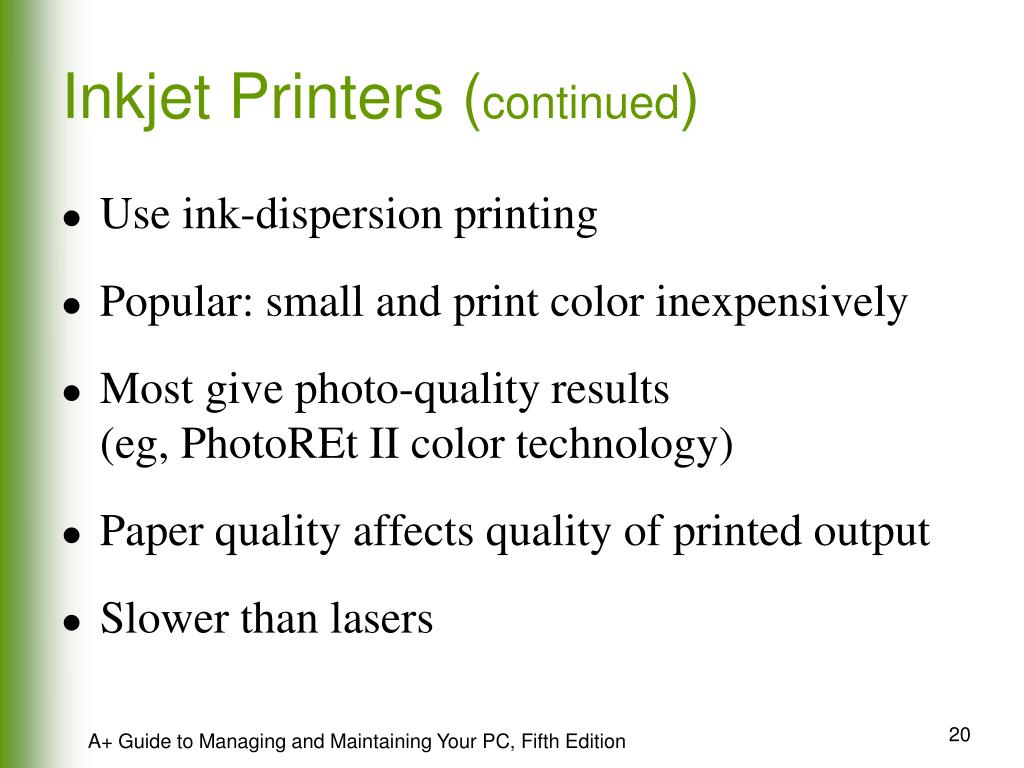

  20. Inkjet Printers (continued) • Use ink-dispersion printing • Popular: small and print color inexpensively • Most give photo-quality results(eg, PhotoREt II color technology) • Paper quality affects quality of printed output • Slower than lasers A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  21. How an Inkjet Printer Works • Print head moves across paper, creating one line of text with each pass • Shoots ionized ink at a sheet of paper in a matrix of small dots • Several technologies are used to form ink droplets (eg, bubble-jet) • Require ink cartridges • Nozzles tend to clog or dry out • Can be cleaned automatically A+ Guide to Managing and Maintaining Your PC, Fifth Edition

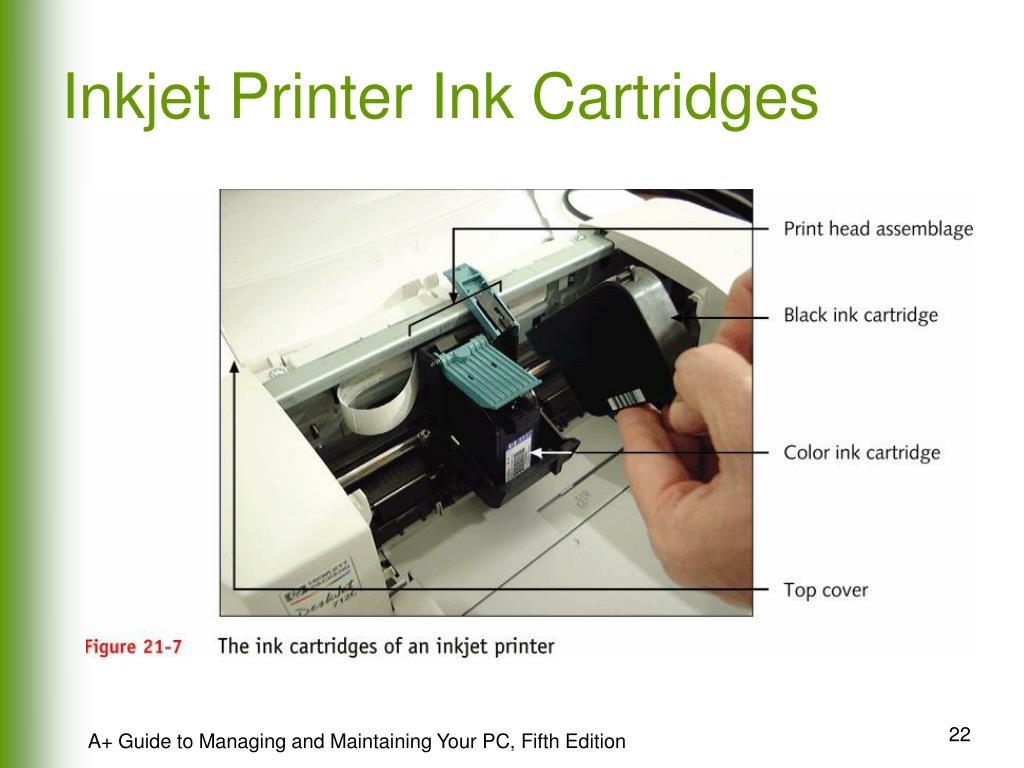

  22. Inkjet Printer Ink Cartridges A+ Guide to Managing and Maintaining Your PC, Fifth Edition

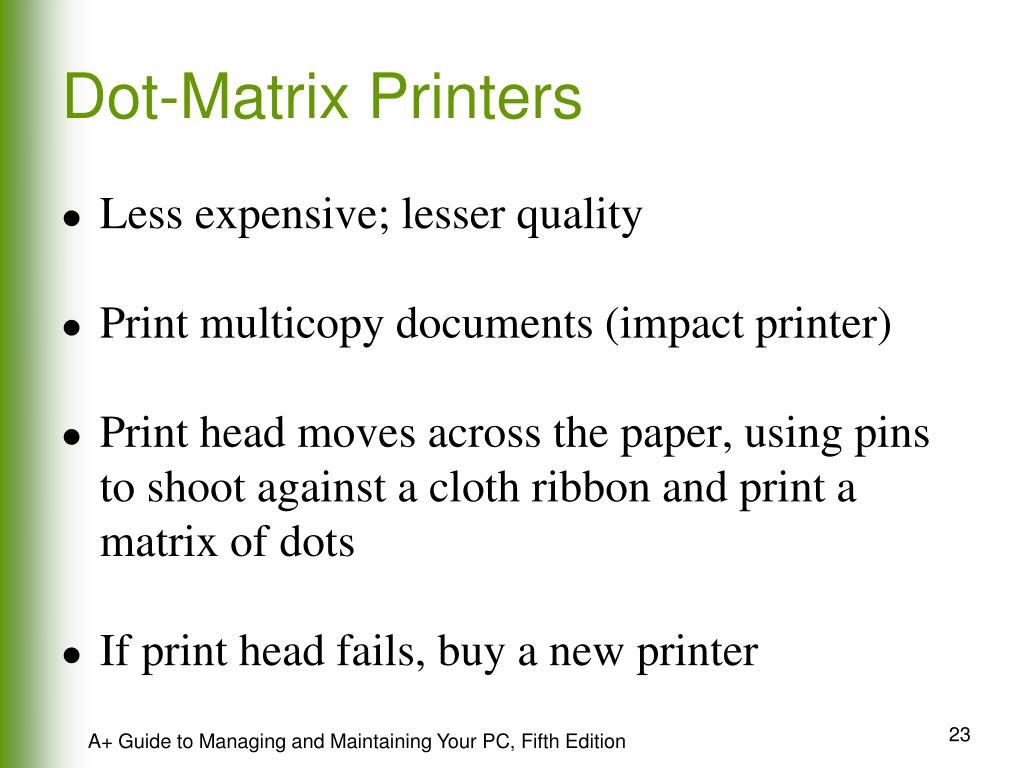

  23. Dot-Matrix Printers • Less expensive; lesser quality • Print multicopy documents (impact printer) • Print head moves across the paper, using pins to shoot against a cloth ribbon and print a matrix of dots • If print head fails, buy a new printer A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  24. Dot-Matrix Printers (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  25. Thermal Printers and Solid Ink Printers • Relatively new printer technologies • Non-impact printers that use heat to produce printed output A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  26. Thermal Printers • Use wax-based ink heated by pins that melt ink onto paper • Popular in retail for printing bar codes and price tags • Variation: dye-sublimation printer A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  27. Solid Ink Printers • Store ink in solid blocks that melts into print head which spans width of paper • Print head jets liquid ink onto paper as it passes by on the drum • Simple design, excellent print quality, easy to set up and maintain • Takes print head ~15 minutes to heat up A+ Guide to Managing and Maintaining Your PC, Fifth Edition

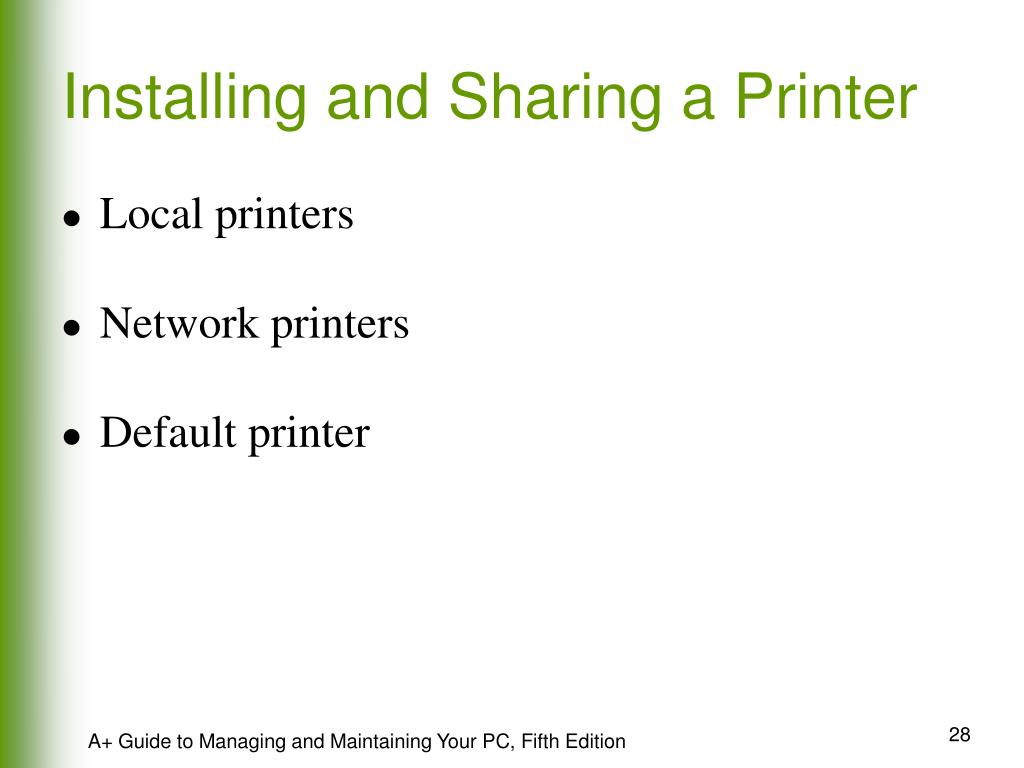

  28. Installing and Sharing a Printer • Local printers • Network printers • Default printer A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  29. Installing a Local Printer • Physically attach printer to computer • Install printer drivers • Have Windows do it • Use printer manufacturer’s installation program (recommended) • Test the printer A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  30. Sharing a Printer with Others in a Workgroup • To share a local printer using Windows • File and Printer Sharing must be installed • To use a shared printer on a remote PC • Client for Microsoft Networks must be installed A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  31. Using a Shared Printer • Approaches to installing shared network printer drivers on remote PC • Use drivers on CD • Use printer drivers on host PC A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  32. Using a Shared Printer (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  33. Using a Shared Printer (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  34. Using a Shared Printer (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

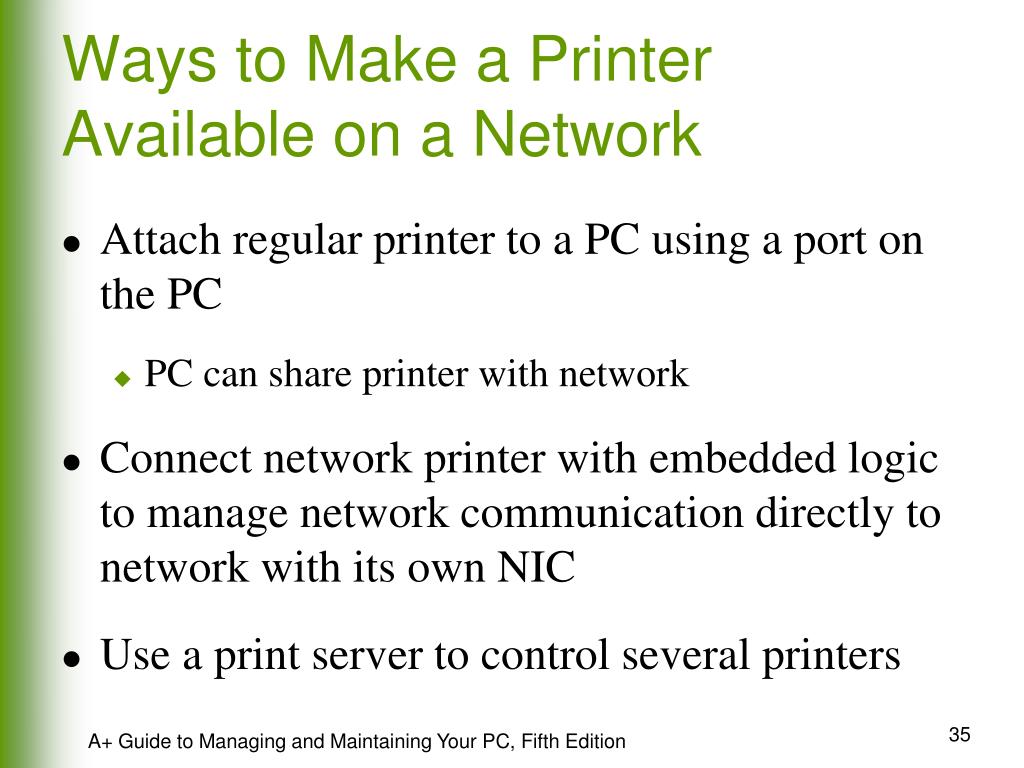

  35. Ways to Make a Printer Available on a Network • Attach regular printer to a PC using a port on the PC • PC can share printer with network • Connect network printer with embedded logic to manage network communication directly to network with its own NIC • Use a print server to control several printers A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  36. Troubleshooting Guidelines for Printers • How Windows handles print jobs • Printer maintenance • General printer troubleshooting • How to troubleshoot problems specific to laser, inkjet, and dot-matrix printers A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  37. How Windows Handles Print Jobs • Windows NT/2000/XP or Windows 9x using a PostScript printer • Converts print job data to PostScript language • Windows 2000/XP can also use Printer Control Language (PCL) • Windows 9x using a non-PostScript printer • Converts print job data to Enhanced Metafile Format (EMF) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  38. How Windows Handles Print Jobs (continued) • Text data lacking embedded control characters is sent as raw data (DOS) • Spooling A+ Guide to Managing and Maintaining Your PC, Fifth Edition

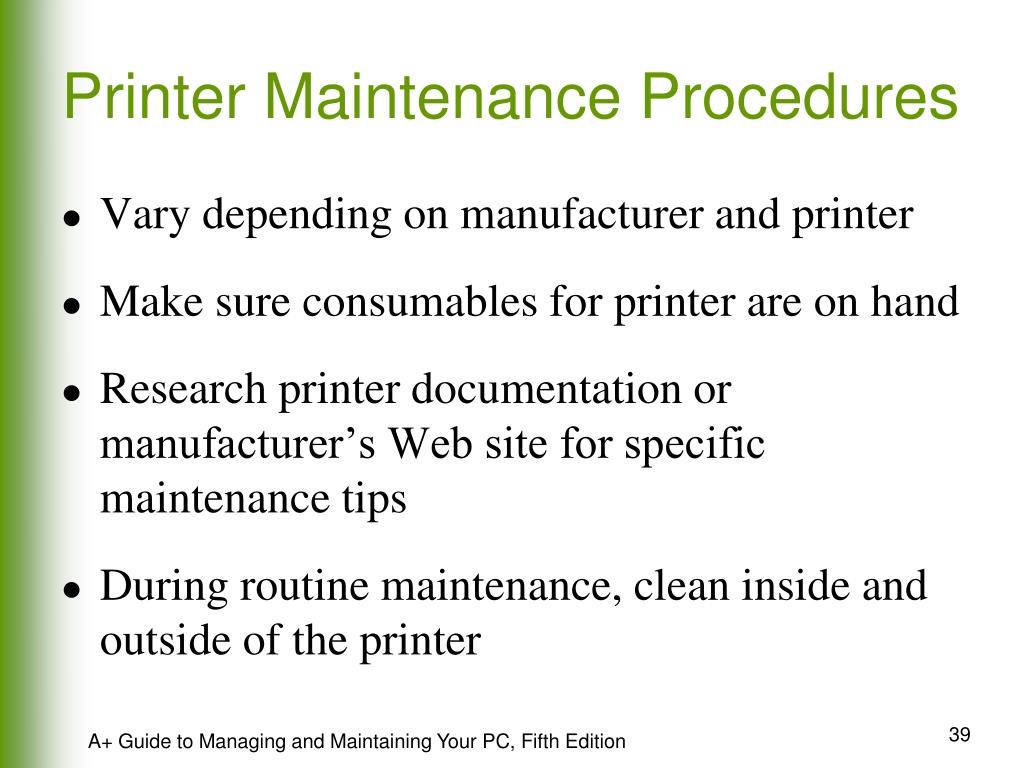

  39. Printer Maintenance Procedures • Vary depending on manufacturer and printer • Make sure consumables for printer are on hand • Research printer documentation or manufacturer’s Web site for specific maintenance tips • During routine maintenance, clean inside and outside of the printer A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  40. Using Printer Manufacturer’s Web Site as a Resource • Online documentation • Knowledge base of common problems and what to do about them • Updated device drivers • Flash BIOS updates • Catalog of options and upgrades for purchase A+ Guide to Managing and Maintaining Your PC, Fifth Edition

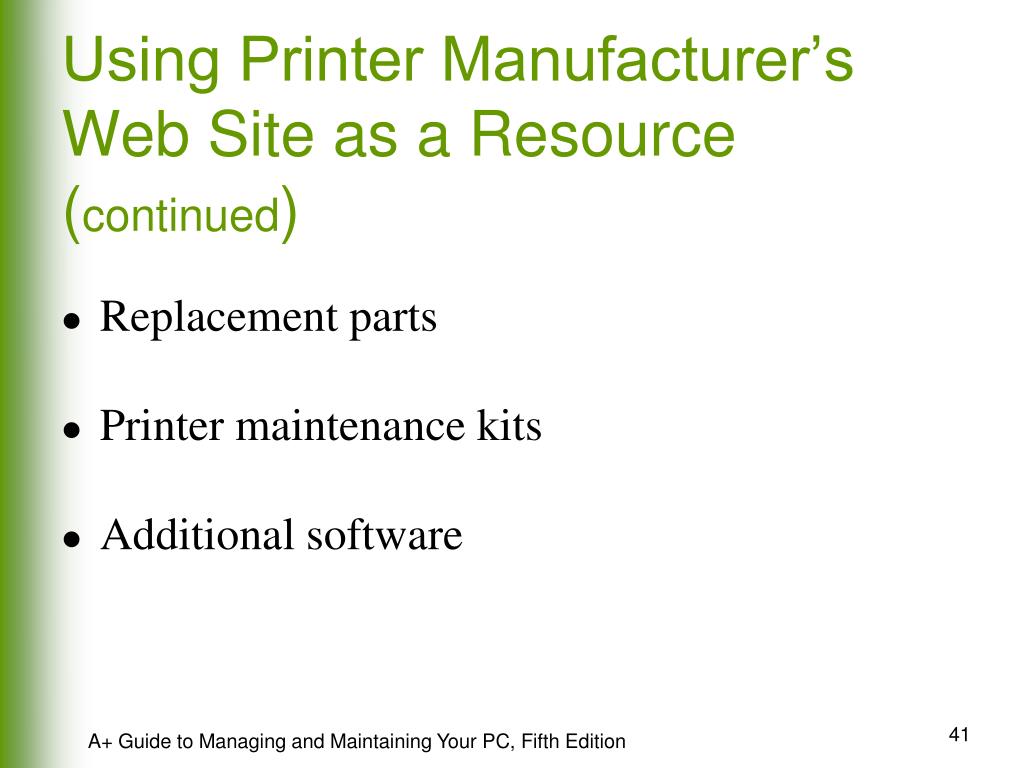

  41. Using Printer Manufacturer’s Web Site as a Resource (continued) • Replacement parts • Printer maintenance kits • Additional software A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  42. General Printer Troubleshooting • Isolate the problem • Application attempting to use the printer • OS and printer drivers • Connectivity between PC and printer • Printer itself • Verify that a printer self-test page can print A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  43. Isolating a Printer Problem A+ Guide to Managing and Maintaining Your PC, Fifth Edition

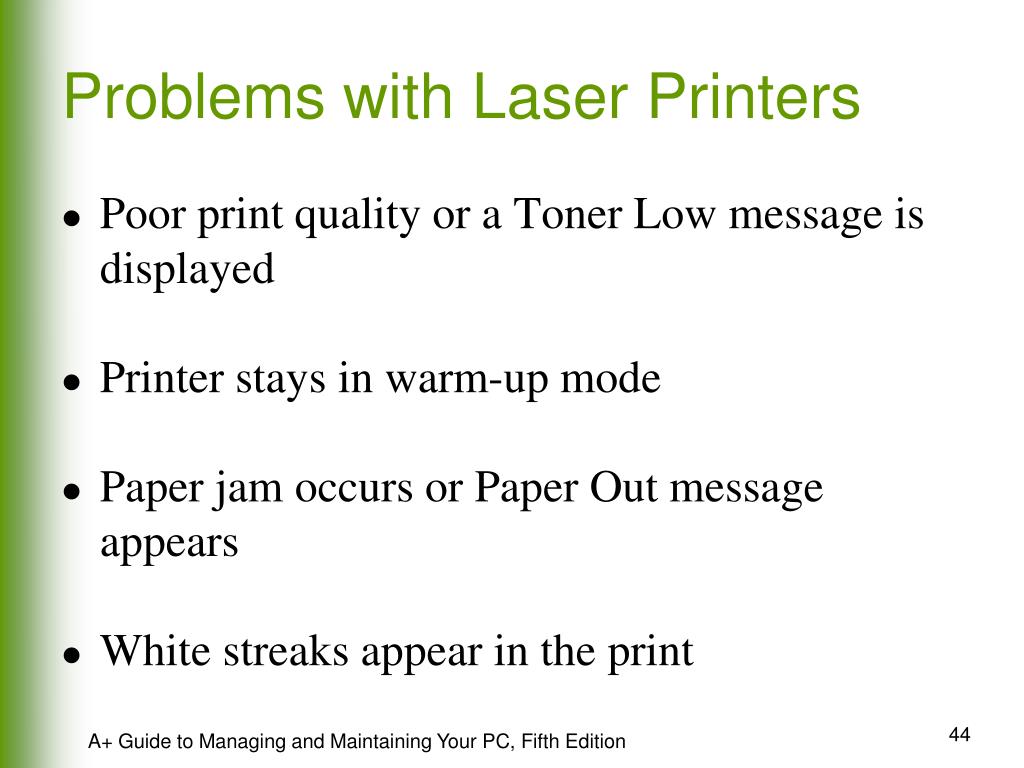

  44. Problems with Laser Printers • Poor print quality or a Toner Low message is displayed • Printer stays in warm-up mode • Paper jam occurs or Paper Out message appears • White streaks appear in the print A+ Guide to Managing and Maintaining Your PC, Fifth Edition

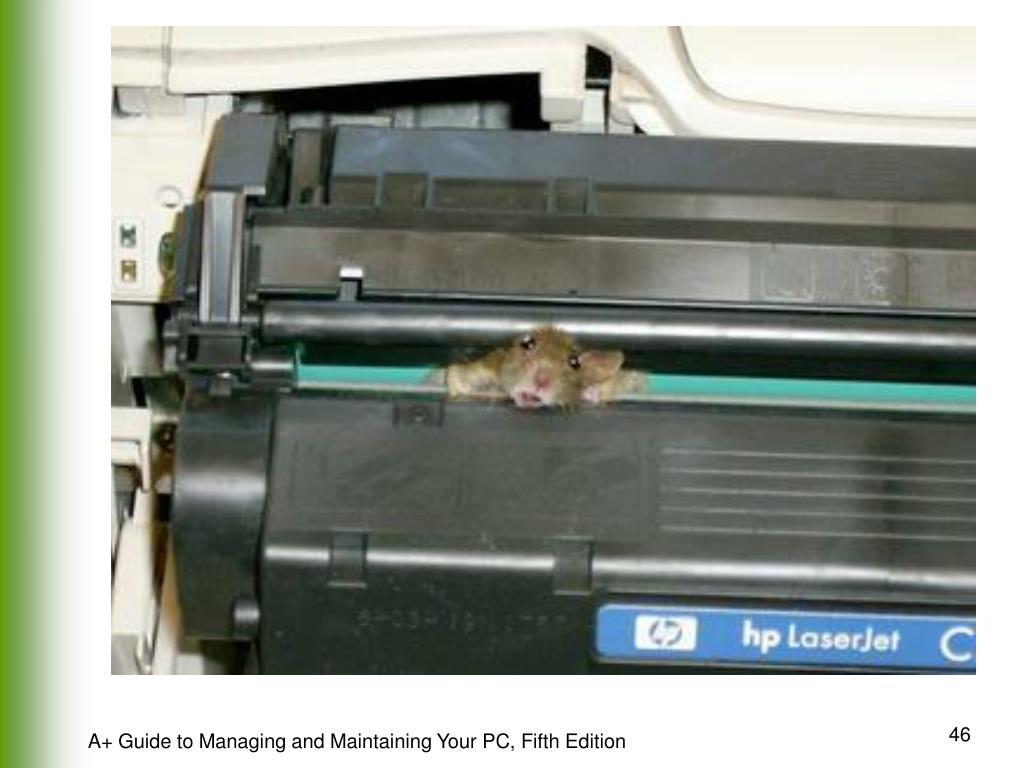

  45. Problems with Laser Printers (continued) • Print appears speckled • Printed images are distorted • Printing is slow • Portion of the page does not print • Is there a dead mouse in the printer? A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  46. A+ Guide to Managing and Maintaining Your PC, Fifth Edition

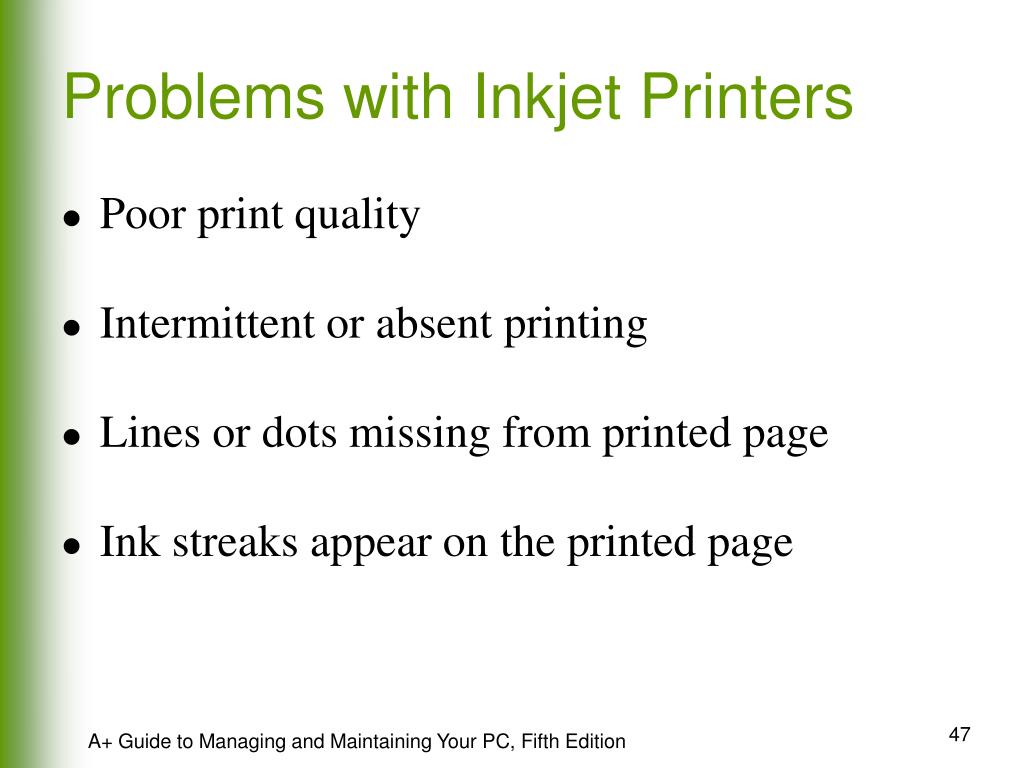

  47. Problems with Inkjet Printers • Poor print quality • Intermittent or absent printing • Lines or dots missing from printed page • Ink streaks appear on the printed page A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  48. Problems with Inkjet Printers (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  49. Problems with Dot-Matrix Printers • Print quality is poor • Print head moves back and forth but nothing prints A+ Guide to Managing and Maintaining Your PC, Fifth Edition

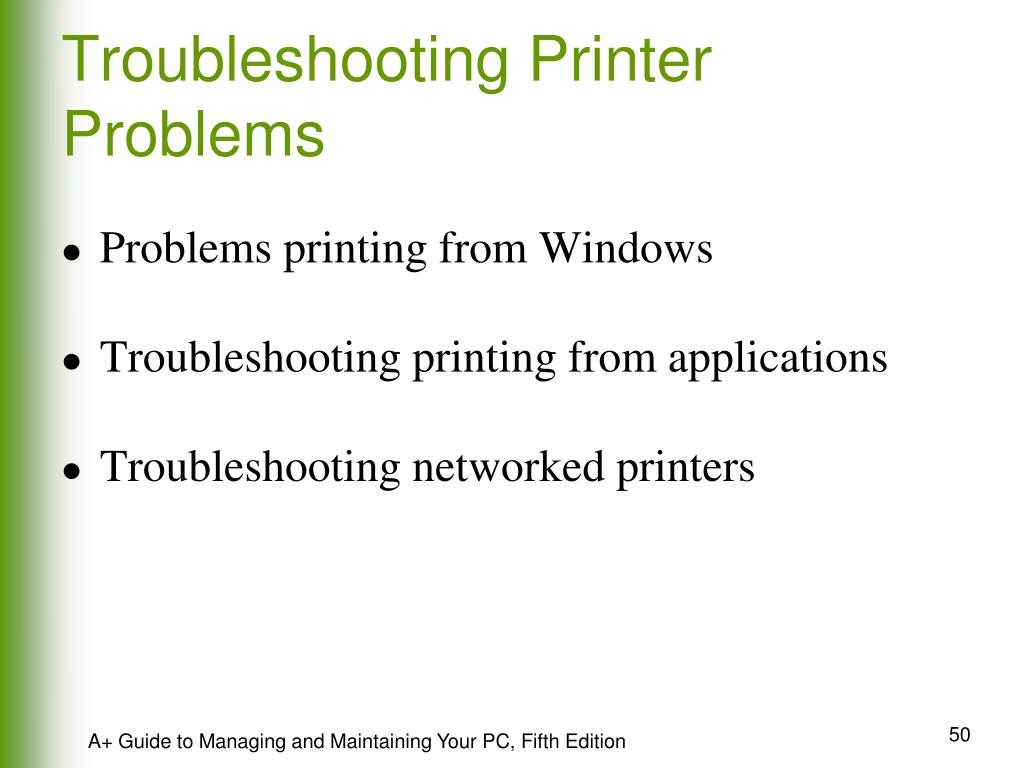

  50. Troubleshooting Printer Problems • Problems printing from Windows • Troubleshooting printing from applications • Troubleshooting networked printers A+ Guide to Managing and Maintaining Your PC, Fifth Edition
