ESR-Analyzer

DESCRIPTION

ESR Analyzer is a portable and efficient Analyzer designed for measuring the sedimentation rate of red blood cells in anticoagulated <br>blood over a defined timeframe. This compact unit employs the trusted Westergren analysis method and leverages advanced infrared <br>sensor technology for precise and dependable measurements.

Télécharger la présentation

ESR-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

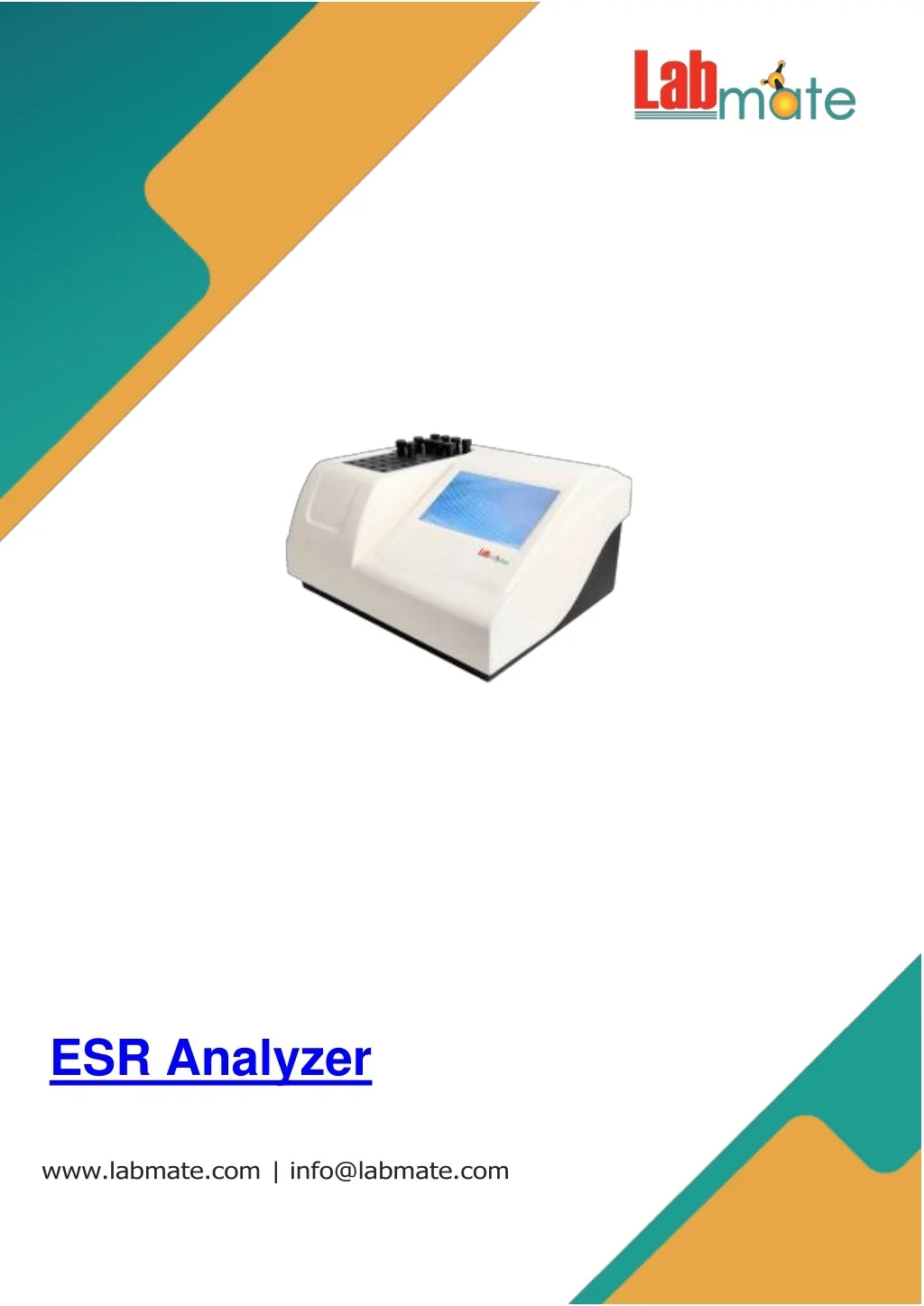

  1. ESR Analyzer www.labmate.com | info@labmate.com

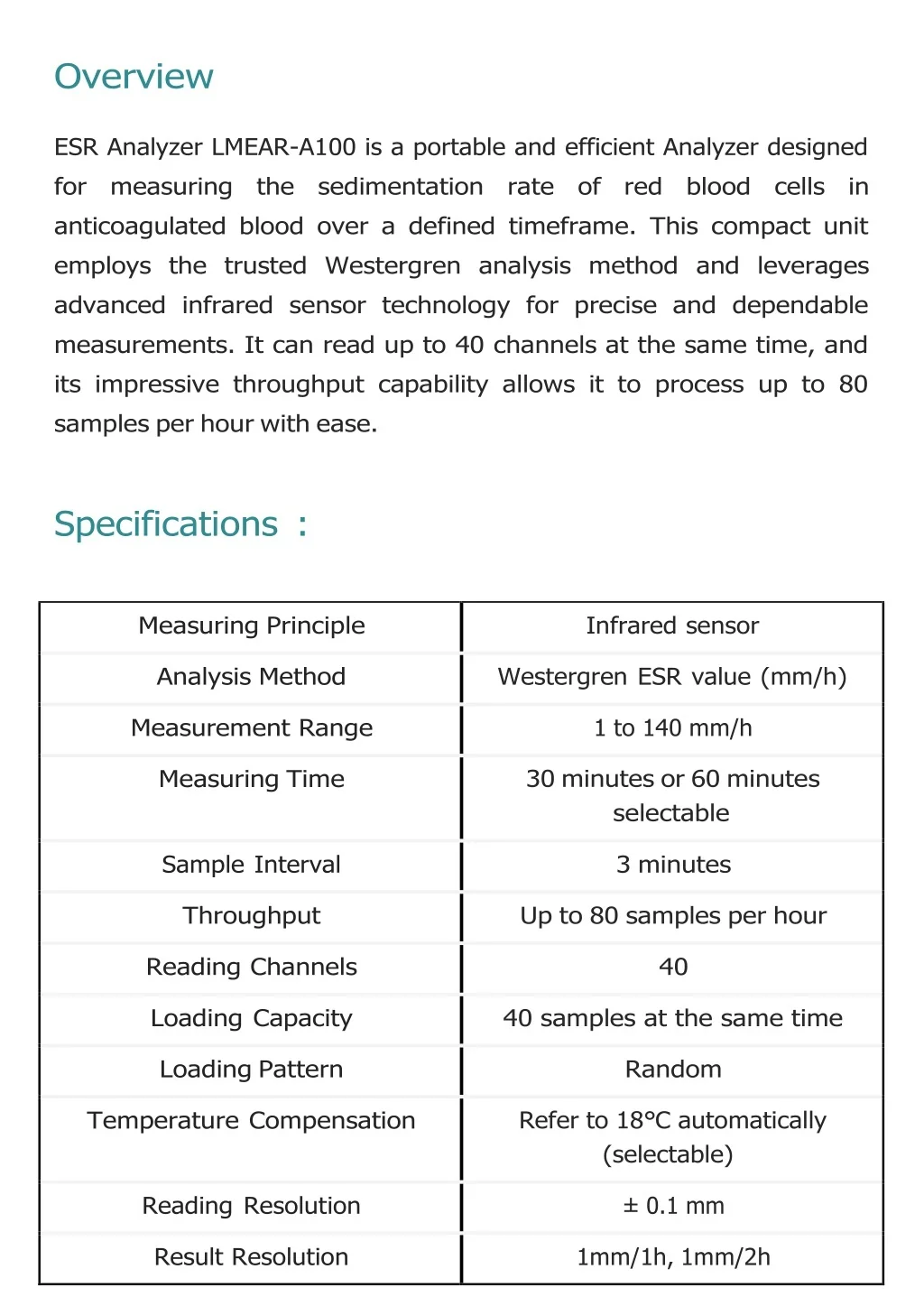

  2. Overview ESR Analyzer LMEAR-A100 is a portable and efficient Analyzer designed for measuring the sedimentation rate of red blood cells in anticoagulated blood over a defined timeframe. This compact unit employs the trusted Westergren analysis method and leverages advanced infrared sensor technology for precise and dependable measurements. It can read up to 40 channels at the same time, and its impressive throughput capability allows it to process up to 80 samples per hour with ease. Specifications : Measuring Principle Infrared sensor Analysis Method Westergren ESR value (mm/h) Measurement Range 1 to 140 mm/h 30 minutes or 60 minutes selectable Measuring Time Sample Interval 3 minutes Throughput Up to 80 samples per hour Reading Channels 40 Loading Capacity 40 samples at the same time Loading Pattern Random Refer to 18℃ automatically (selectable) Temperature Compensation Reading Resolution ± 0.1 mm Result Resolution 1mm/1h, 1mm/2h

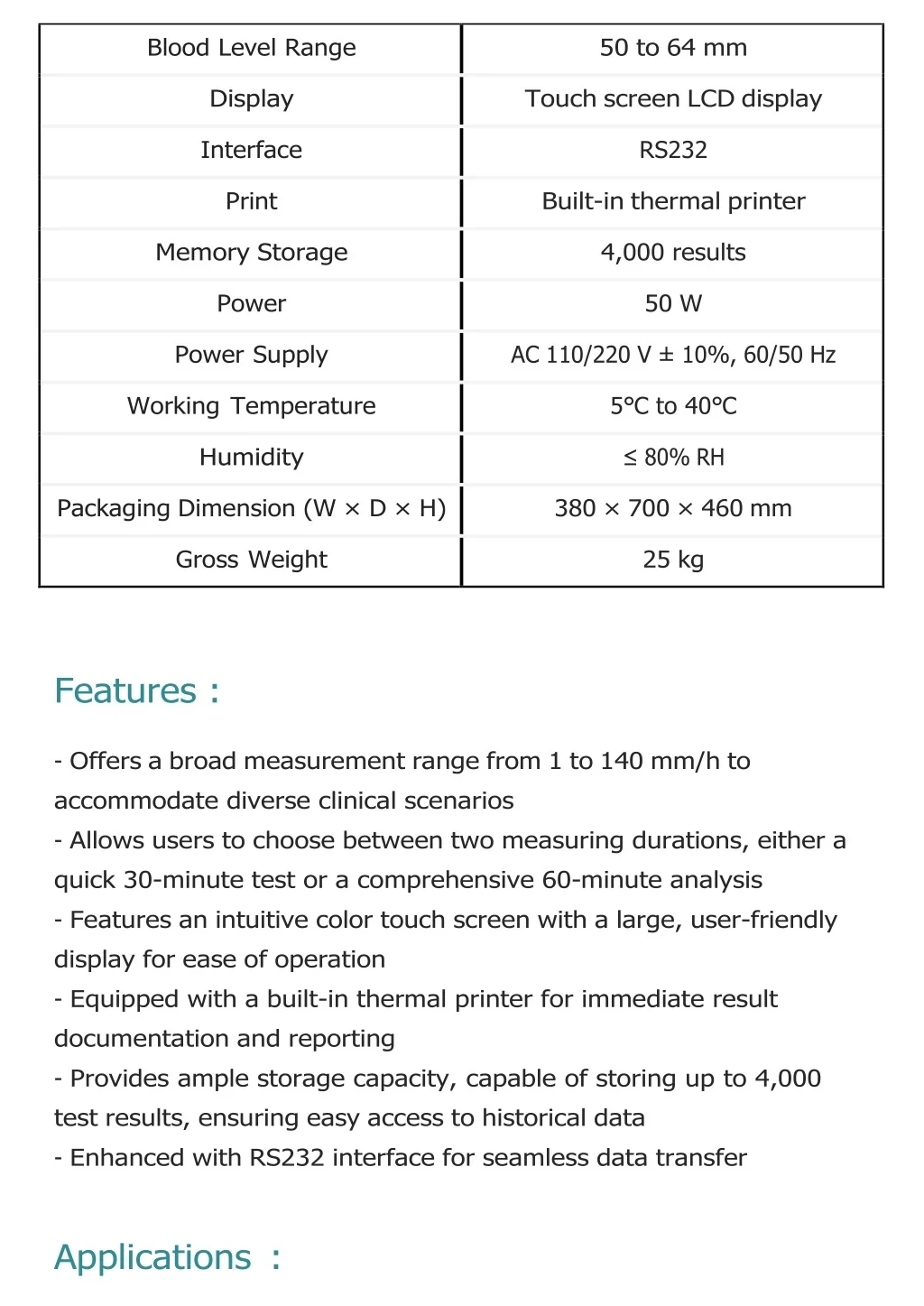

  3. Blood Level Range 50 to 64 mm Display Touch screen LCD display Interface RS232 Print Built-in thermal printer Memory Storage 4,000 results Power 50 W Power Supply AC 110/220 V ± 10%, 60/50 Hz Working Temperature 5℃ to 40℃ Humidity ≤ 80% RH Packaging Dimension (W × D × H) 380 × 700 × 460 mm Gross Weight 25 kg Features : -Offers a broad measurement range from 1 to 140 mm/h to accommodate diverse clinical scenarios -Allows users to choose between two measuring durations, either a quick 30-minute test or a comprehensive 60-minute analysis -Features an intuitive color touch screen with a large, user-friendly display for ease of operation -Equipped with a built-in thermal printer for immediate result documentation and reporting -Provides ample storage capacity, capable of storing up to 4,000 test results, ensuring easy access to historical data -Enhanced with RS232 interface for seamless data transfer Applications :

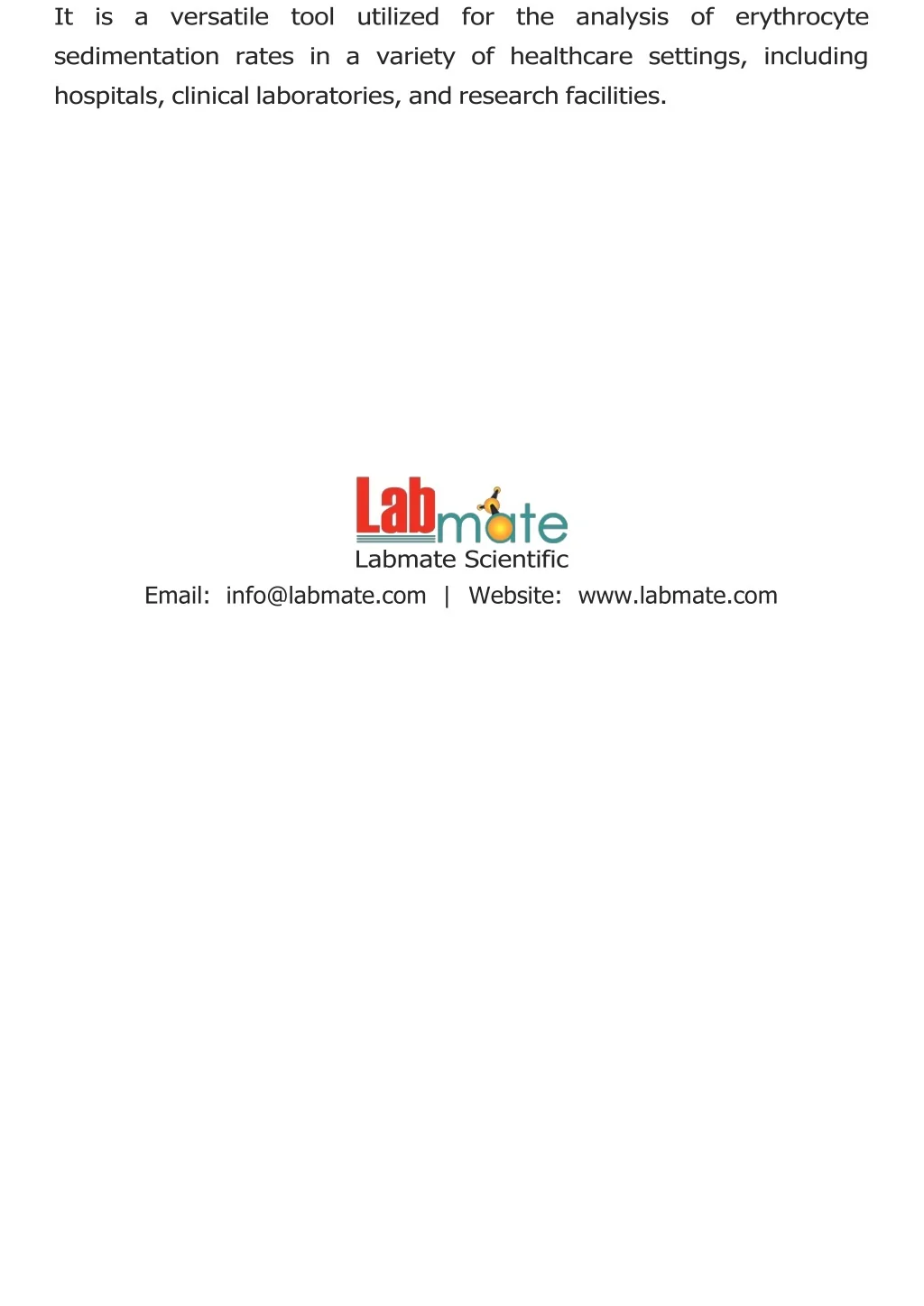

  4. It is a versatile tool utilized for the analysis of erythrocyte sedimentation rates in a variety of healthcare settings, including hospitals, clinical laboratories, and research facilities. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
