Single Automated Stainer Gram

DESCRIPTION

Single Automated Stainer Gram is an advanced Stainer that provides a rapid, straightforward, and consistent staining <br>procedure via the GRAM staining technique. With a carousel capacity ranging from 1 to 10 slides consumes only 1.2 to 1.8 <br>ml of reagent. Incorporates an automated system control mechanism that manages the entire process, starting from <br>fixation and concluding with drying. The programmable rotation speed, adjustable between 6 to 200 rpm, offers precise <br>timing, with a single cycle's duration set at 13 to 18 minutes.<br>

Télécharger la présentation

Single Automated Stainer Gram

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

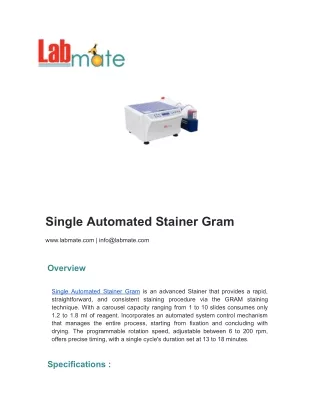

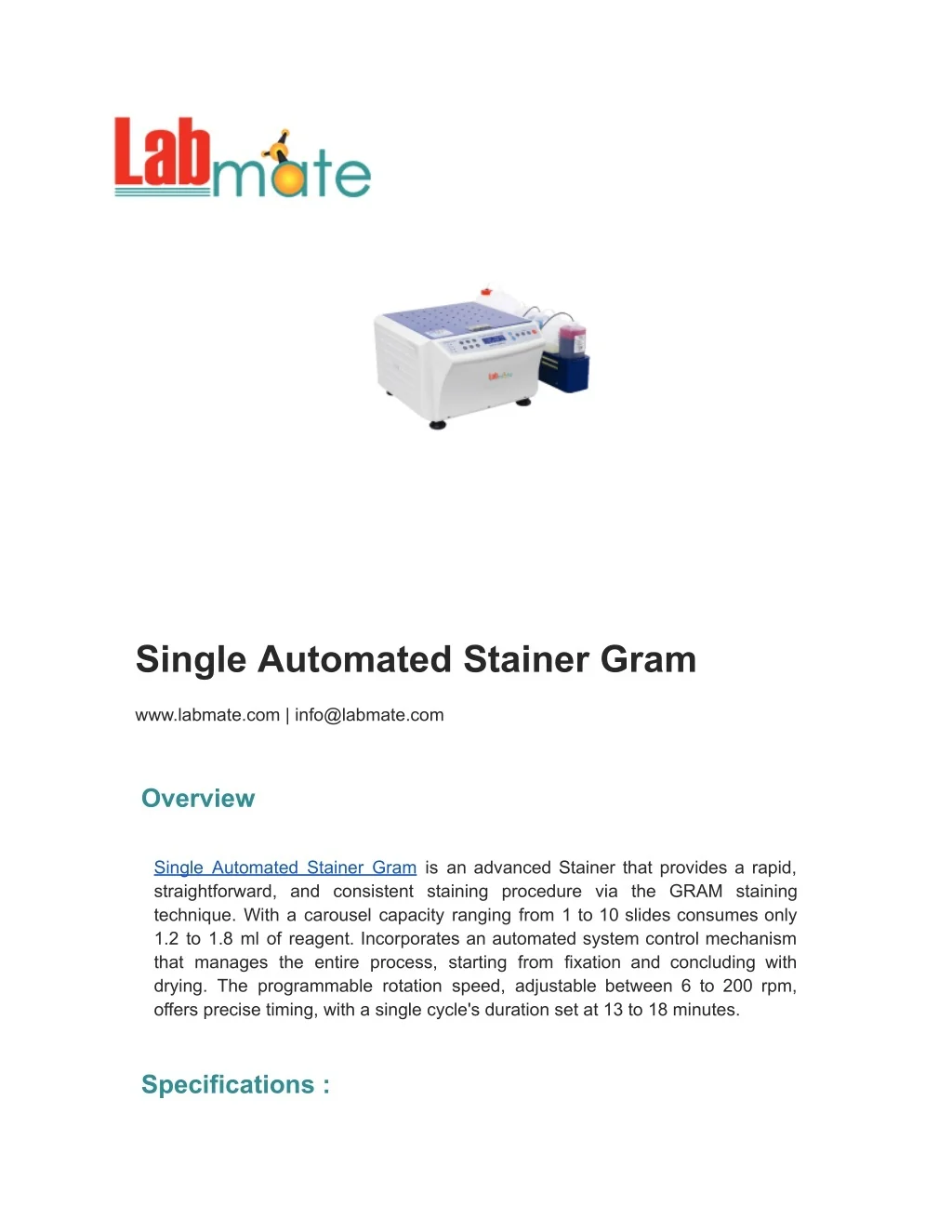

  1. Single Automated Stainer Gram www.labmate.com | info@labmate.com Overview Single Automated Stainer Gram is an advanced Stainer that provides a rapid, straightforward, and consistent staining procedure via the GRAM staining technique. With a carousel capacity ranging from 1 to 10 slides consumes only 1.2 to 1.8 ml of reagent. Incorporates an automated system control mechanism that manages the entire process, starting from fixation and concluding with drying. The programmable rotation speed, adjustable between 6 to 200 rpm, offers precise timing, with a single cycle's duration set at 13 to 18 minutes. Specifications :

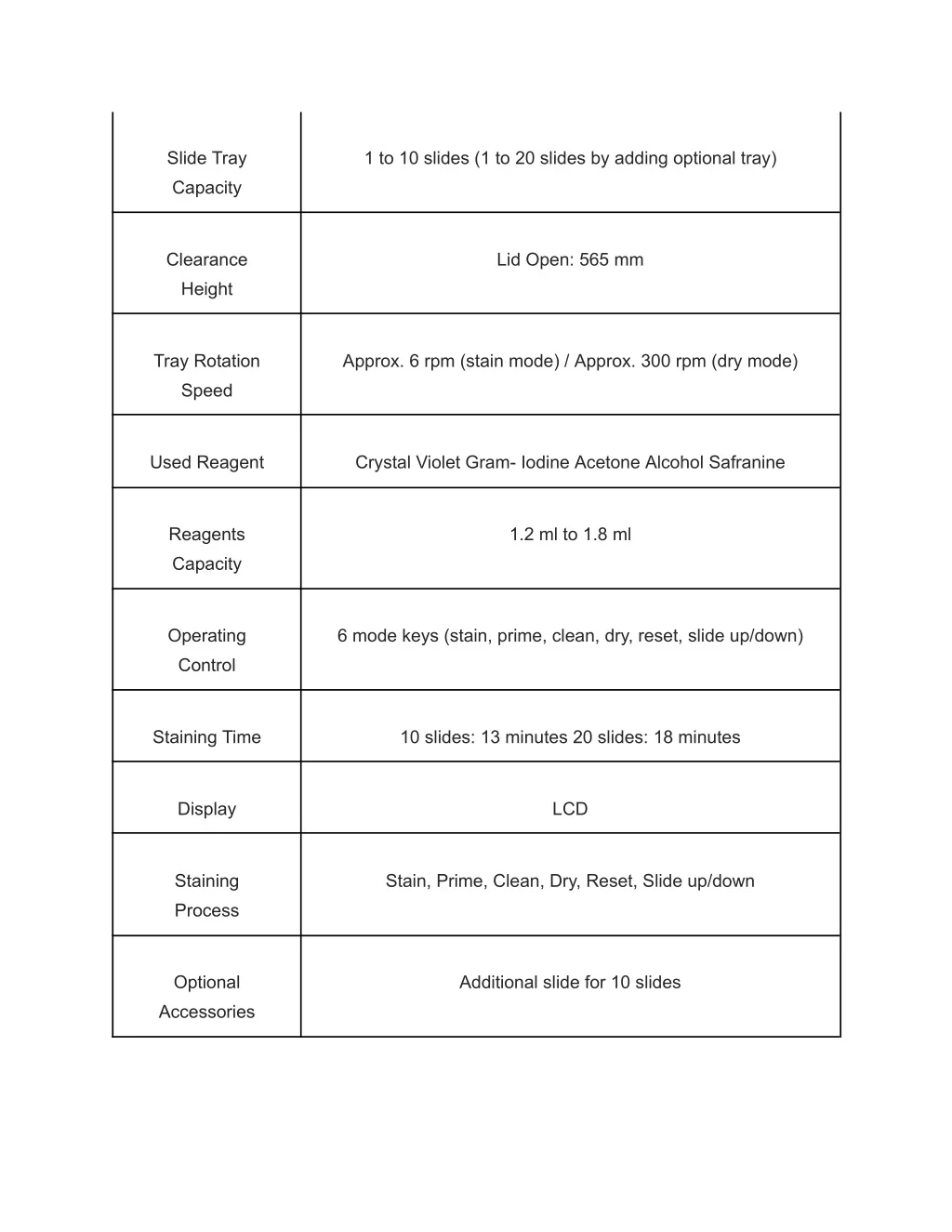

  2. Slide Tray 1 to 10 slides (1 to 20 slides by adding optional tray) Capacity Clearance Lid Open: 565 mm Height Tray Rotation Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode) Speed Used Reagent Crystal Violet Gram- Iodine Acetone Alcohol Safranine Reagents 1.2 ml to 1.8 ml Capacity Operating 6 mode keys (stain, prime, clean, dry, reset, slide up/down) Control Staining Time 10 slides: 13 minutes 20 slides: 18 minutes Display LCD Staining Stain, Prime, Clean, Dry, Reset, Slide up/down Process Optional Additional slide for 10 slides Accessories

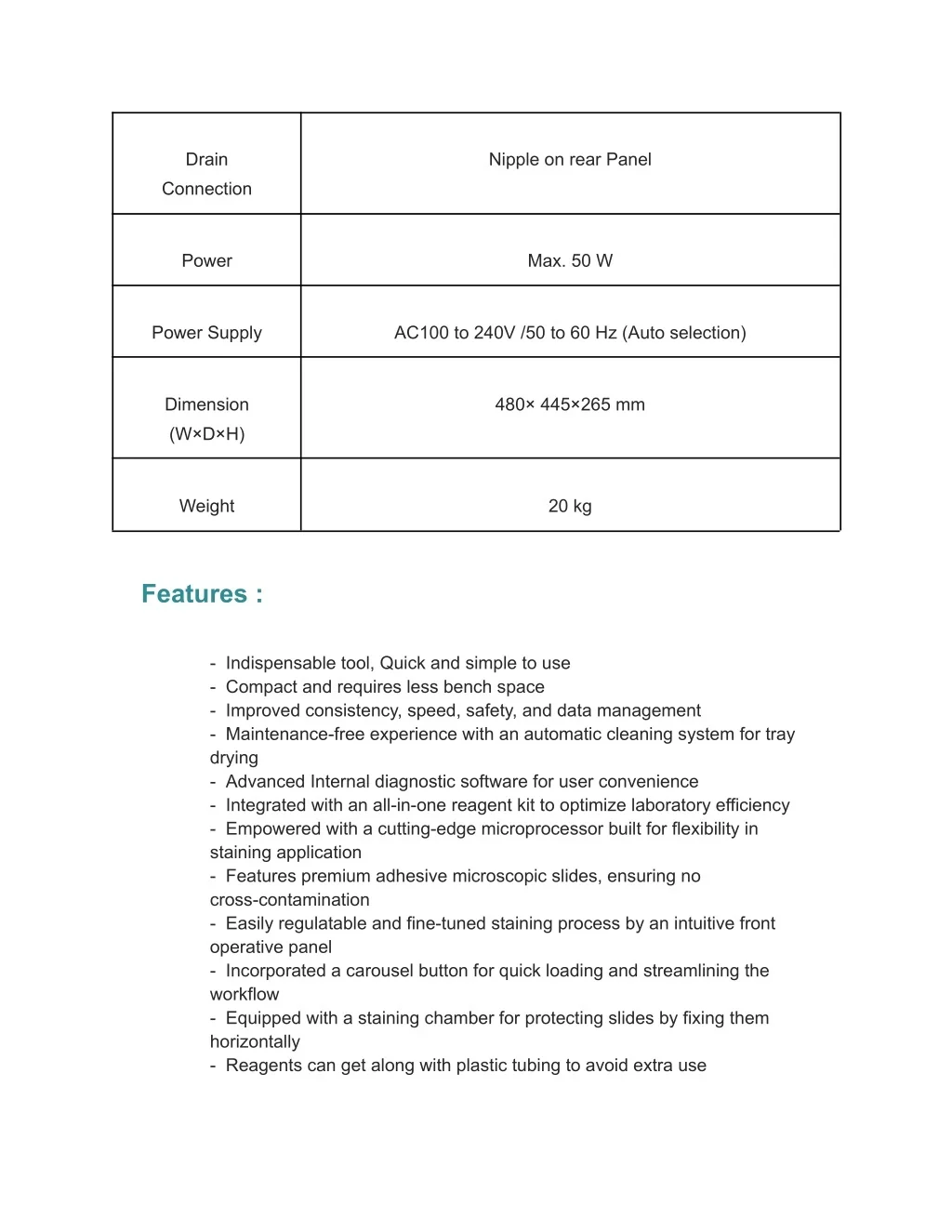

  3. Drain Nipple on rear Panel Connection Power Max. 50 W Power Supply AC100 to 240V /50 to 60 Hz (Auto selection) Dimension 480× 445×265 mm (W×D×H) Weight 20 kg Features : - Indispensable tool, Quick and simple to use - Compact and requires less bench space - Improved consistency, speed, safety, and data management - Maintenance-free experience with an automatic cleaning system for tray drying - Advanced Internal diagnostic software for user convenience - Integrated with an all-in-one reagent kit to optimize laboratory efficiency - Empowered with a cutting-edge microprocessor built for flexibility in staining application - Features premium adhesive microscopic slides, ensuring no cross-contamination - Easily regulatable and fine-tuned staining process by an intuitive front operative panel - Incorporated a carousel button for quick loading and streamlining the workflow - Equipped with a staining chamber for protecting slides by fixing them horizontally - Reagents can get along with plastic tubing to avoid extra use

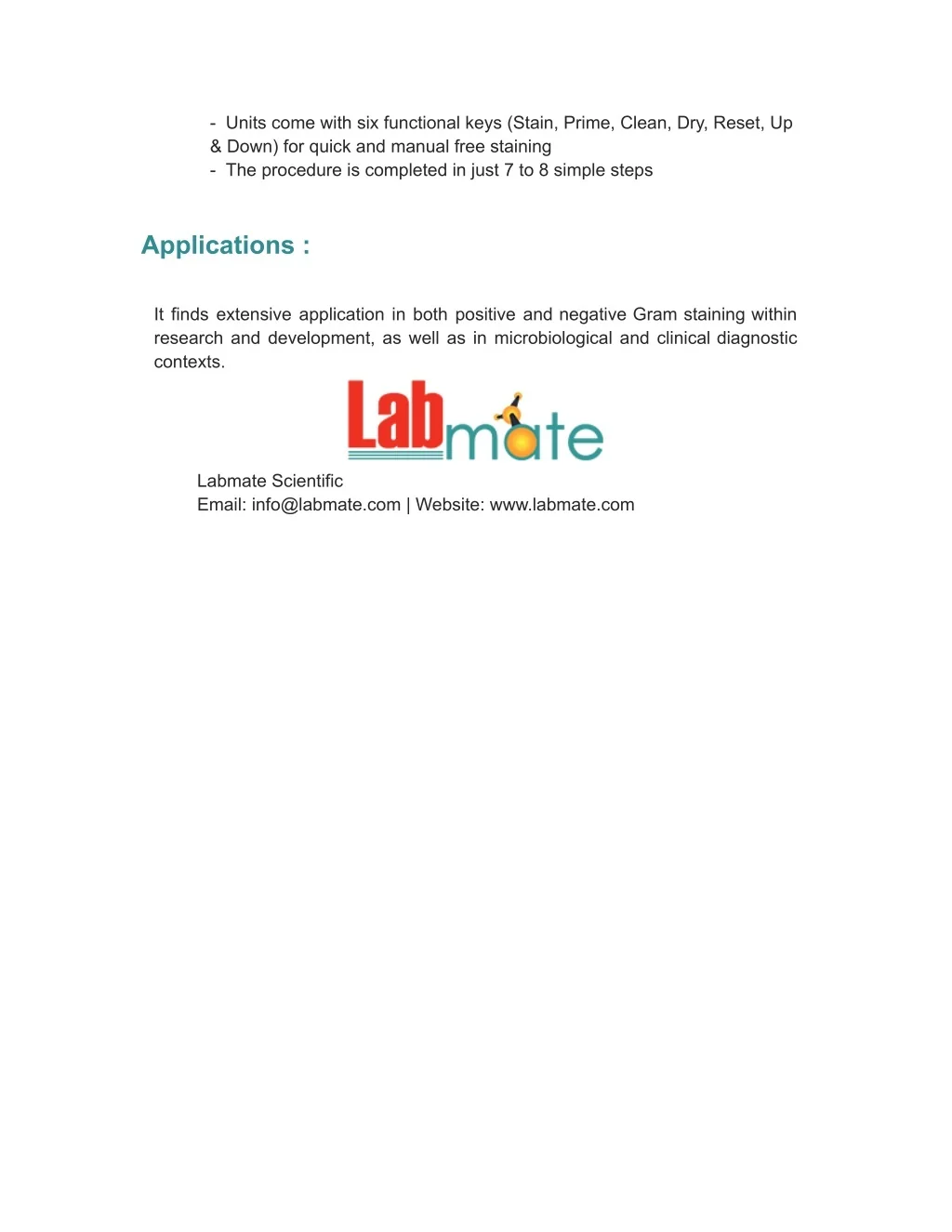

  4. - Units come with six functional keys (Stain, Prime, Clean, Dry, Reset, Up & Down) for quick and manual free staining - The procedure is completed in just 7 to 8 simple steps Applications : It finds extensive application in both positive and negative Gram staining within research and development, as well as in microbiological and clinical diagnostic contexts. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
