Implications of differences in structure

Implications of differences in structure. Ionic solids Conduct electricity in solution (not as solid) Ions break free from electrical attraction when in solution and are free to migrate and carry the current.

abla
Télécharger la présentation

Implications of differences in structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

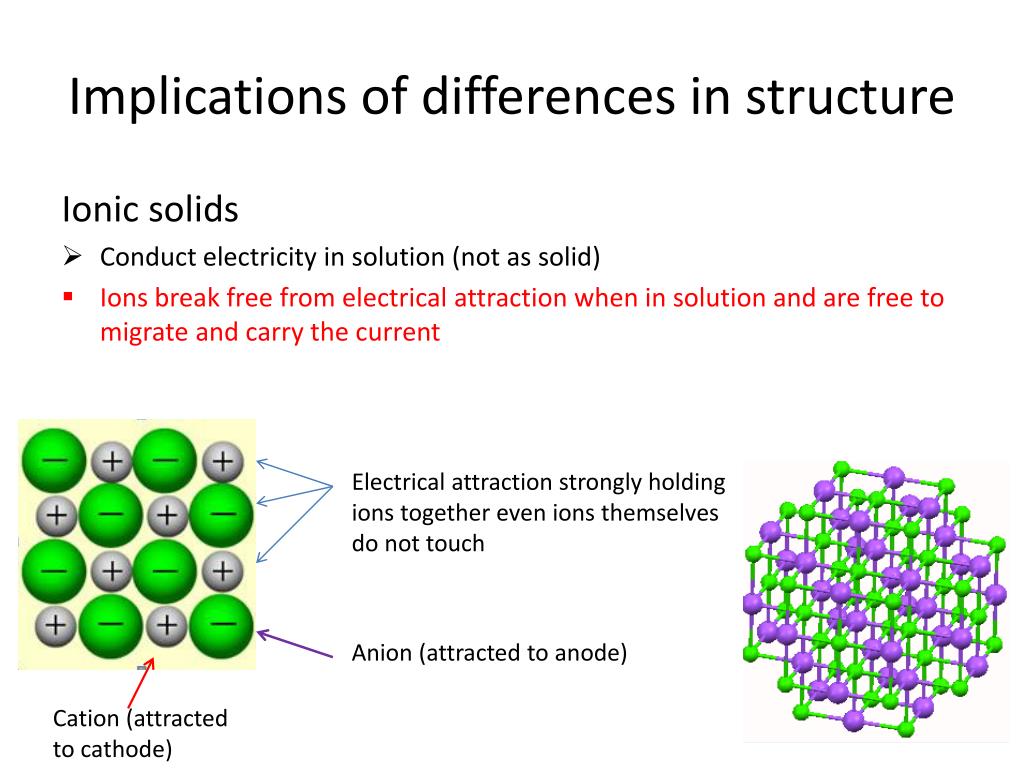

  1. Implications of differences in structure Ionic solids • Conduct electricity in solution (not as solid) • Ions break free from electrical attraction when in solution and are free to migrate and carry the current Electrical attraction strongly holding ions together even ions themselves do not touch Anion (attracted to anode) Cation (attracted to cathode)

  2. Further implications for ionic compounds High melting point • Requires a great amount of energy to break the positive and negative charges apart Very hard & brittle • Strong electrical attraction accounts for hardness • Compounds themselves imply “don’t want to bend” so when we add a lot of energy (like a hammer), the compound tends to shatter in several places (brittle)

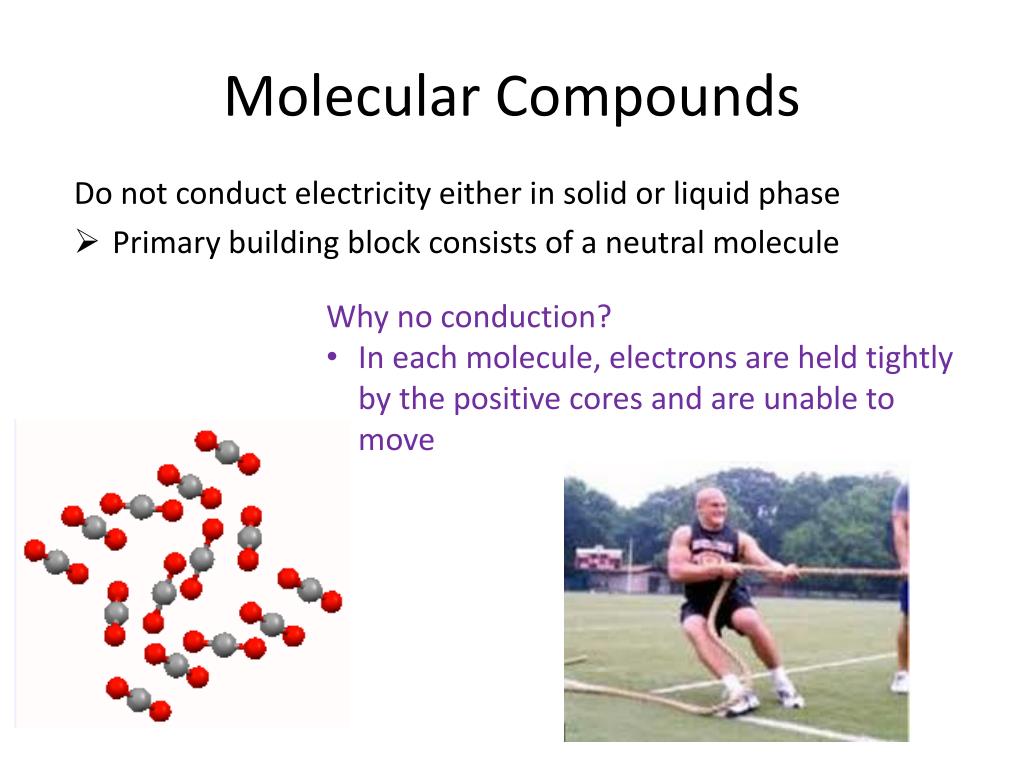

  3. Molecular Compounds • Why no conduction? • In each molecule, electrons are held tightly by the positive cores and are unable to move Do not conduct electricity either in solid or liquid phase • Primary building block consists of a neutral molecule

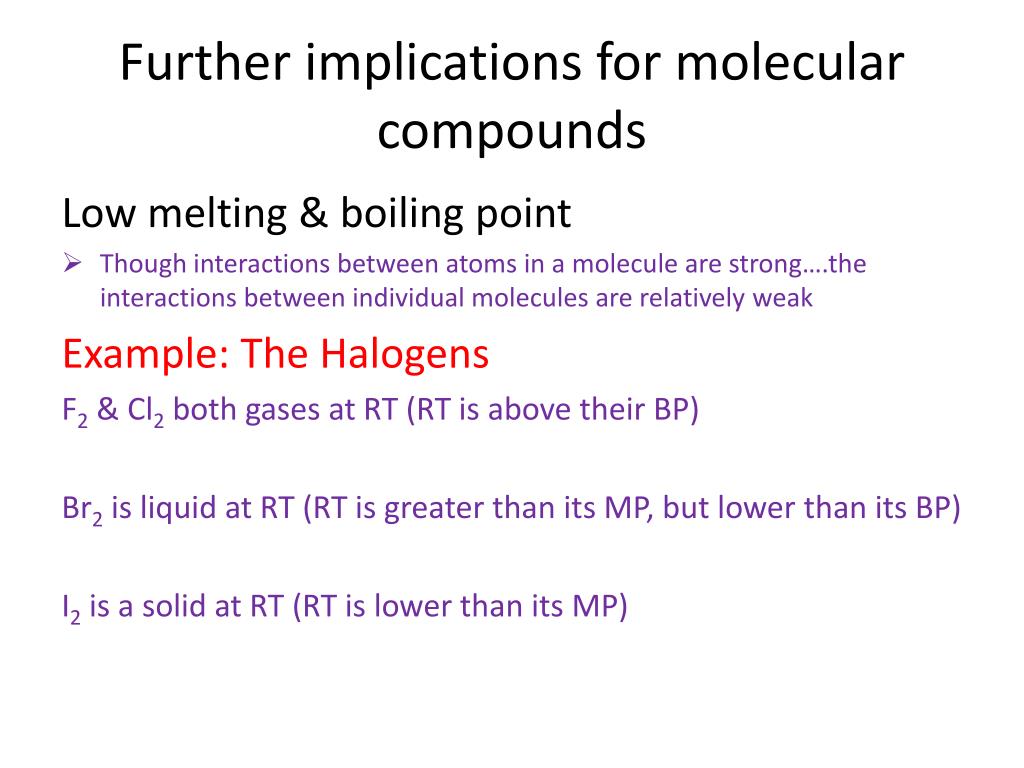

  4. Further implications for molecular compounds Low melting & boiling point • Though interactions between atoms in a molecule are strong….the interactions between individual molecules are relatively weak Example: The Halogens F2 & Cl2 both gases at RT (RT is above their BP) Br2 is liquid at RT (RT is greater than its MP, but lower than its BP) I2 is a solid at RT (RT is lower than its MP)
