  1. Complex-Flow Network Limits and Static System Collapse Santiago Grijalva The Power Affiliates Program Meeting Urbana, May 11, 2001

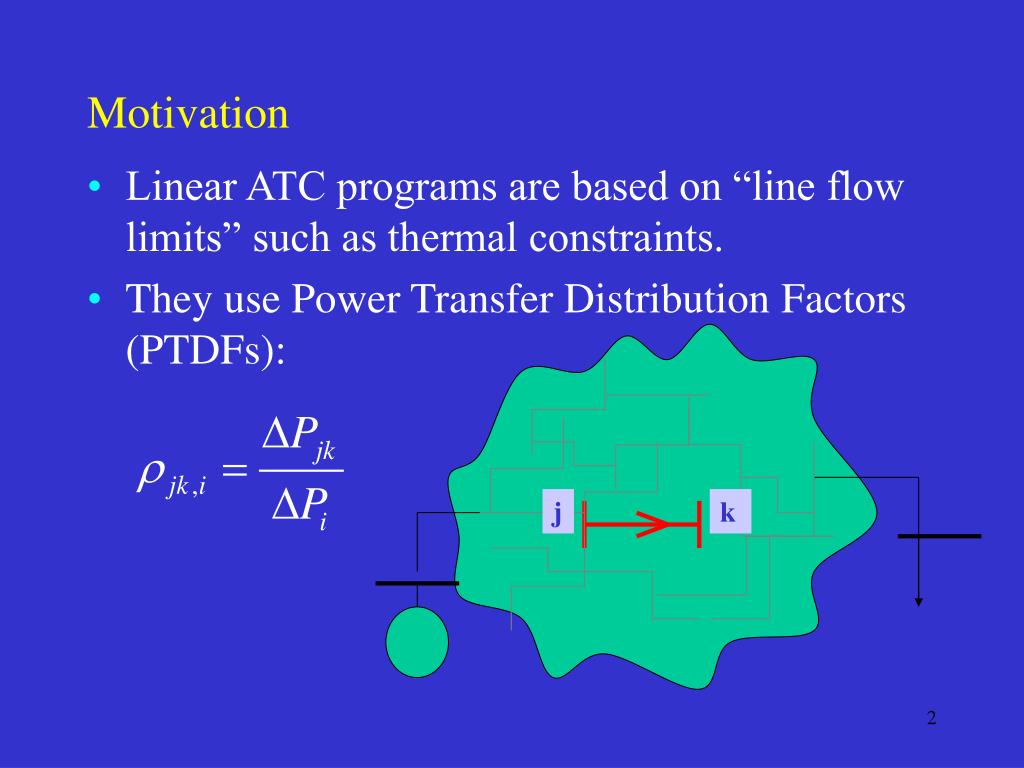

  2. j k Motivation • Linear ATC programs are based on “line flow limits” such as thermal constraints. • They use Power Transfer Distribution Factors (PTDFs):

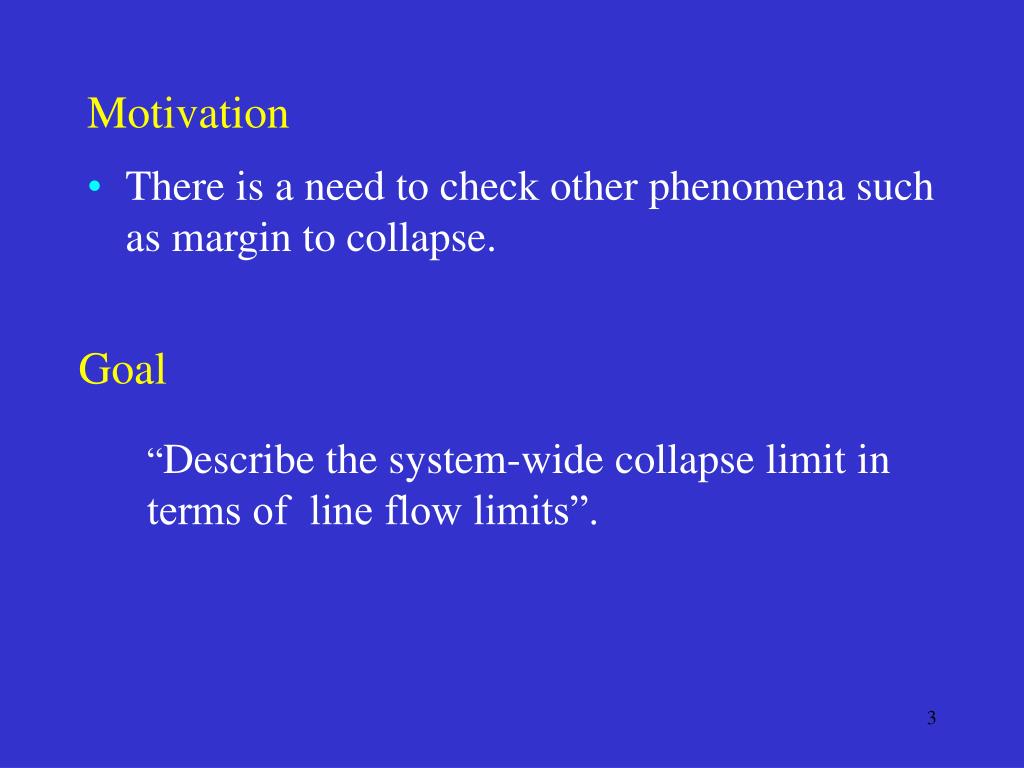

  3. Motivation • There is a need to check other phenomena such as margin to collapse. Goal • “Describe the system-wide collapse limit in terms of line flow limits”.

  4. 5 1 1 5 0 3 2 0 0 3 2 2 Network Theory

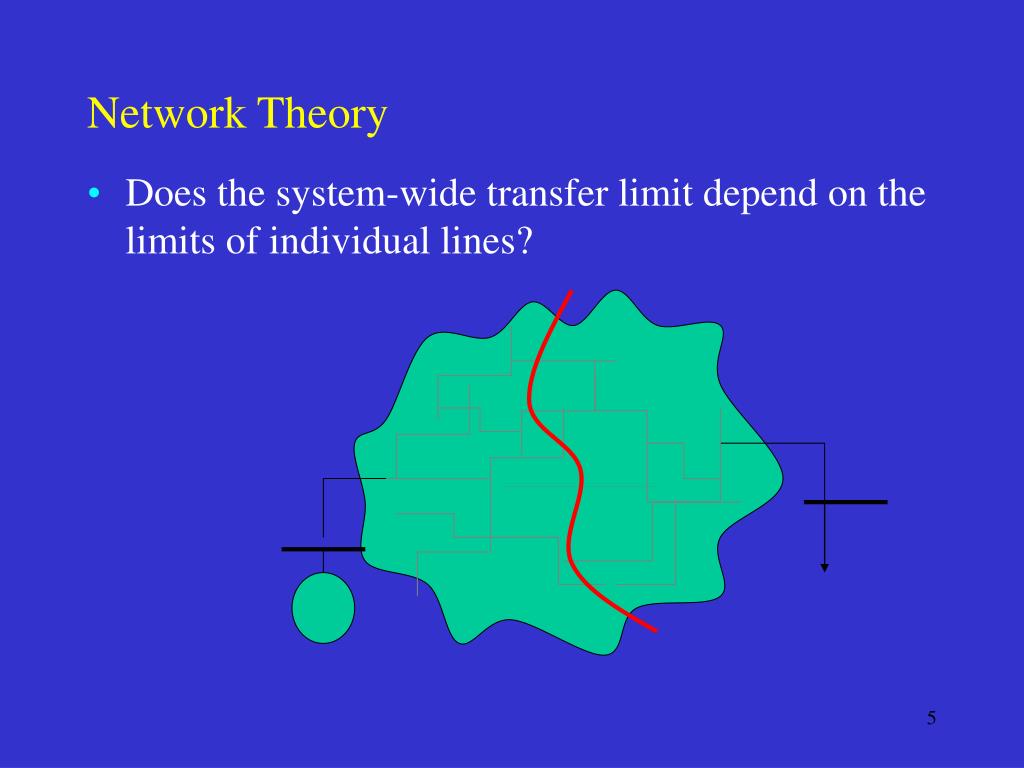

  5. Network Theory • Does the system-wide transfer limit depend on the limits of individual lines?

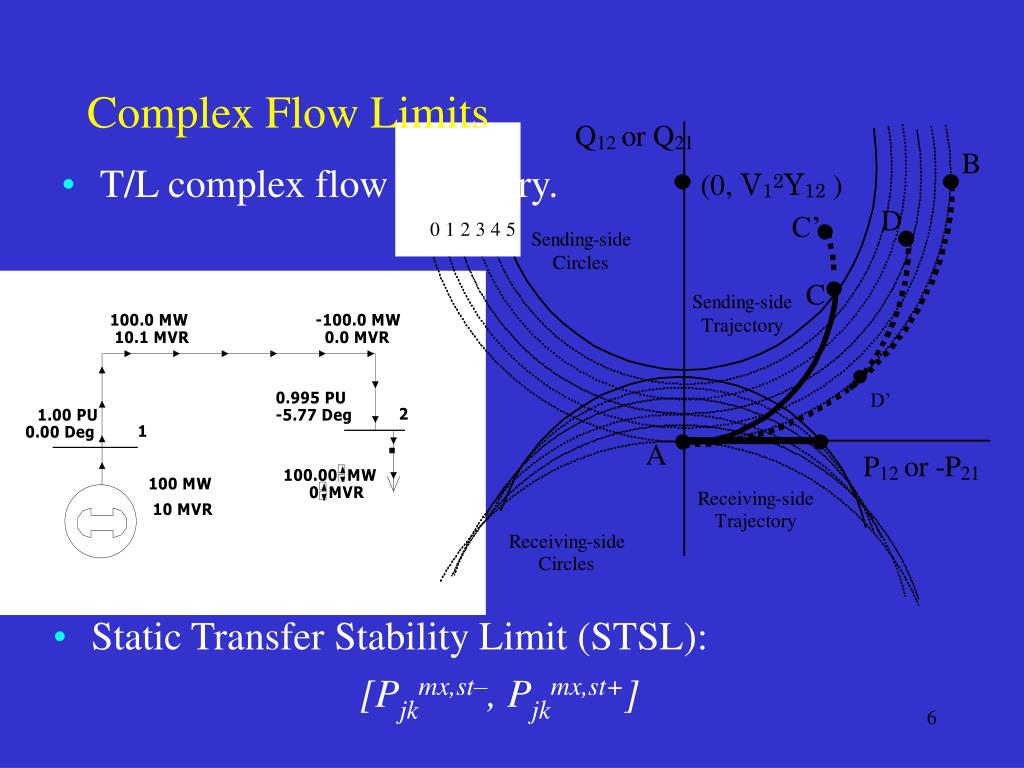

  6. Complex Flow Limits • T/L complex flow trajectory. • Static Transfer Stability Limit (STSL): • [Pjkmx,st–, Pjkmx,st+]

  7. Main Result: A Line Flow Based Necessary Condition for Collapse • Let p be a scalar parameter. The system has solution for all p such that 0 < p0 < p < p* and no solution if p  p*. • Proposition:Let a power network with a power flow solution for a parameter p=p0, giving flows at each line side Pjk(p0) feasible with respect to line side STSLs. If p varies until the point of collapse, then at least the trajectory of one line side must have reached its STSL.

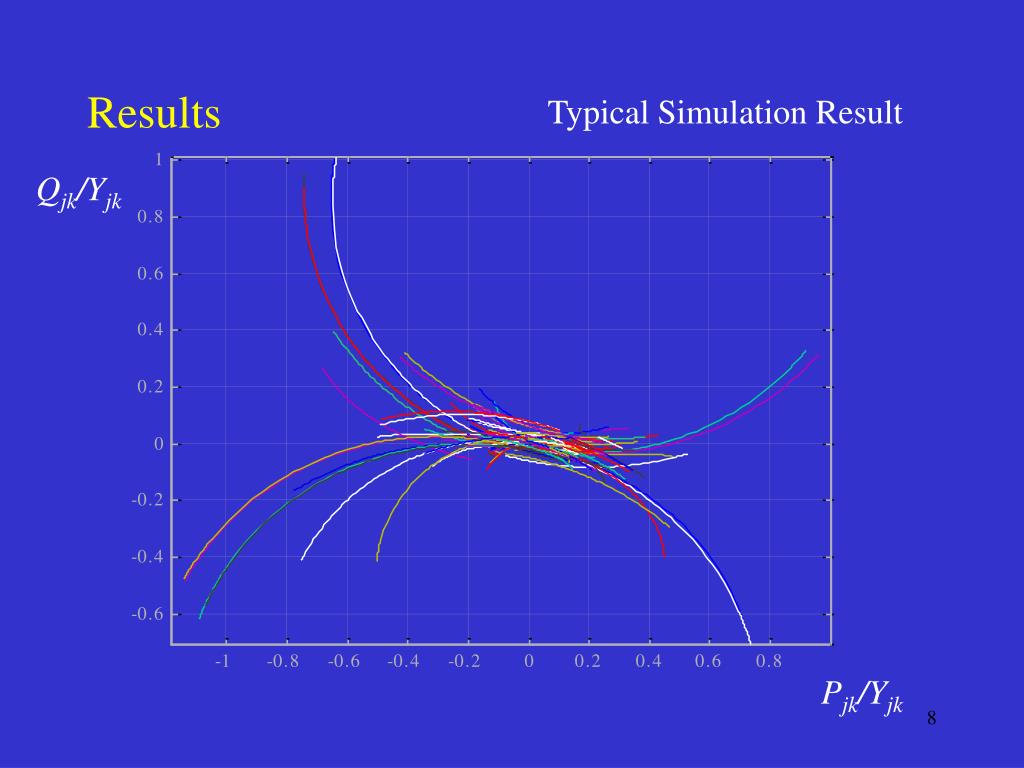

  8. Results Typical Simulation Result Qjk/Yjk Pjk/Yjk

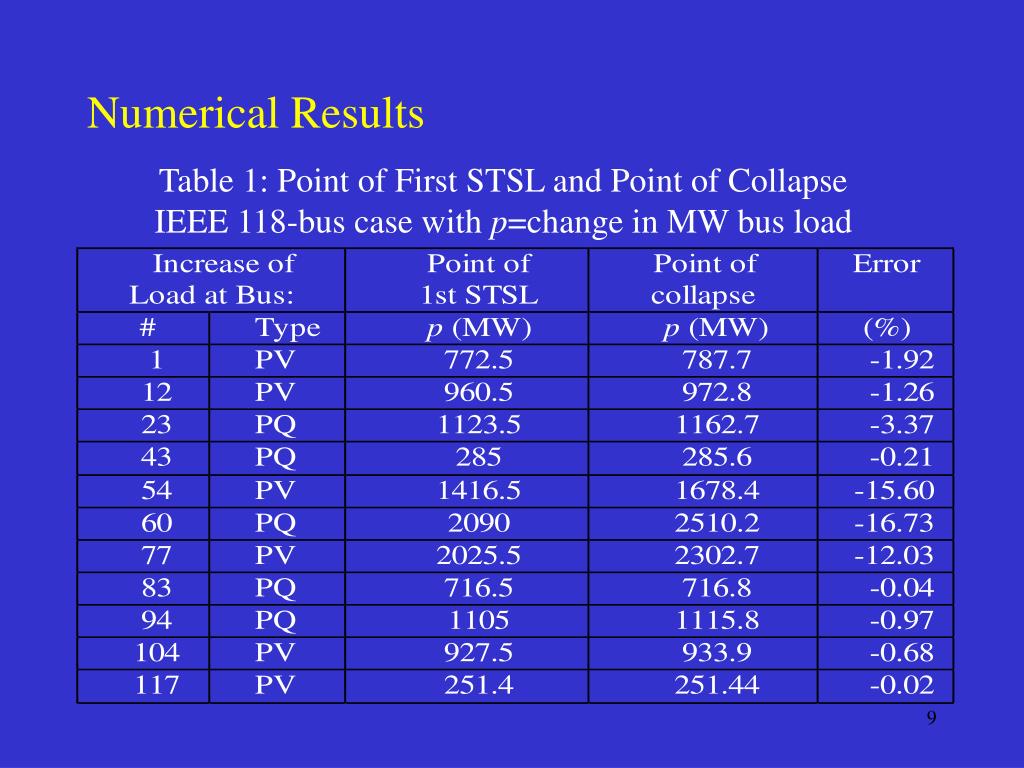

  9. Numerical Results Table 1: Point of First STSL and Point of Collapse IEEE 118-bus case with p=change in MW bus load

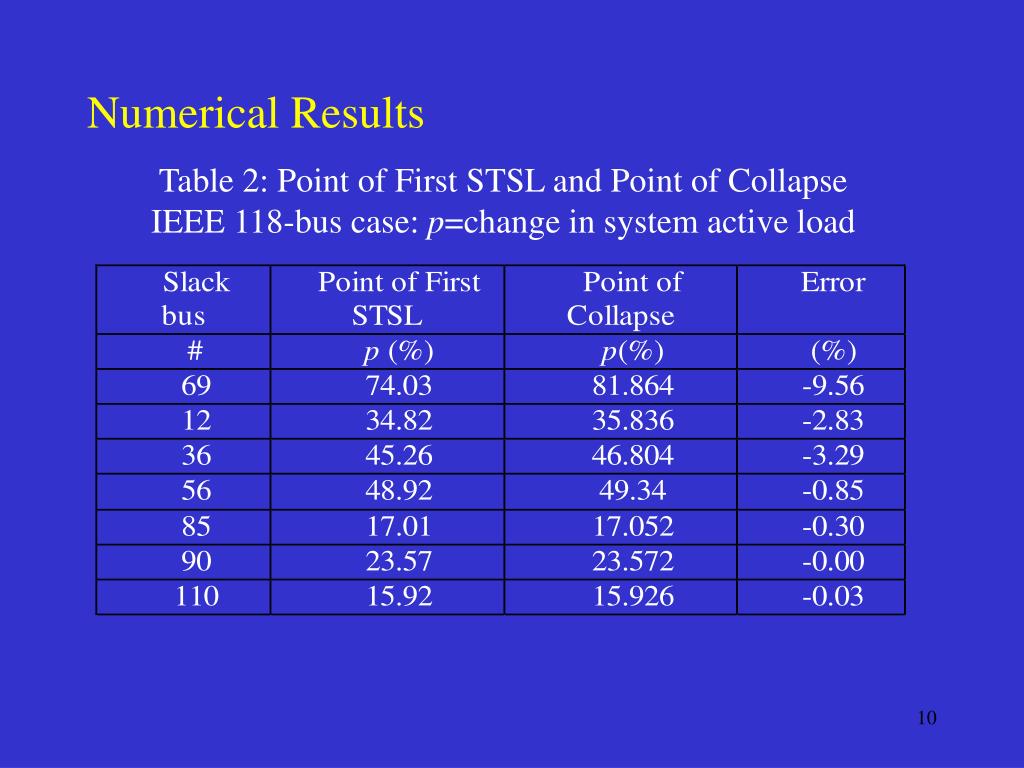

  10. Numerical Results Table 2: Point of First STSL and Point of Collapse IEEE 118-bus case: p=change in system active load

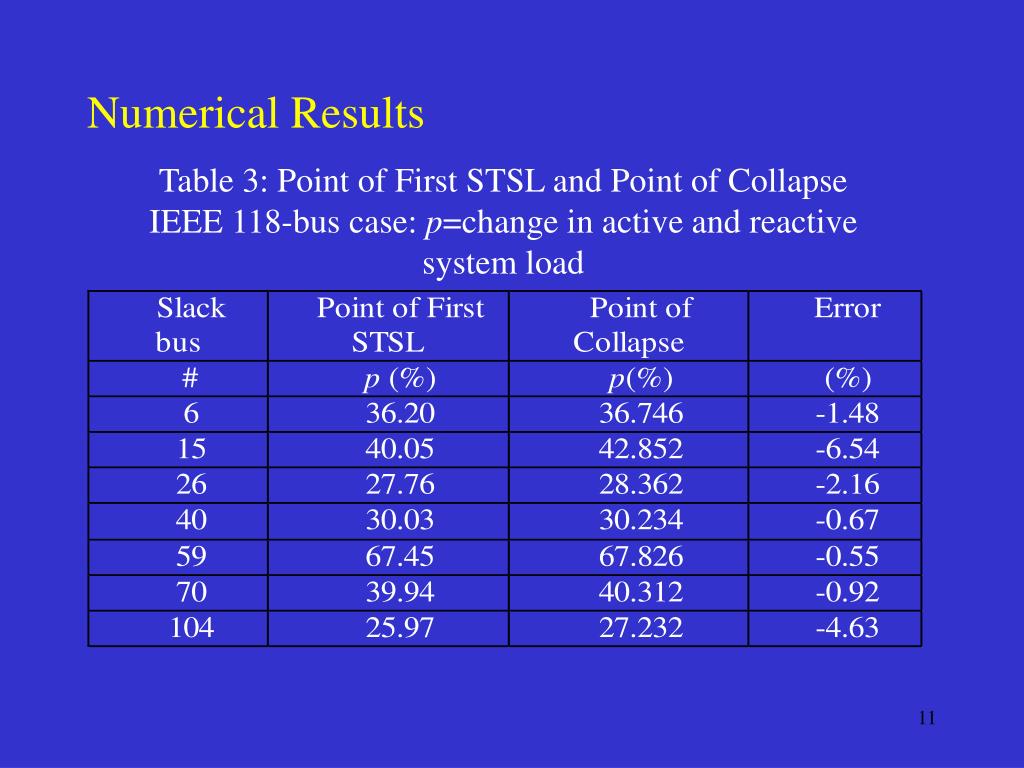

  11. Numerical Results Table 3: Point of First STSL and Point of Collapse IEEE 118-bus case: p=change in active and reactive system load

  12. Numerical Results: Margin to Collapse Margin(MW) Actual Value Using PTDF Using CTDF Pi(MW)

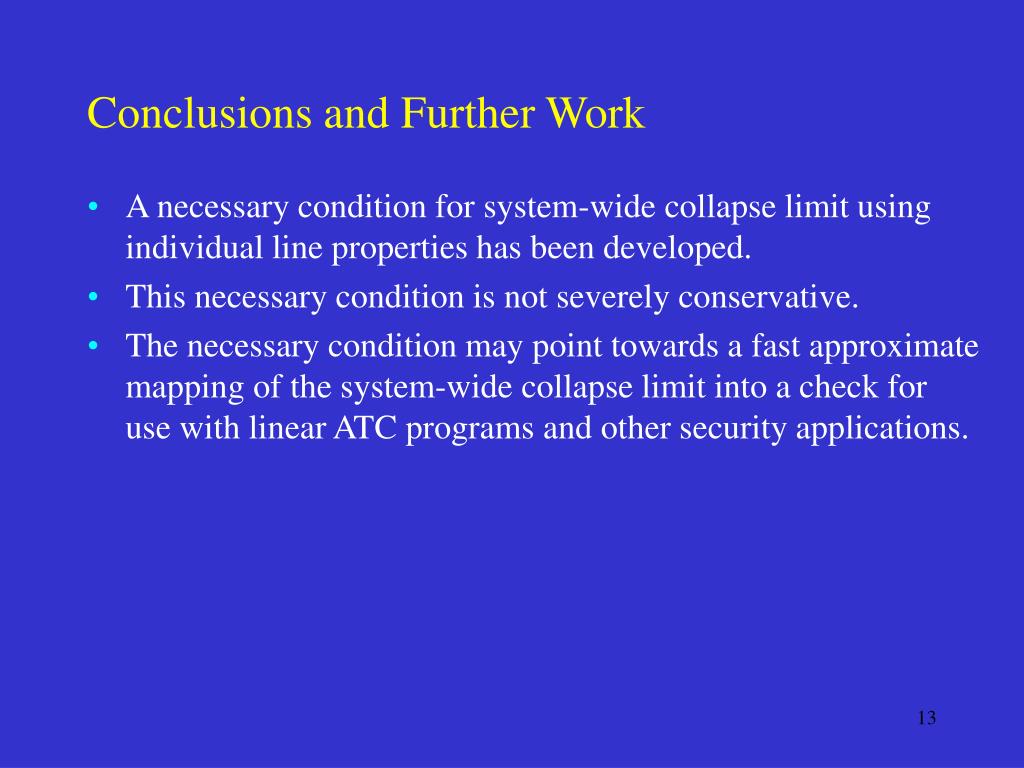

  13. Conclusions and Further Work • A necessary condition for system-wide collapse limit using individual line properties has been developed. • This necessary condition is not severely conservative. • The necessary condition may point towards a fast approximate mapping of the system-wide collapse limit into a check for use with linear ATC programs and other security applications.
