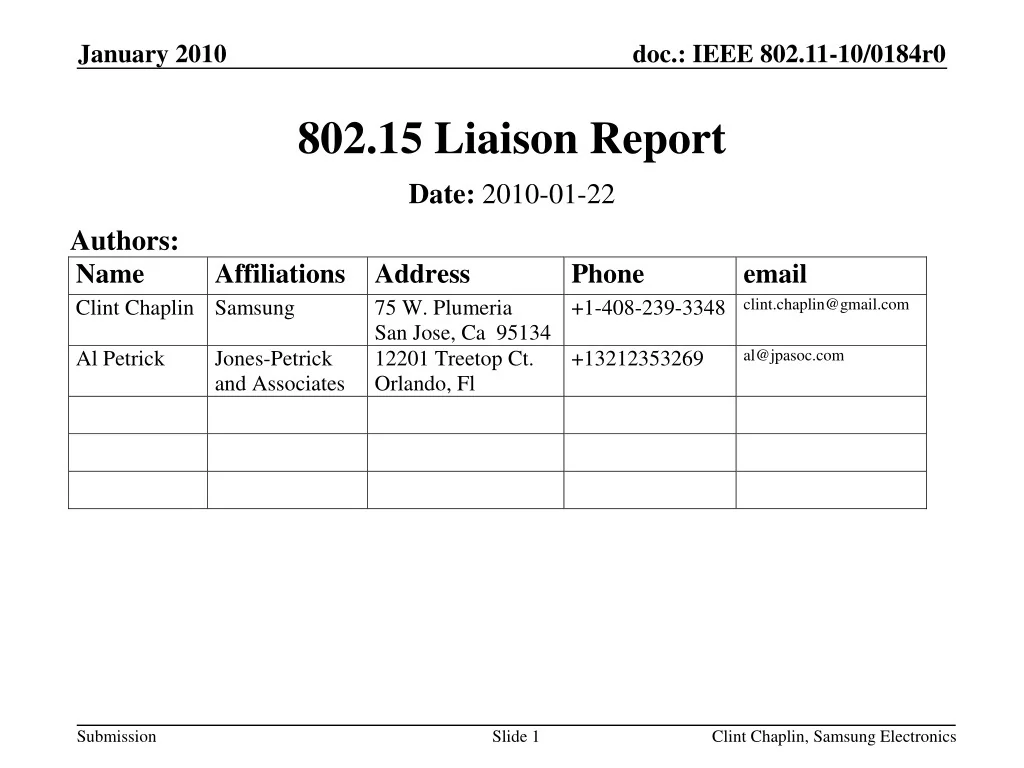

  1. 802.15 Liaison Report Authors: Date: 2010-01-22 Clint Chaplin, Samsung Electronics

  2. Abstract Liaison report on 802.15 as presented to 802.11 Clint Chaplin, Samsung Electronics

  3. 802.15.4 Trying to get a straight answer from IEEE SA that they will stand behind about rollups while amendments are under development Planning on submitting to ISO/IEC under the PDSO Slide 3 Slide 3 Clint Chaplin, Samsung Electronics

  4. 802.15.4eMAC amendments Resolved any TG4f and TG4g open MAC technical issues Finalizing input for the first draft (still) TG4e approved document 15-10-0061-00-004e ‘frame control field consolidation options’ which includes a requested ‘BLINK’ frame types (see 802.15.4f) Scheduled for first WG ballot coming out of the March 2010 meeting (yet another two month slip) Slide 4 Slide 4 Clint Chaplin, Samsung Electronics

  5. 802.15.4fRFID Approved a TG4f merged PHY document (15-09-0804-03-004f). Three new PHYS UWB (6 GHz Europe, 7 GHz U.S., 10 GHz Korea/Japan) 2.4 GHz Narrowband (750 KHz BW) 433 MHz Discussed and determined what TBD items may remain in the merged PHY document. Determined which TG4f participants will resolve TBD items in the UWB and 2.4 GHz PHY sections of the merged PHY document. TG4f participated in 1.5 of the TG4e meetings while new Frame Control Fields were discussed. TG4f requested a new ‘BLINK’ frame type to support a new TG4f UWB PHY. TG4e approved document 15-10-0061-00-004e ‘frame control field consolidation options’ which includes the requested ‘BLINK’ frame types Slide 5 Slide 5 Clint Chaplin, Samsung Electronics

  6. 802.15.4gSmart Utility Networks Closed Comments from TG review 110 FSK, 23 OFDM, 8 Device Class  (235 remaining FSK comments) OFDM Candidate text complete OQPSK Candidate text complete Continue work of Interoperability / Coexistence sub group Joint meeting with TG4e  Slide 6 Slide 6 Clint Chaplin, Samsung Electronics

  7. 802.15.6 Wireless Body Area Networks TG6 met for 3 days Objectives for the week Continued work on Merging Proposals in offline meetings Accomplishments Proposals reduced two 2 “Merged Proposals” Groups continued to make progress resolving differences in the PHY (NB and UWB) and MAC Timeline Standardization may be delayednew timeline will be assessed in March 2010 Slide 7 Slide 7

  8. Merger Status January 2010 • Two groups formed: WiBAN and SMA Slide 8

  9. Contribution Presentations 15-10-0062-00-0006-etri-samsung-phy-proposal-documentation 15-10-0055-00-0006-response-to-issues-regarding-efc 15-10-0049-02-0006-samsung-etri-efc-proposal-for-hbc-phy-documentation 15-10-0045-01-0006-nict-uwb-phy-documentation 15-10-0029-00-0006-tg6-opening-report-jan-2010 15-10-0010-01-0006-nict-narrow-band-phy-proposal 15-09-0327-02-0006-medwin-mac-and-security-proposal-documentation 15-09-0778-01-0006-sleeping-channel-measurements-for-ban Slide 9

  10. 802.15.7Visible Light Communication Finished resolving comments from task group review Will start first WG ballot after editor finished incorporating resolutions into draft Slide 10 Slide 10 Clint Chaplin, Samsung Electronics

  11. References This document All Documents https://mentor.ieee.org/802.15/documents Current draft is in the members-only area http://www.ieee802.org/15  Members_Only_Area 802.11 members log in using 802.11 username and password Slide 11 Clint Chaplin, Samsung Electronics
