  1. Information SystemTrafficking Human Beings Used IT Technologies Design Description

  2. Project manager • Ing. Miloš Kucej • Head of Department of National Schengen Information System • Mail:milos.kucej@minv.sk • Systems Analyst • & Programmer • Mgr. Henryk Huťka • Senior Referent Specialist • Application Development Department • Mail:henryk.hutka@minv.sk

  3. Initial Info about IS • Actual standards of the Ministry of Interior • According our internal Needs • No outsourcing – Own resources • Standard Worldwide IT Technologies used • Central System available 24/7 via Intranet • Thin Client – no need to update client, accessibility

  4. Three-tier Application Architecture

  5. Software Architecture LDAP server Database server Clients Application server HTTPS server

  6. Computing Center

  7. Three Deploy Environments

  8. Simplified Database Model Case Victim Perpetrator Trial Exploitation Perpetrators at Trial Victim’s Background Person Recruitment & Transportation Identification& Assistance

  9. IS Screenshots – Activity Tree • Role-based Activity Tree • Selecting Tree node starts Activity

  10. IS Screenshots – Find Case/Add new Case • Find Case by Identifier • Find Case by Person (Victim or Perpetrator ) • Add new Case, if not exists • Archive registry if Case deleted

  11. IS Screenshots – Case Editing – The Case • Shows all Case related Information • Edit Case Information • Possibility to delete Case – Move to Archive

  12. IS Screenshots – Case Editing – The Trial • Shows all Trials – only some Information • View selected Trial’s full Detail • Edit selected Trial’s Information • Possibility to delete selected Trial – Move to Archive

  13. IS Screenshots – Case Editing – The Victim & Perpetrator • Shows all Victims & Perpetrators – only some Information • View full Detail of selected Person • Edit Selected Victim’s or Perpetrator’s Information • Possibility to delete selected record – Move to Archive

  14. IS Screenshots – Notifications • Notifications shown for superior Role upon login into IS • New Case Notification • Tracked period Notification

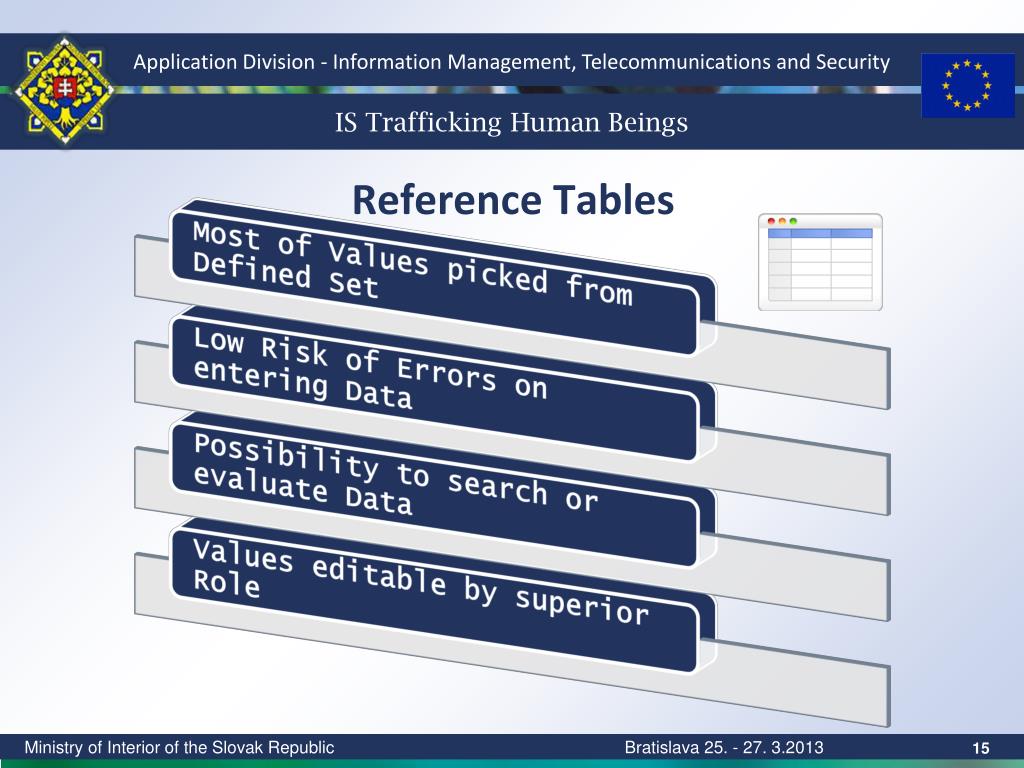

  15. Reference Tables

  16. Statistics
