  1. Chapter 4 Parallels

  2. Section 4-1 Parallel Lines and Planes

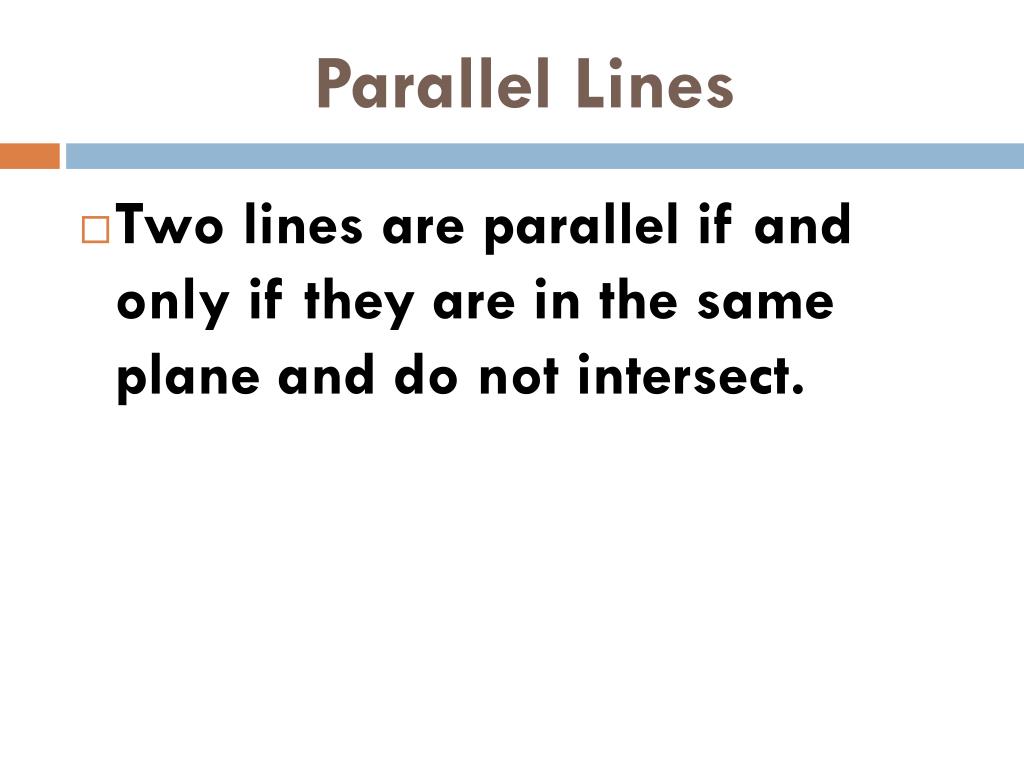

  3. Parallel Lines • Two lines are parallel if and only if they are in the same plane and do not intersect.

  4. Parallel Planes • Planes that do not intersect.

  5. Skew Lines • Two lines that are not in the same plane are skew if and only if they do not intersect.

  6. Section 4-2 Parallel Lines and Transversals

  7. Transversal • In a plane, a line is a transversal if and only if it intersects two or more lines, each at a different point.

  8. Alternate Interior Angles • Interior angles that are on opposite sides of the transversal

  9. Consecutive Interior Angles • Interior angles that are on the same side of the transversal. • Also called, same-side interior angles.

  10. Alternate Exterior Angles • Exterior angles that are on opposite sides of the transversal.

  11. Theorem 4-1 • If two parallel lines are cut by a transversal, then each pair of alternate interior angles is congruent.

  12. Theorem 4-2 • If two parallel lines are cut by a transversal, then each pair of consecutive interior angles is supplementary.

  13. Theorem 4-3 • If two parallel lines are cut by a transversal, then each pair of alternate exterior angles is congruent.

  14. Section 4-3 Transversals and Corresponding Angles

  15. Corresponding Angles • Have different vertices • Lie on the same side of the transversal • One angle is interior and one angle is exterior

  16. Postulate 4-1 • If two parallel lines are cut by a transversal, then each pair of corresponding angles is congruent.

  17. Theorem 4-4 • If a transversal is perpendicular to one of two parallel lines, it is perpendicular to the other.

  18. Section 4-4 Proving Lines Parallel

  19. Postulate 4-2 • In a plane, if two lines are cut by a transversal so that a pair of corresponding angles is congruent, then the lines are parallel.

  20. Theorem 4-5 • In a plane, if two lines are cut by a transversal so that a pair of alternate interior angles is congruent, then the two lines are parallel.

  21. Theorem 4-6 • In a plane, if two lines are cut by a transversal so that a pair of alternate exterior angles is congruent, then the two lines are parallel.

  22. Theorem 4-7 • In a plane, if two lines are cut by a transversal so that a pair of consecutive interior angles is supplementary, then the two lines are parallel.

  23. Theorem 4-8 • In a plane, if two lines are perpendicular to the same line, then the two lines are parallel.

  24. Section 4-5 Slope

  25. Slope • The slope m of a line containing two points with coordinates (x1, y1) and (x2, y2) is given by the formula m =y2 – y1 x2 – x1

  26. Vertical Line • The slope of a vertical line is undefined.

  27. Postulate 4-3 • Two distinct non-vertical lines are parallel if and only if they have the same slope.

  28. Postulate 4-4 • Two non-vertical lines are perpendicular if and only if the product of their slopes is -1.

  29. Section 4-6 Equations of Lines

  30. Linear Equation • An equation whose graph is a straight line.

  31. Y-Intercept • The y-value of the point where the lines crosses the y-axis.

  32. Slope-Intercept Form • An equation of the line having slope mand y-intercept b is y = mx + b.

  33. Examples Name the slope and y-intercept of each line • y = 1/2x + 5 • y = 3 • x = -2 • 2x – 3y = 18

  34. Examples Graph each equation • 2x + y = 3 • -x + 3y = 9

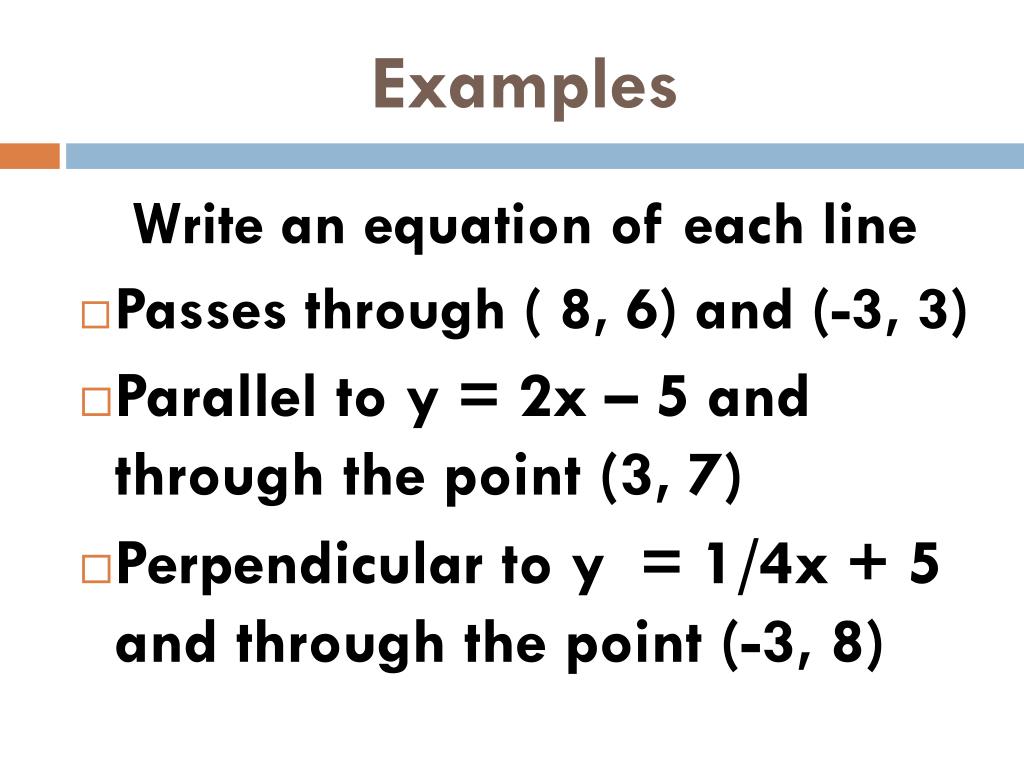

  35. Examples Write an equation of each line • Passes through ( 8, 6) and (-3, 3) • Parallel to y = 2x – 5 and through the point (3, 7) • Perpendicular to y = 1/4x + 5 and through the point (-3, 8)
