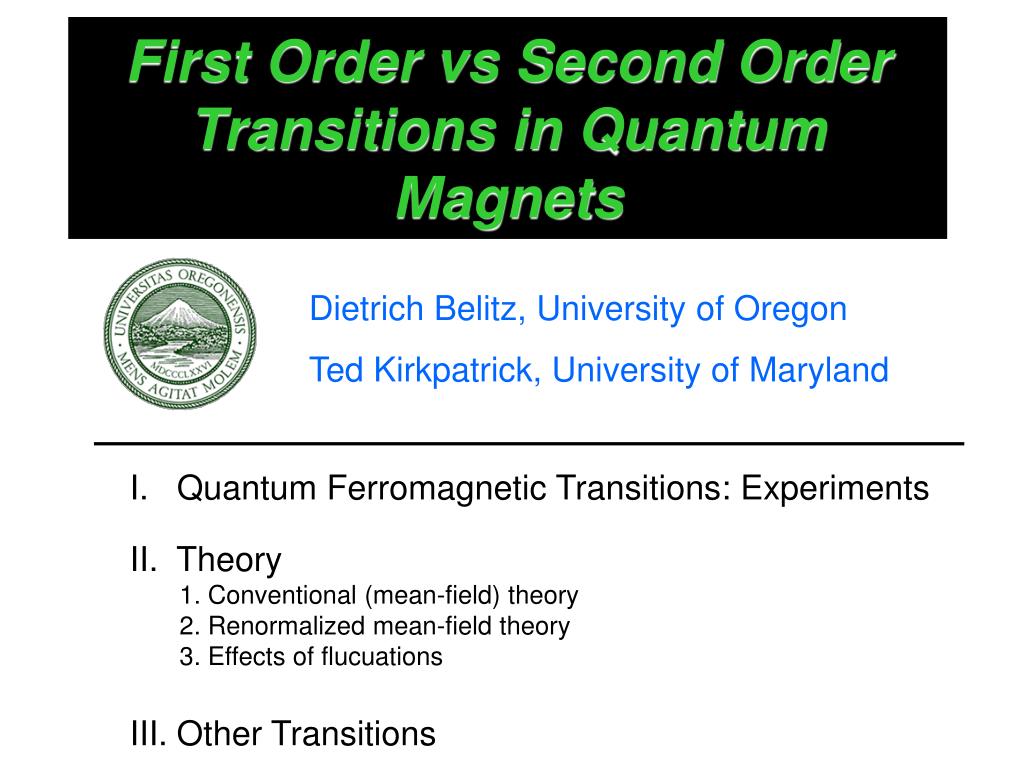

  1. First Order vs Second Order Transitions in Quantum Magnets Dietrich Belitz, University of Oregon Ted Kirkpatrick, University of Maryland I. Quantum Ferromagnetic Transitions: Experiments II. Theory 1. Conventional (mean-field) theory 2. Renormalized mean-field theory 3. Effects of flucuations III. Other Transitions

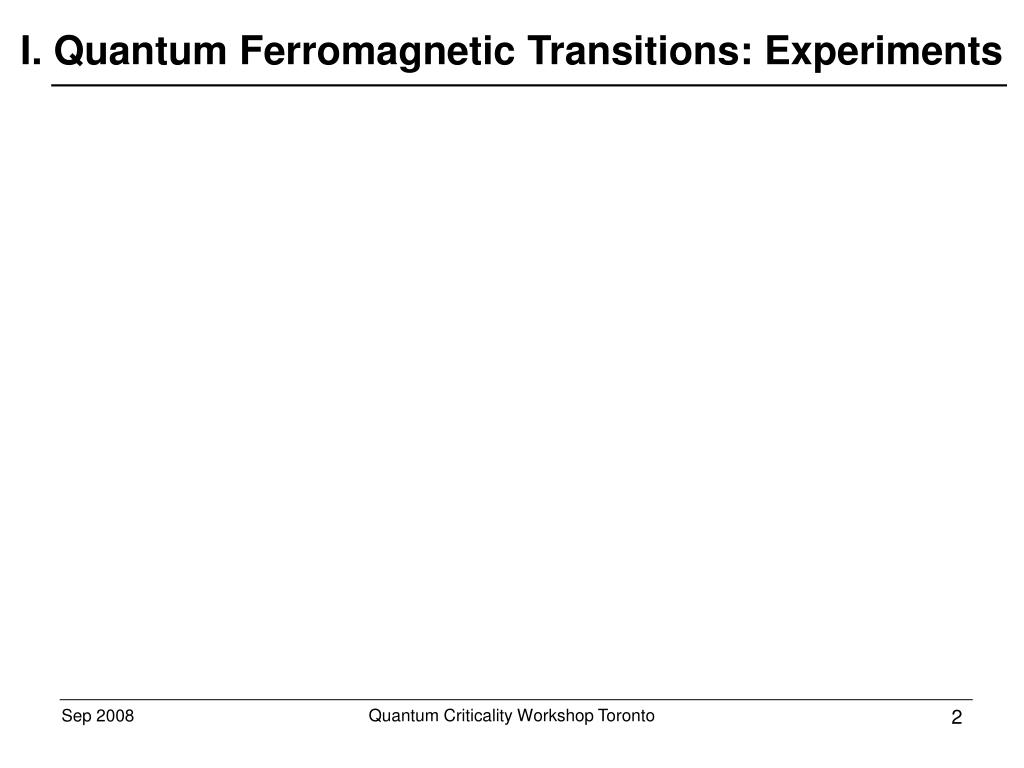

  2. I. Quantum Ferromagnetic Transitions: Experiments Quantum Criticality Workshop Toronto

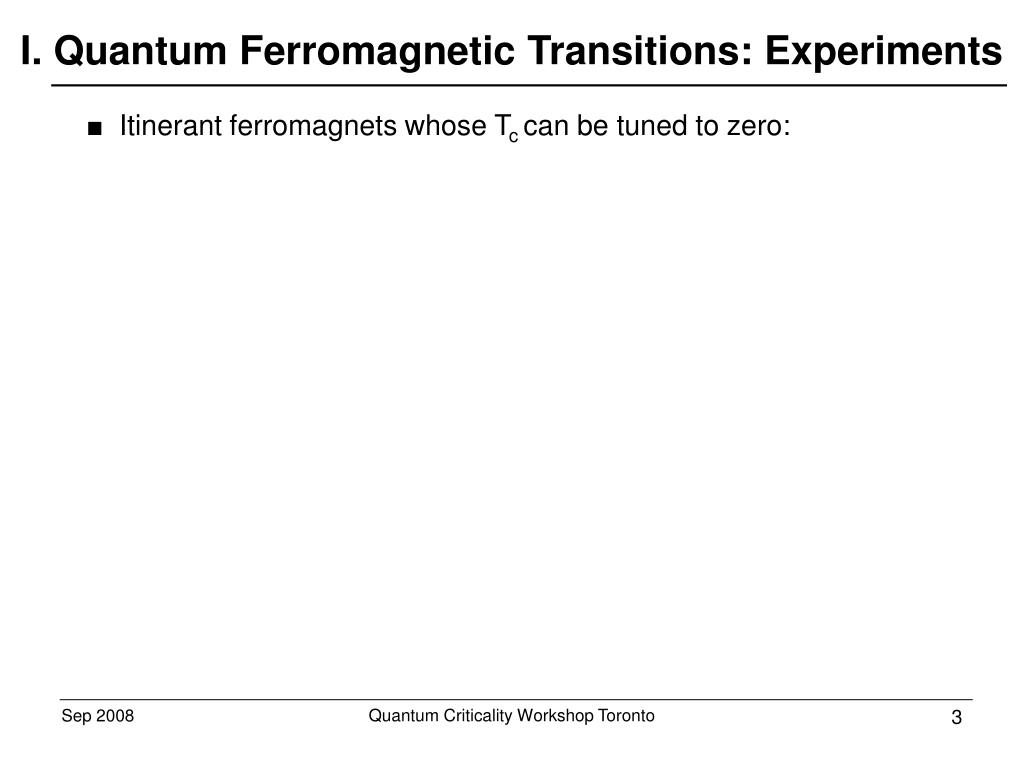

  3. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: Quantum Criticality Workshop Toronto

  4. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) Quantum Criticality Workshop Toronto

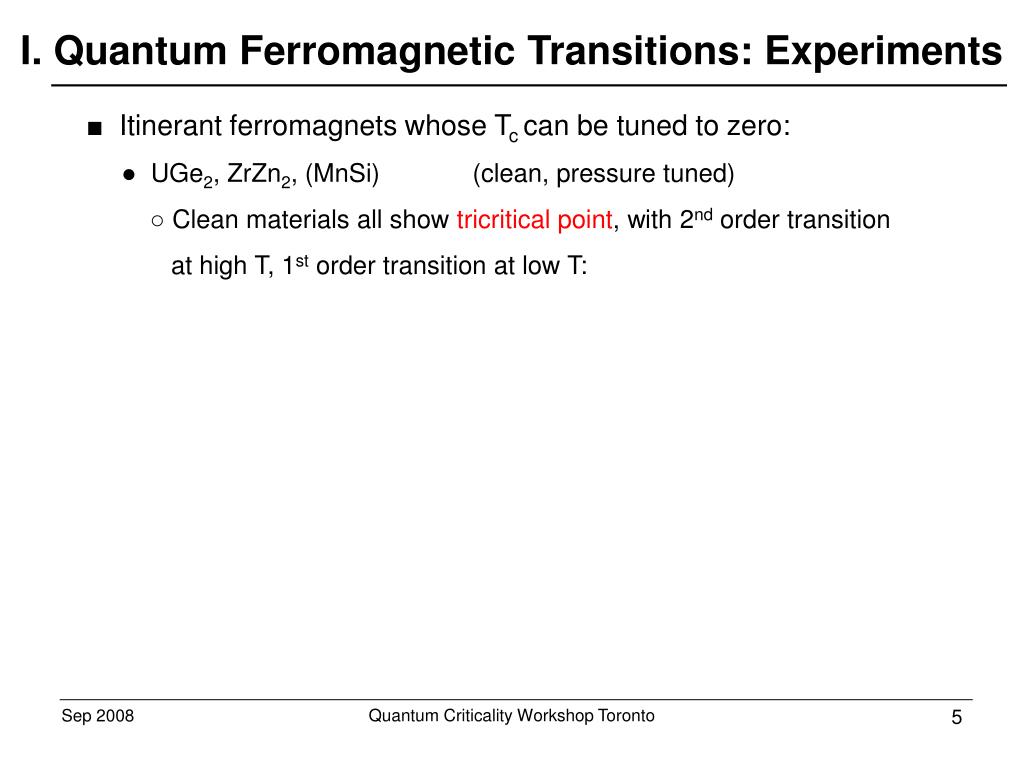

  5. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ Clean materials all show tricritical point, with 2nd order transition at high T, 1st order transition at low T: Quantum Criticality Workshop Toronto

  6. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ Clean materials all show tricritical point, with 2nd order transition at high T, 1st order transition at low T: UGe2 (Pfleiderer & Huxley 2002) Quantum Criticality Workshop Toronto

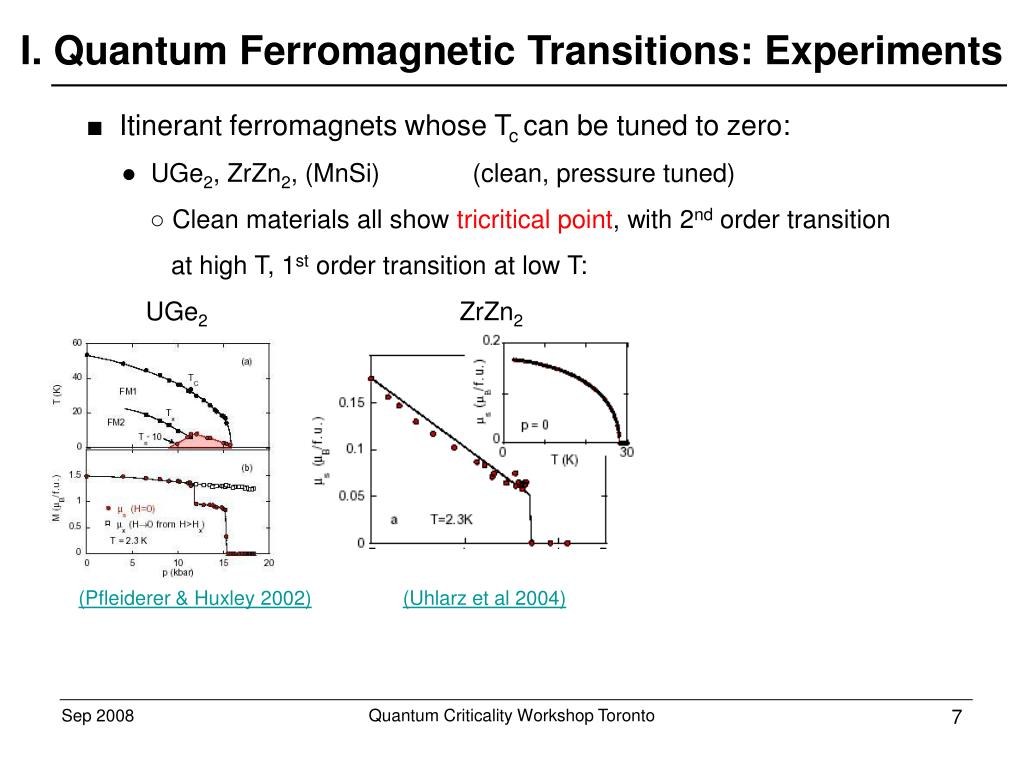

  7. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ Clean materials all show tricritical point, with 2nd order transition at high T, 1st order transition at low T: UGe2 ZrZn2 (Pfleiderer & Huxley 2002) (Uhlarz et al 2004) Quantum Criticality Workshop Toronto

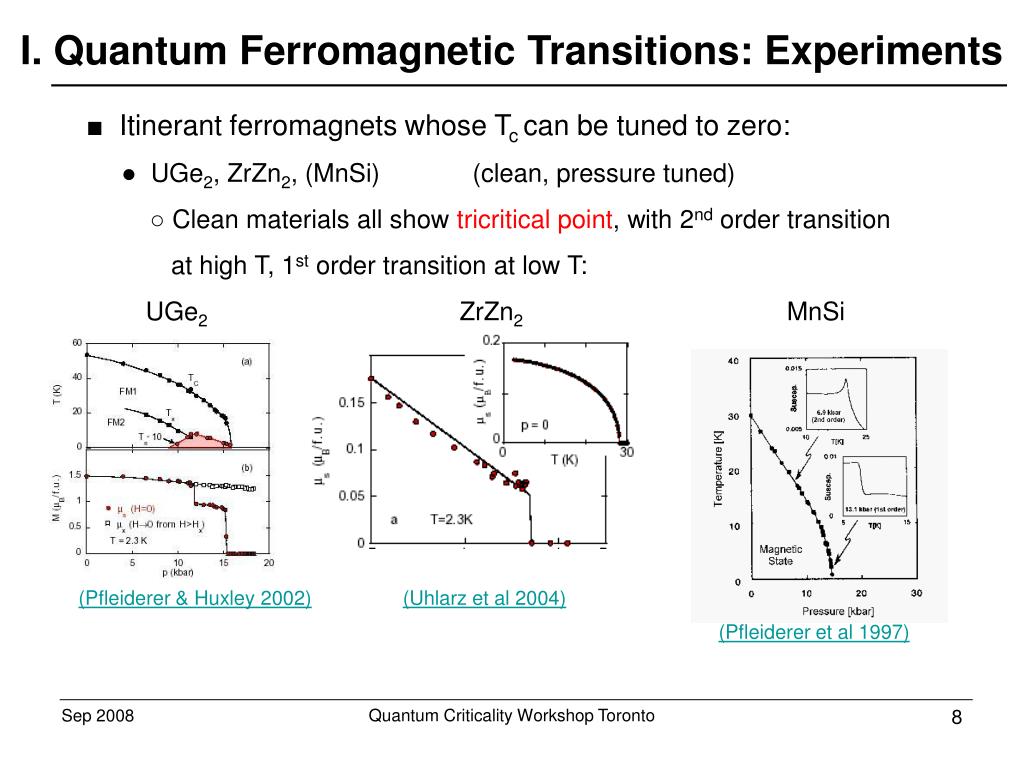

  8. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ Clean materials all show tricritical point, with 2nd order transition at high T, 1st order transition at low T: UGe2 ZrZn2 MnSi (Pfleiderer & Huxley 2002) (Uhlarz et al 2004) (Pfleiderer et al 1997) Quantum Criticality Workshop Toronto

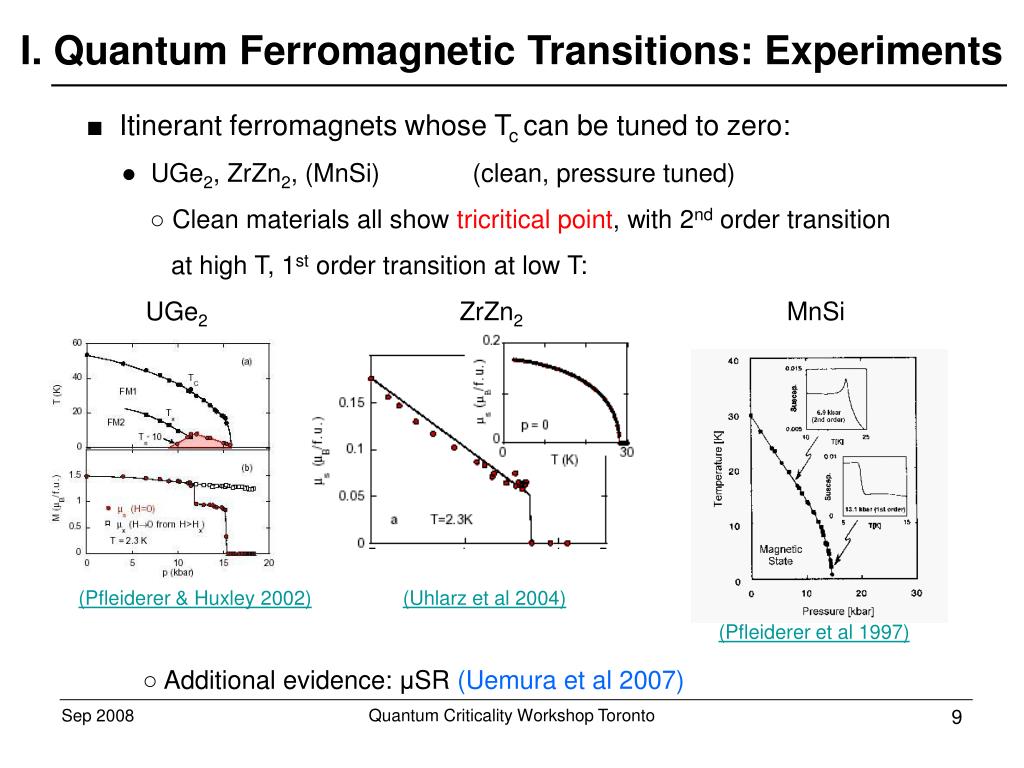

  9. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ Clean materials all show tricritical point, with 2nd order transition at high T, 1st order transition at low T: ○ Additional evidence: μSR (Uemura et al 2007) UGe2 ZrZn2 MnSi (Pfleiderer & Huxley 2002) (Uhlarz et al 2004) (Pfleiderer et al 1997) Quantum Criticality Workshop Toronto

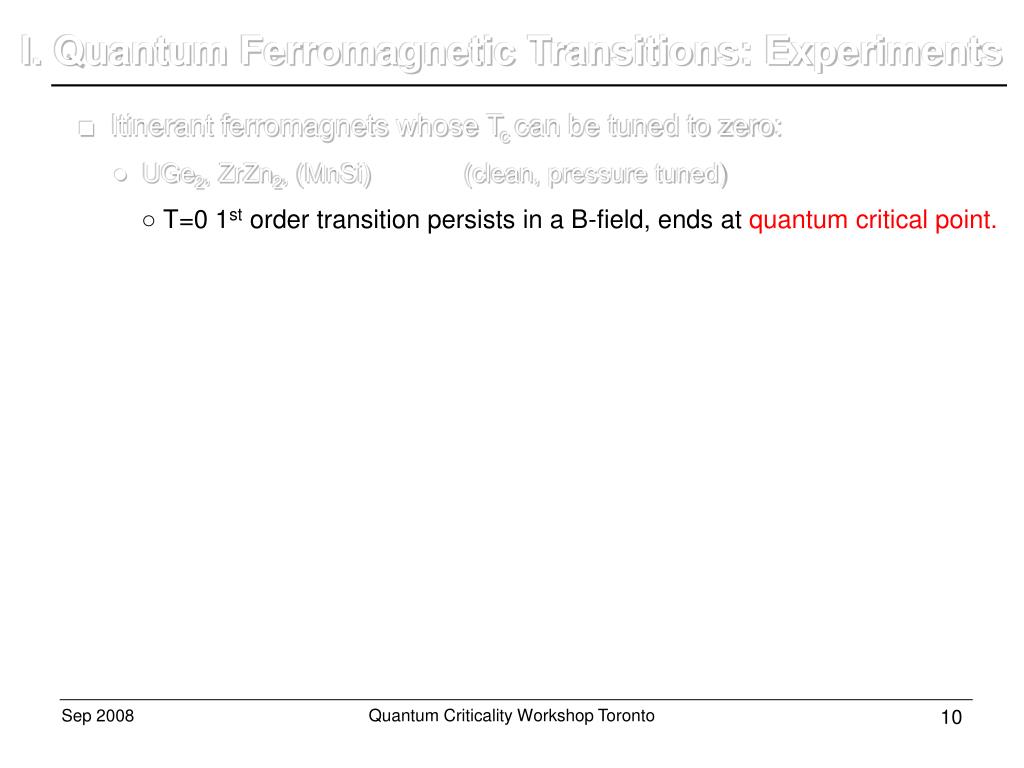

  10. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ T=0 1st order transition persists in a B-field, ends at quantum critical point. Quantum Criticality Workshop Toronto

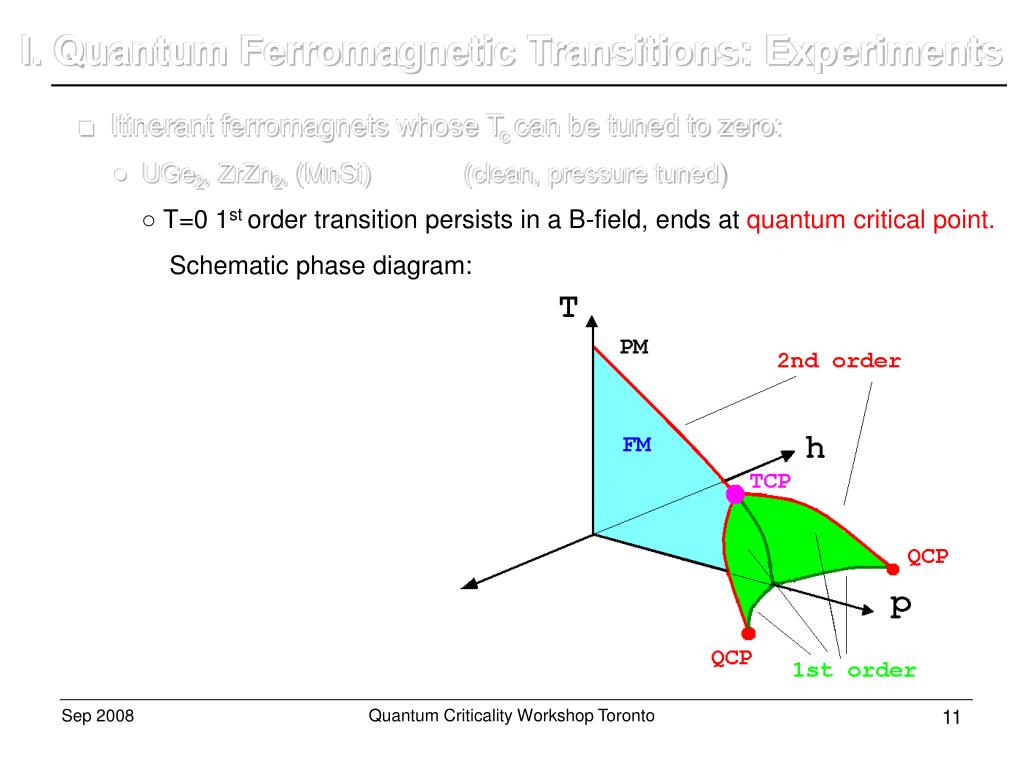

  11. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● UGe2, ZrZn2, (MnSi) (clean, pressure tuned) ○ T=0 1st order transition persists in a B-field, ends at quantum critical point. Schematic phase diagram: Quantum Criticality Workshop Toronto

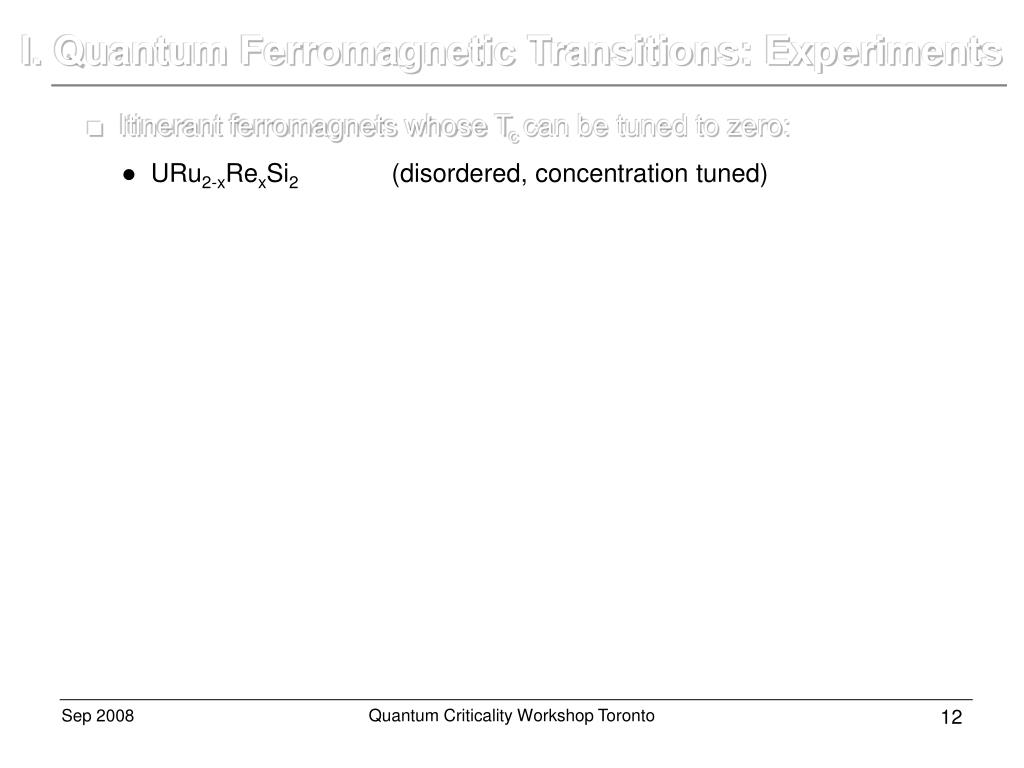

  12. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● URu2-xRexSi2 (disordered, concentration tuned) Quantum Criticality Workshop Toronto

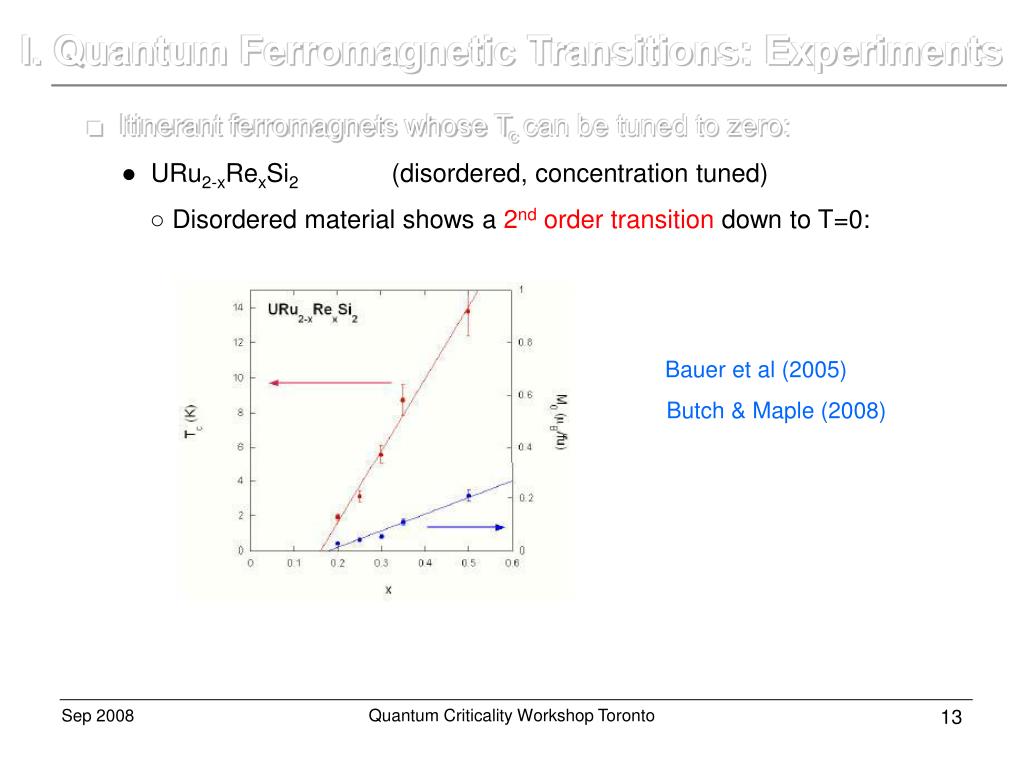

  13. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● URu2-xRexSi2 (disordered, concentration tuned) ○ Disordered material shows a 2nd order transition down to T=0: Bauer et al (2005) Butch & Maple (2008) Quantum Criticality Workshop Toronto

  14. I. Quantum Ferromagnetic Transitions: Experiments ■ Itinerant ferromagnets whose Tc can be tuned to zero: ● URu2-xRexSi2 (disordered, concentration tuned) ○ Disordered material shows a 2nd order transition down to T=0: Bauer et al (2005) Butch & Maple (2008) ○ Observed exponents are not mean-field like (see below) Quantum Criticality Workshop Toronto

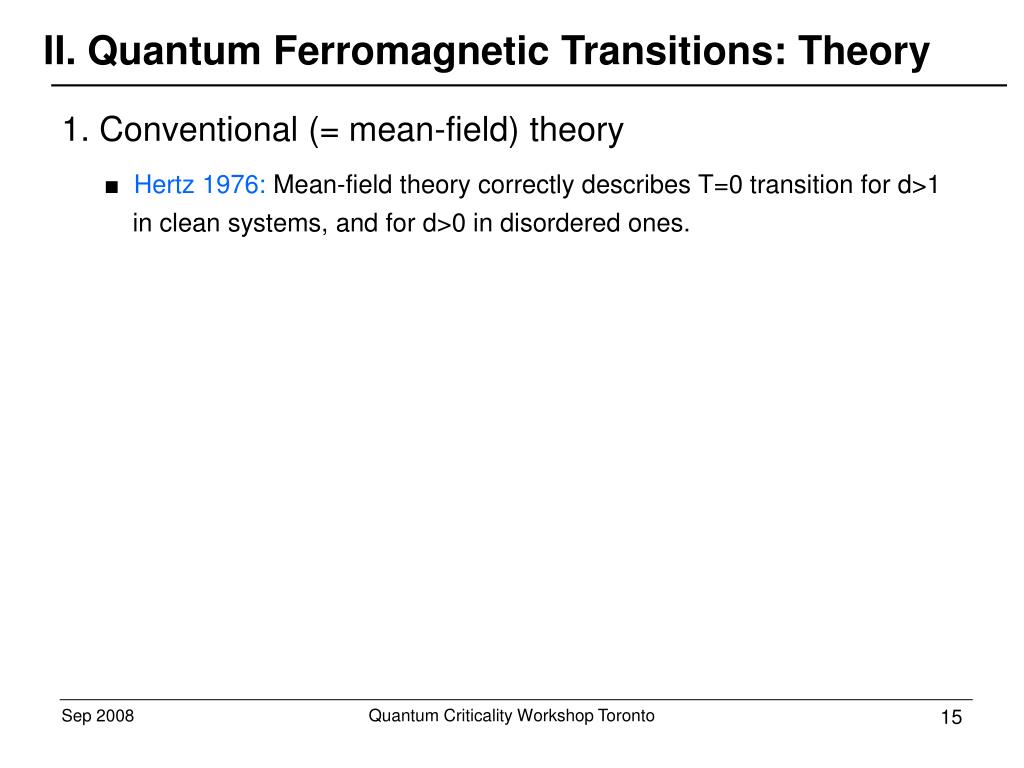

  15. II. Quantum Ferromagnetic Transitions: Theory 1. Conventional (= mean-field) theory ■ Hertz 1976: Mean-field theory correctly describes T=0 transition for d>1 in clean systems, and for d>0 in disordered ones. Quantum Criticality Workshop Toronto

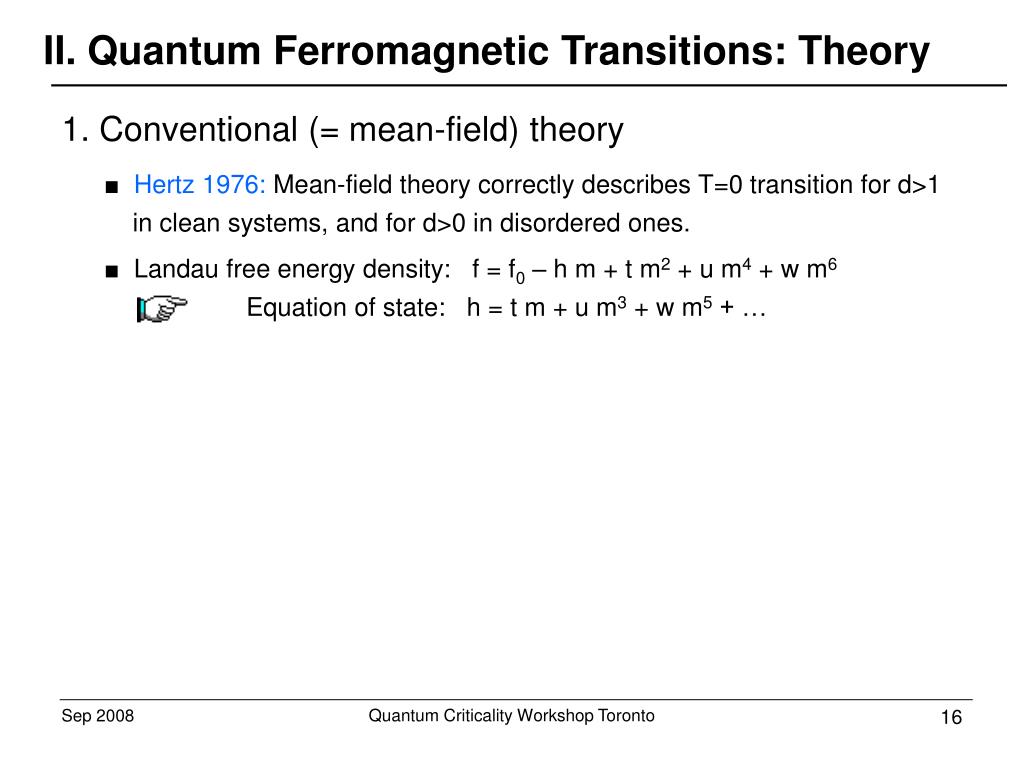

  16. II. Quantum Ferromagnetic Transitions: Theory 1. Conventional (= mean-field) theory ■ Hertz 1976: Mean-field theory correctly describes T=0 transition for d>1 in clean systems, and for d>0 in disordered ones. ■ Landau free energy density: f = f0 – h m + t m2 + u m4 + w m6 Equation of state: h = t m + u m3 + w m5 + … Quantum Criticality Workshop Toronto

  17. II. Quantum Ferromagnetic Transitions: Theory 1. Conventional (= mean-field) theory ■ Hertz 1976: Mean-field theory correctly describes T=0 transition for d>1 in clean systems, and for d>0 in disordered ones. ■ Landau free energy density: f = f0 – h m + t m2 + u m4 + w m6 Equation of state: h = t m + u m3 + w m5 + … ■ Landau theory predicts: ● 2nd order transition at t=0 if u<0 ● 1st order transition if u<0 } for both clean and dirty systems Quantum Criticality Workshop Toronto

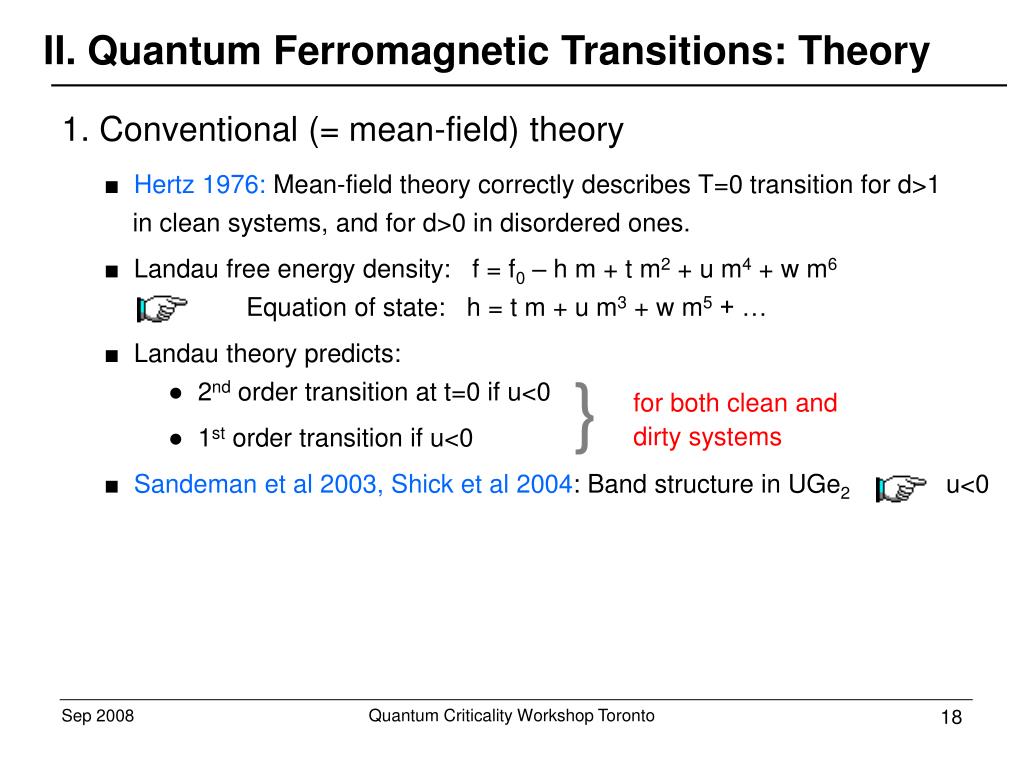

  18. II. Quantum Ferromagnetic Transitions: Theory 1. Conventional (= mean-field) theory ■ Hertz 1976: Mean-field theory correctly describes T=0 transition for d>1 in clean systems, and for d>0 in disordered ones. ■ Landau free energy density: f = f0 – h m + t m2 + u m4 + w m6 Equation of state: h = t m + u m3 + w m5 + … ■ Landau theory predicts: ● 2nd order transition at t=0 if u<0 ● 1st order transition if u<0 ■ Sandeman et al 2003, Shick et al 2004: Band structure in UGe2 u<0 } for both clean and dirty systems Quantum Criticality Workshop Toronto

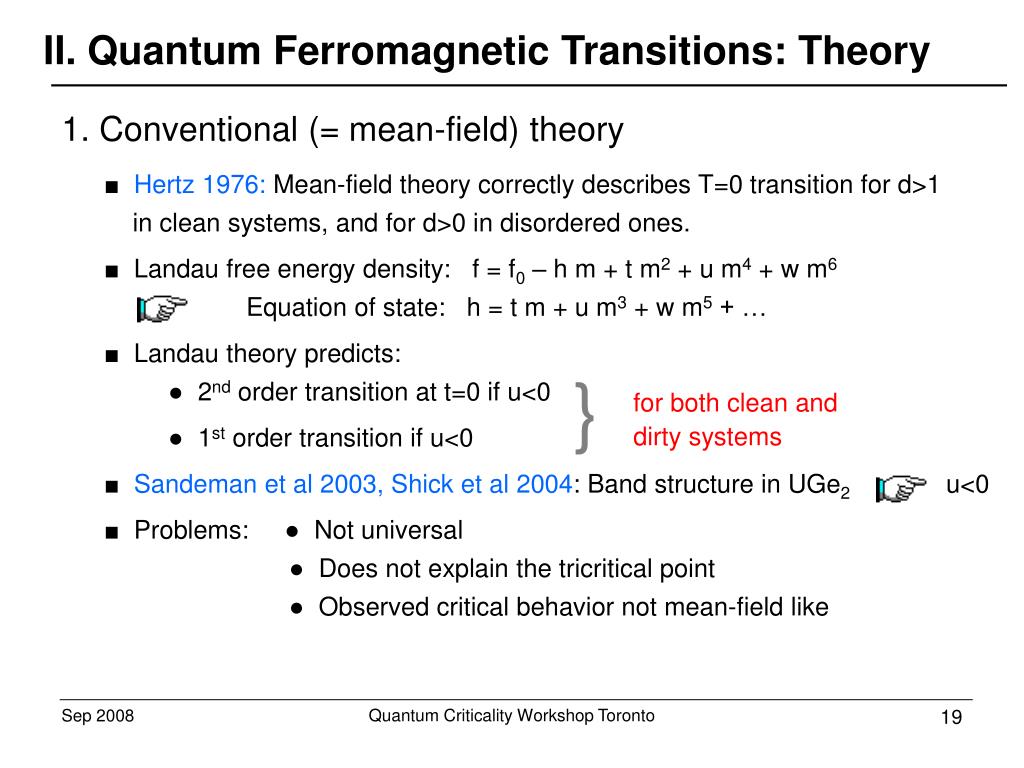

  19. II. Quantum Ferromagnetic Transitions: Theory 1. Conventional (= mean-field) theory ■ Hertz 1976: Mean-field theory correctly describes T=0 transition for d>1 in clean systems, and for d>0 in disordered ones. ■ Landau free energy density: f = f0 – h m + t m2 + u m4 + w m6 Equation of state: h = t m + u m3 + w m5 + … ■ Landau theory predicts: ● 2nd order transition at t=0 if u<0 ● 1st order transition if u<0 ■ Sandeman et al 2003, Shick et al 2004: Band structure in UGe2 u<0 ■ Problems: ● Not universal ● Does not explain the tricritical point ● Observed critical behavior not mean-field like } for both clean and dirty systems Quantum Criticality Workshop Toronto

  20. II. Quantum Ferromagnetic Transitions: Theory 1. Conventional (= mean-field) theory ■ Hertz 1976: Mean-field theory correctly describes T=0 transition for d>1 in clean systems, and for d>0 in disordered ones. ■ Landau free energy density: f = f0 – h m + t m2 + u m4 + w m6 Equation of state: h = t m + u m3 + w m5 + … ■ Landau theory predicts: ● 2nd order transition at t=0 if u<0 ● 1st order transition if u<0 ■ Sandeman et al 2003, Shick et al 2004: Band structure in UGe2 u<0 ■ Problems: ● Not universal ● Does not explain the tricritical point ● Observed critical behavior not mean-field like ■ Conclusion: Conventional theory not viable } for both clean and dirty systems Quantum Criticality Workshop Toronto

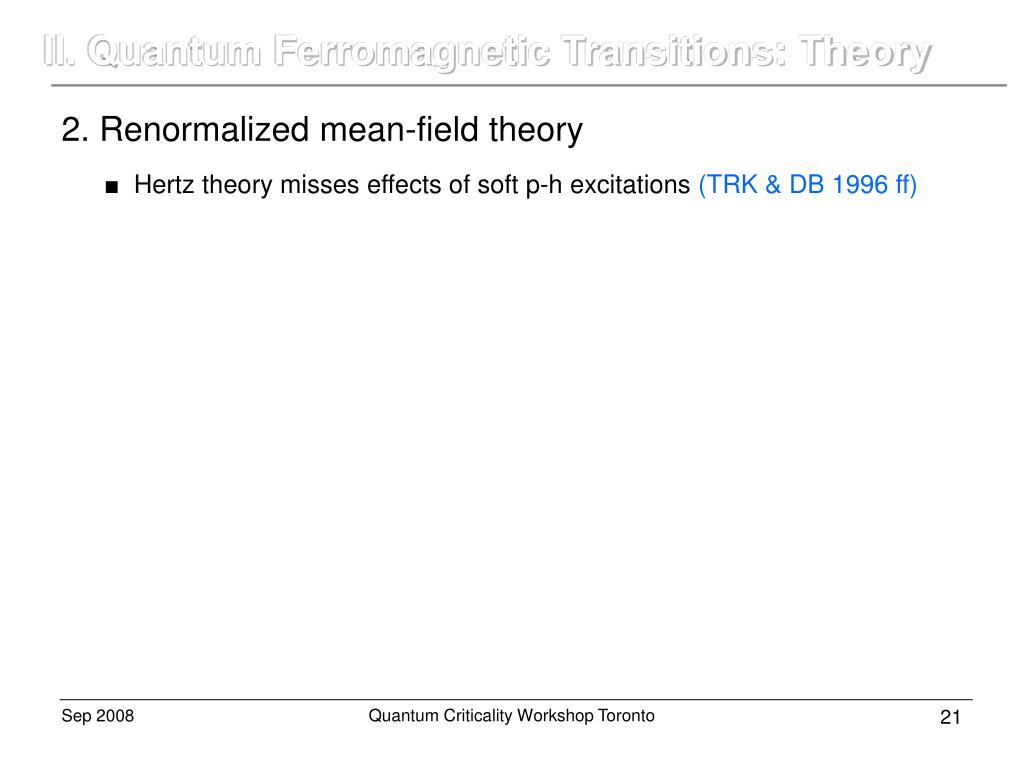

  21. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ■ Hertz theory misses effects of soft p-h excitations (TRK & DB 1996 ff) Quantum Criticality Workshop Toronto

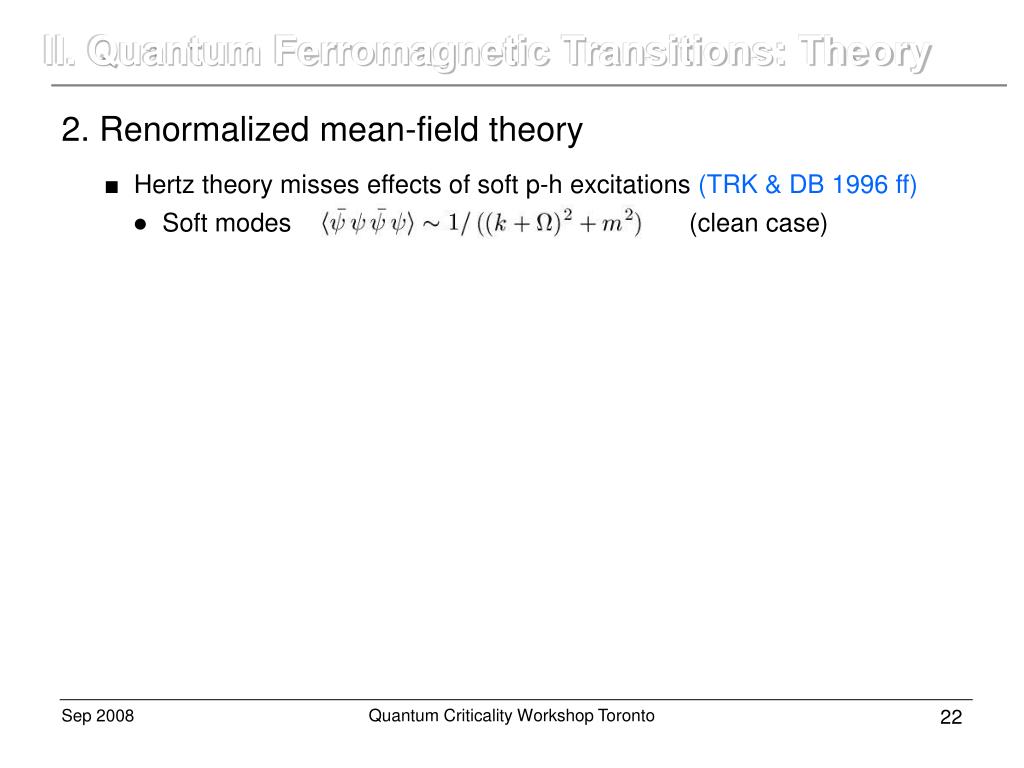

  22. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ■ Hertz theory misses effects of soft p-h excitations (TRK & DB 1996 ff) ● Soft modes (clean case) Quantum Criticality Workshop Toronto

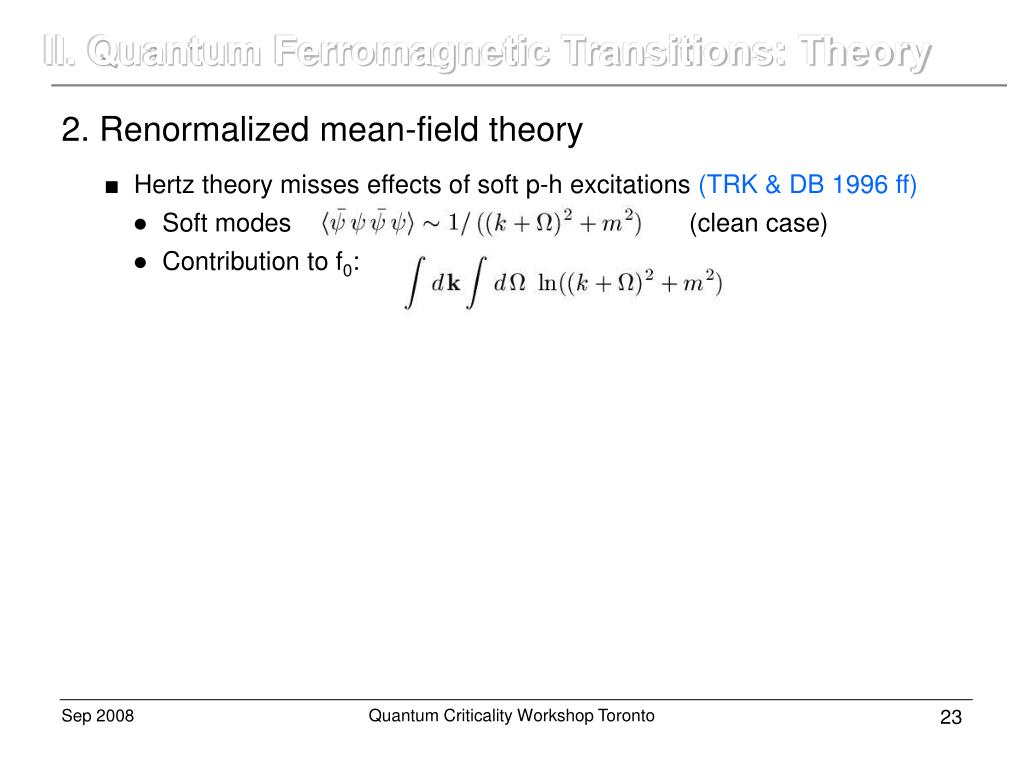

  23. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ■ Hertz theory misses effects of soft p-h excitations (TRK & DB 1996 ff) ● Soft modes (clean case) ● Contribution to f0: Quantum Criticality Workshop Toronto

  24. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ■ Hertz theory misses effects of soft p-h excitations (TRK & DB 1996 ff) ● Soft modes (clean case) ● Contribution to f0: ● Contribution to eq. of state: Quantum Criticality Workshop Toronto

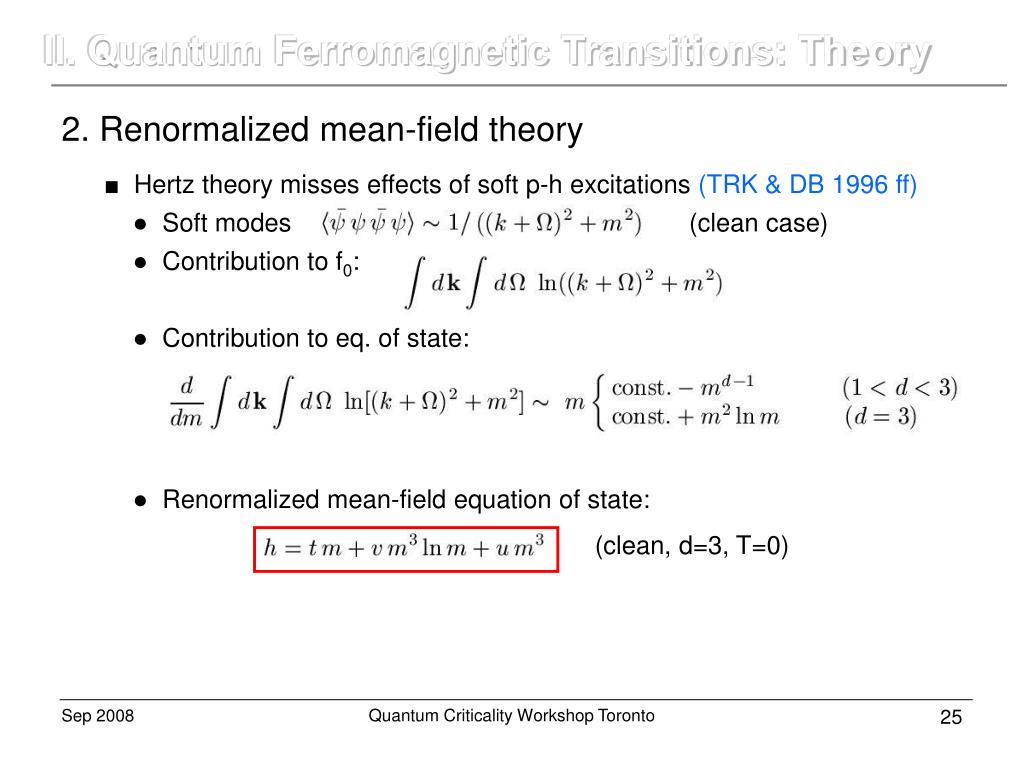

  25. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ■ Hertz theory misses effects of soft p-h excitations (TRK & DB 1996 ff) ● Soft modes (clean case) ● Contribution to f0: ● Contribution to eq. of state: ● Renormalized mean-field equation of state: (clean, d=3, T=0) Quantum Criticality Workshop Toronto

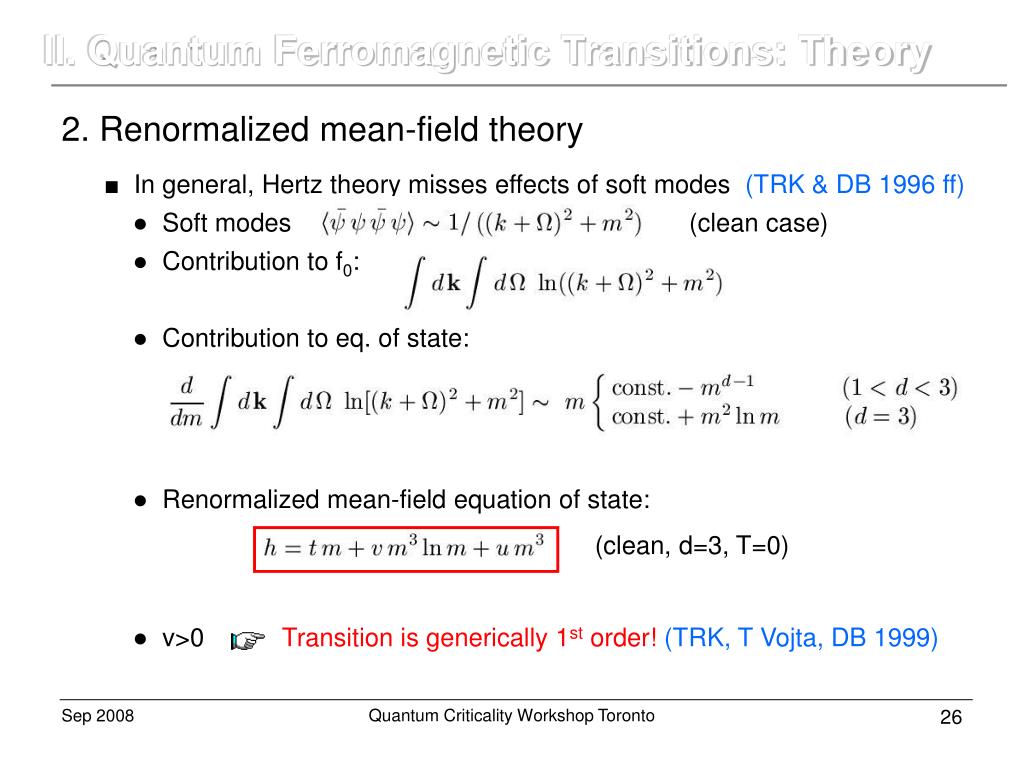

  26. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ■ In general, Hertz theory misses effects of soft modes (TRK & DB 1996 ff) ● Soft modes (clean case) ● Contribution to f0: ● Contribution to eq. of state: ● Renormalized mean-field equation of state: (clean, d=3, T=0) ● v>0 Transition is generically 1st order! (TRK, T Vojta, DB 1999) Quantum Criticality Workshop Toronto

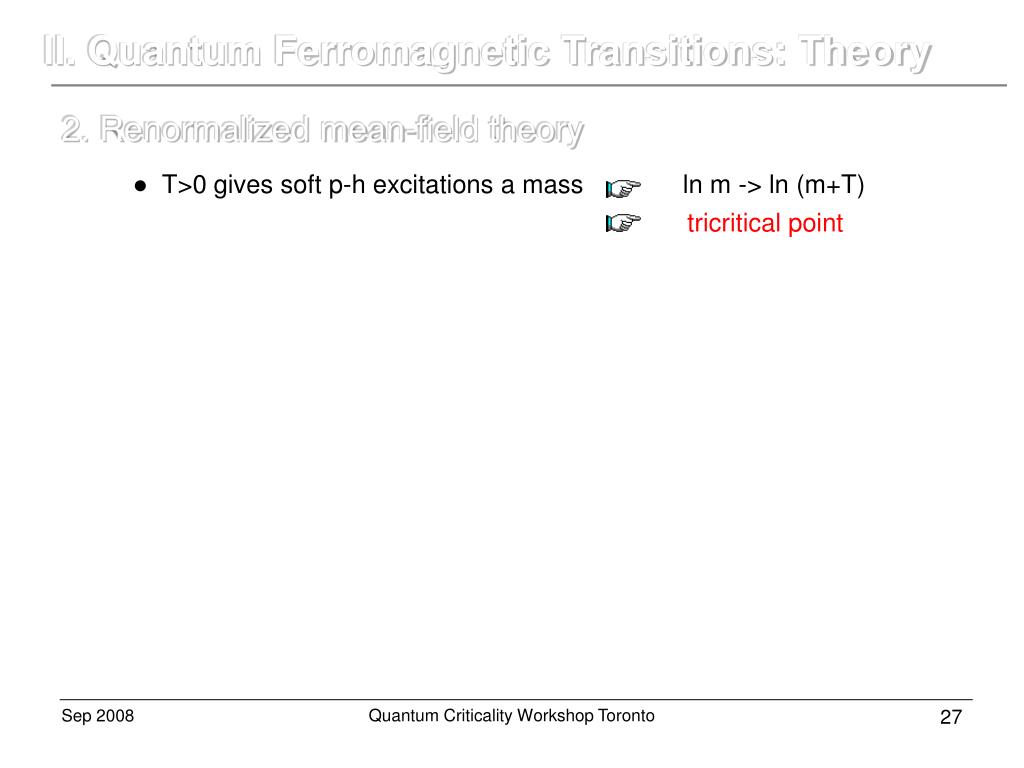

  27. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● T>0 gives soft p-h excitations a mass ln m -> ln (m+T) tricritical point Quantum Criticality Workshop Toronto

  28. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● T>0 gives soft p-h excitations a mass ln m -> ln (m+T) tricritical point ● Quenched disorder G changes Quantum Criticality Workshop Toronto

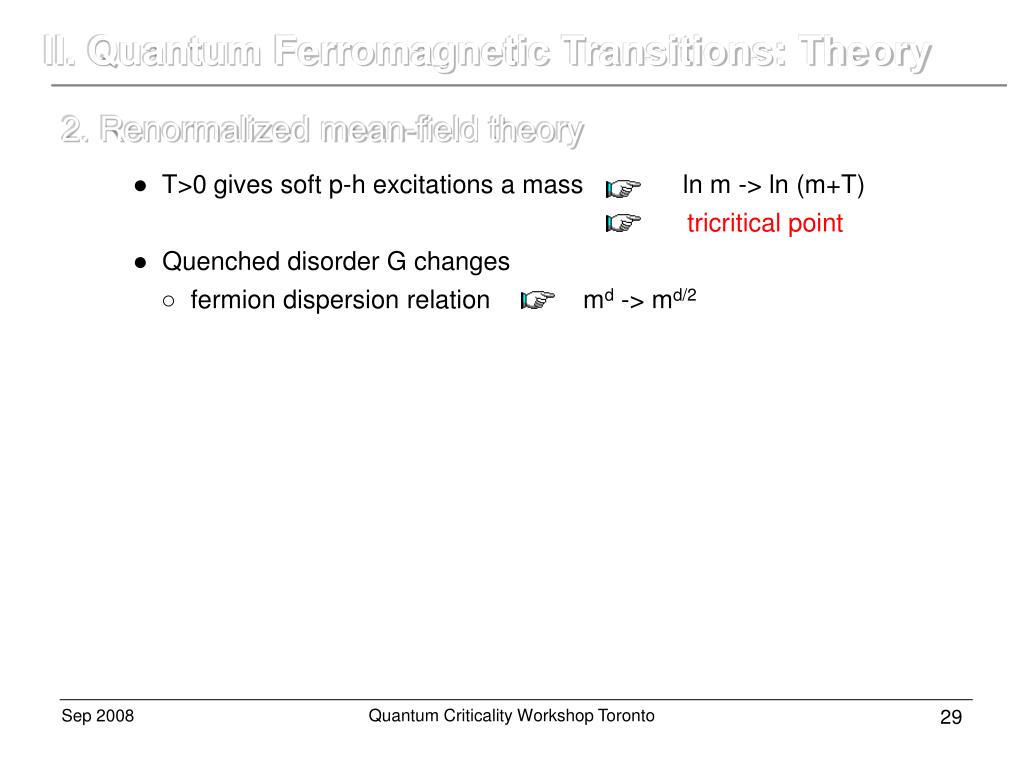

  29. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● T>0 gives soft p-h excitations a mass ln m -> ln (m+T) tricritical point ● Quenched disorder G changes ○ fermion dispersion relation md -> md/2 Quantum Criticality Workshop Toronto

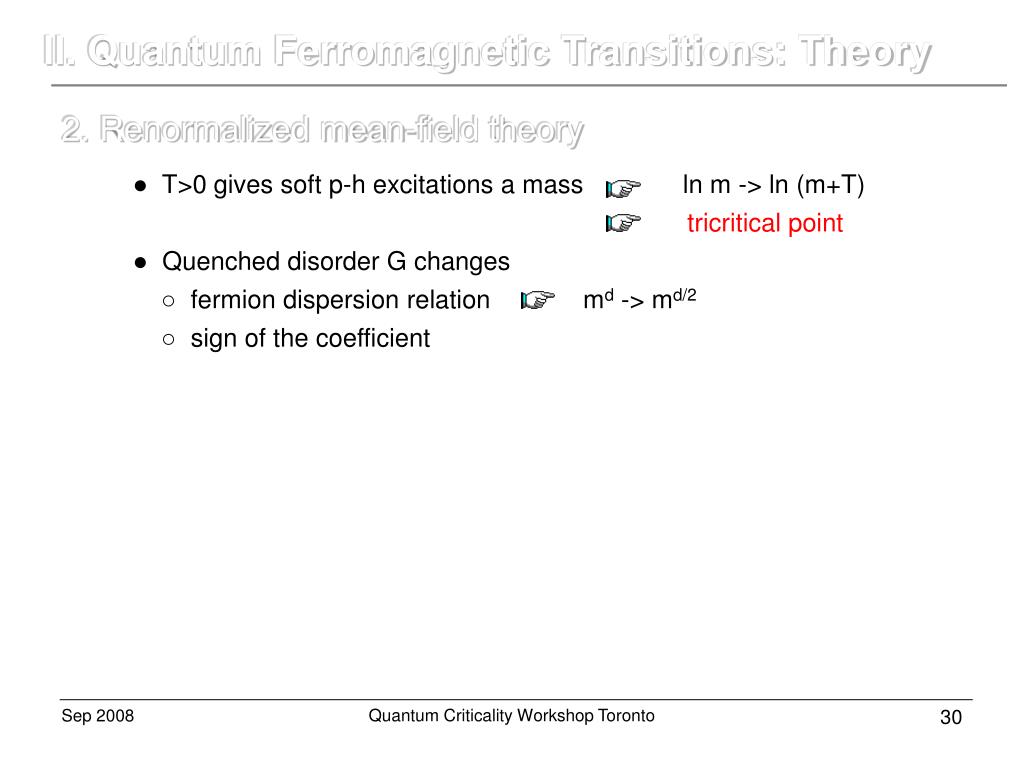

  30. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● T>0 gives soft p-h excitations a mass ln m -> ln (m+T) tricritical point ● Quenched disorder G changes ○ fermion dispersion relation md -> md/2 ○ sign of the coefficient Quantum Criticality Workshop Toronto

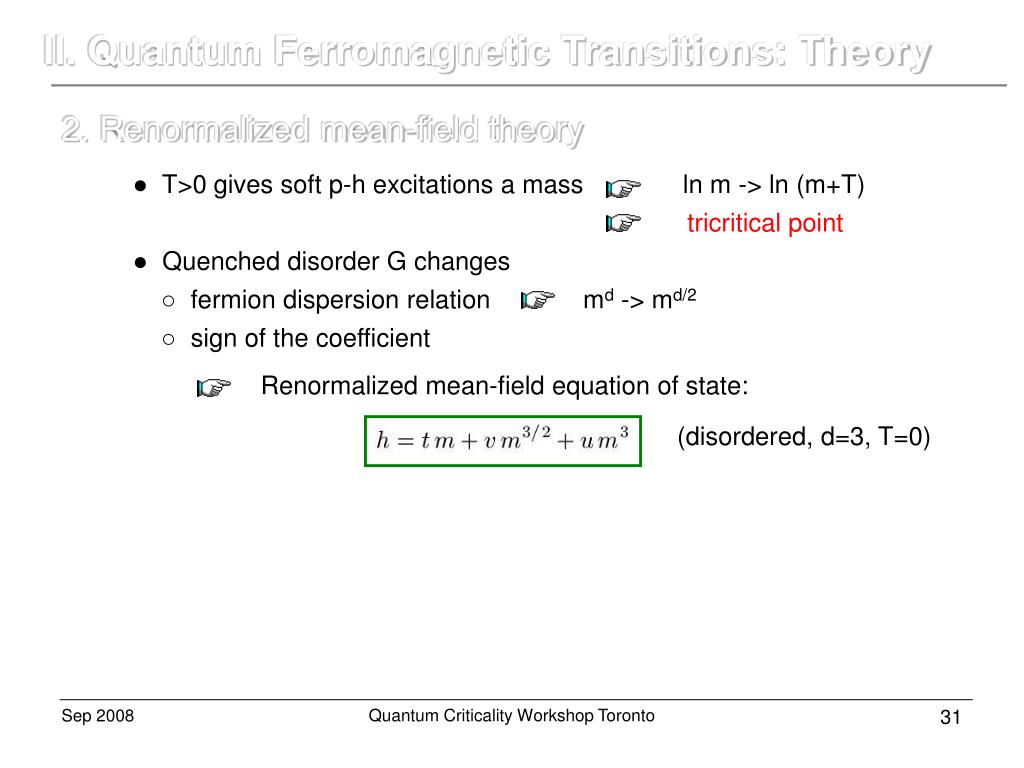

  31. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● T>0 gives soft p-h excitations a mass ln m -> ln (m+T) tricritical point ● Quenched disorder G changes ○ fermion dispersion relation md -> md/2 ○ sign of the coefficient Renormalized mean-field equation of state: (disordered, d=3, T=0) Quantum Criticality Workshop Toronto

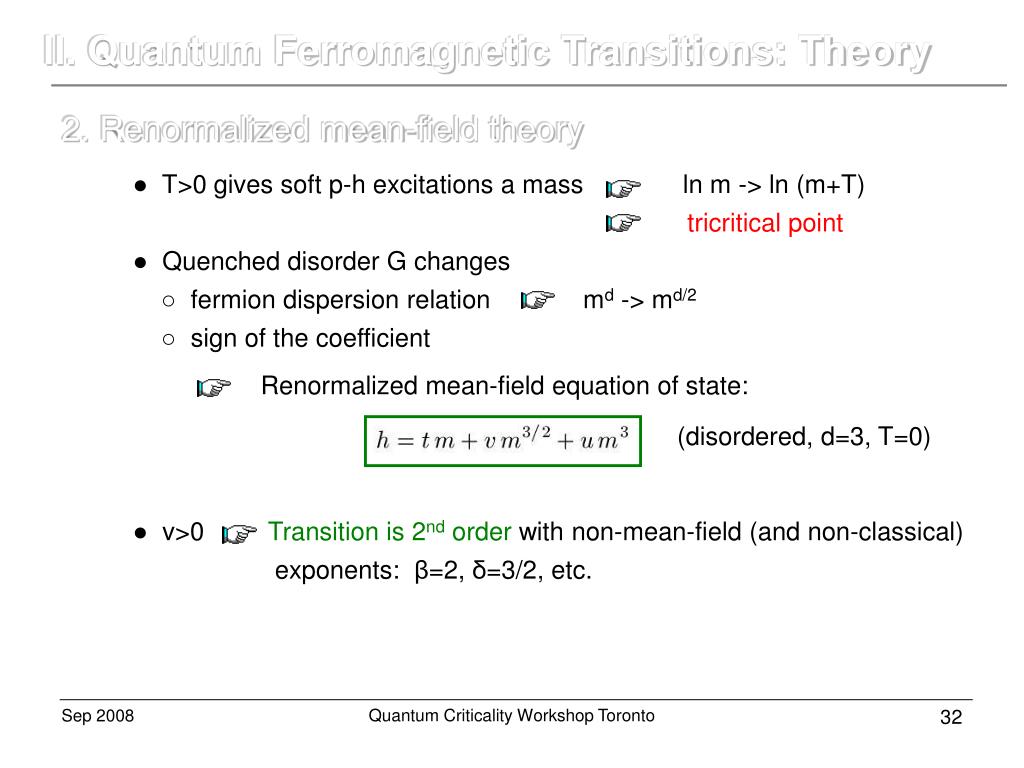

  32. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● T>0 gives soft p-h excitations a mass ln m -> ln (m+T) tricritical point ● Quenched disorder G changes ○ fermion dispersion relation md -> md/2 ○ sign of the coefficient Renormalized mean-field equation of state: (disordered, d=3, T=0) ● v>0 Transition is 2nd order with non-mean-field (and non-classical) exponents: β=2, δ=3/2, etc. Quantum Criticality Workshop Toronto

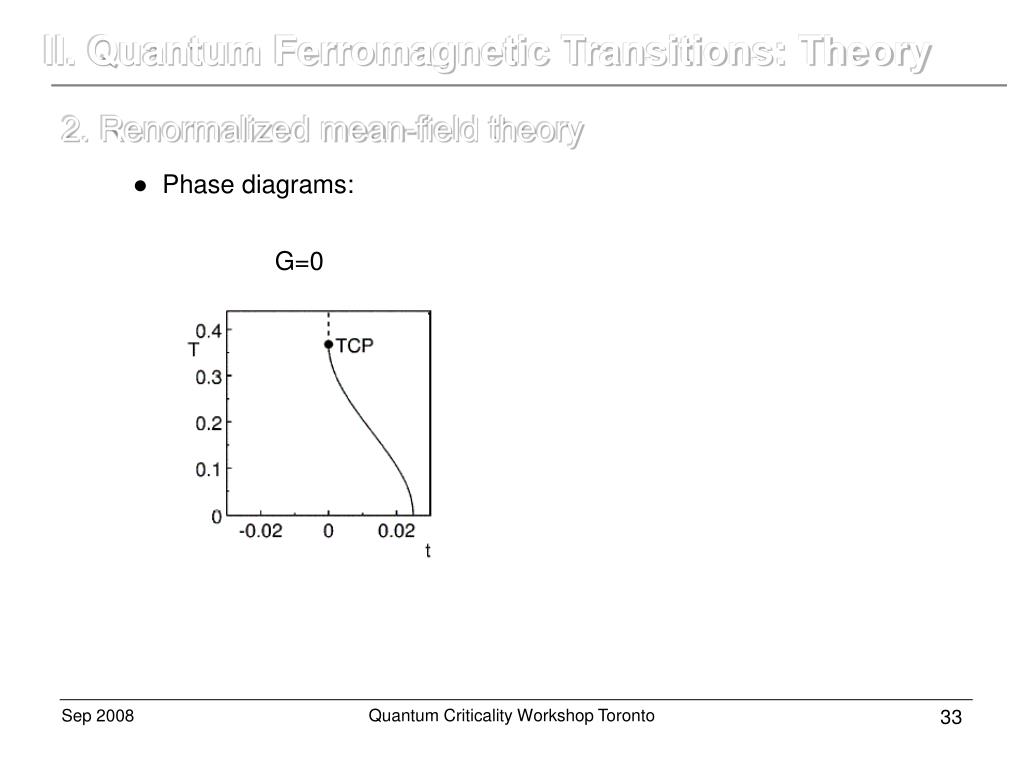

  33. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● Phase diagrams: G=0 Quantum Criticality Workshop Toronto

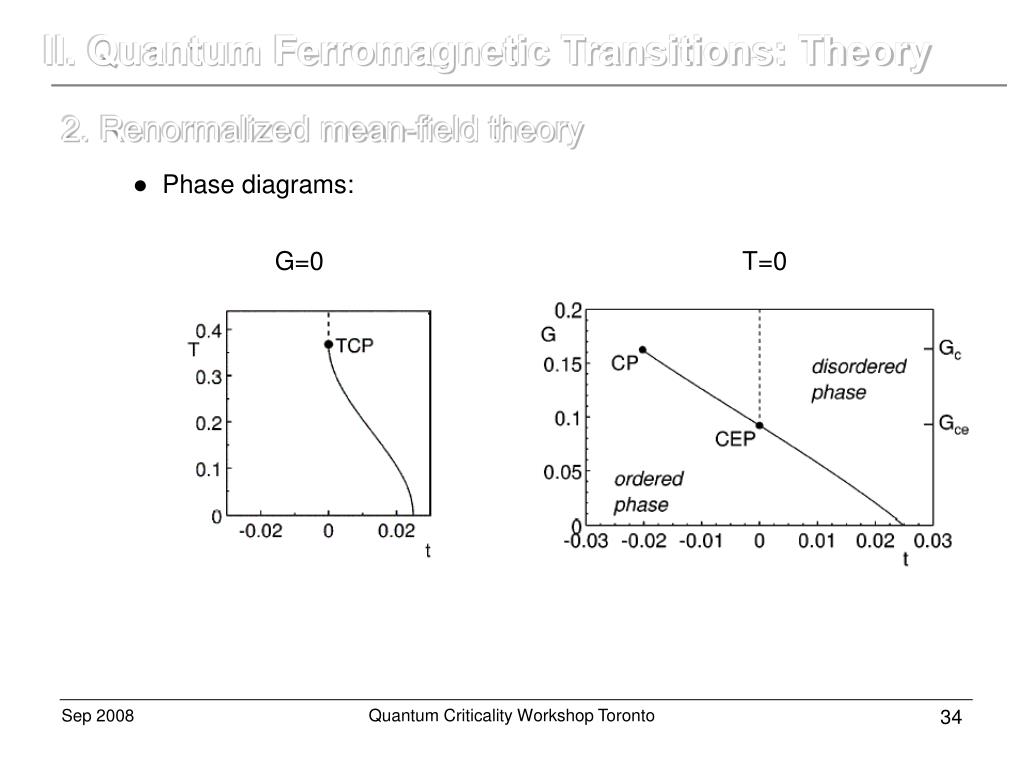

  34. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● Phase diagrams: G=0 T=0 Quantum Criticality Workshop Toronto

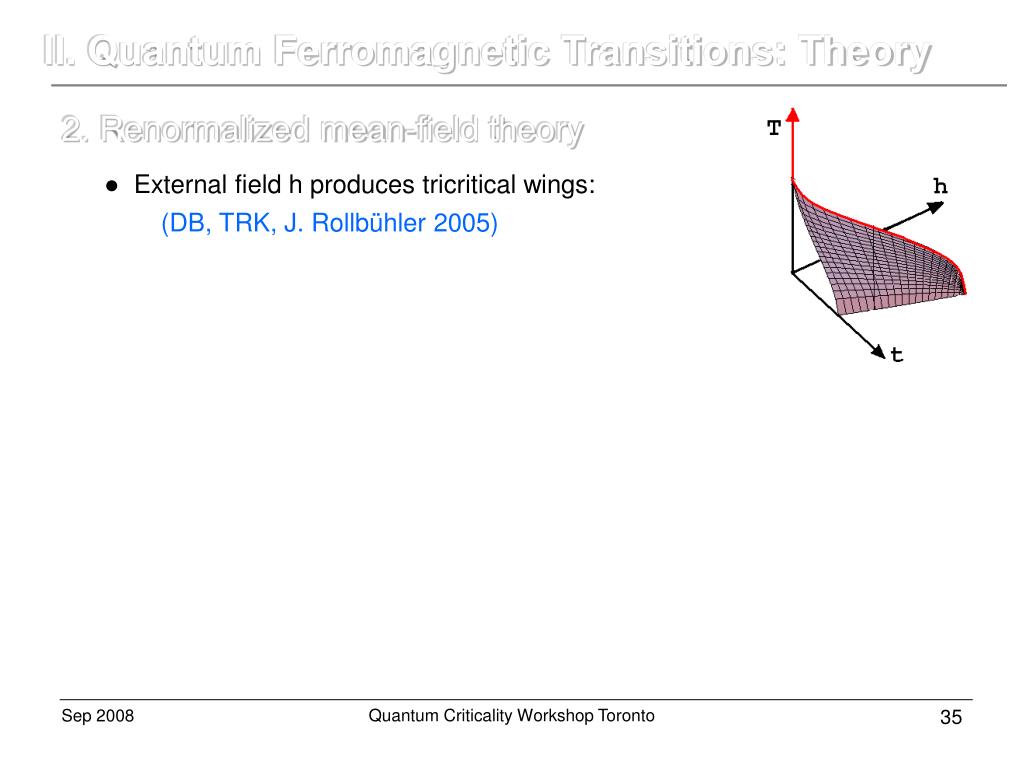

  35. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) Quantum Criticality Workshop Toronto

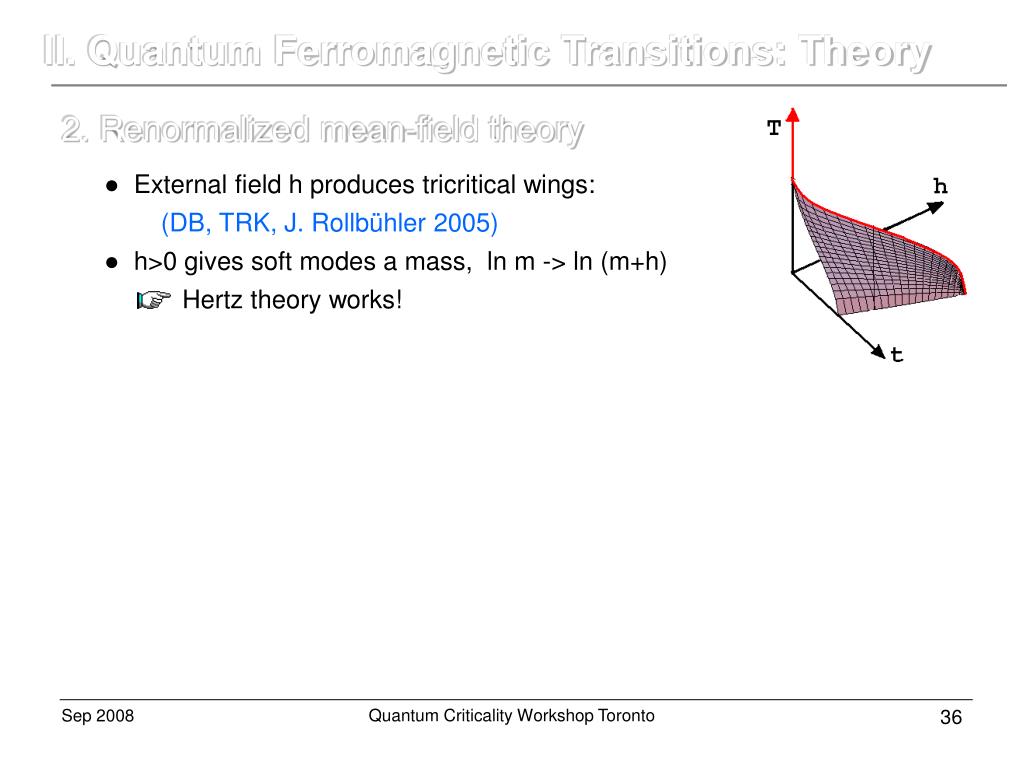

  36. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) ● h>0 gives soft modes a mass, ln m -> ln (m+h) Hertz theory works! Quantum Criticality Workshop Toronto

  37. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) ● h>0 gives soft modes a mass, ln m -> ln (m+h) Hertz theory works! Mean-field exponents: β=1/2, δ=3, z=3 Magnetization at QCP: δmc ~ -T4/9 Quantum Criticality Workshop Toronto

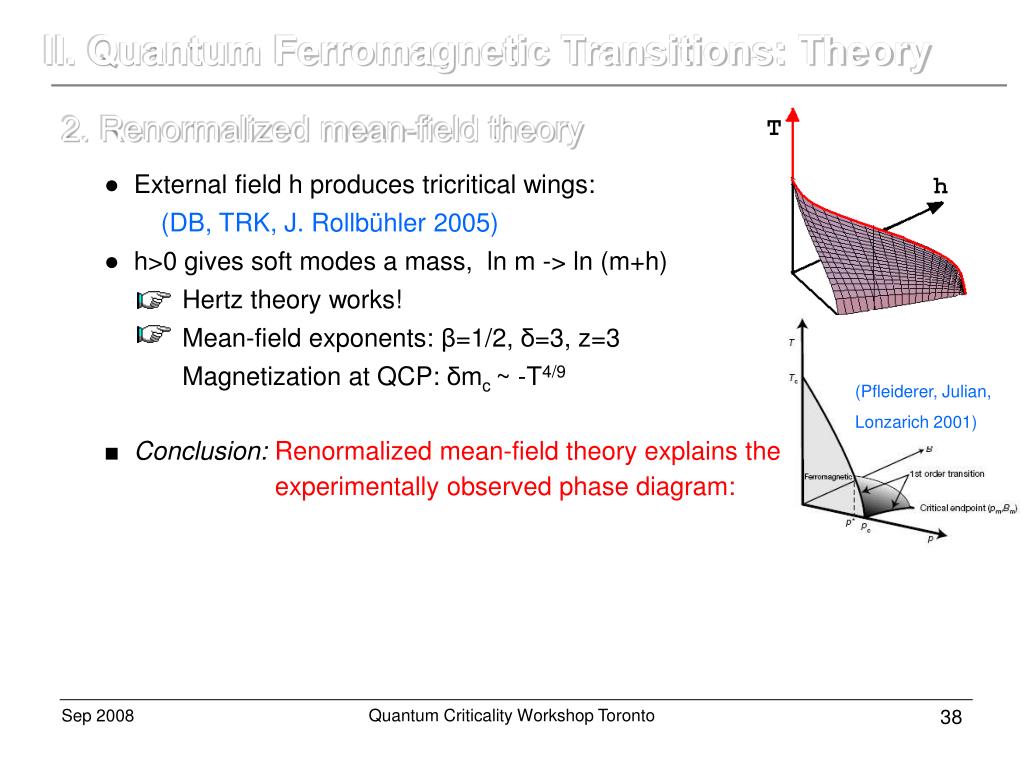

  38. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) ● h>0 gives soft modes a mass, ln m -> ln (m+h) Hertz theory works! Mean-field exponents: β=1/2, δ=3, z=3 Magnetization at QCP: δmc ~ -T4/9 ■ Conclusion:Renormalized mean-field theory explains the experimentally observed phase diagram: (Pfleiderer, Julian, Lonzarich 2001) Quantum Criticality Workshop Toronto

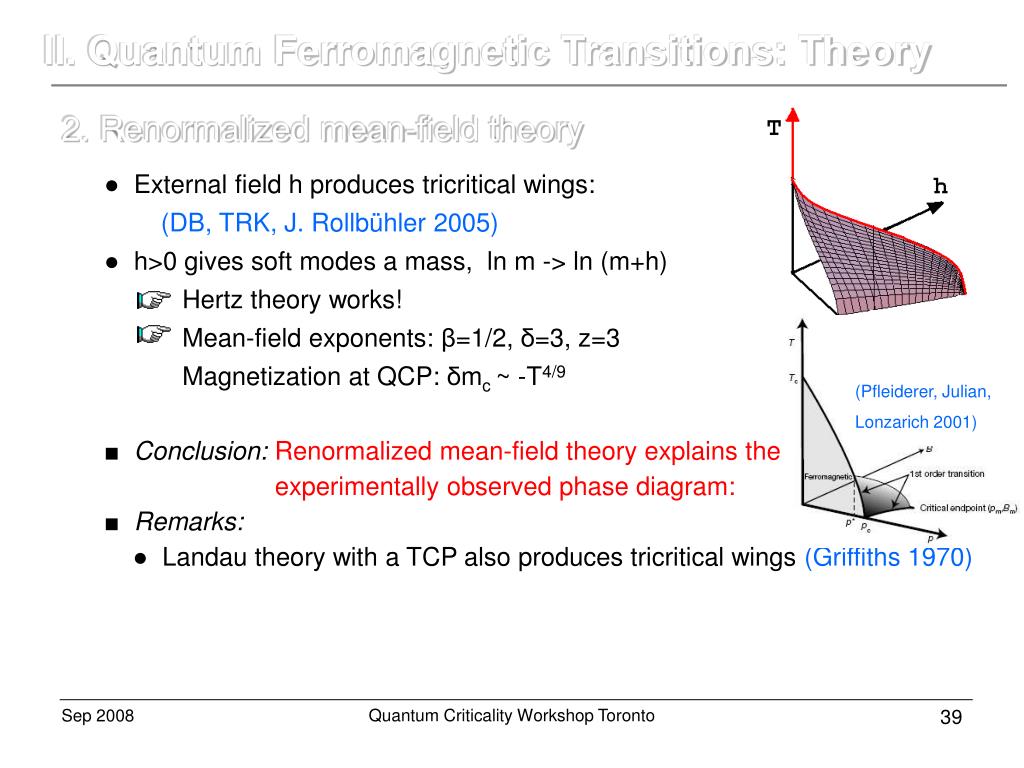

  39. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) ● h>0 gives soft modes a mass, ln m -> ln (m+h) Hertz theory works! Mean-field exponents: β=1/2, δ=3, z=3 Magnetization at QCP: δmc ~ -T4/9 ■ Conclusion:Renormalized mean-field theory explains the experimentally observed phase diagram: ■ Remarks: ● Landau theory with a TCP also produces tricritical wings (Griffiths 1970) (Pfleiderer, Julian, Lonzarich 2001) Quantum Criticality Workshop Toronto

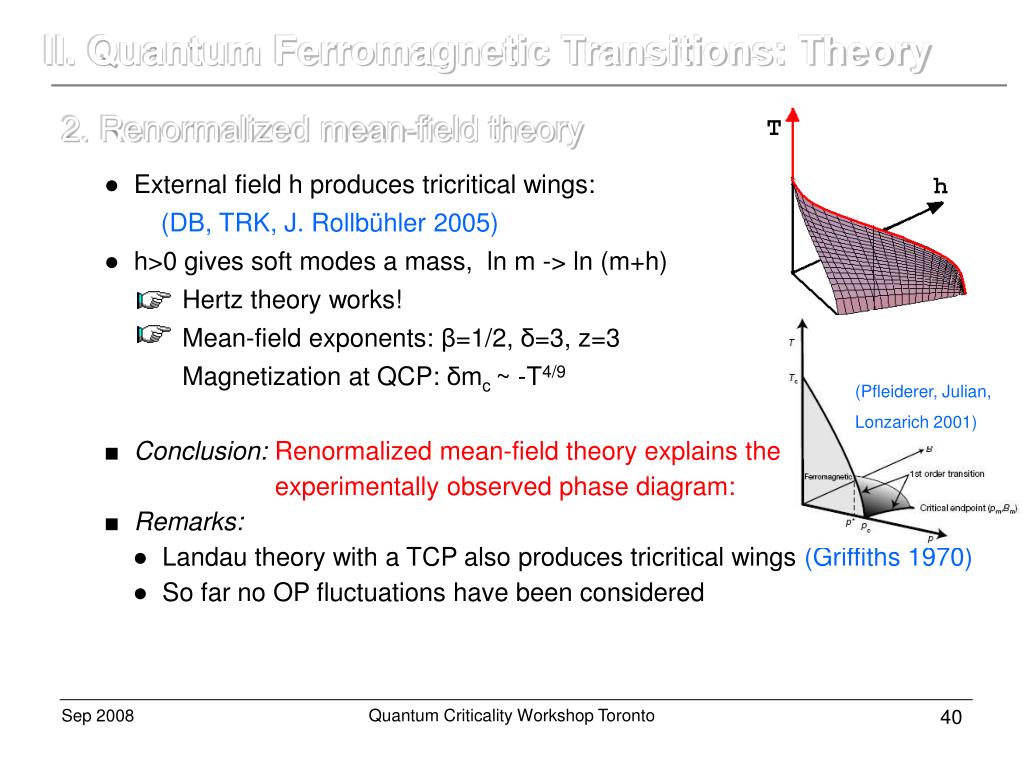

  40. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) ● h>0 gives soft modes a mass, ln m -> ln (m+h) Hertz theory works! Mean-field exponents: β=1/2, δ=3, z=3 Magnetization at QCP: δmc ~ -T4/9 ■ Conclusion:Renormalized mean-field theory explains the experimentally observed phase diagram: ■ Remarks: ● Landau theory with a TCP also produces tricritical wings (Griffiths 1970) ● So far no OP fluctuations have been considered (Pfleiderer, Julian, Lonzarich 2001) Quantum Criticality Workshop Toronto

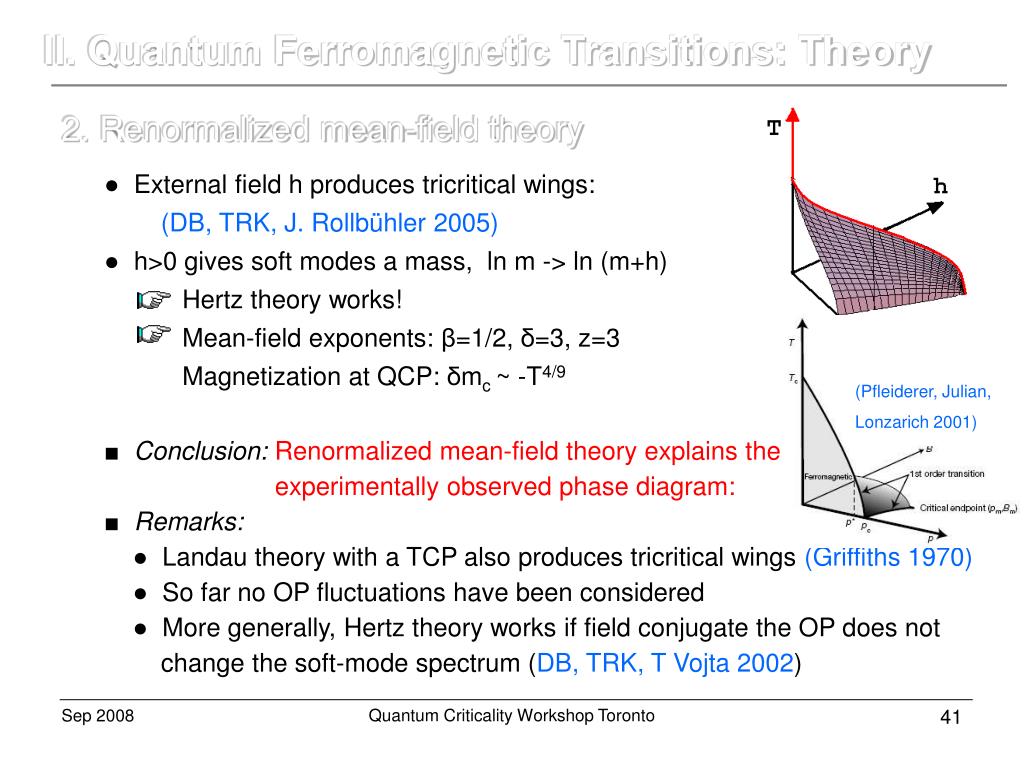

  41. II. Quantum Ferromagnetic Transitions: Theory 2. Renormalized mean-field theory ● External field h produces tricritical wings: (DB, TRK, J. Rollbühler 2005) ● h>0 gives soft modes a mass, ln m -> ln (m+h) Hertz theory works! Mean-field exponents: β=1/2, δ=3, z=3 Magnetization at QCP: δmc ~ -T4/9 ■ Conclusion:Renormalized mean-field theory explains the experimentally observed phase diagram: ■ Remarks: ● Landau theory with a TCP also produces tricritical wings (Griffiths 1970) ● So far no OP fluctuations have been considered ● More generally, Hertz theory works if field conjugate the OP does not change the soft-mode spectrum (DB, TRK, T Vojta 2002) (Pfleiderer, Julian, Lonzarich 2001) Quantum Criticality Workshop Toronto

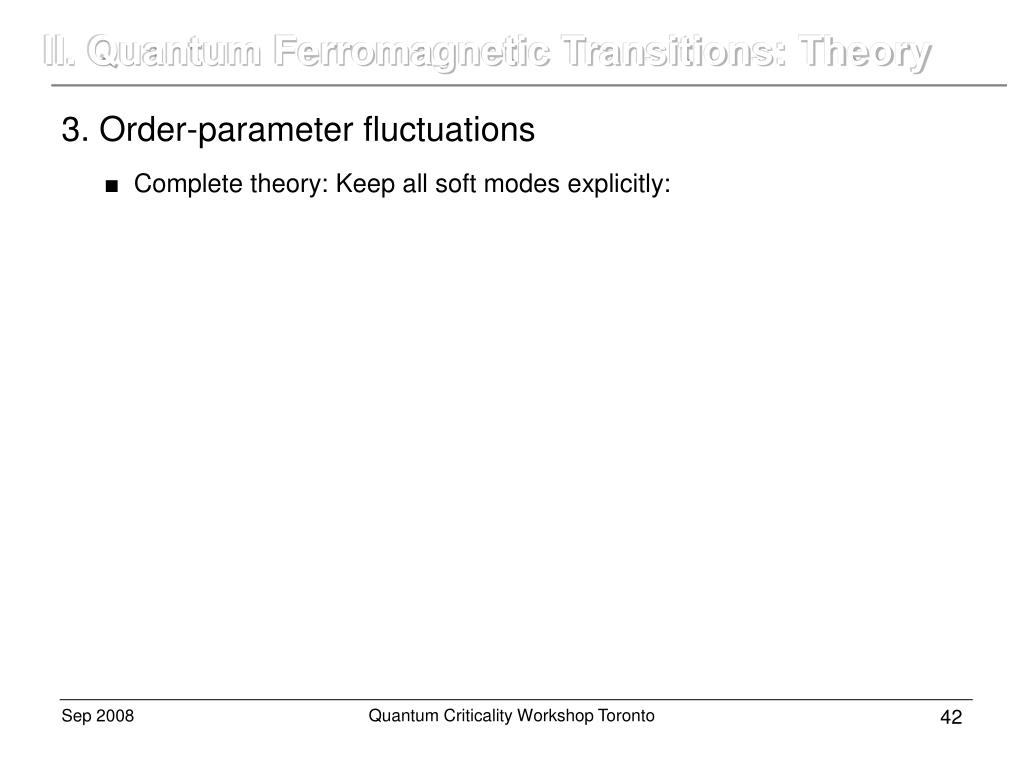

  42. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: Quantum Criticality Workshop Toronto

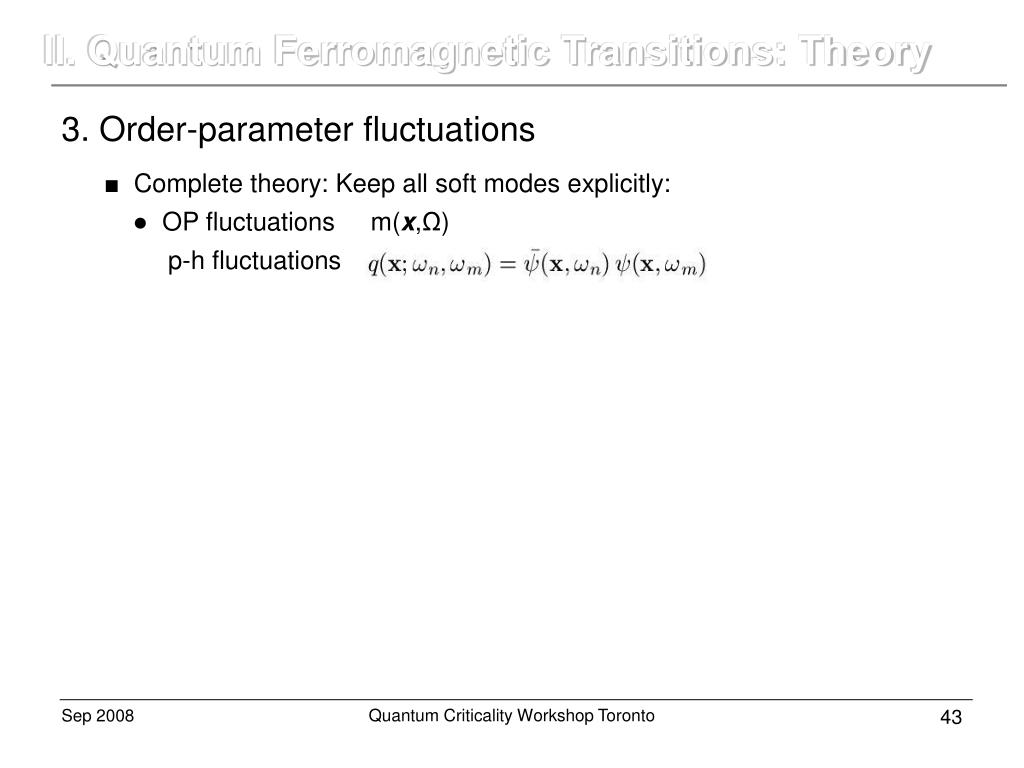

  43. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: ● OP fluctuations m(x,Ω) p-h fluctuations Quantum Criticality Workshop Toronto

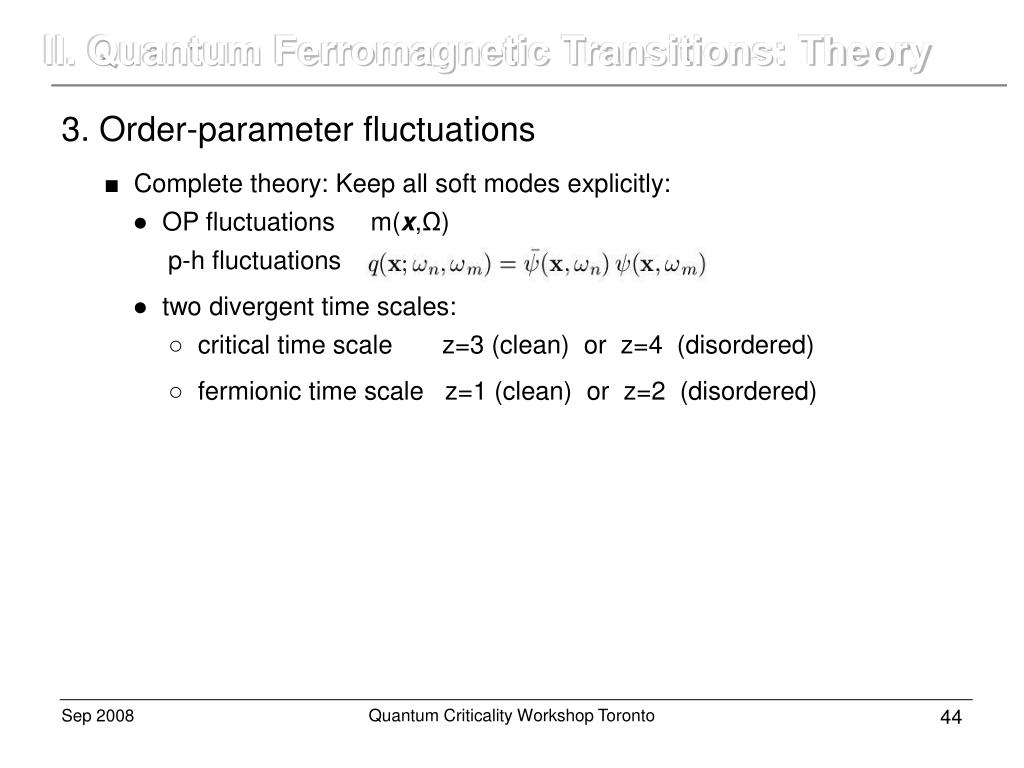

  44. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: ● OP fluctuations m(x,Ω) p-h fluctuations ● two divergent time scales: ○ critical time scale z=3 (clean) or z=4 (disordered) ○ fermionic time scale z=1 (clean) or z=2 (disordered) Quantum Criticality Workshop Toronto

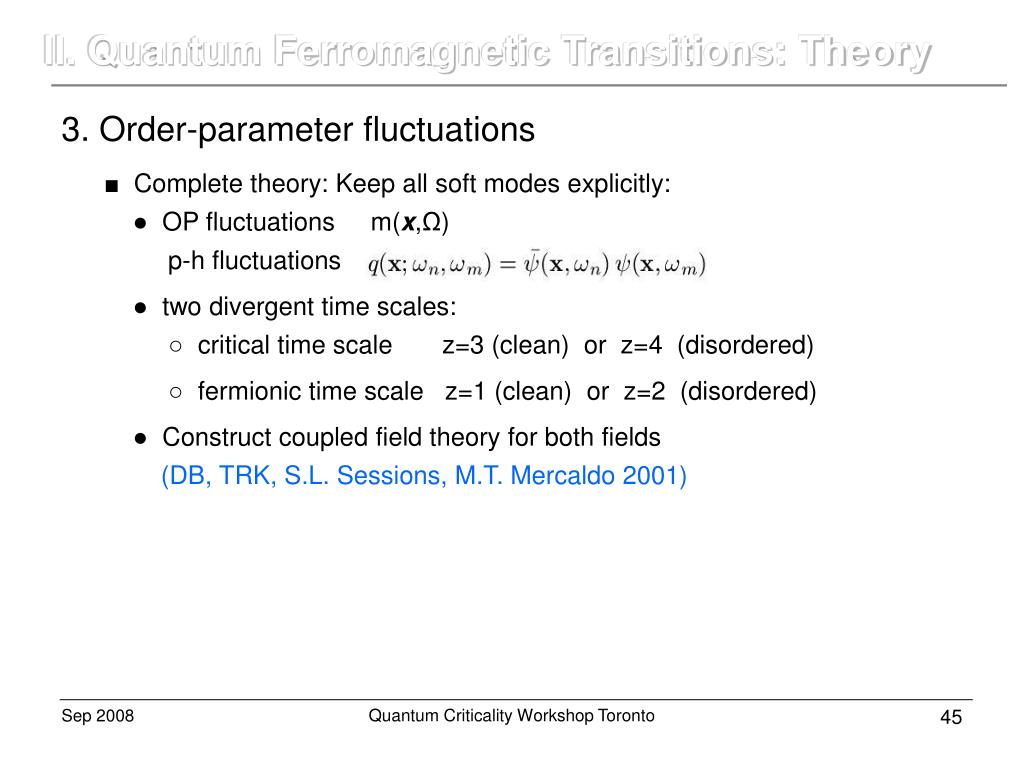

  45. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: ● OP fluctuations m(x,Ω) p-h fluctuations ● two divergent time scales: ○ critical time scale z=3 (clean) or z=4 (disordered) ○ fermionic time scale z=1 (clean) or z=2 (disordered) ● Construct coupled field theory for both fields (DB, TRK, S.L. Sessions, M.T. Mercaldo 2001) Quantum Criticality Workshop Toronto

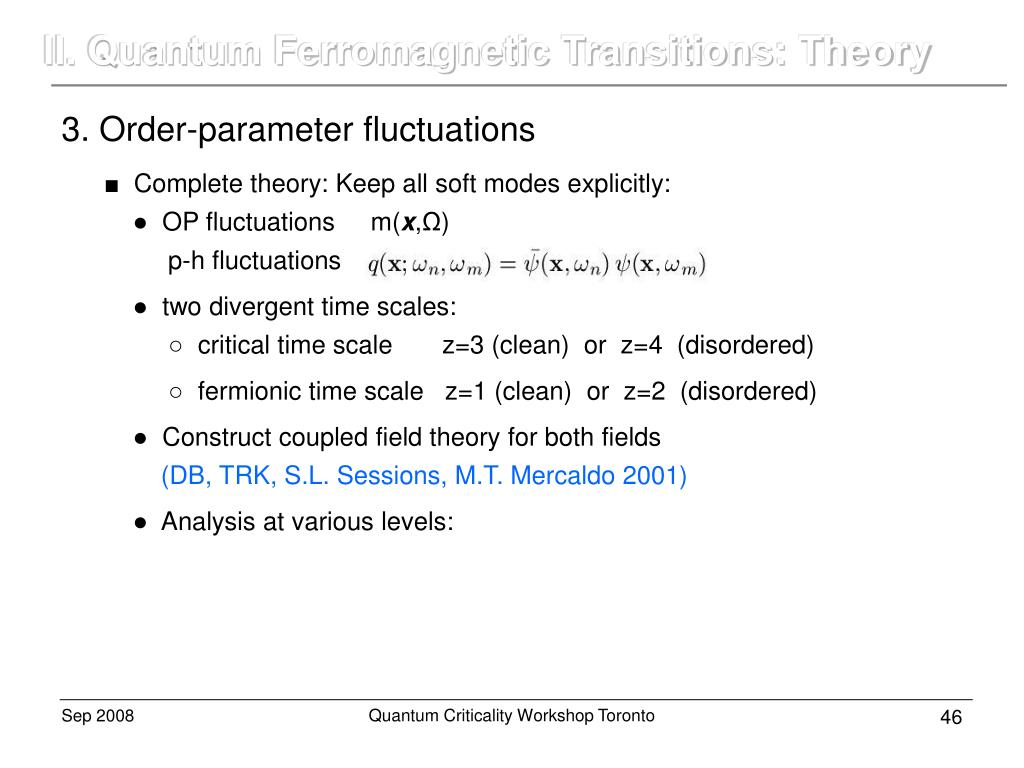

  46. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: ● OP fluctuations m(x,Ω) p-h fluctuations ● two divergent time scales: ○ critical time scale z=3 (clean) or z=4 (disordered) ○ fermionic time scale z=1 (clean) or z=2 (disordered) ● Construct coupled field theory for both fields (DB, TRK, S.L. Sessions, M.T. Mercaldo 2001) ● Analysis at various levels: Quantum Criticality Workshop Toronto

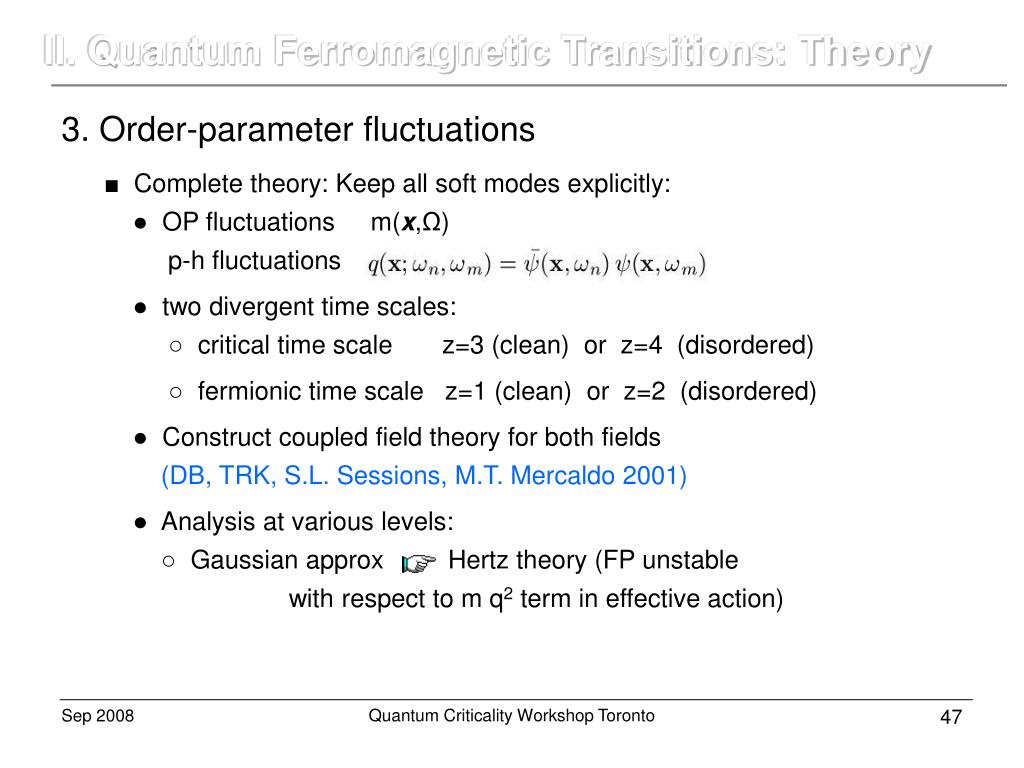

  47. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: ● OP fluctuations m(x,Ω) p-h fluctuations ● two divergent time scales: ○ critical time scale z=3 (clean) or z=4 (disordered) ○ fermionic time scale z=1 (clean) or z=2 (disordered) ● Construct coupled field theory for both fields (DB, TRK, S.L. Sessions, M.T. Mercaldo 2001) ● Analysis at various levels: ○ Gaussian approx Hertz theory (FP unstable with respect to m q2 term in effective action) Quantum Criticality Workshop Toronto

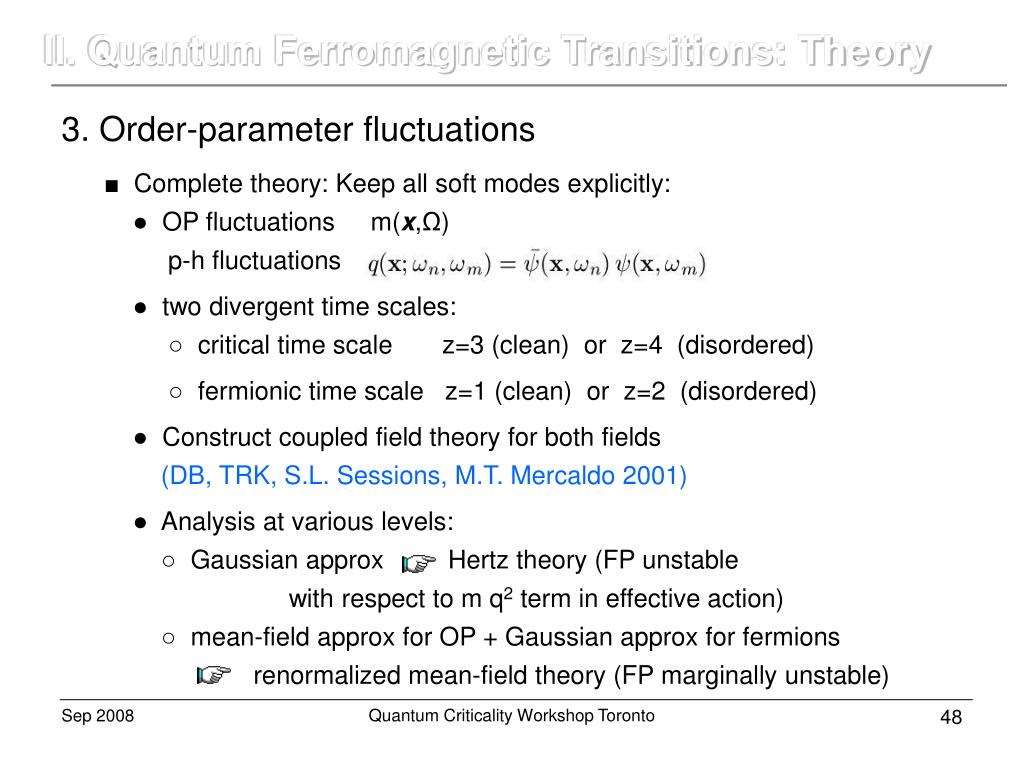

  48. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ■ Complete theory: Keep all soft modes explicitly: ● OP fluctuations m(x,Ω) p-h fluctuations ● two divergent time scales: ○ critical time scale z=3 (clean) or z=4 (disordered) ○ fermionic time scale z=1 (clean) or z=2 (disordered) ● Construct coupled field theory for both fields (DB, TRK, S.L. Sessions, M.T. Mercaldo 2001) ● Analysis at various levels: ○ Gaussian approx Hertz theory (FP unstable with respect to m q2 term in effective action) ○ mean-field approx for OP + Gaussian approx for fermions renormalized mean-field theory (FP marginally unstable) Quantum Criticality Workshop Toronto

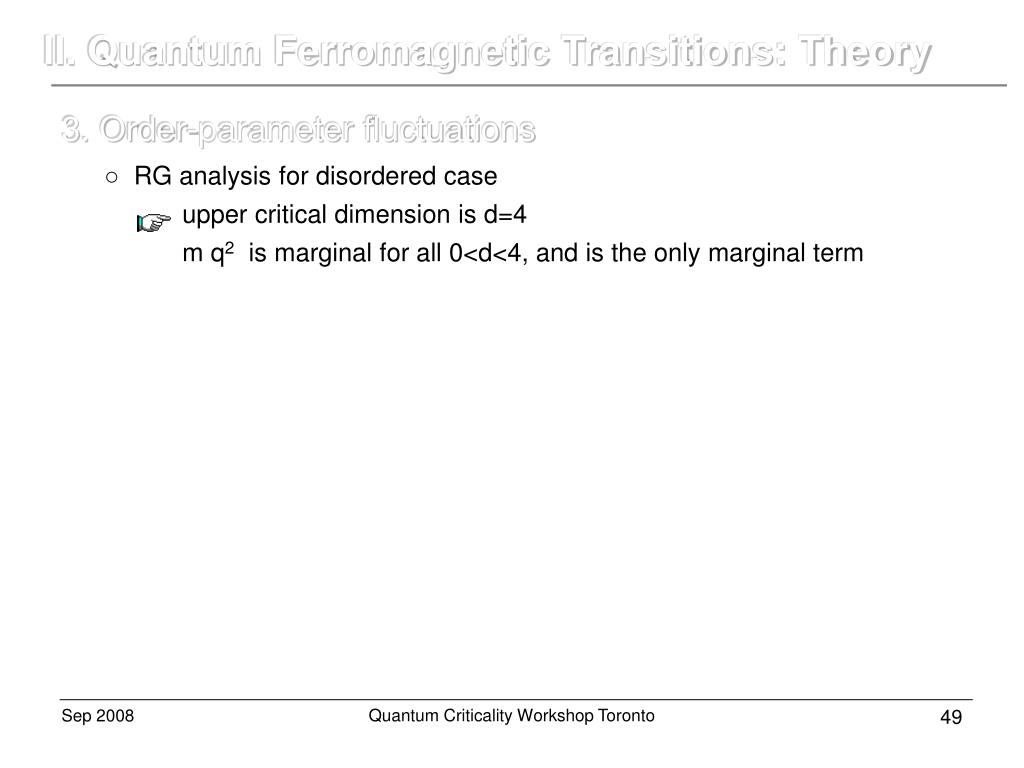

  49. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ○ RG analysis for disordered case upper critical dimension is d=4 m q2 is marginal for all 0<d<4, and is the only marginal term Quantum Criticality Workshop Toronto

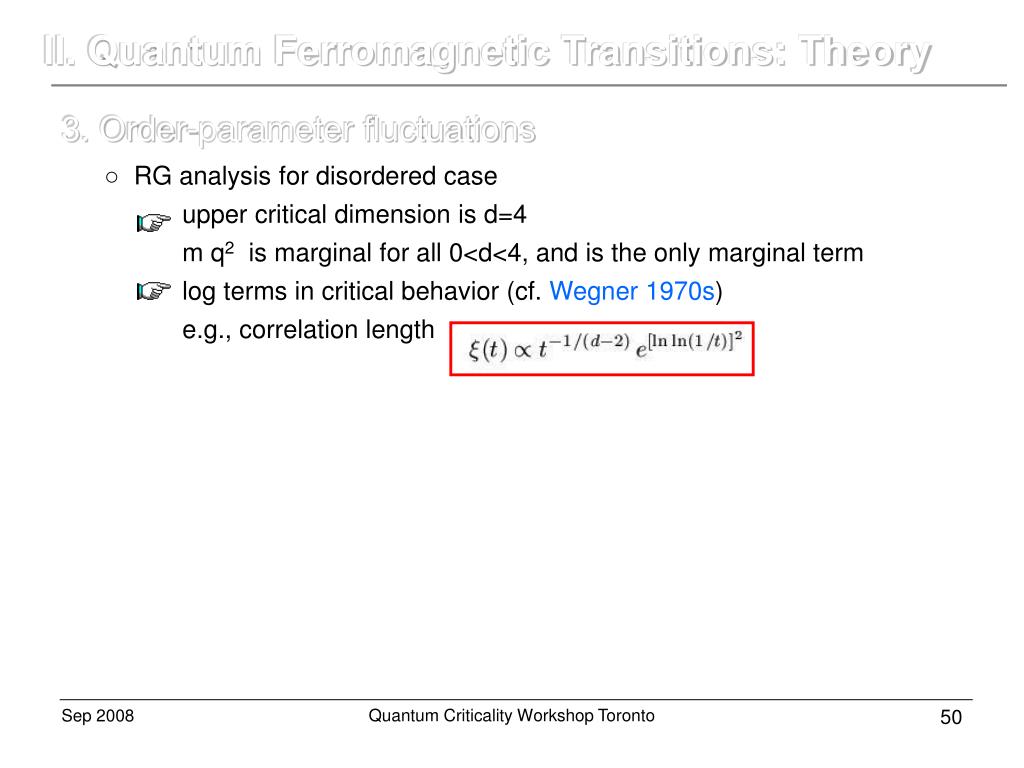

  50. II. Quantum Ferromagnetic Transitions: Theory 3. Order-parameter fluctuations ○ RG analysis for disordered case upper critical dimension is d=4 m q2 is marginal for all 0<d<4, and is the only marginal term log terms in critical behavior (cf. Wegner 1970s) e.g., correlation length Quantum Criticality Workshop Toronto
