  1. DTS / DTF CONNECTIONS FOR DT ELEMENTS

  2. DTS / DTF

  3. DTS / DTF WHY…..?? - EFFICIENT TECHNICAL SOLUTION - COST EFFECTIVE SATISFIED CUSTOMERS

  4. Traditional connection DLB-BEAM

  5. Clean and ’’corbelfree’’

  6. No Piegon Shit … , No ’’Bombs’’...

  7. DTS/DTF – CAPACETIES DTS 120 (120 kN) DTS 150 (150 kN)

  8. DTS CONSISTS OF.. OUTER TUBE OF THIN STEEL HALFROUND BAR STEEL ”STOPPER” RHS INNERTUB FLATBAR STEEL

  9. TECHNICAL SOLUTION FIRE RESISTANCE + JOINT SEALING Improved reinforcement design 9

  10. SIMPLE DEPLOYMENT!

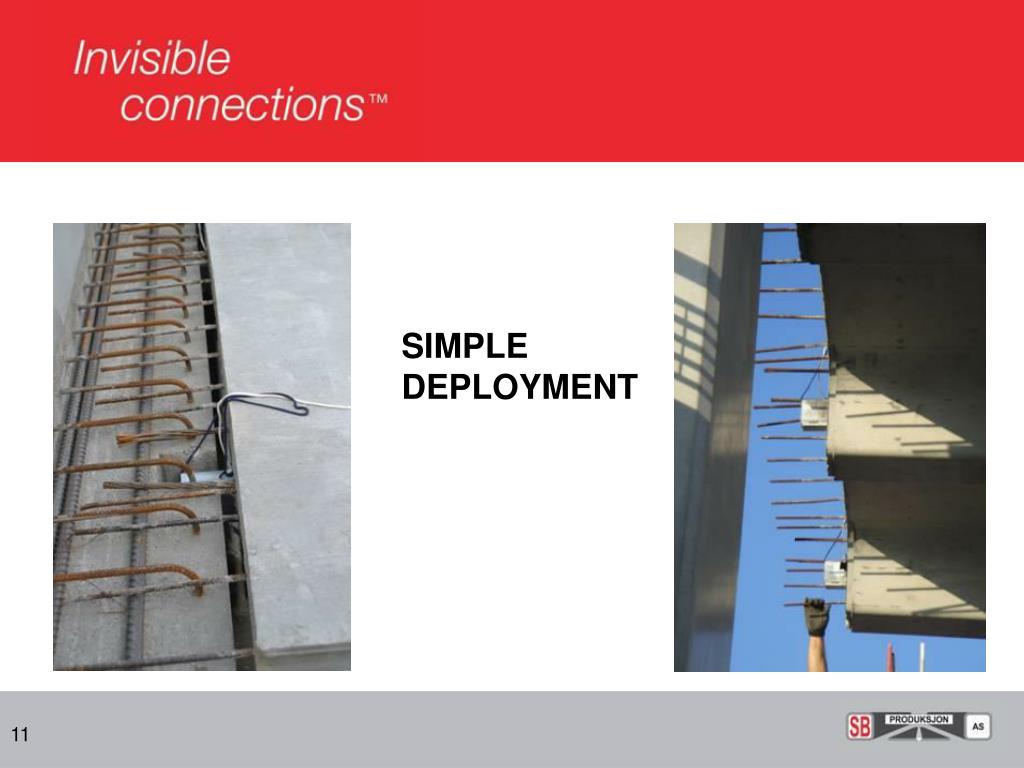

  11. SIMPLE DEPLOYMENT

  12. DTS / DTF = Inserts for connecting DT- elements to beam/wall

  13. Parking Garage with DT ELEMENT - Cost effective solution!! - Clean and ”corbelfree” design - Integrated vehicle rail - Integrated floor shift in Parking Garage - Storey height reduction - Simple diagphragm - Fire resistance / joint sealing 13
