  1. Modern Design Concept Chapter 10

  2. Aerodynamic Research Contributions • Propulsion • Structural Design • Monocoque structure • Optimum location for the engine nacelles

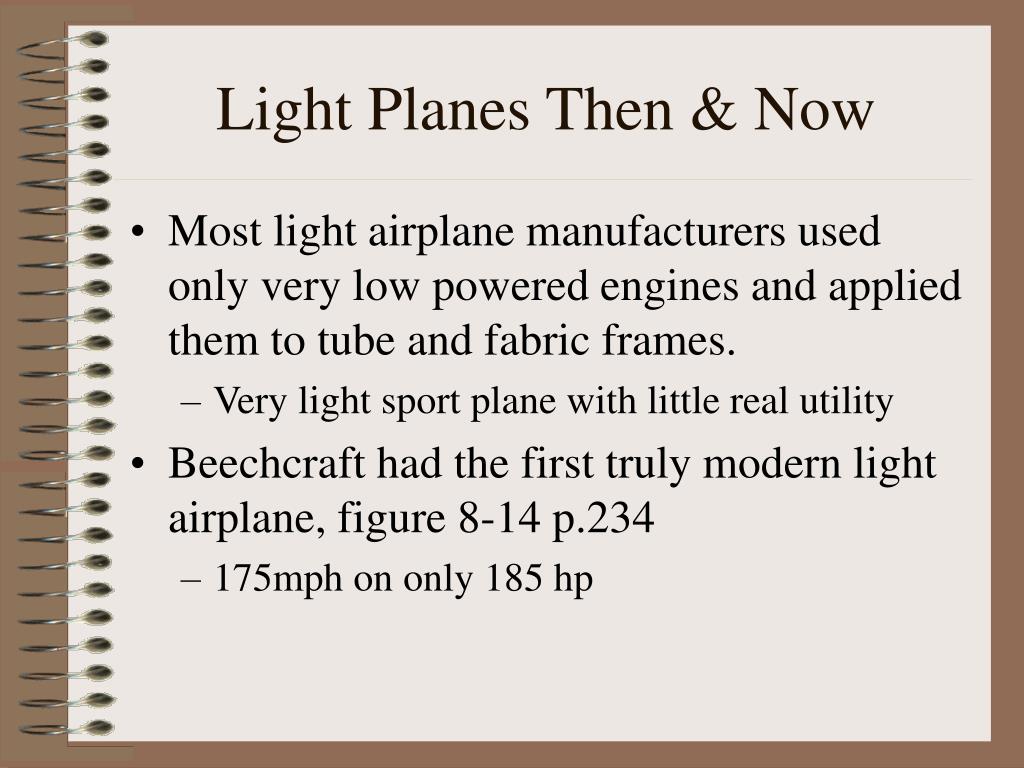

  3. Light Planes Then & Now • Most light airplane manufacturers used only very low powered engines and applied them to tube and fabric frames. • Very light sport plane with little real utility • Beechcraft had the first truly modern light airplane, figure 8-14 p.234 • 175mph on only 185 hp

  4. Light Planes Piston engines- dominated general aviation Due to lower cost & fuel efficiency Drag clean up by improving efficiency of airflow- (wheel fairings)

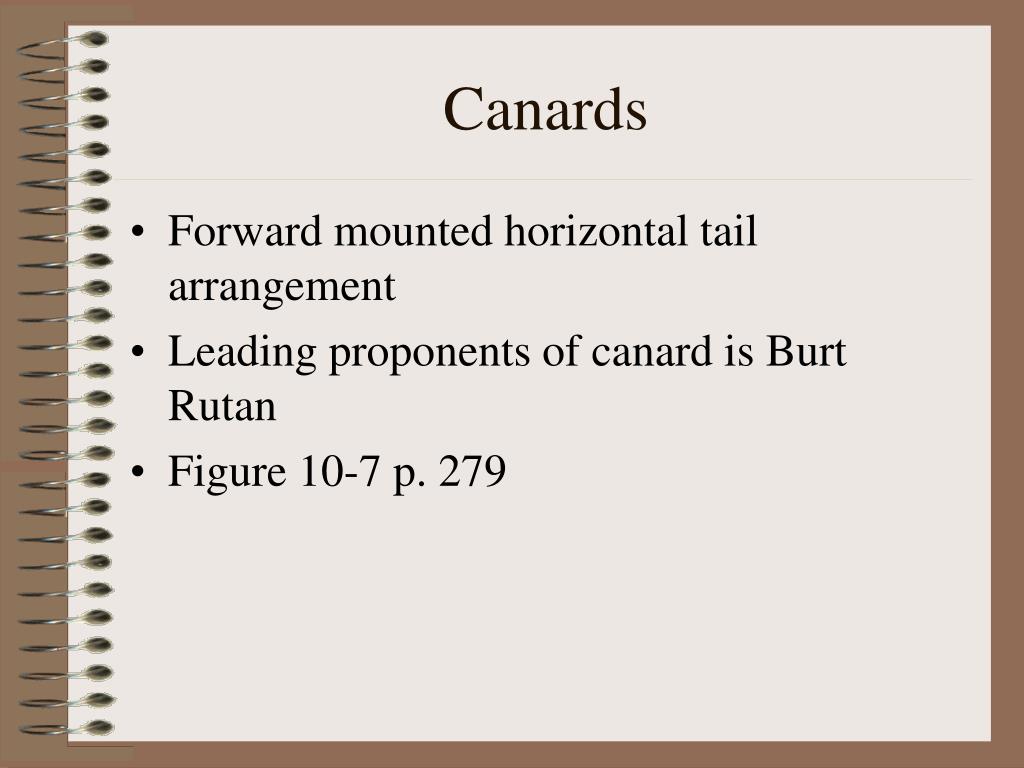

  5. Canards • Forward mounted horizontal tail arrangement • Leading proponents of canard is Burt Rutan • Figure 10-7 p. 279

  6. Canard • PROS • It provides additional lift in the positive direction while performing its primary task of balancing the wing pitching moment • Higher L/D overall airplane • Canard is out of wing downwash; so efficient at high angle of attack

  7. Canard • CONS • The canard surface will increase in lift and nose-up moment, with increased angle of attack destabilizing • Stability can be provided by the wing, but this requires that the wing always behind the CG in order to give a nose-down moment at increased angle of attack

  8. Canard • CONS • Center of gravity travel is limited • Horizontal surface mounted forward; the vertical tail must always be aft of the CG

  9. Effective Aspect Ratio Devices • Tip Shape Effect • Endplates • Winglets • Swept wing

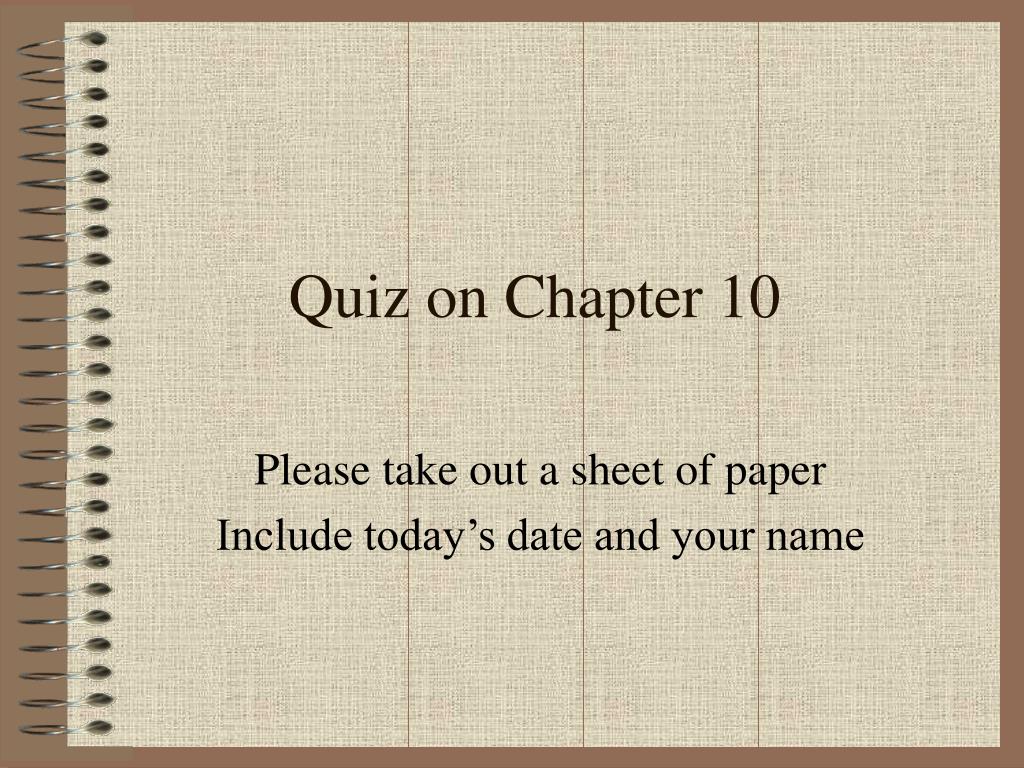

  10. Quiz on Chapter 10 Please take out a sheet of paper Include today’s date and your name

  11. Quiz on Chapter 10 • List one pro and one con of the canard.
