Ellipse - Pin & String Method

Ellipse - Pin & String Method. Y. An ellipse is an oval shape with no regular radius. X. X. It is set up along 2 axes. The “X” axis is always the longest one. Y. The “Y” axis is always the shortest one. Ellipse - Pin & String Method. Y. Step 1. Mark out the “X” axis. Step 2.

ama
Télécharger la présentation

Ellipse - Pin & String Method

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

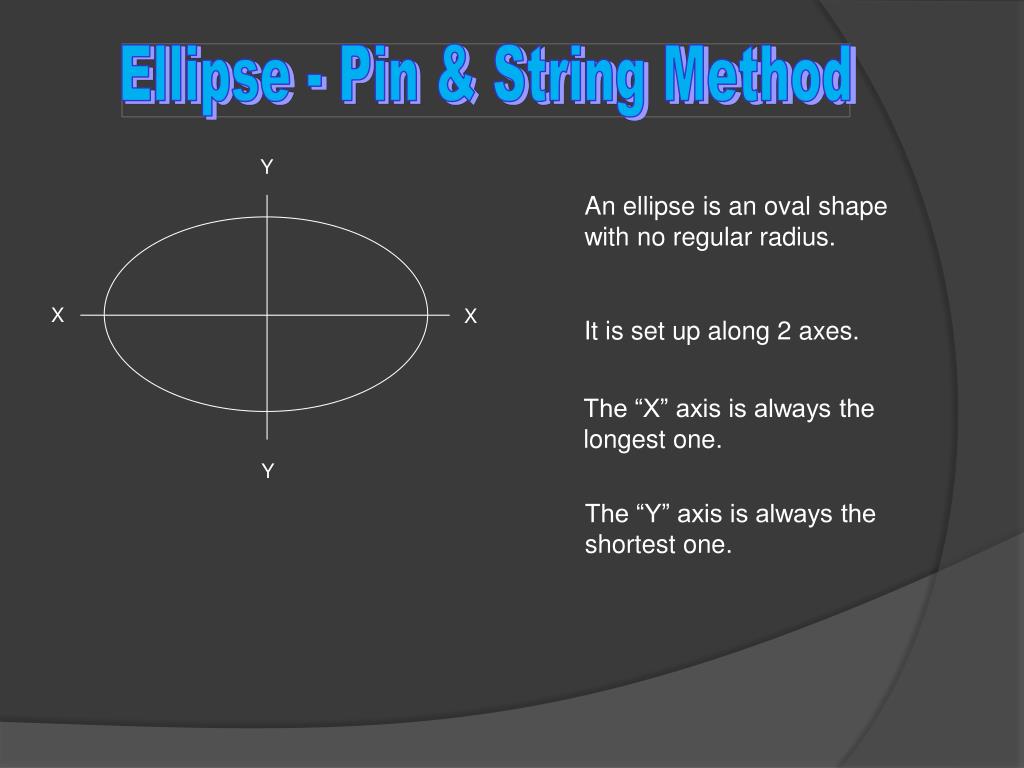

  1. Ellipse - Pin & String Method Y An ellipse is an oval shape with no regular radius. X X It is set up along 2 axes. The “X” axis is always the longest one. Y The “Y” axis is always the shortest one.

  2. Ellipse - Pin & String Method Y Step 1. Mark out the “X” axis. Step 2. Find the centre of the X axis. X X Step 3. Mark in the “Y” axis. Y

  3. Ellipse - Pin & String Method Y Step 4. Set the compass to ½ the “X” axis X X Step 5. Move the compass to the Y point and mark off the distance along the X axis Y

  4. Ellipse - Pin & String Method Step 6. Place small nails or pins at points F1, F2 and C Y C Step 7. Tie a piece of string, (builders line is best) to the nail at F1. X X F2 F1 Y

  5. Ellipse - Pin & String Method Step 8. Take the string around C and to F2 and tie off. Make sure it is stretched reasonably tight. Y C X X - Too tight and it will pull the nails out F2 F1 - Too loose and the ellipse will be the too big Y

  6. Ellipse - Pin & String Method Step 9. Insert pencil in place of nail at point C Y X X Y

  7. Ellipse - Pin & String Method Y Step 10. Scribe the arc by keeping the string tight with the pencil and moving it to the left or right. In this example we have gone left. X X Y

  8. Ellipse - Pin & String Method Y X X Y

  9. Ellipse - Pin & String Method Y X X Y

  10. Ellipse - Pin & String Method Y X X Y

  11. Ellipse - Pin & String Method Y X X Y

  12. Ellipse - Pin & String Method

  13. Ellipse - Pin & String Method

  14. Ellipse - Pin & String Method

  15. Ellipse - Pin & String Method

  16. Ellipse - Pin & String Method

  17. Ellipse - Pin & String Method

  18. Ellipse - Pin & String Method

  19. Ellipse - Pin & String Method

  20. Ellipse - Pin & String Method

  21. Ellipse - Pin & String Method

  22. Ellipse - Pin & String Method

  23. Ellipse - Pin & String Method

  24. Ellipse - Pin & String Method

  25. Ellipse - Pin & String Method

  26. Ellipse - Pin & String Method

  27. Ellipse - Pin & String Method Now you have created the perfect ellipse. You can use a band saw or jig saw to cut the shape. You can clean up the edges with a disc sander or belt sander and then make a router template for repetitive work.
