  1. Minneapolis Office Developer Interest Group (MODIG) Neil Iversen Inetium February 21, 2008 Solutions and Feature Development http://justaddcode.com/

  2. The Plan • Introduction  You are here • Feature Presentation • Solutions and Features • Next Topic Selection • Random Stuff

  3. User Group Goals • Provide a community for SharePoint Developers • Share development knowledge • Exchange tips/tricks/other • Understand SPUtility as a metaphor for life

  4. User Group Format • Presentations • 1-2 per meeting • Hopefully Demo Heavy • Highlights of Nifty Things • See next slide • QA/Discussion/Random Things

  5. Call for Cool Stuff • Created something cool? • Send Screenshots or Videos • We’ll try to feature some items here

  6. Sharepointmn.com/pages/modig.aspx • Our current home • Convenient URL • Meeting information • Previous presentations • Running on SharePoint • As required by SharePoint User Group Law

  7. Upcoming • Next Meeting • Week Of: March 17-20 (Watch your email) • Topic: TBD – Hopefully later today • MNSPUG • March 12 (9:00am – Noon) • Topic : TBD (sharepointmn.com)

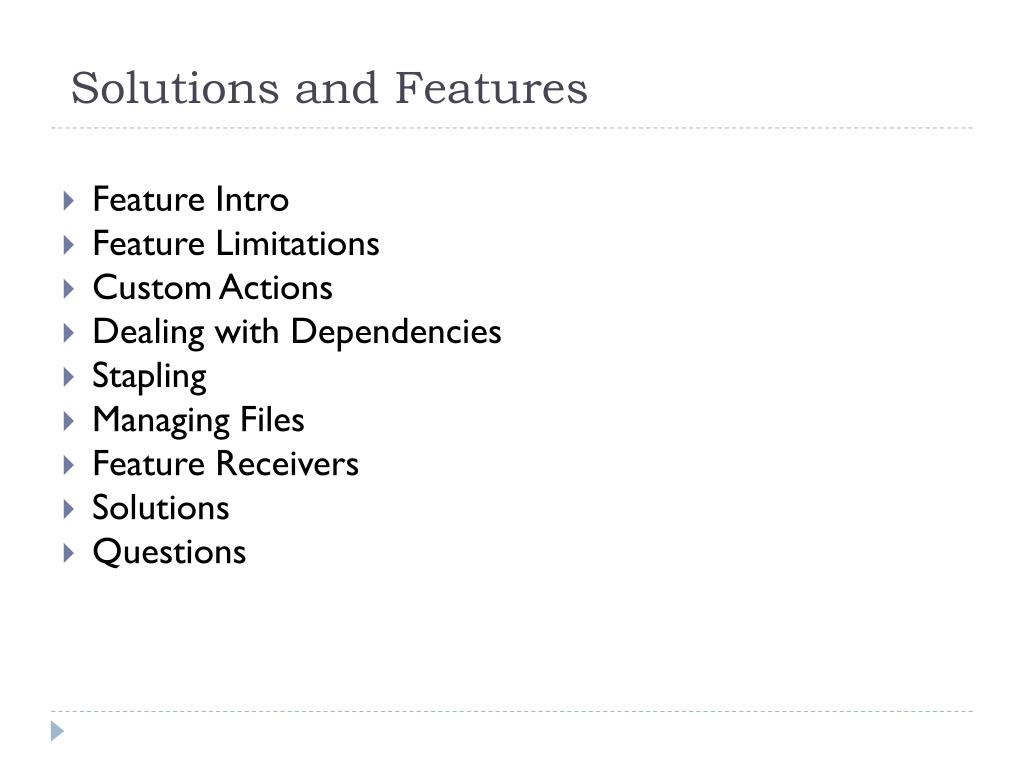

  8. Solutions and Features • Feature Intro • Feature Limitations • Custom Actions • Dealing with Dependencies • Stapling • Managing Files • Feature Receivers • Solutions • Questions

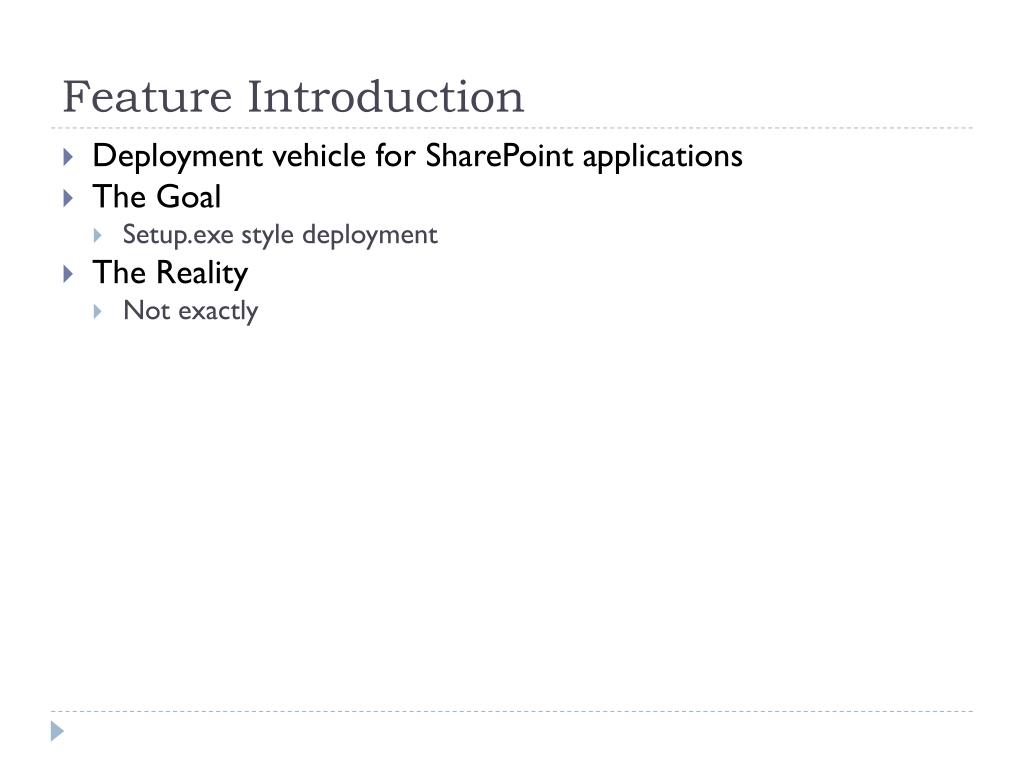

  9. Feature Introduction • Deployment vehicle for SharePoint applications • The Goal • Setup.exe style deployment • The Reality • Not exactly

  10. Feature Introduction • Ability to customize SharePoint • Used extensively by SharePoint itself • Actions • Install/Uninstall • Activate/Deactivate • Stored in the Hive • 12\TEMPLATE\FEATURES • Separate directory for each feature • Scopes • Web, Site, Farm, Web App • Common Scenarios • List Templates • Workflow

  11. Key Feature Limitations • Limited set of supported schemas • Supports fewer file options than Solutions • Must be bundled in Solutions for larger farms • Upgrading\Removing deployed features is difficult • Might not follow expected behavior

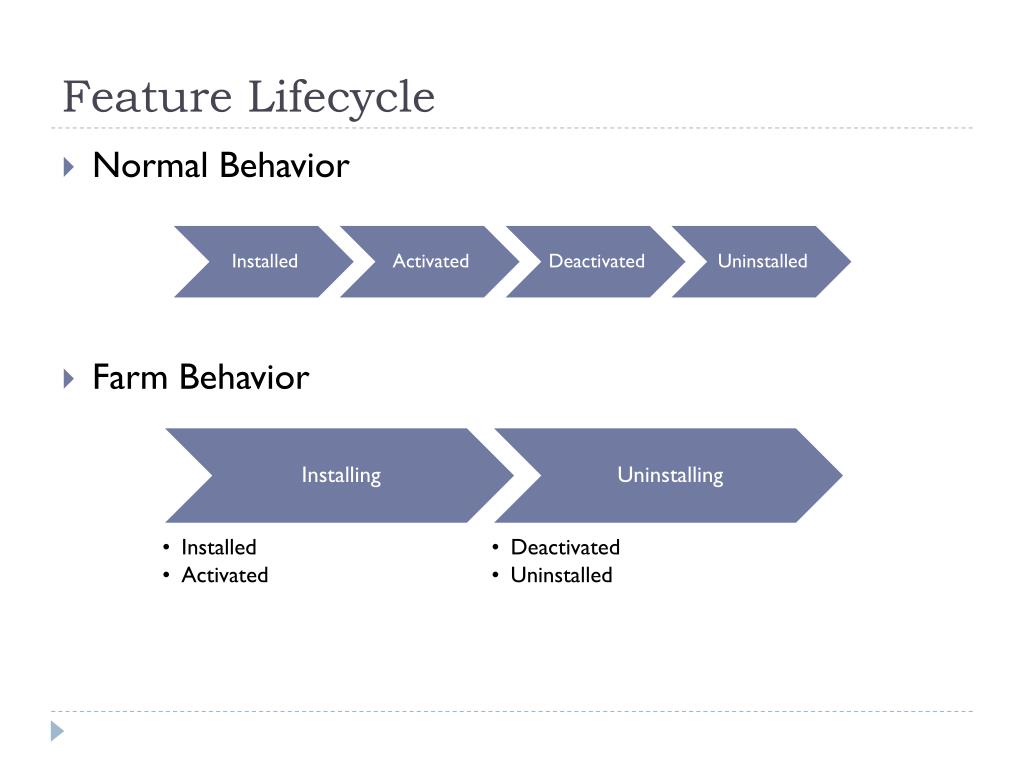

  12. Feature Lifecycle • Normal Behavior • Farm Behavior

  13. Custom Actions • Create your own menu options • Many extensibility points • Main Attributes • Title • Location • GroupId • Sequence • HideCustomAction • Hides an existing Custom Action

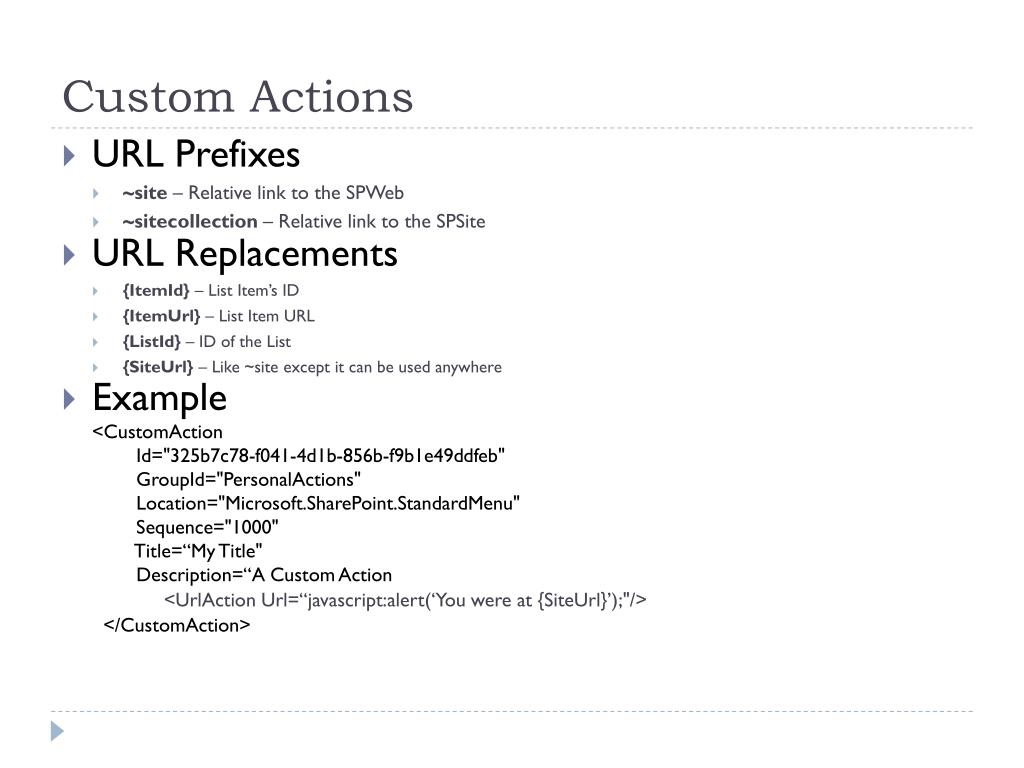

  14. Custom Actions • URL Prefixes • ~site – Relative link to the SPWeb • ~sitecollection – Relative link to the SPSite • URL Replacements • {ItemId} – List Item’s ID • {ItemUrl} – List Item URL • {ListId} – ID of the List • {SiteUrl} – Like ~site except it can be used anywhere • Example <CustomAction Id="325b7c78-f041-4d1b-856b-f9b1e49ddfeb" GroupId="PersonalActions" Location="Microsoft.SharePoint.StandardMenu" Sequence="1000" Title=“My Title" Description=“A Custom Action <UrlActionUrl=“javascript:alert(‘You were at {SiteUrl}’);"/> </CustomAction>

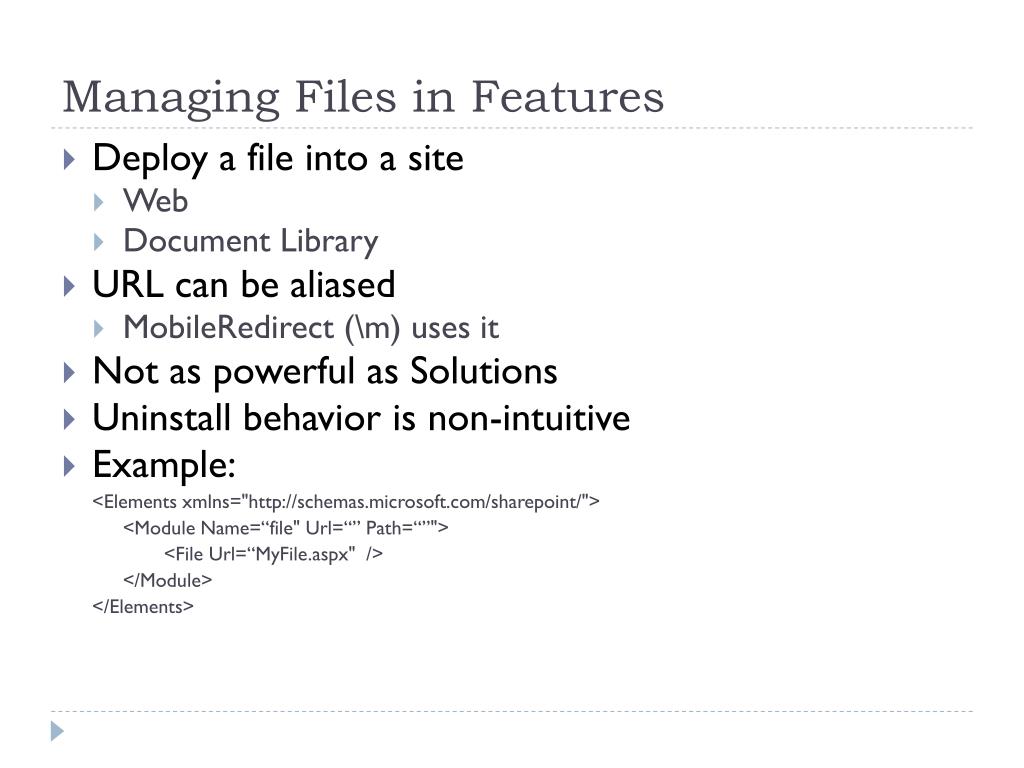

  15. Managing Files in Features • Deploy a file into a site • Web • Document Library • URL can be aliased • MobileRedirect (\m) uses it • Not as powerful as Solutions • Uninstall behavior is non-intuitive • Example: <Elements xmlns="http://schemas.microsoft.com/sharepoint/"> <Module Name=“file" Url=“” Path=“”"> <File Url=“MyFile.aspx" /> </Module> </Elements>

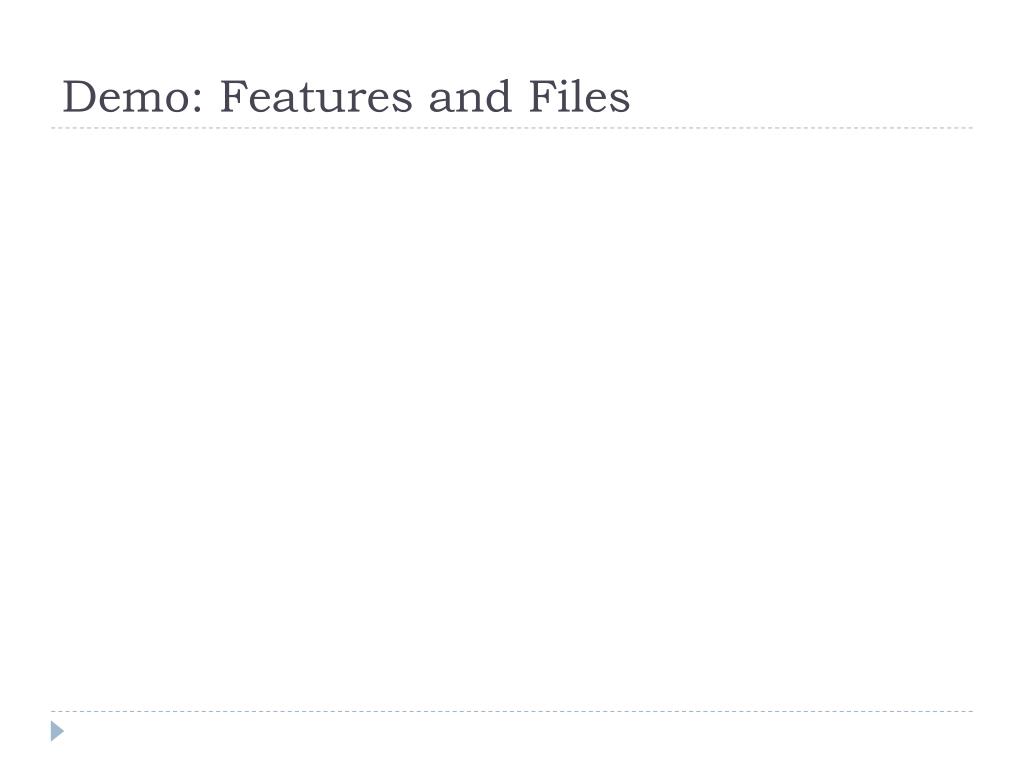

  16. Demo: Features and Files

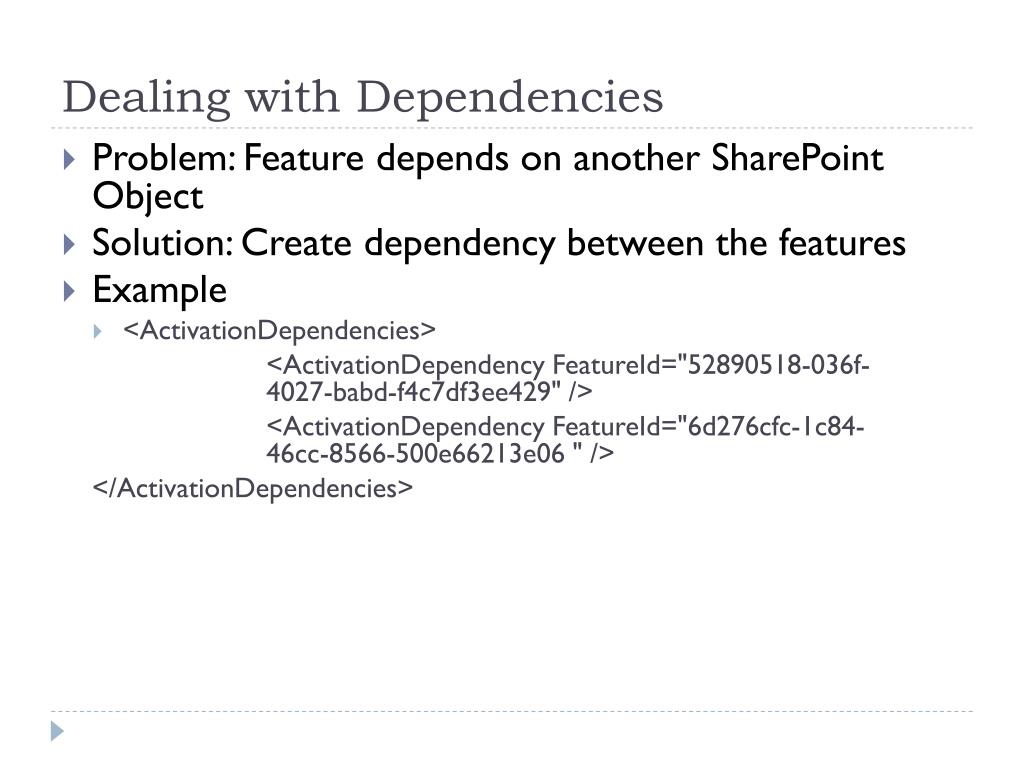

  17. Dealing with Dependencies • Problem: Feature depends on another SharePoint Object • Solution: Create dependency between the features • Example • <ActivationDependencies> <ActivationDependencyFeatureId="52890518-036f- 4027-babd-f4c7df3ee429" /> <ActivationDependencyFeatureId="6d276cfc-1c84- 46cc-8566-500e66213e06 " /> </ActivationDependencies>

  18. Dependency Limitations • Feature Chains • Limited to one visible feature • Dependencies can’t be triggered at a higher scope • Ex: Farm Feature can’t depend on a Web Feature • Features can’t be automatically activated at different scopes • Ex: Web Feature can’t activate a Farm Feature • Hidden Features • Automatically Activated for Dependencies • Automatically Deactivated when the last Dependency is Deactivated • Can’t be depended on in different scopes • Can’t have their own dependencies • Can add an additional level to Feature Chains

  19. Stapling • Problem: Can’t customize out of the box Site Definitions • Solution: Stapling! • Scopes: Farm, Web App, Site • Note: Not Web • FeatureSiteTemplateAssociation • <FeatureSiteTemplateAssociation Id="b04e59b1-2c21-48fa-9497-470b1ab711b0" TemplateName="STS#0" /> • <FeatureSiteTemplateAssociation Id="fd45b13f-6334-4bce-b87c-49e3f820a74c" TemplateName=“GLOBAL#0" />

  20. Demo: Stapling in Action

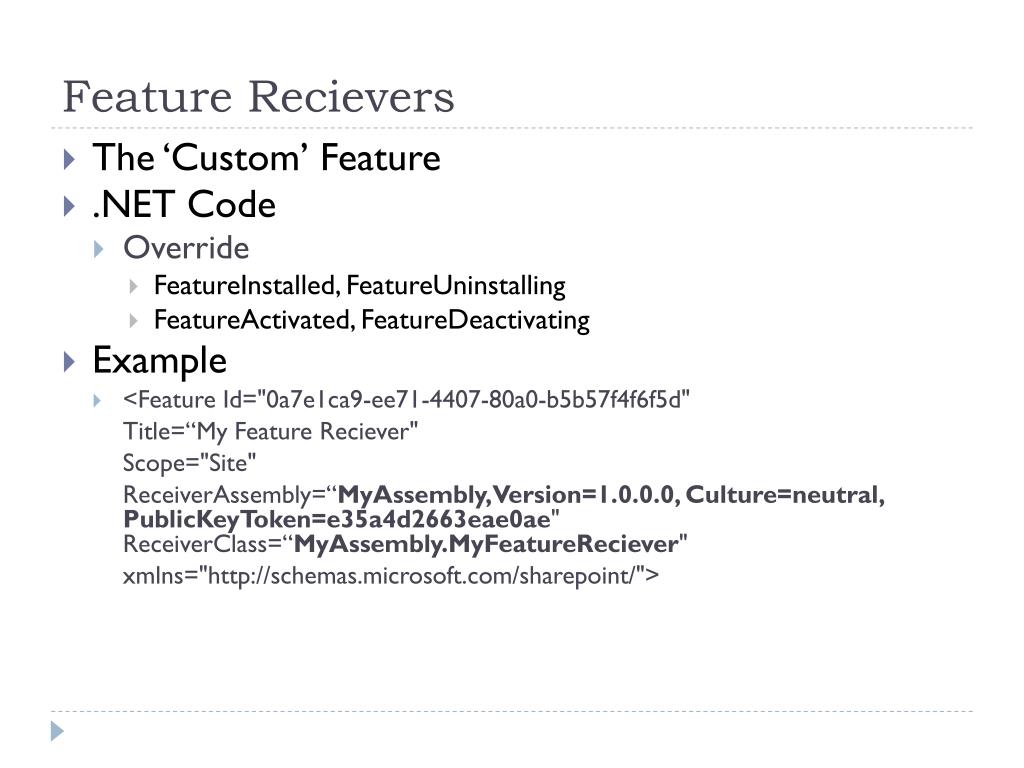

  21. Feature Recievers • The ‘Custom’ Feature • .NET Code • Override • FeatureInstalled, FeatureUninstalling • FeatureActivated, FeatureDeactivating • Example • <Feature Id="0a7e1ca9-ee71-4407-80a0-b5b57f4f6f5d" Title=“My Feature Reciever" Scope="Site" ReceiverAssembly=“MyAssembly, Version=1.0.0.0, Culture=neutral, PublicKeyToken=e35a4d2663eae0ae" ReceiverClass=“MyAssembly.MyFeatureReciever" xmlns="http://schemas.microsoft.com/sharepoint/">

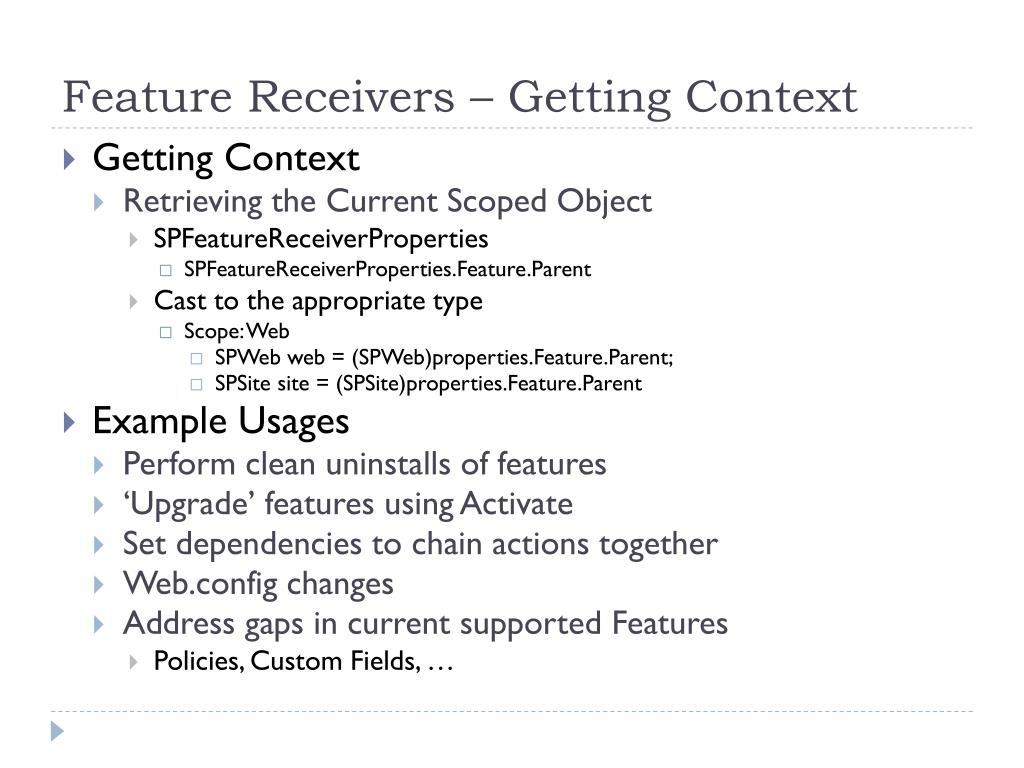

  22. Feature Receivers – Getting Context • Getting Context • Retrieving the Current Scoped Object • SPFeatureReceiverProperties • SPFeatureReceiverProperties.Feature.Parent • Cast to the appropriate type • Scope: Web • SPWeb web = (SPWeb)properties.Feature.Parent; • SPSite site = (SPSite)properties.Feature.Parent • Example Usages • Perform clean uninstalls of features • ‘Upgrade’ features using Activate • Set dependencies to chain actions together • Web.config changes • Address gaps in current supported Features • Policies, Custom Fields, …

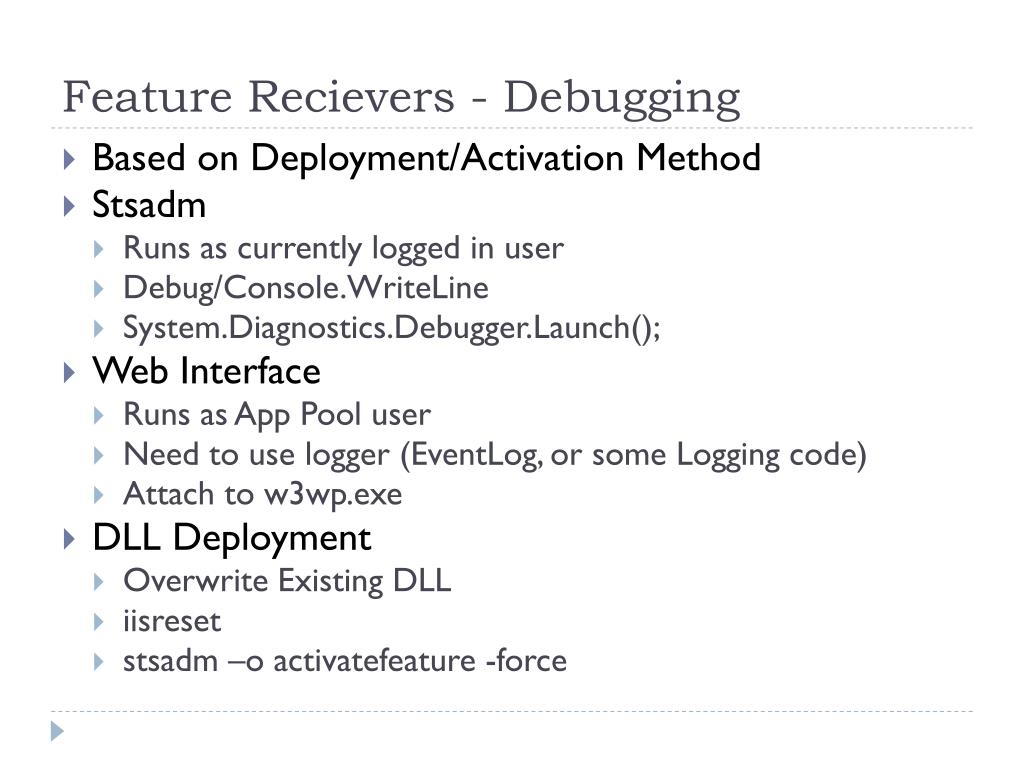

  23. Feature Recievers - Debugging • Based on Deployment/Activation Method • Stsadm • Runs as currently logged in user • Debug/Console.WriteLine • System.Diagnostics.Debugger.Launch(); • Web Interface • Runs as App Pool user • Need to use logger (EventLog, or some Logging code) • Attach to w3wp.exe • DLL Deployment • Overwrite Existing DLL • iisreset • stsadm –o activatefeature -force

  24. Feature Properties • Configuration for your Feature • Allow different values for Dev/Test/Prod • Combine with scoped property bags to set configurations • Example <Properties> <Property Key=“MyKey" Value=“123" /> <Property Key=“DBServer" Value=“prodsql001" /> </Properties>

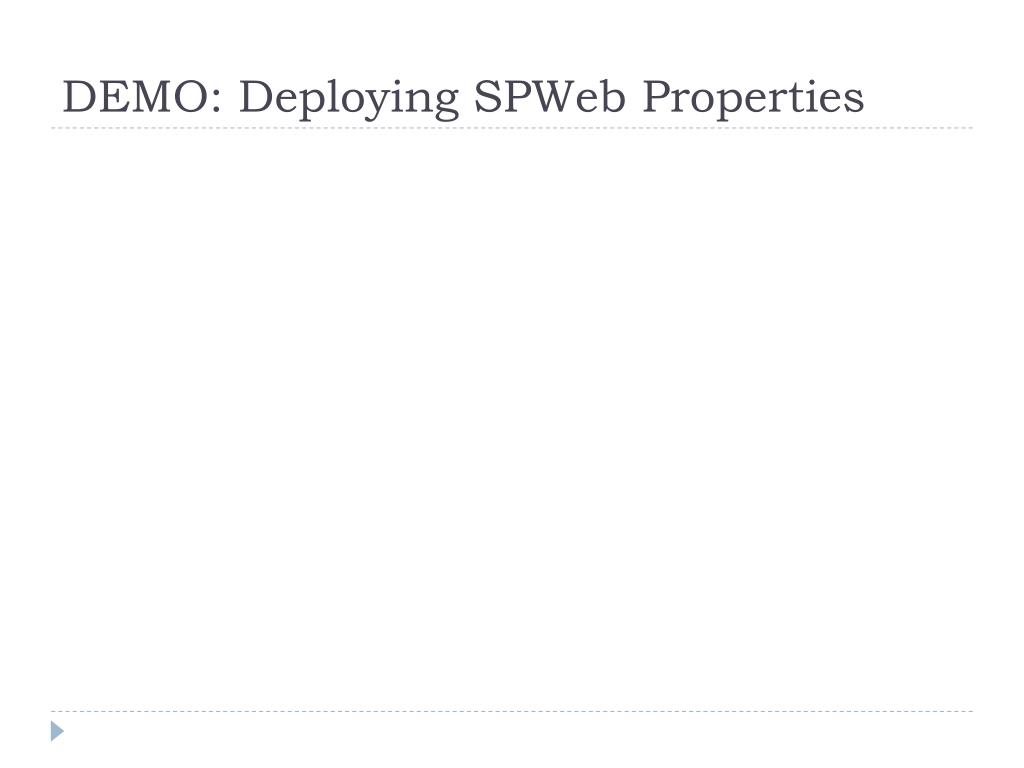

  25. DEMO: Deploying SPWeb Properties

  26. Manually Activating Features • Why? • Evade chaining restrictions (at your own peril) • Working with Hidden Features • Manage Stages of a Site with a Web Part • Creating a ‘Suicide Feature’

  27. Manually Activating a Feature • Get your Context • Ex: SPWeb • Find the Feature Collection • Ex: SPWeb.Features • Find the Feature’s Guid • Ex: GuidfeatureGuid = new Guid(“0a7e1ca9-ee71-4407-80a0-b5b57f4f6f5d”) • Activate! • Ex: SPWeb.Features.Add(featureGuid)

  28. Solutions • Replaces copying files across servers • …with creating XML/DDF files • Can Easily Deploy • Multiple Features • Web Parts • Assemblies (GAC or BIN) • SafeControls • Code Access Security Settings • Plain Files • Farm Safe

  29. Anatomy of a Solution • Manifest.xml • XML to define what you want SharePoint to do • Needs to be included in the DDF • The DDF • Defines what ‘makecab’ cabs • Slightly headache inducing file format • WSP == CAB

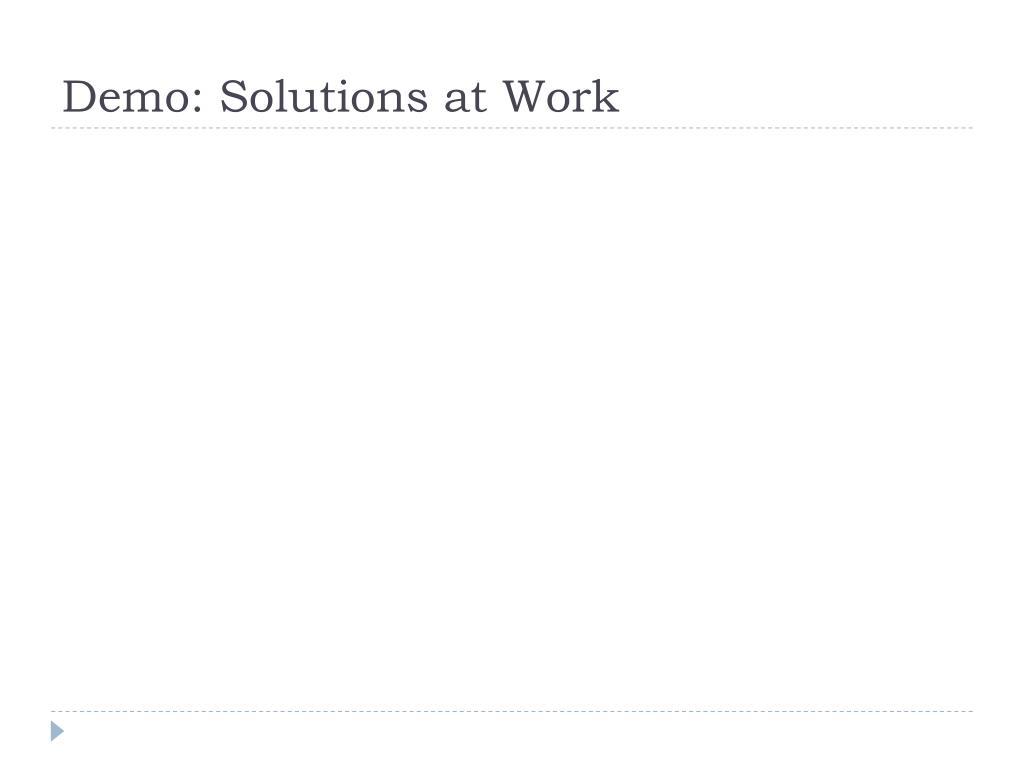

  30. Demo: Solutions at Work

  31. Summary • Features are Nifty • Solutions are Useful • Getting full value from either has a learning curve

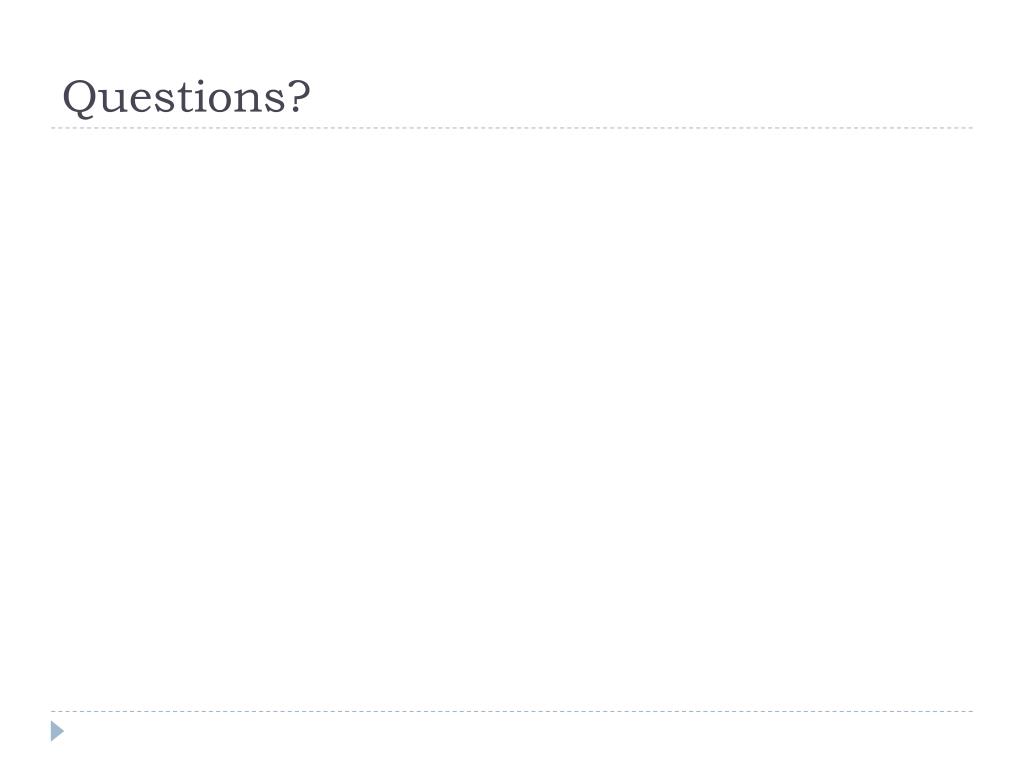

  32. Questions?

  33. Next Meeting Planning • Possible Topics • PowerShell and SharePoint for Developers • Extending SharePoint with Custom Fields (Column Types) • …

  34. Random Stuff Neil Iversen Inetium http://justaddcode.com Feedback Forms/Giveaway Mingle, Eat, Feedback See you next time!
