  1. Caspian Project Solution Beach Routing Solutions

  2. Company Profile • Established 2008 • CEO and Founder: Jesse J. Abulencia • Located in the Hampton Roads Area • Looking to grow exponentially and hopefully in the near future serve the whole state of Virginia

  3. Projects Worked On • Internet setup for many local businesses: • Network setup at the Virginia Beach Aquarium • Implemented wireless internet at the Virginia Living Museum • Contracted to establish Internet connectivity at Virginia Beach Sportsplexbaseball stadium

  4. Our Friendly Staff

  5. Jesse Abulencia • Chief Executive Officer • Network Management Technician

  6. Ben Salter • Wireless Technician • Voice and Quality of Service Technician

  7. Lance Price • Local Area Network (LAN) Routing and Switching • IP Addressing Technician

  8. Robert Southard • Security and Virtual Private Networks Technician • Support Specialist

  9. Seth Houston • Sales Representative

  10. Evan Paige • Wide Area Network Technician • Servers and Workstations Technician

  11. Nicholas Woods • Onsite Supervisor

  12. Work with Caspian • Needed: An online gaming network spanning 5 cities. • Solution: A combination of Cisco devices and networking technology as implemented by Beach Routing Solutions will provide a quality gaming experience. • Estimated installation time: 2 weeks/90 hours

  13. Wide Area Network (WAN)

  14. Public WAN Cox’s cloud for the public WAN Cisco 2921 ISR Cisco 5520 ASA The sites will be connected using gigabit connections Border Gateway Protocol(BGP) Demilitarized Zone (DMZ) at Virginia Beach; backup at Norfolk

  15. Private WAN • Open Shortest Path First (OSPF) • Verizon’s cloud for the Private WAN • Point to Point Protocol (PPP) for T1 connections with CHAP authentication • Connected to Verizon's cloud; 2 T1 Connections • Multi-Area OSPF; Virginia Beach is backbone (Area 0)

  16. Security and Virtual Private Networks (VPNs)

  17. Physical Security Biometric Fingerprint Scanner Locks (Trinity 788) Swann 700 TVL Security Camera System with DVR • Biometric Fingerprint Scanner Locks (Trinity 788) • Swann 700 TVL Security Camera System • DVRs to record camera footage

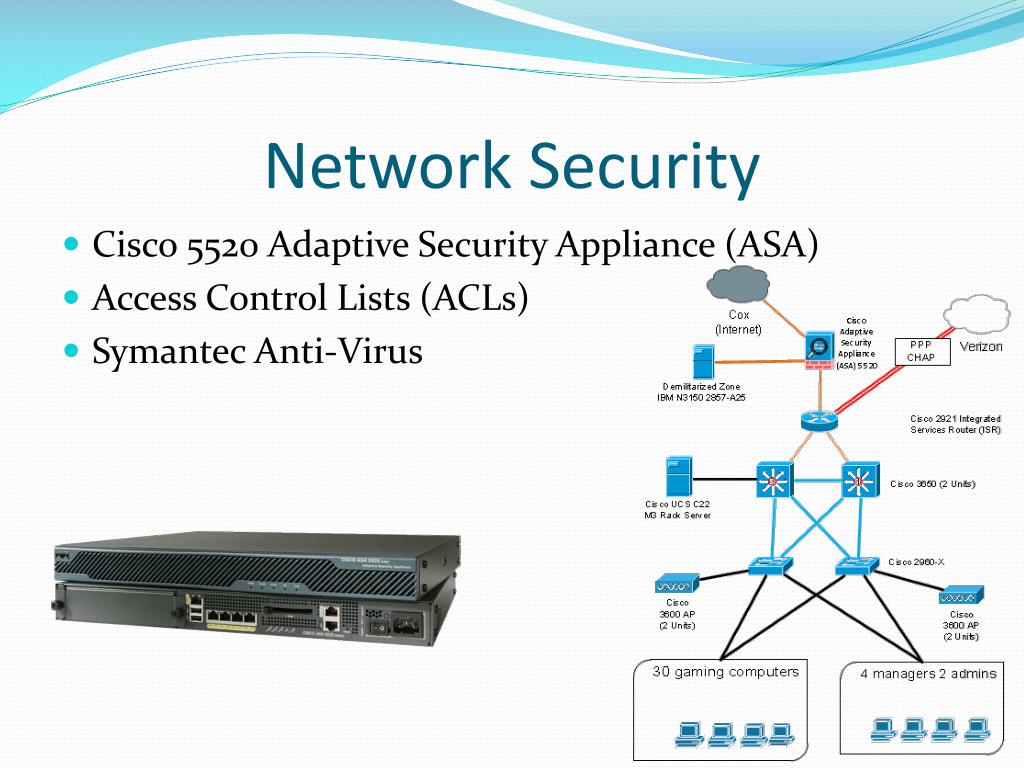

  18. Network Security • Cisco 5520 Adaptive Security Appliance (ASA) • Access Control Lists (ACLs) • Symantec Anti-Virus No Access

  19. Local Area Network (LAN) Routing and Switching

  20. LAN Routing and Switching (Virginia Beach) Enhanced Interior Gateway Routing Protocol (EIGRP) VLANs VLAN 10- Gamers VLAN 15- Managers and Administrators VLAN 20- Servers VLAN 99- Network Management VLAN 110- VPN VLAN 150- Voice Border Gateway Protocol(BGP) Open Shortest Path First (OSPF) Default route information through redistribution Cisco 2921 Integrated Service Router Cisco 3650 Cisco StackWise 2960-X switches Cisco StackWise VLAN trunking Etherchannel

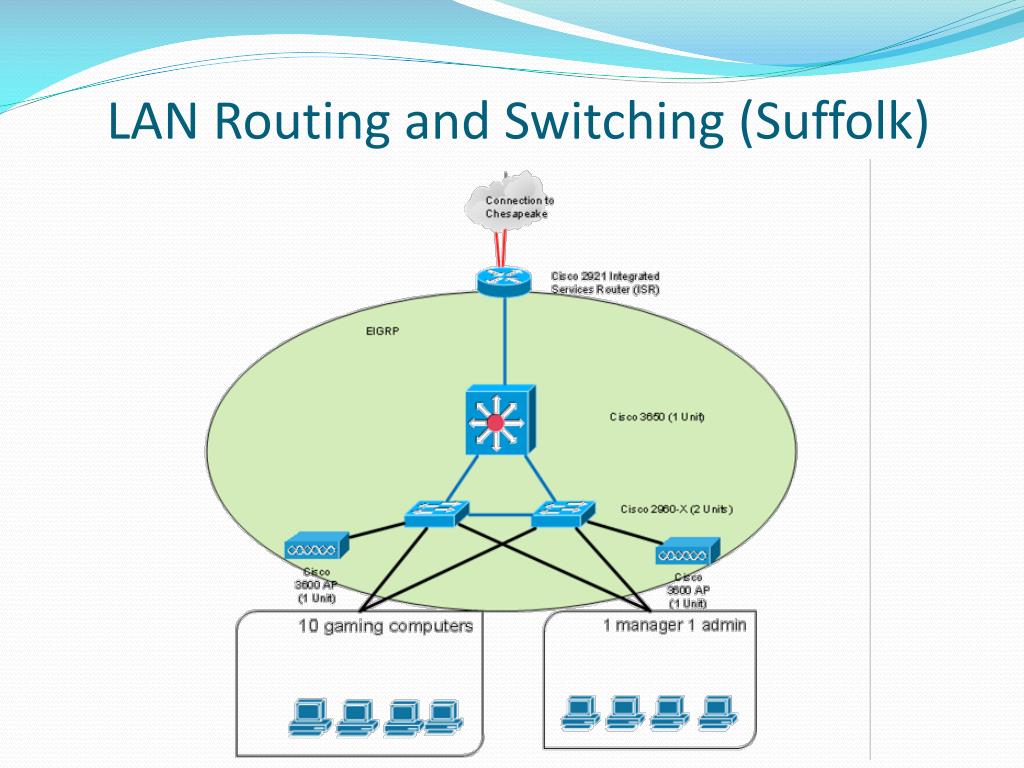

  21. LAN Routing and Switching (Suffolk)

  22. IP Addressing and Network Address Translation (NAT)

  23. IP Addressing Example (Virginia Beach) IPv6 and IPv4 will be utilized Virtual Local Area Networks (VLANs) VLANs subnetted to support each site’s number of users NAT on Cisco 2921 ISR Remaining Public Addresses = Future Growth VLANs subnetted to support each site’s number of users Virtual Local Area Networks (VLANs) IPv6 and IPv4 will be utilized Remaining Public Addresses = Future Growth NAT on Cisco 2921 ISR

  24. Voice and Quality of Service (QoS)

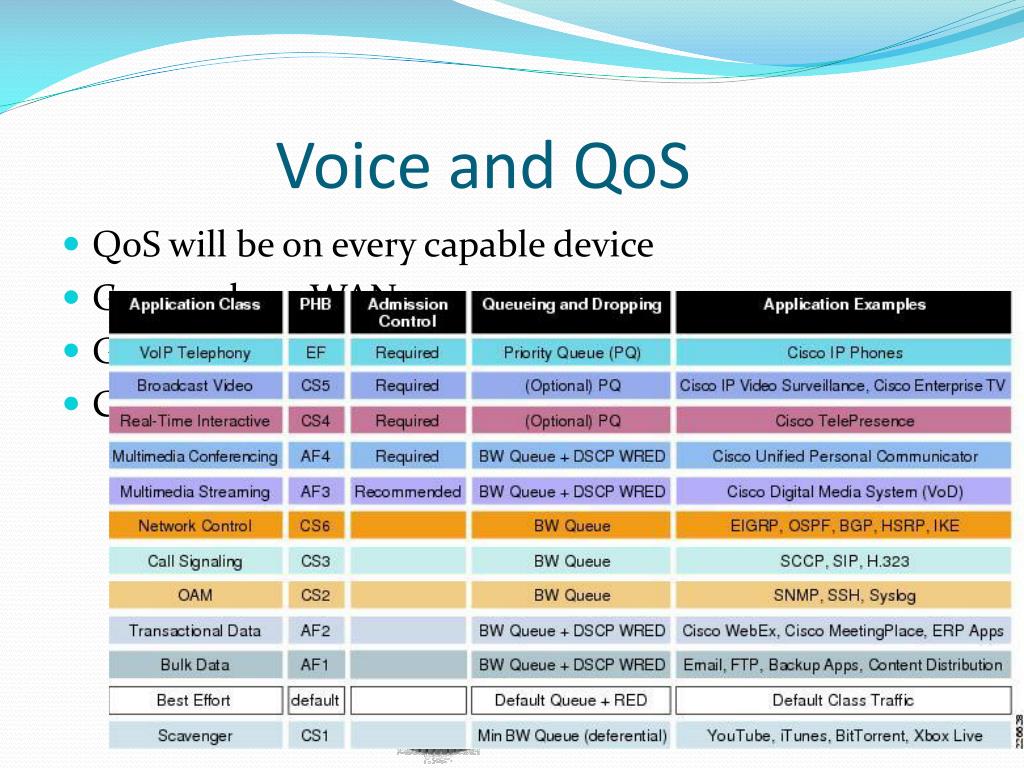

  25. Voice and QoS • QoS will be on every capable device • G729 codec – WAN • G711 codec - LAN • Cisco 7962G IP phones

  26. Wireless

  27. Wireless • Cisco 3600i Access Point (AP) • Virtual Wireless Controller • WPA2 enterprise encryption • Identity Services Engine (ISE) • Each VLAN will have a unique SSID

  28. Network Management

  29. Network Management Cisco Unified Computing System (UCS) C22 M3 Rack Servers • Syslog, Simple Network Management Protocol (SNMP), NetFlow • Solarwinds Kiwi Syslog Server • Spiceworks SNMP Monitoring Software • SolarwindsNetFlow Traffic Analyzer

  30. Network Management(Solarwinds Kiwi Syslog Server)

  31. Network Management(Spiceworks SNMP Manager)

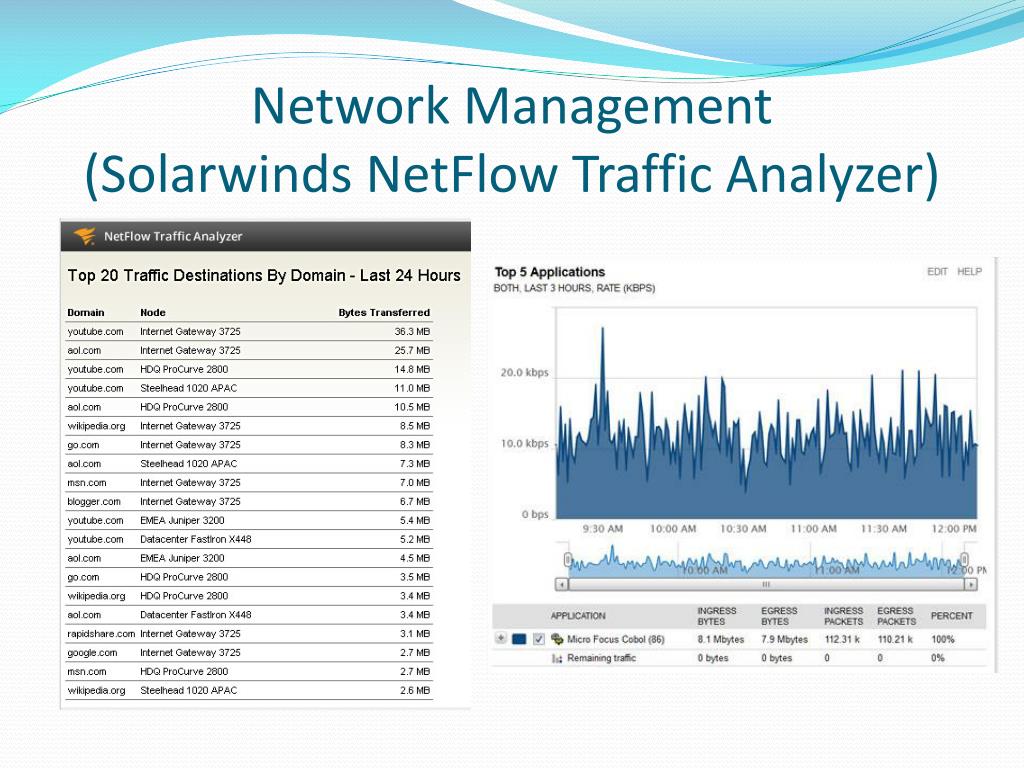

  32. Network Management(SolarwindsNetFlow Traffic Analyzer)

  33. Servers and Workstations

  34. Servers and Workstations • Dell T7600 Workstations • IBM N3150 2857-A25 Servers • Demilitarized Zone (DMZ)

  35. Support After Installation

  36. Support After Installation • 40 day “grace period” • Beach Routing Solutions on-site and telephone support • Cisco SMARTNet • 8x5xNBD • 24x7x2 • Dell and IBM 3 Year Warranties

  37. Pricing

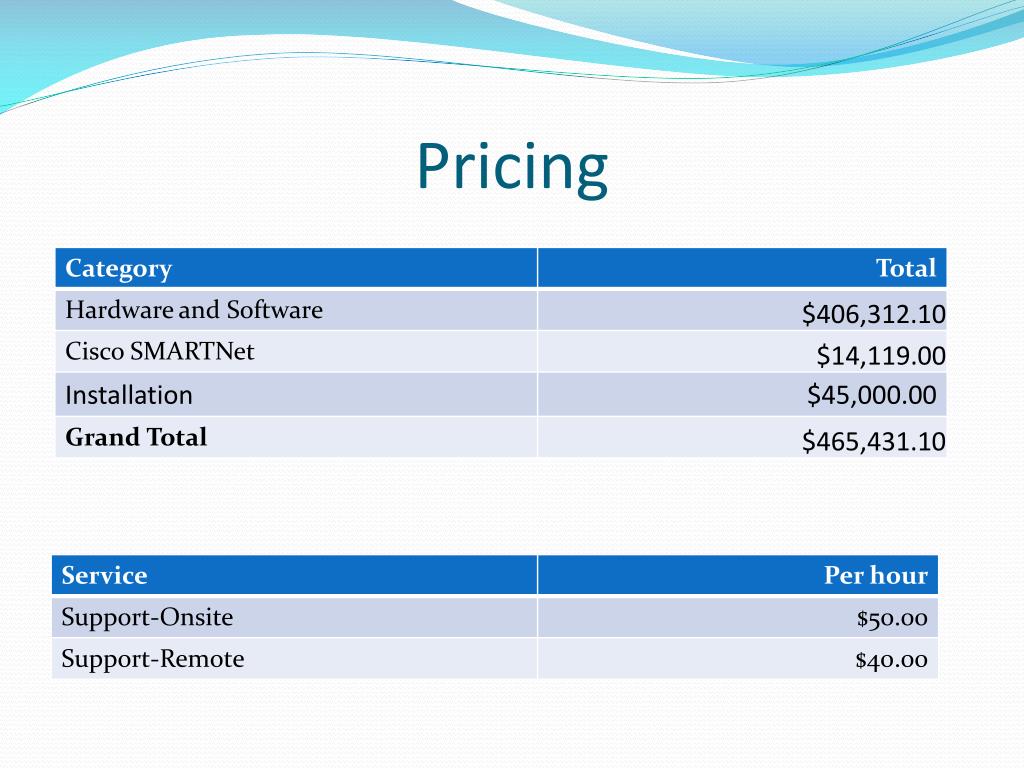

  38. Pricing

  39. Thank you for viewing our presentation. We look forward to working with you. Questions will now be taken.
