  1. Unit 4: Cells Microscopes and the Discovery of Cells

  2. Objectives: At the end of this lesson, students will be able to: • Compare and contrast light microscopes and electron microscopes. • Identify the parts of the compound light microscope and explain their function. • Demonstrate how to prepare a wet mount and properly focus a compound light microscope.

  3. The Compound Light Microscope

  4. The Compound Light Microscope • Uses visible light to produce an image. • Specimens must be thin. Why? • Specimens can be alive or dead. • Can magnify objects up to 1000x –

  5. Resolution • the ability of the microscope to make individual components visible • visible light scatters • limits magnification of light microscopes to 1000x

  6. Transmission Electron Microscopes • Uses magnets to aim a beam of electrons at thin specimens in a vacuum. • Produces a black & white image based on electron absorption. • Magnify up to 500,000x (practically about 35,000x) • Specimen must be dead and stained with heavy metals. Transmission Electron Microscope (TEM)

  7. Transmission Electron Miscroscopy Sperm flagellum (cross section)

  8. Transmission Electron Microscopy Bacteriophages (viruses that infect bacteria)

  9. Transmission Electron Miscroscopy Human atrial (heart) muscle

  10. Scanning Electron Microscope • Can magnify objects up to 1 million times (usually 35,000x) • Specimens can be in gross form. Image is made of the surface of the object. • Electrons are bounced off an object and collected on a photographic plate. • Specimens must also be dry, dead, and stained with heavy metals. Scanning Electron Microscope (SEM)

  11. Scanning Electron Microscopy Stainless Steel Screen

  12. Scanning Electron Miscroscopy Table Salt

  13. Scanning Electron Miscroscopy Insect on the leg of a daddy long-leg spider

  14. Scanning Electron Miscroscopy Eye of an Ant

  15. Scanning Electron Miscroscopy Spider

  16. Other images • http://glencoe.mcgraw-hill.com/sites/0078695104/ • http://www.denniskunkel.com/

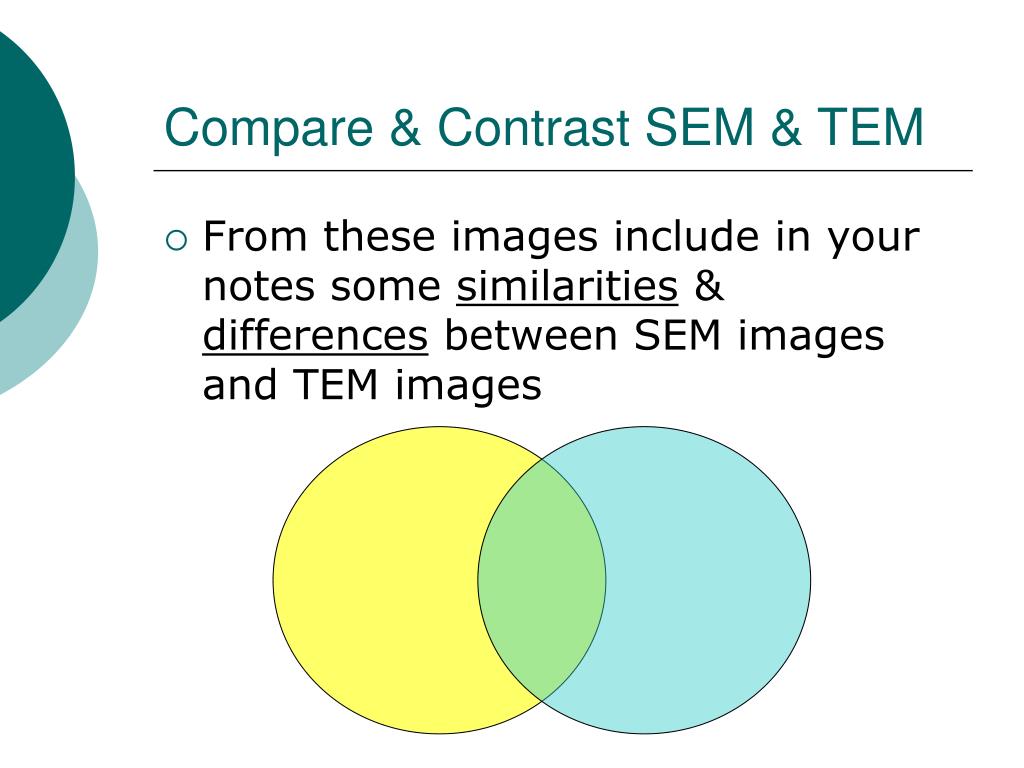

  17. Compare & Contrast SEM & TEM • From these images include in your notes some similarities & differences between SEM images and TEM images

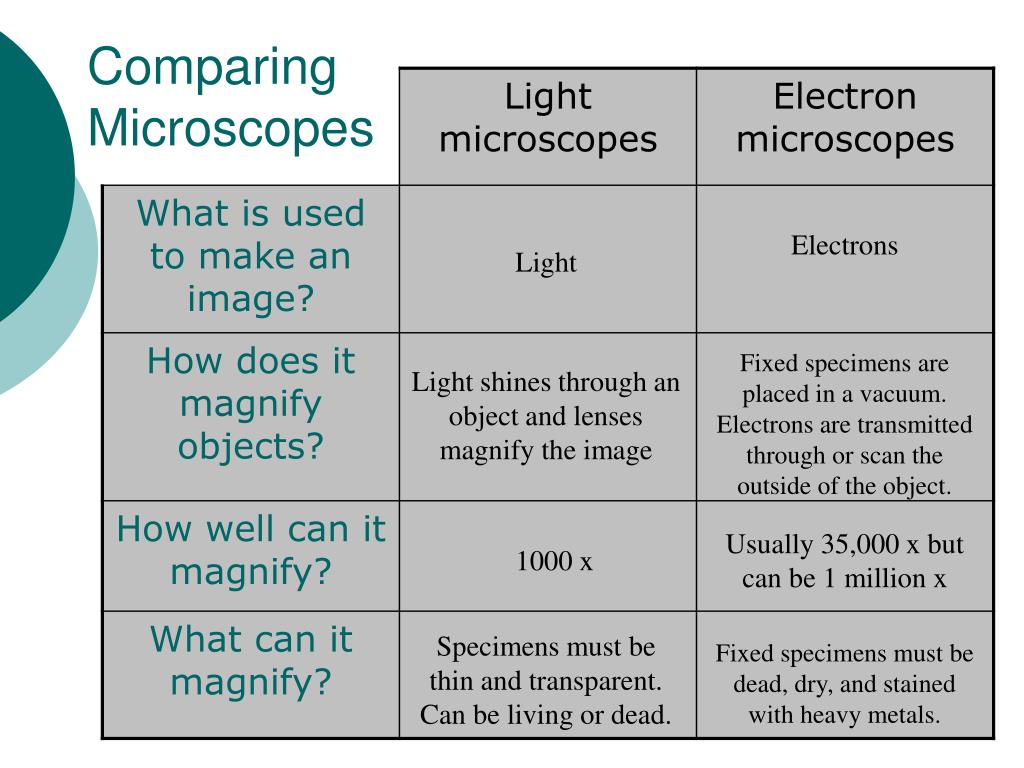

  18. Comparing Microscopes Electrons Light Fixed specimens are placed in a vacuum. Electrons are transmitted through or scan the outside of the object. Light shines through an object and lenses magnify the image Usually 35,000 x but can be 1 million x 1000 x Specimens must be thin and transparent. Can be living or dead. Fixed specimens must be dead, dry, and stained with heavy metals.
