  1. Build Your Own Robot Arm Cordoba, 6 September 2008 Moshe Kam and Douglas Gorham IEEE Educational Activities

  2. What will we do today? (1) • We will build a robot arm from simple materials • The arm would pick up a plastic cup from a distance of 45cm • Lift the cup to a height of at least 15cm • Bring the cup back to rest and release it

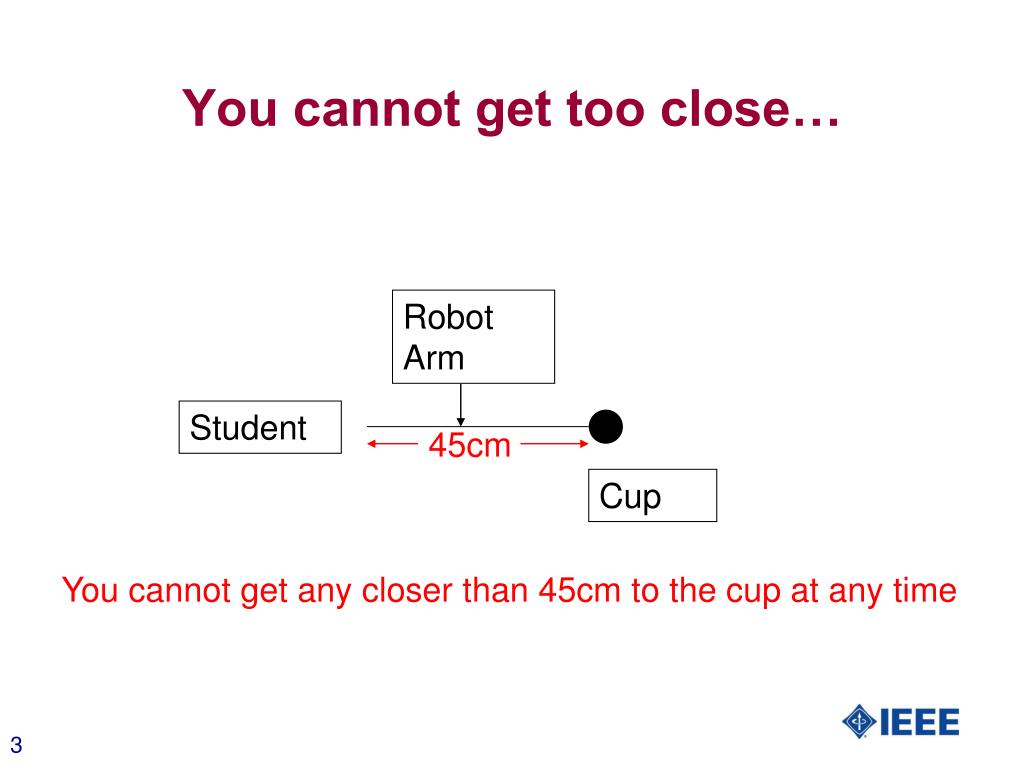

  3. You cannot get too close… Robot Arm Student 45cm Cup You cannot get any closer than 45cm to the cup at any time

  4. What will we do today? (2) • Lift and release the cup when it is upside down • Lift and release the cup when it is full of candy • Do not spill • Use the same design (possibly with a modified end effector) to lift a pen

  5. Why is this experiment useful to teachers and students? • It teaches technological design • It requires mathematical calculations for design • It relates to the studies of motion and force • It requires communication in writing (design) and orally (explaining the design principles)

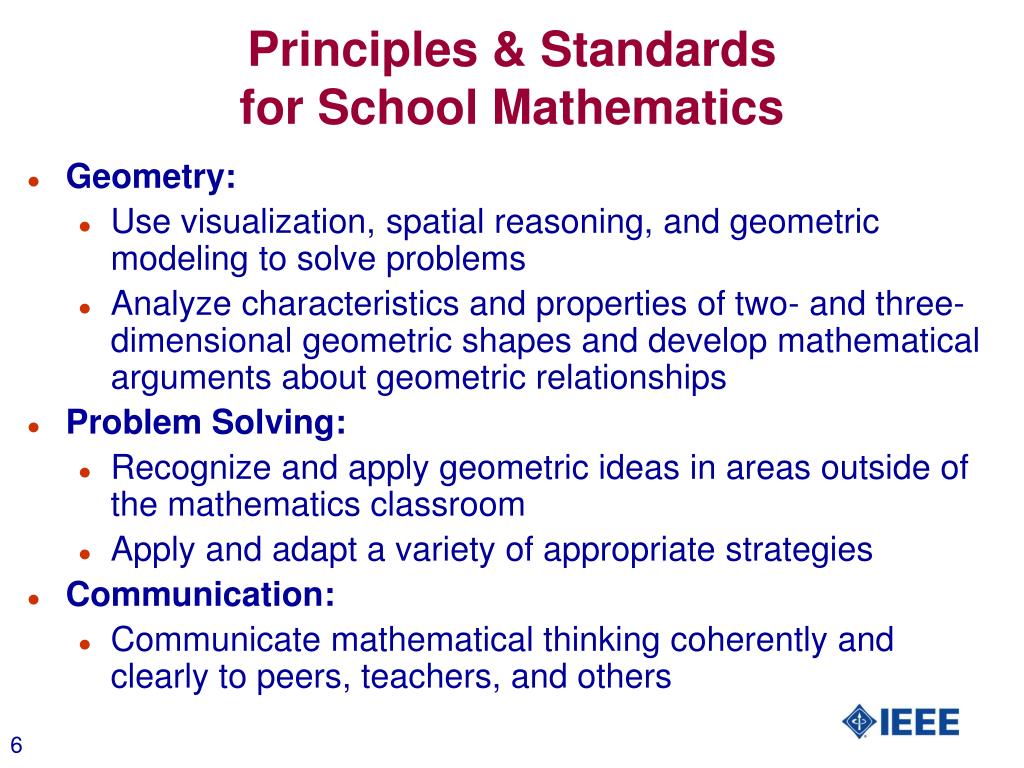

  6. Principles & Standards for School Mathematics • Geometry: • Use visualization, spatial reasoning, and geometric modeling to solve problems • Analyze characteristics and properties of two- and three-dimensional geometric shapes and develop mathematical arguments about geometric relationships • Problem Solving: • Recognize and apply geometric ideas in areas outside of the mathematics classroom • Apply and adapt a variety of appropriate strategies • Communication: • Communicate mathematical thinking coherently and clearly to peers, teachers, and others

  7. Outline and Procedures • Divide into teams of two (2) • Review the requirements • Discuss a solution and create a sketch of your design • Build a model of your design with given materials • Test your model

  8. Redesign after testing • Discuss and agree upon a redesign • If needed after testing, or • to enhance the previous design • Rebuild your robot arm • Retest your model • Answer reflection questions as a team

  9. Reflection Questions • What was one thing you liked about your design? What is its main weakness? • Are there algebraic and physical principles that can be applied to this activity? • What is one thing you would change about your design based on your experience? • How would you modify the instructions to create a better experience for the participants?

  10. Design requirements • The arm would pick up a plastic cup from a distance of 45cm • Lift the cup to a height of at least 15cm • Bring the cup back to rest and release it • Lift and release the cup when it is upside down • Lift and release the cup when it is full of candy • Use the same design (possibly with a modified end effector) to lift a pen
