Memory Protection

1. Memory Protection • In order to prevent one process from reading/writing another process’ memory, we must ensure that a process cannot change its virtual-to-physical translations • Typically, this is done by: • Having two processor modes: user & kernel • Only the OS runs in kernel mode • Only allowing kernel mode to write to the virtual memory state: • The page table • The page table base pointer • The TLB

2. Sharing Memory • Paged virtual memory enables sharing at the granularity of a page, by allowing two page tables to point to the same physical addresses • For example, if you run two copies of a program, the OS will share the code pages between the programs Program A Physical Memory Program B Virtual Address Virtual Address Disk

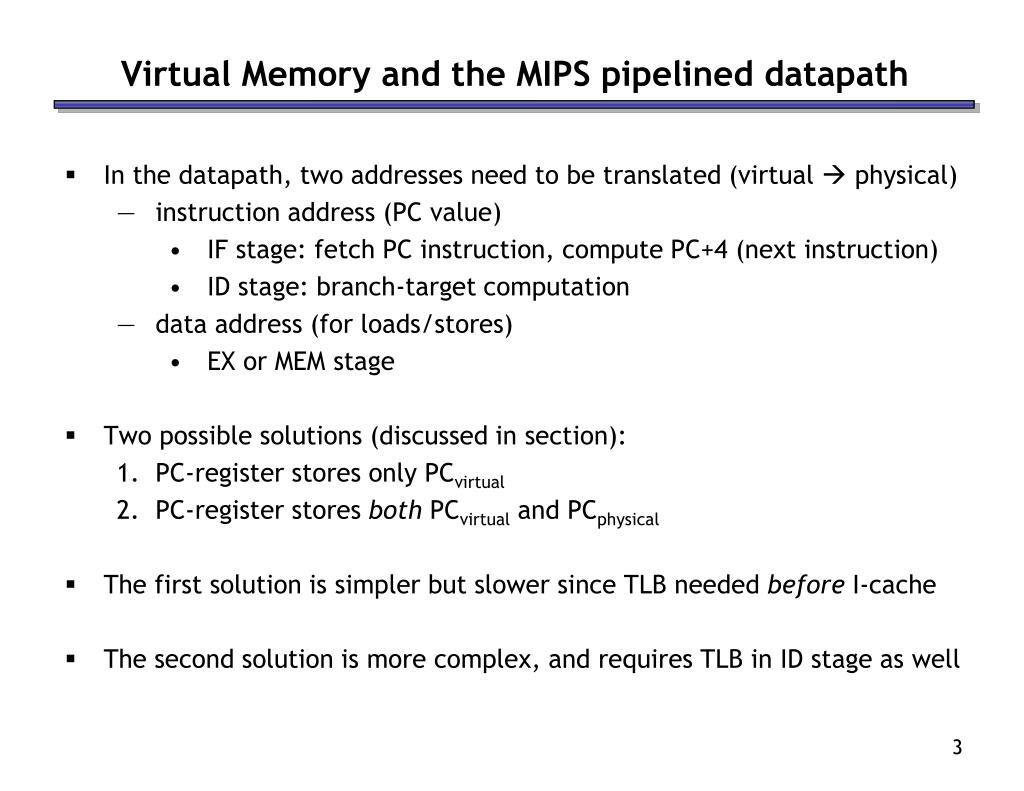

3. Virtual Memory and the MIPS pipelined datapath • In the datapath, two addresses need to be translated (virtual  physical) • instruction address (PC value) • IF stage: fetch PC instruction, compute PC+4 (next instruction) • ID stage: branch-target computation • data address (for loads/stores) • EX or MEM stage • Two possible solutions (discussed in section): • PC-register stores only PCvirtual • PC-register stores both PCvirtual and PCphysical • The first solution is simpler but slower since TLB needed before I-cache • The second solution is more complex, and requires TLB in ID stage as well

4. CPU A little static RAM (cache) Lots of dynamic RAM A third solution: caches use virtual addresses • If caches can be accessed using virtual addresses, the datapath can be greatly simplified • What are some of the pitfalls of this approach, and how can they be handled? • Since the cache is shared, two programs using the same virtual addresses use the same cache space • cache tag must store process-ID • If a process finishes and its process-ID is later reused by a new process, the new process may get a false cache-hit • when process finishes, the appropriate cache entries must be invalidated

5. Summary • Virtual memory is great: • It means that we don’t have to manage our own memory • It allows different programs to use the same memory • It provides protect between different processes • It allows controlled sharing between processes (albeit somewhat inflexibly) • The key technique is indirection: • Yet another classic CS trick you’ve seen in this class • Many problems can be solved with indirection • Caching made a few cameo appearances, too: • Virtual memory enables using physical memory as a cache for disk • We used caching (in the form of the Translation Lookaside Buffer) to make Virtual Memory’s indirection fast

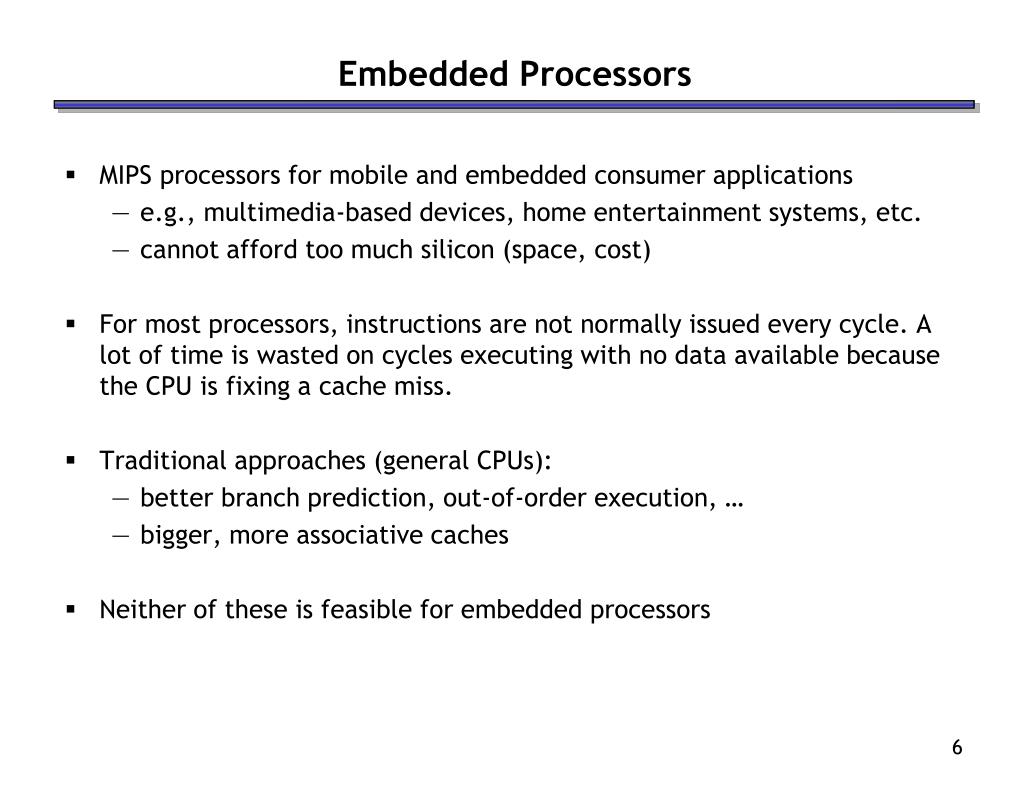

6. Embedded Processors • MIPS processors for mobile and embedded consumer applications • e.g., multimedia-based devices, home entertainment systems, etc. • cannot afford too much silicon (space, cost) • For most processors, instructions are not normally issued every cycle. A lot of time is wasted on cycles executing with no data available because the CPU is fixing a cache miss. • Traditional approaches (general CPUs): • better branch prediction, out-of-order execution, … • bigger, more associative caches • Neither of these is feasible for embedded processors

7. Transistor usage over time (general CPU) Source: UPCRC Distinguished Lecture Series, Yale Patt

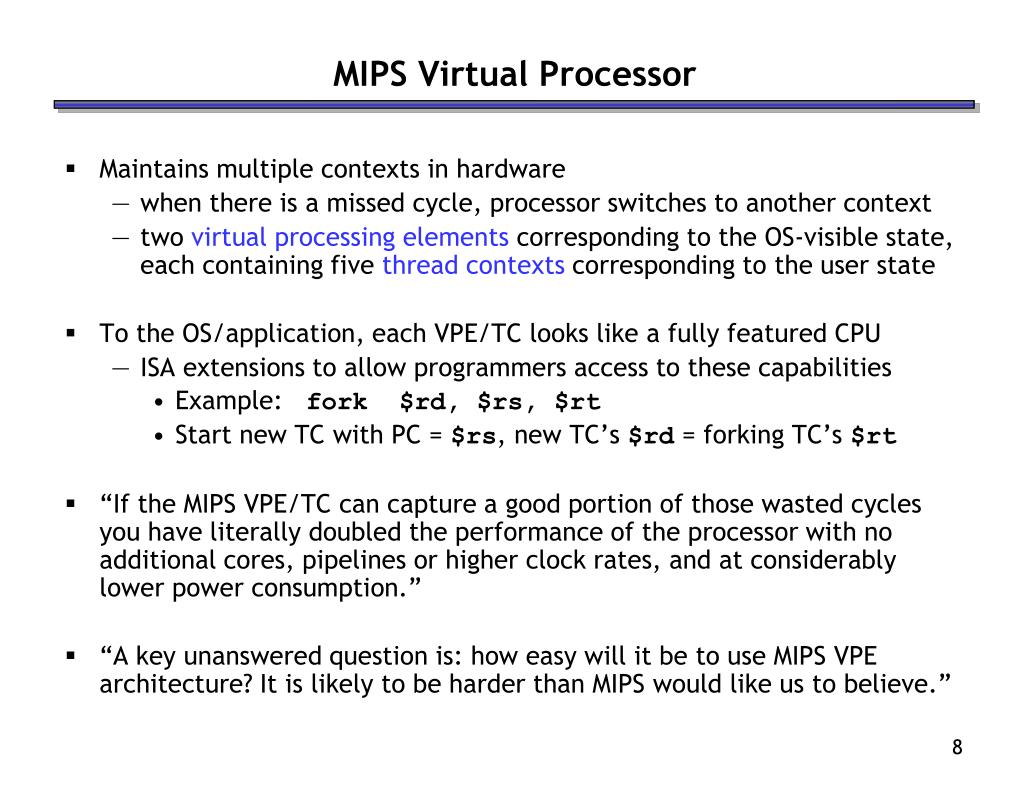

8. MIPS Virtual Processor • Maintains multiple contexts in hardware • when there is a missed cycle, processor switches to another context • two virtual processing elements corresponding to the OS-visible state, each containing five thread contexts corresponding to the user state • To the OS/application, each VPE/TC looks like a fully featured CPU • ISA extensions to allow programmers access to these capabilities • Example: fork $rd, $rs, $rt • Start new TC with PC = $rs, new TC’s $rd = forking TC’s $rt • “If the MIPS VPE/TC can capture a good portion of those wasted cycles you have literally doubled the performance of the processor with no additional cores, pipelines or higher clock rates, and at considerably lower power consumption.” • “A key unanswered question is: how easy will it be to use MIPS VPE architecture? It is likely to be harder than MIPS would like us to believe.”
