Covalent Bonding Notes

Covalent Bonding Notes. Ionic vs Covalent Bonding. Ionic: electron(s) leave one atom & gained by another atom to satisfy both atoms’ octets, this results in the formation of ions. The resulting opposite charges attract each other.

anson
Télécharger la présentation

Covalent Bonding Notes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Covalent Bonding Notes

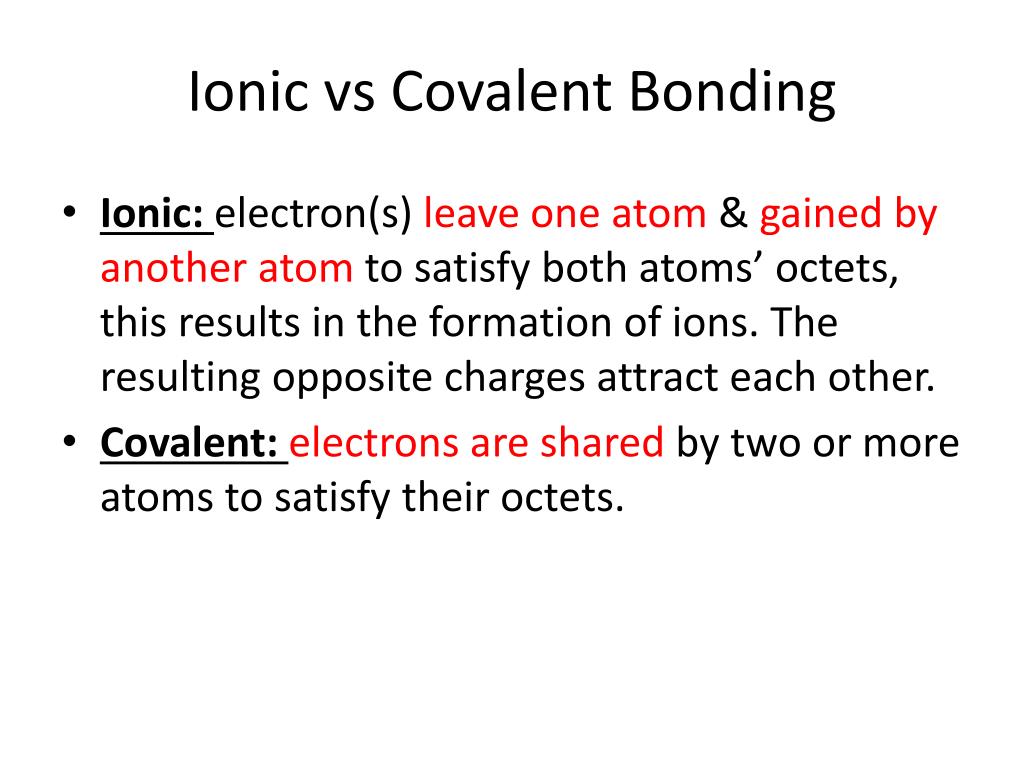

  2. Ionic vs Covalent Bonding • Ionic: electron(s) leave one atom & gained by another atom to satisfy both atoms’ octets, this results in the formation of ions. The resulting opposite charges attract each other. • Covalent: electrons are shared by two or more atoms to satisfy their octets.

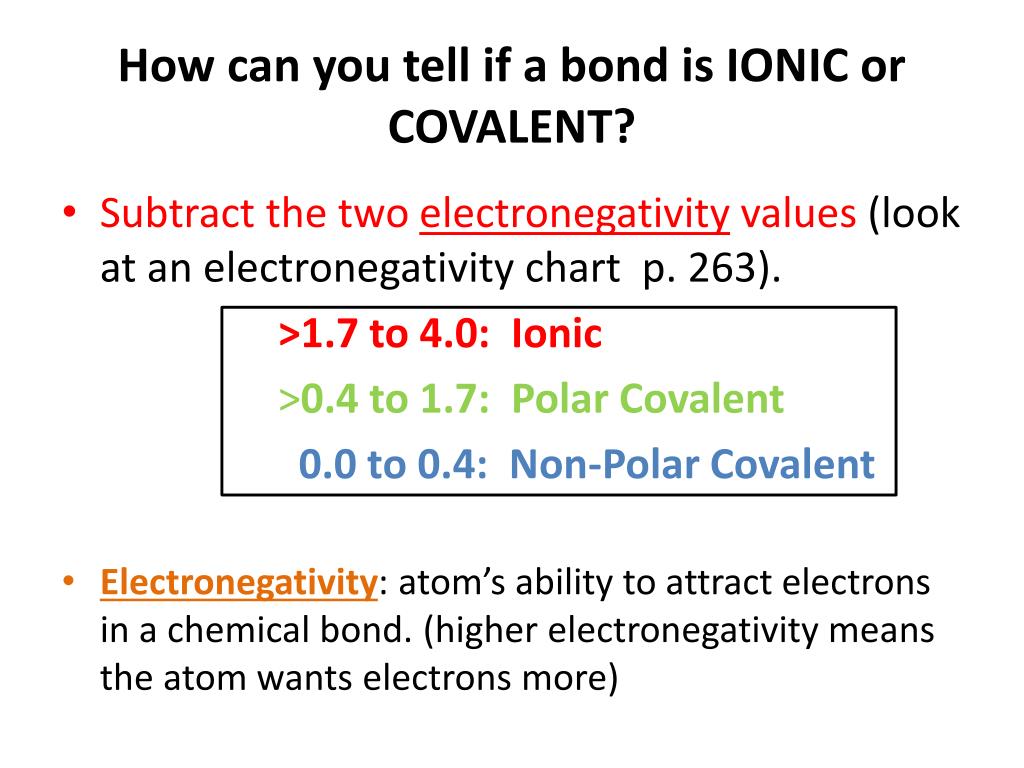

  3. How can you tell if a bond is IONIC or COVALENT? • Subtract the two electronegativity values (look at an electronegativity chart p. 263). >1.7 to 4.0: Ionic >0.4 to 1.7: Polar Covalent 0.0 to 0.4: Non-Polar Covalent • Electronegativity: atom’s ability to attract electrons in a chemical bond. (higher electronegativity means the atom wants electrons more)

  4. How can you tell if a bond is IONIC or COVALENT? • Easy way: All metals = metallic bond Nonmetals and Metals = ionic bond All nonmetals = covalent bond

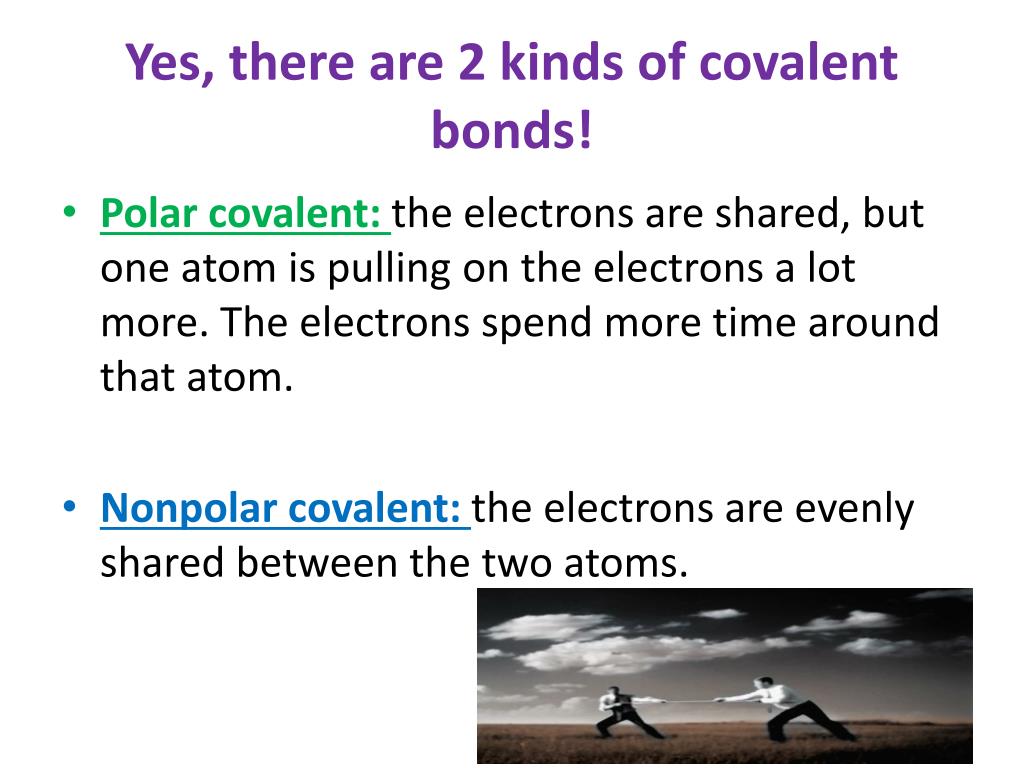

  5. Yes, there are 2 kinds of covalent bonds! • Polar covalent: the electrons are shared, but one atom is pulling on the electrons a lot more. The electrons spend more time around that atom. • Nonpolar covalent: the electrons are evenly shared between the two atoms.

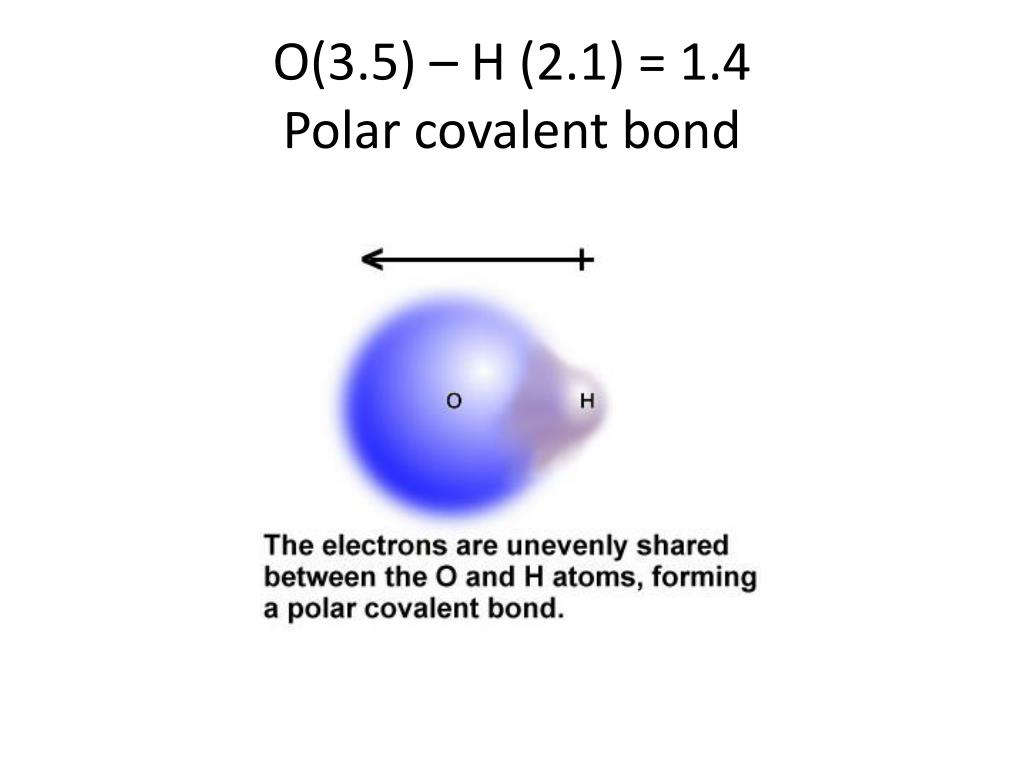

  6. O(3.5) – H (2.1) = 1.4Polar covalent bond

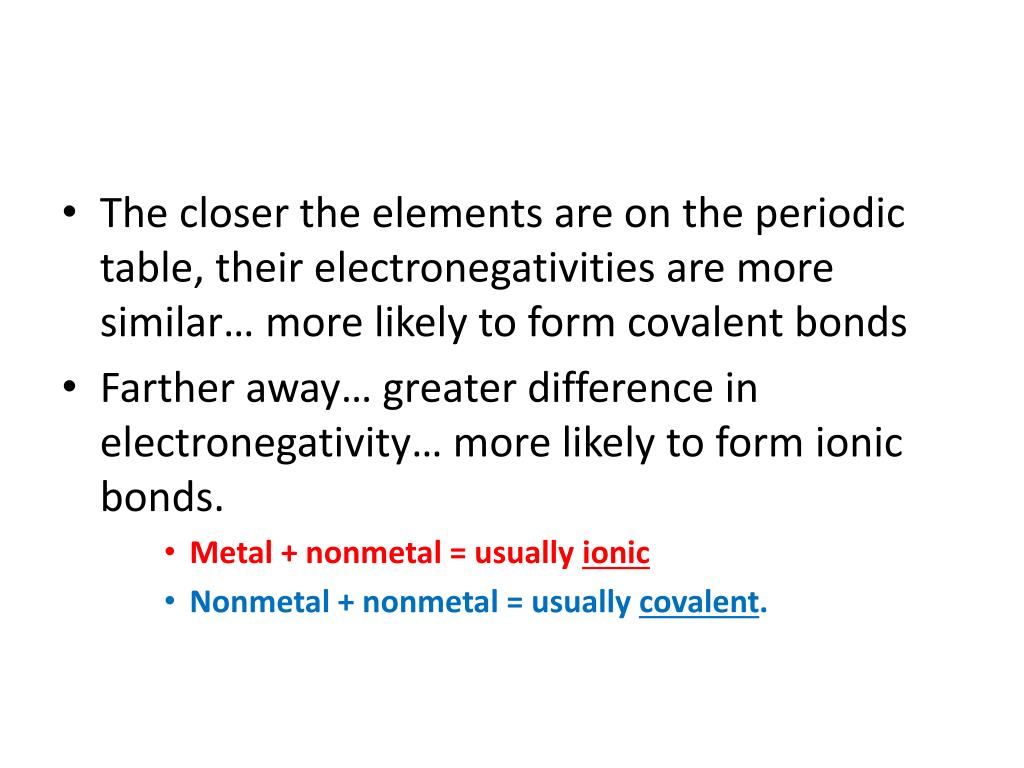

  7. The closer the elements are on the periodic table, their electronegativities are more similar… more likely to form covalent bonds • Farther away… greater difference in electronegativity… more likely to form ionic bonds. • Metal + nonmetal = usually ionic • Nonmetal + nonmetal = usually covalent.

  8. Properties of Covalent Compounds 1)  Covalent compounds generally have much lower melting and boiling points than ionic compounds.  2)  Covalent compounds are soft and squishy (compared to ionic compounds, anyway).

  9. Properties, Cont’d • 3)  Covalent compounds tend to be more flammable than ionic compounds. • There are exceptions to this rule! • 4)  Covalent compounds don't conduct electricity in water.

  10. Bond Dissociation Energy • Bond dissociation energy = energy required to break a covalent bond. Highest bond energy Lowest bond energy Hardest to break Easiest to break TripleDoubleSingle BondBondBond Shortest bond lengthLongest bond length Strongest Weakest

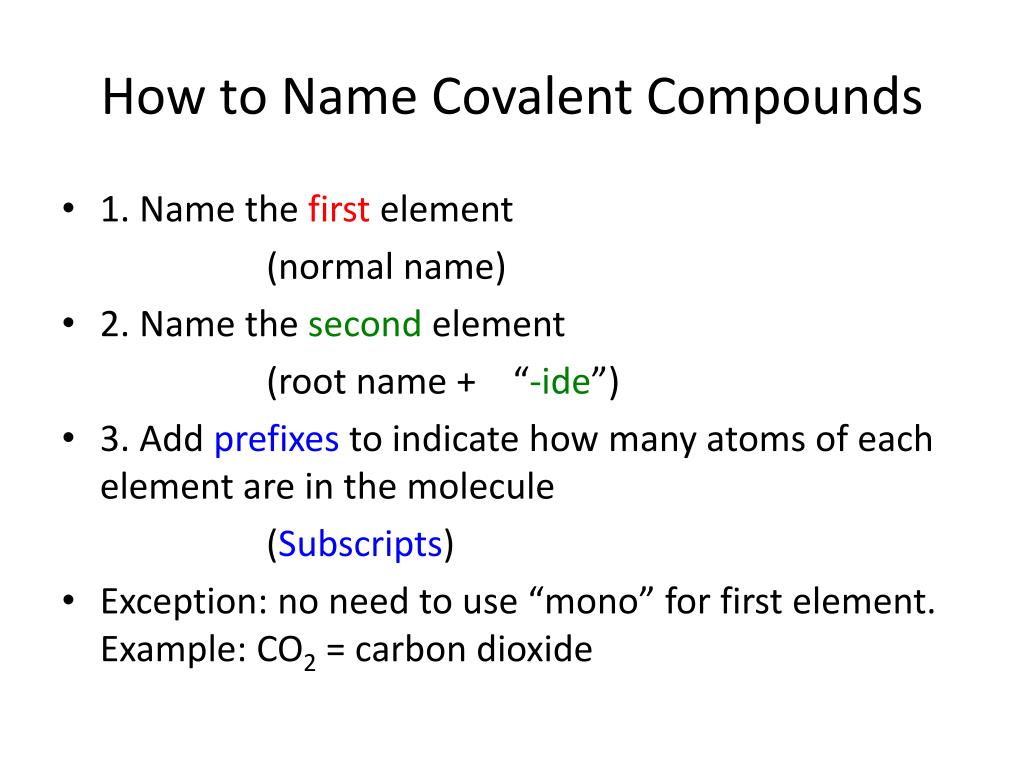

  11. How to Name Covalent Compounds • 1. Name the first element (normal name) • 2. Name the second element (root name + “-ide”) • 3. Add prefixes to indicate how many atoms of each element are in the molecule (Subscripts) • Exception: no need to use “mono” for first element. Example: CO2 = carbon dioxide

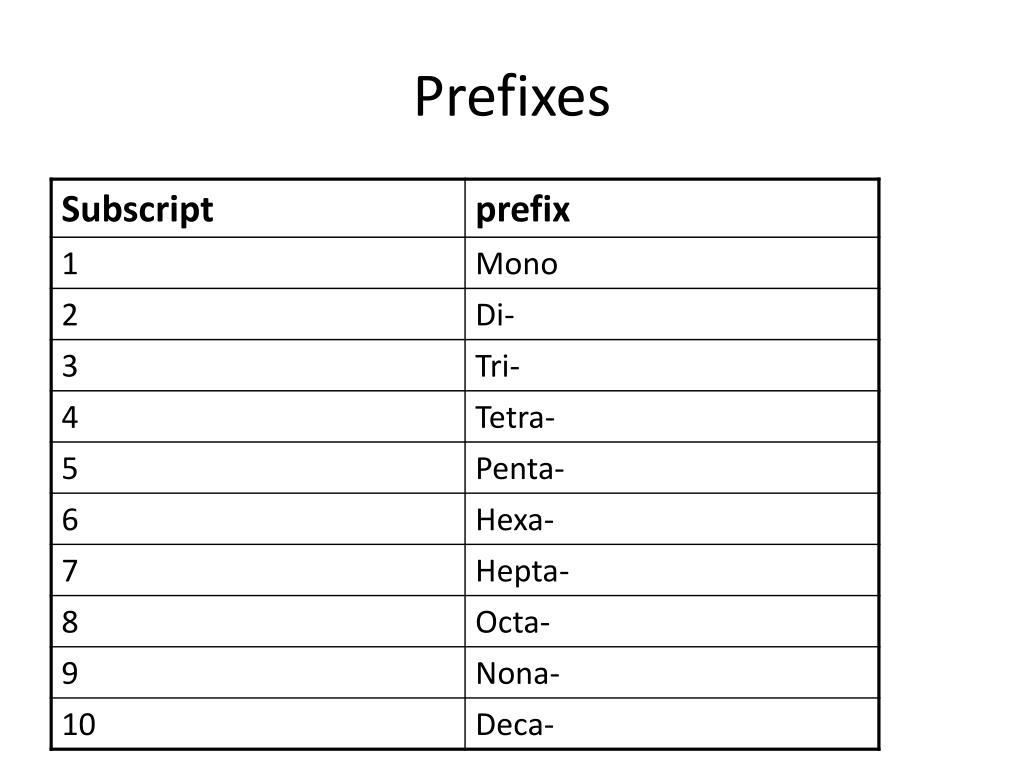

  12. Prefixes

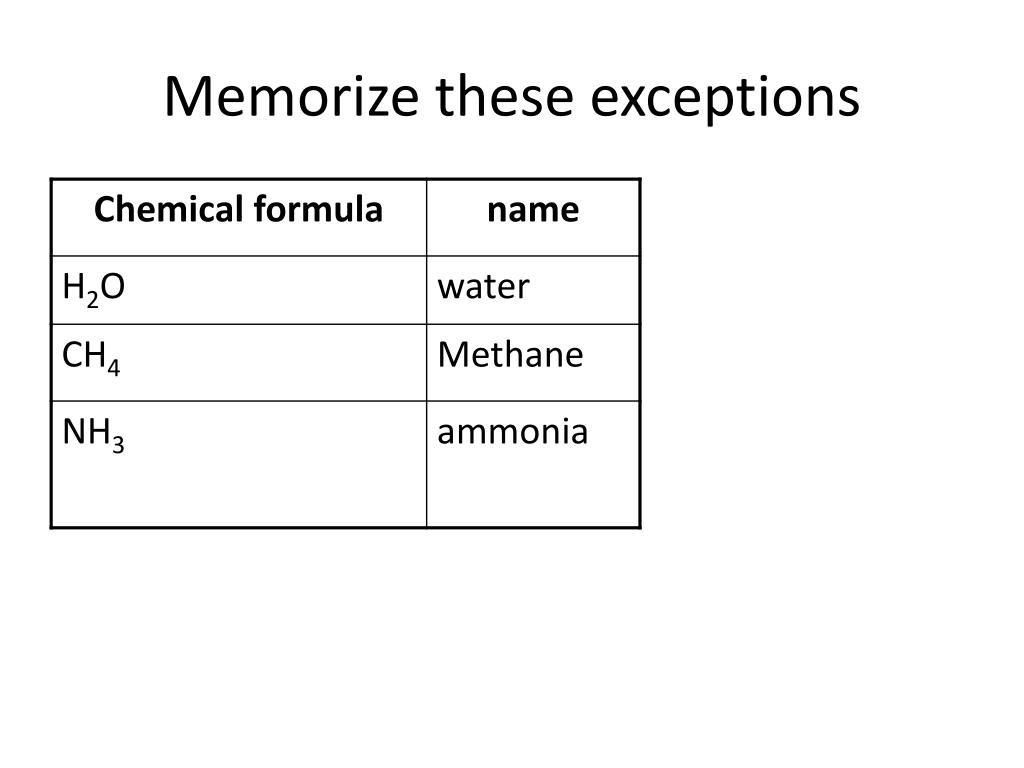

  13. Memorize these exceptions

  14. MEMORIZE THESE ACID NAMES

  15. Diatomics • Diatomic elements are elements that do not exist singularly in nature because they are highly reactive. “Which elements are the diatomics?” “HON, it’s the halogens!” • H2, O2, N2, F2, Cl2, Br2, I2
