TPC Calibration with laser tracks

TPC Calibration with laser tracks. B. S. Nielsen & G. Renault for the ALICE Collaboration Niels Bohr Institute. Installation work on laser system. Installation work still to be done: Mount laser optics on TPC endcaps Build laser tent/hut in clean room

ardice
Télécharger la présentation

TPC Calibration with laser tracks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

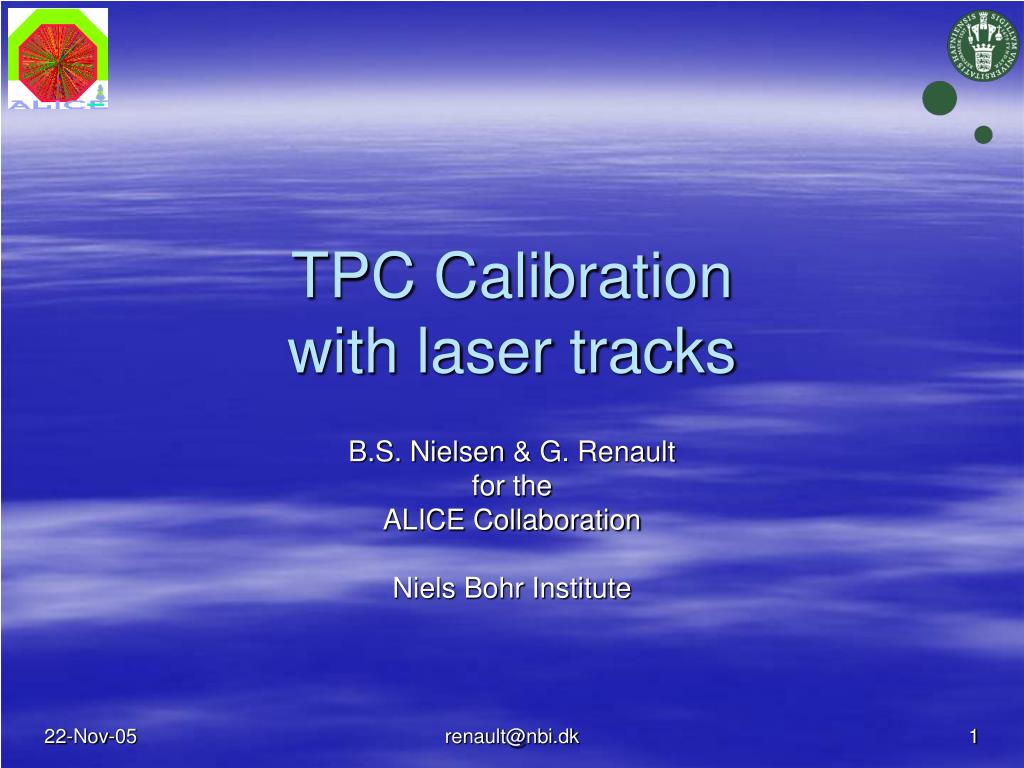

  1. TPC Calibrationwith laser tracks B.S. Nielsen & G. Renault for the ALICE Collaboration Niels Bohr Institute renault@nbi.dk

  2. Installation work on laser system Installation work still to be done: • Mount laser optics on TPC endcaps • Build laser tent/hut in clean room • Install laser (Spectron from Copenhagen or new Ekspla) • Take care of operational safety • Align all laser optics with UV beam --- this could be time consuming How to run the laser in the clean room: • DCS should work, but it is also possible to adjust by hand • Laser free running (10 Hz) --- supply trigger like cosmics • Operate each TPC half separately --- may have a fair amount of some setup time to change renault@nbi.dk

  3. First steps at NBI What has been done? • My Aliroot installed (soon on the HEHI www) • Aliroot environment installed (Config.C) • First Simulation+Reconstruction chain done What needs to be done? • Simulate laser tracks in the TPC (in Aliroot) • Reconstruct laser tracks in the TPC • Extract drift velocity (Temperature gradient) • Study misalignment effects on reconstructed laser tracks Man power (NBI): Johann, Gaël, Børge renault@nbi.dk

  4. Back up renault@nbi.dk

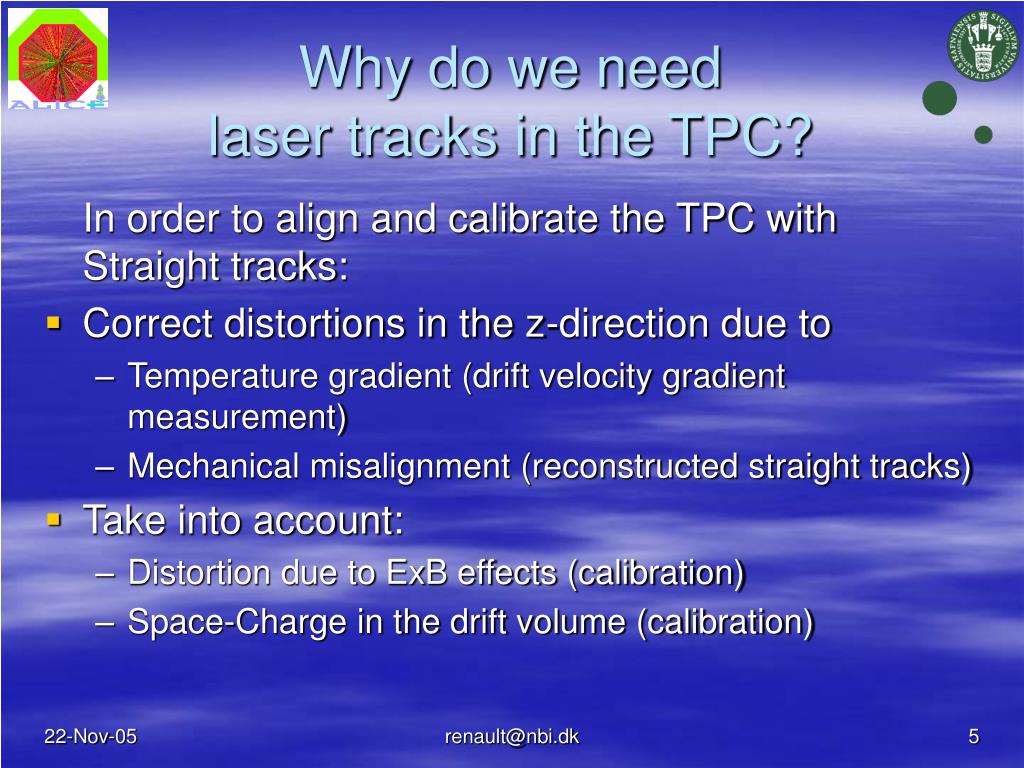

  5. Why do we needlaser tracks in the TPC? In order to align and calibrate the TPC with Straight tracks: • Correct distortions in the z-direction due to • Temperature gradient (drift velocity gradient measurement) • Mechanical misalignment (reconstructed straight tracks) • Take into account: • Distortion due to ExB effects (calibration) • Space-Charge in the drift volume (calibration) renault@nbi.dk

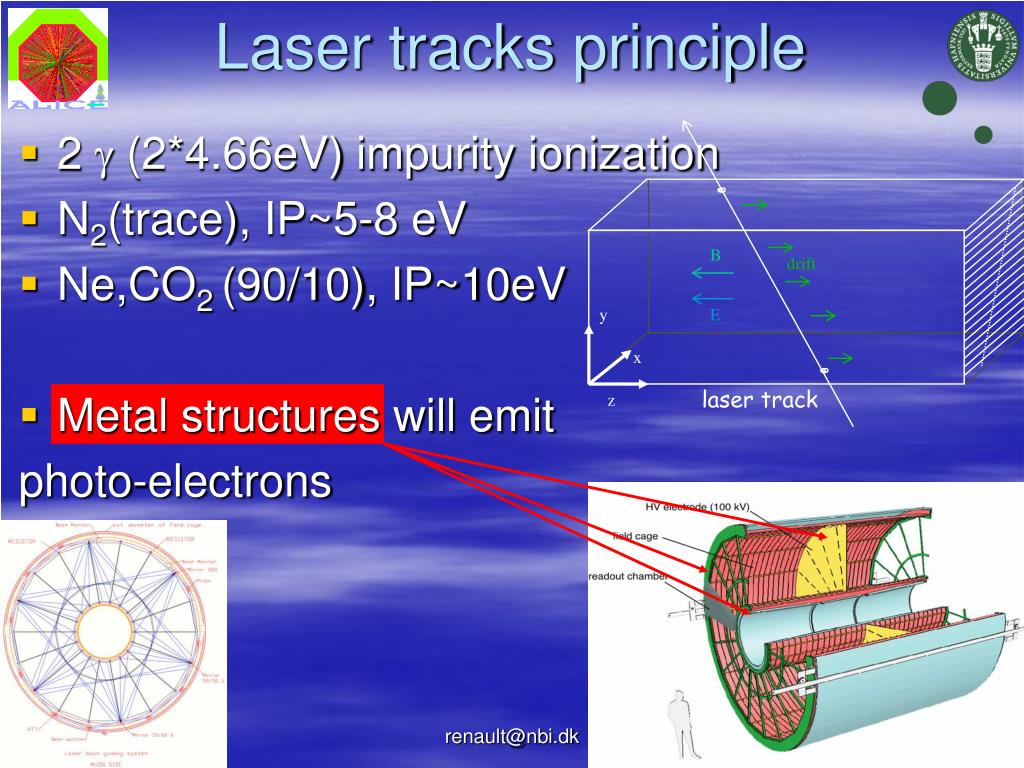

  6. Laser tracks principle • 2 g (2*4.66eV) impurity ionization • N2(trace), IP~5-8 eV • Ne,CO2 (90/10), IP~10eV • Metal structures will emit photo-electrons B drift y E x laser track z renault@nbi.dk
