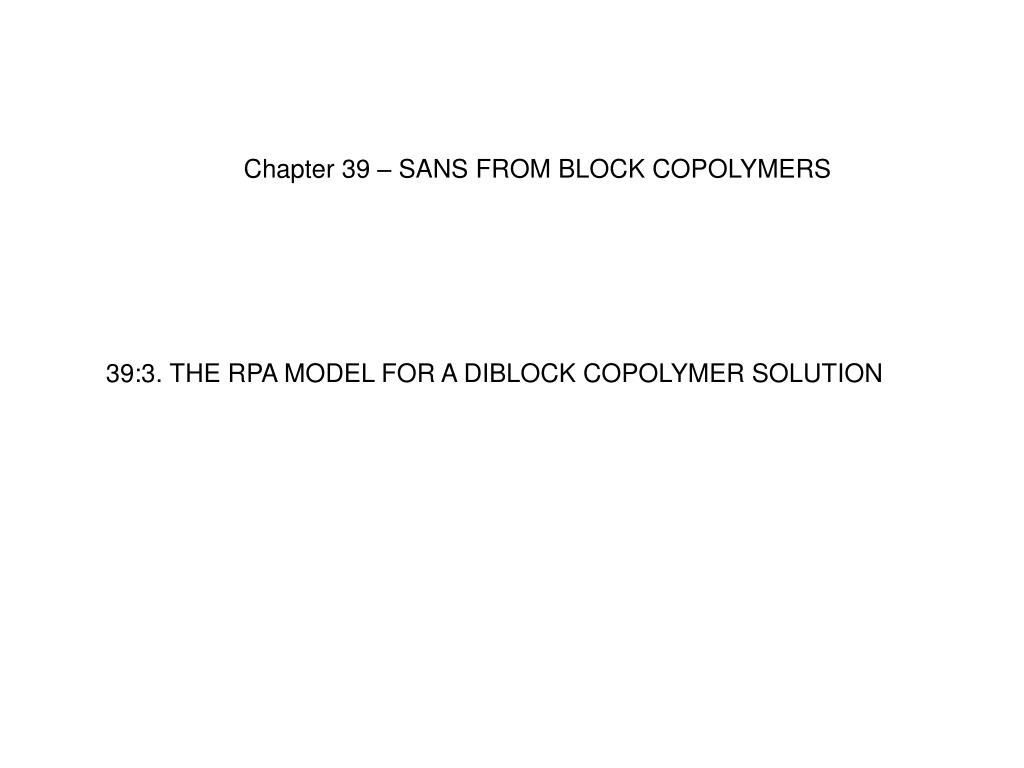

  1. Chapter 39 – SANS FROM BLOCK COPOLYMERS 39:3. THE RPA MODEL FOR A DIBLOCK COPOLYMER SOLUTION

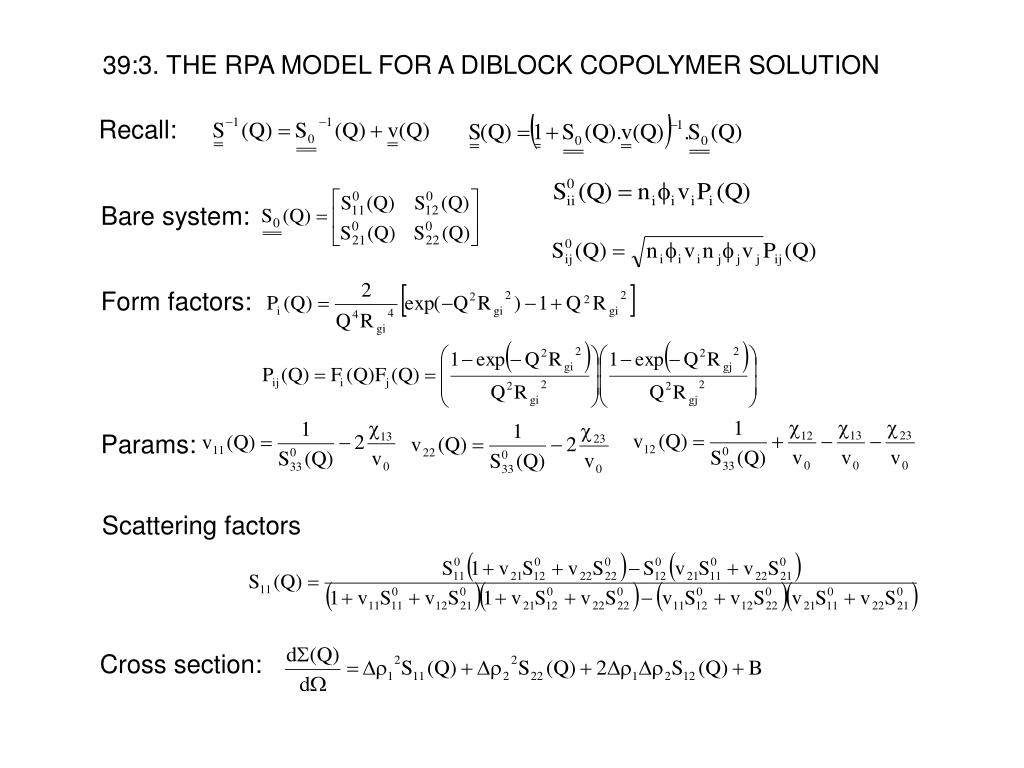

  2. 39:3. THE RPA MODEL FOR A DIBLOCK COPOLYMER SOLUTION Recall: Bare system: Form factors: Params: Scattering factors Cross section:

  3. SANS DATA AND RPA FIT RESULT

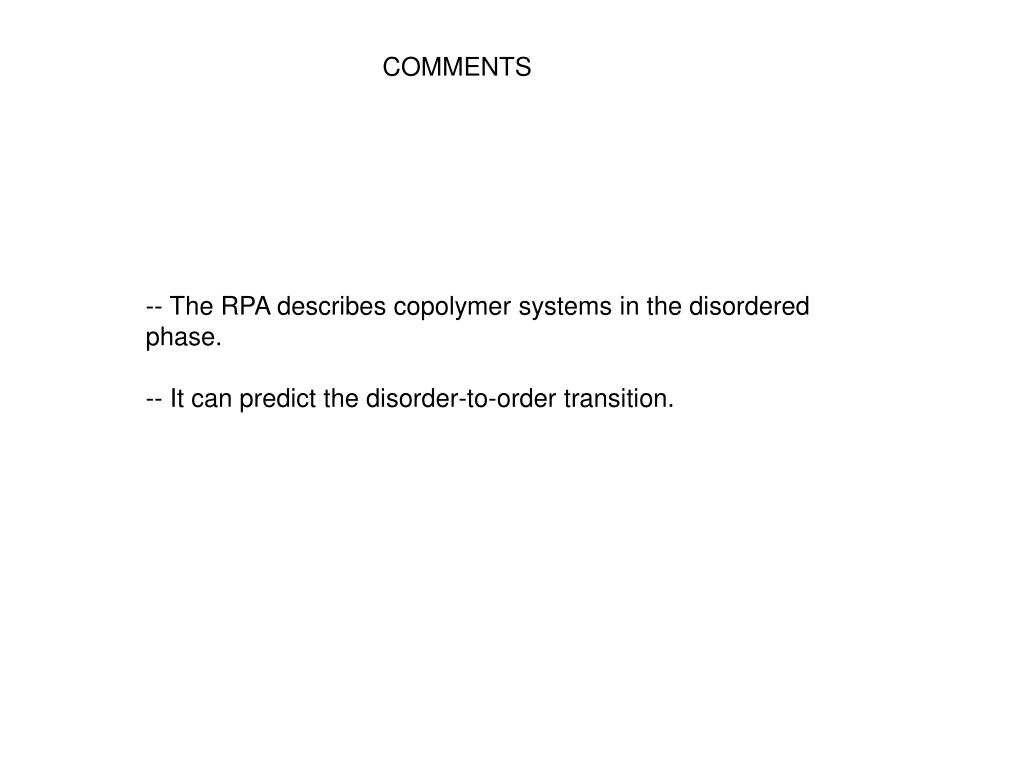

  4. COMMENTS -- The RPA describes copolymer systems in the disordered phase. -- It can predict the disorder-to-order transition.
