  1. Saia® System catalogueChapter A1 – Automation stations | PCD3 series

  2. Automation stations: Saia® PCD3 series Saia®PCD3.Mxxxx controllers Base unitwith 4 slotsfor I/O modules • PCD3.Mxx60 High Power CPU • PCD3.M5xxx Standard CPU • PCD3.M3xxx Basic CPU Saia®PCD3.Cxxx module holder for I/O modules • PCD3.Cx00 4 I/O slots • PCD3.C110 2 I/O slots Saia®PCD3 input/outputmodules in cassettedesignNumerousmoduleswithdifferingfunctionalityfornearlyeveryrequirement • Digital and analog input/output modules Saia®PCD3 communicationinterfacemodules Plug-in modules to extend the communication interfaces (up to 4 modules or 8 interfaces) • Serial interfaces RS 232, RS 422/RS 485 • BACnet MSTP, DALI, M-Bus, Belimo MP-Bus Saia®PCD3 memorymodules Plug-in memory modules for data and program backup • Flash memory module for slots M1, M2 and I/O slots 0…3 • SD flash memory cards with file system up to 4 x 1GByte System catalogue | Chapter A1 - Automation stations | PCD3

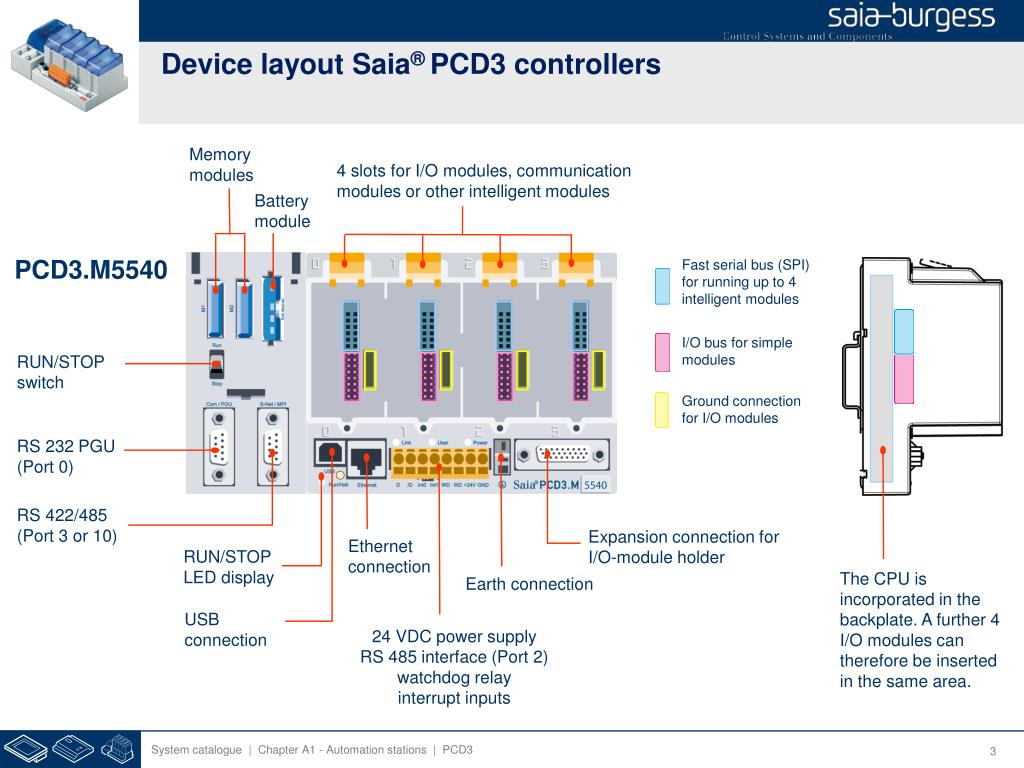

  3. Memory modules 4 slots for I/O modules, communication modules or other intelligent modules Battery module Fast serial bus (SPI) for running up to 4 intelligent modules I/O bus for simple modules RUN/STOP switch Ground connection for I/O modules RS 232 PGU (Port 0) RS 422/485 (Port 3 or 10) Expansion connection for I/O-module holder Ethernet connection RUN/STOP LED display The CPU is incorporated in the backplate. A further 4 I/O modules can therefore be inserted in the same area. Earth connection USB connection 24 VDC power supply RS 485 interface (Port 2) watchdog relay interrupt inputs Device layoutSaia® PCD3 controllers PCD3.M5540 System catalogue | Chapter A1 - Automation stations | PCD3

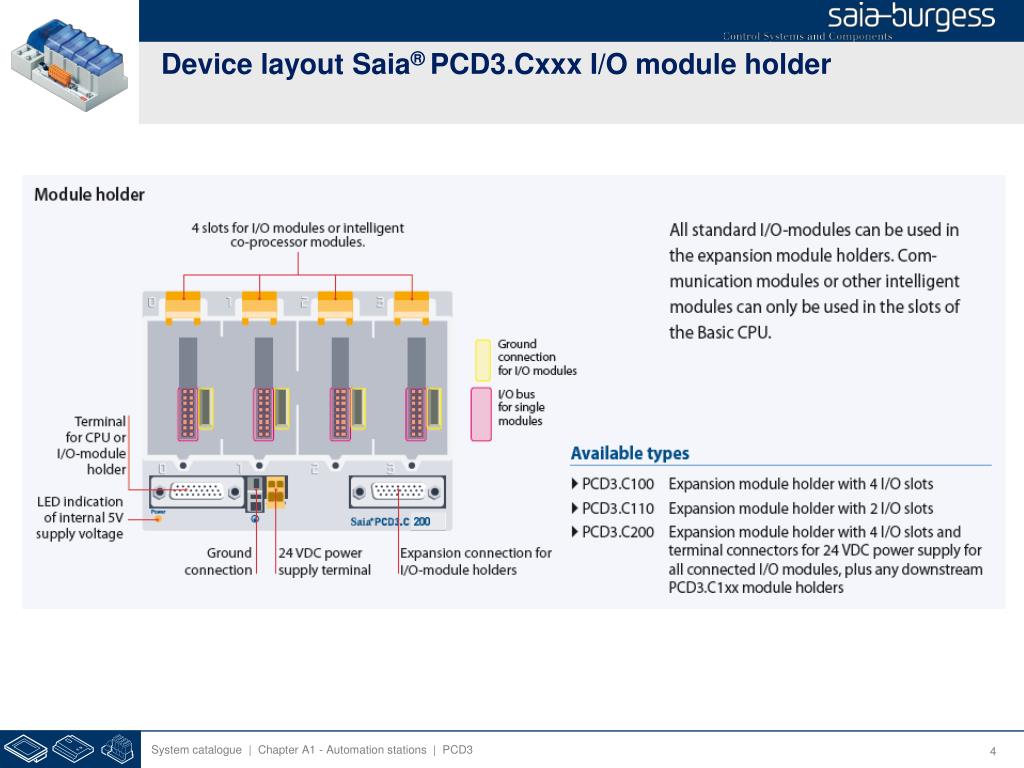

  4. Device layoutSaia® PCD3.Cxxx I/O module holder System catalogue | Chapter A1 - Automation stations | PCD3

  5. Saia® PCD3.Mxxxx controllers • Saia®PCD3.Mxx60 High Power CPUfor all requirements • PCD3.M5560 Ethernet-TCP/IP • PCD3.M6560 Ethernet-TCP/IP, Profibus DP Master • PCD3.M6860 2 x Ethernet-TCP/IP new • Saia®PCD3.M5x40 Standard CPUfor a large numberofapplications • PCD3.M5540 Ethernet-TCP/IP, Profibus-DP Slave • PCD3.M5440 without Ethernet-TCP/IP • PCD3.M5340 Ethernet-TCP/IP • Saia®PCD3.M3xx0 Basic CPUfor simple applications • PCD3.M3330 Ethernet-TCP/IP, 512kB progr. mem. max. 1023 I/O • PCD3.M3230 without Ethernet-TCP/IP, 512kB mem., max. 1023 I/O • PCD3.M3120 Ethernet-TCP/IP, 128kB progr. mem. max. 64 I/O System catalogue | Chapter A1 - Automation stations | PCD3

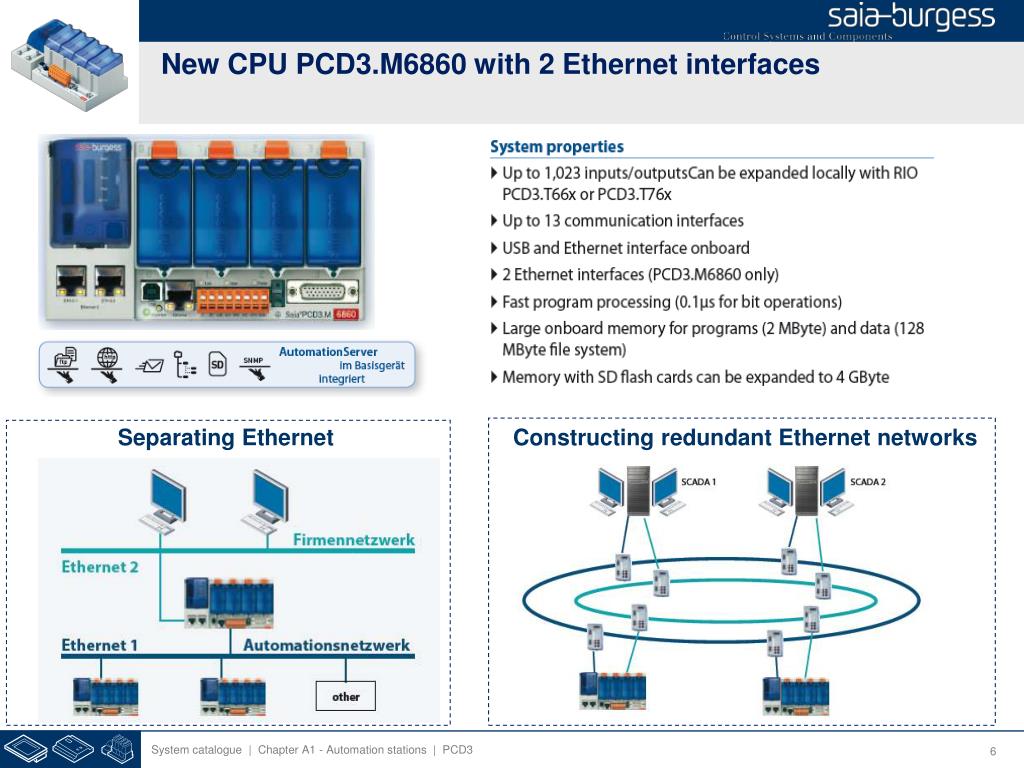

  6. New CPU PCD3.M6860 with 2 Ethernet interfaces SeparatingEthernet Constructing redundant Ethernet networks System catalogue | Chapter A1 - Automation stations | PCD3

  7. System canbeexpandedupto 1023 I/Os PCD3.C100 IO-module holder 4 slots PCD3.C100 IO-module holder 4 slots PCD3.M5540 CPU incl. 4 I/O slots Single-rowmounting Extension plug PCD3.K010 Extension plug PCD3.K010 PCD3.K1xx Extension cable for multiple-row mounting PCD3.C200 IO-module holder 4 slots PCD3.C100 IO-module holder 4 slots PCD3.C110 IO-module holder 2 slots Multiple-rowmounting Extension plug PCD3.K010 Extension plug PCD3.K010 System catalogue | Chapter A1 - Automation stations | PCD3

  8. Pluggable I/O moduleswithdifferingfunctionalitiesfor all needs Easy insertion and exchange PCD3.Axxx Digital output modules (transistor, relay, manual control, light & shade)PCD3.Bxxx Combined input/output modules PCD3.Exxx Digital input modulesPCD3.Fxxx Communication modulesPCD3.Hxxx Fast counter modulesPCD3.Rxxx Memory modulesPCD3.Wxxx Analog input/output modules 0...10V, -10…+10V, 0(4)…20mA, PT/NI 100/1000, TC type J, K http://www.youtube.com/watch?v=z5m7aJT2LbU Connecting plugs/terminals System catalogue | Chapter A1 - Automation stations | PCD3

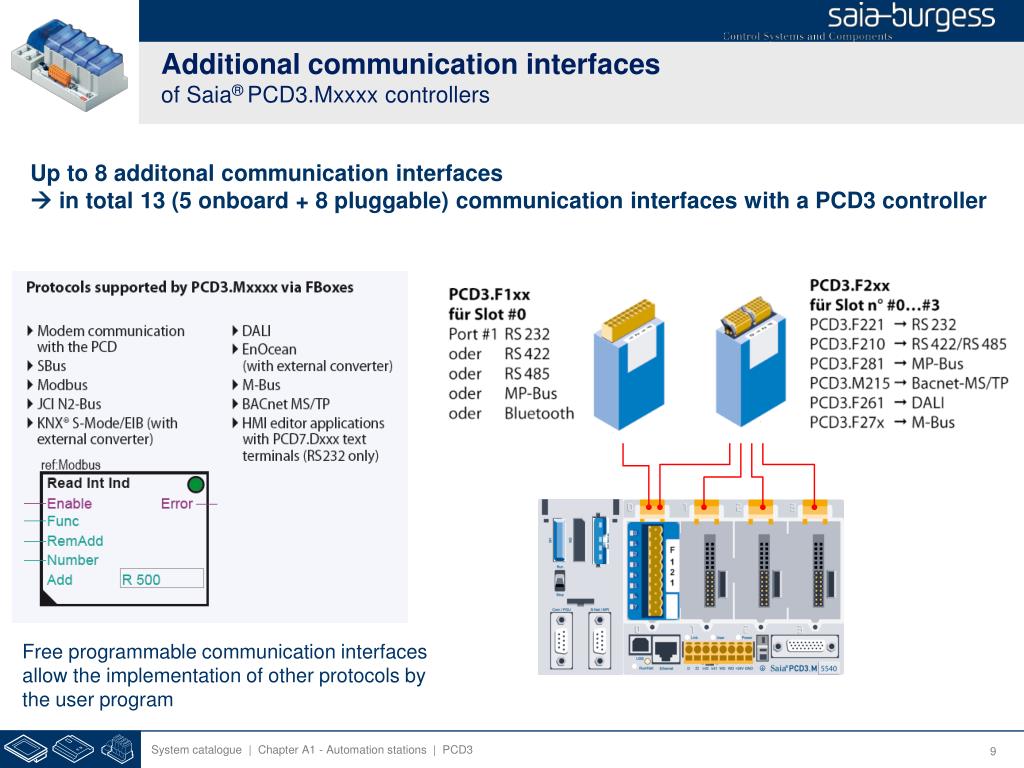

  9. Additional communicationinterfacesofSaia® PCD3.Mxxxx controllers Up to 8 additonal communication interfaces  in total 13 (5 onboard + 8 pluggable) communication interfaces with a PCD3 controller Free programmable communication interfaces allow the implementation of other protocols by the user program System catalogue | Chapter A1 - Automation stations | PCD3

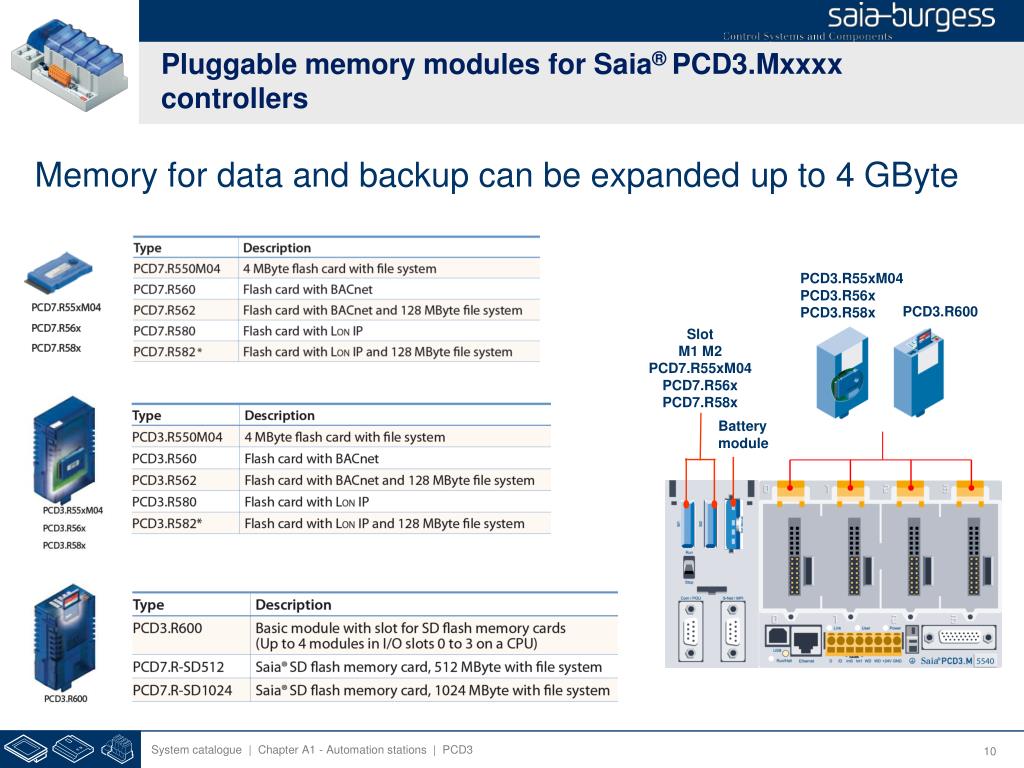

  10. Slot M1 M2 PCD7.R55xM04PCD7.R56xPCD7.R58x PluggablememorymodulesforSaia® PCD3.Mxxxx controllers Memory for data and backup can be expanded up to 4 GByte PCD3.R55xM04PCD3.R56xPCD3.R58x PCD3.R600 Battery module System catalogue | Chapter A1 - Automation stations | PCD3
