Cell Division

asasia avatar
29 diapositives · 668 Views · Jul 21, 2014

Cell Division. = The process by which cells produce offspring cells. Prokaryotic Cells. Binary fission = Division of prokaryotic cells into two offspring cells.

Cell Division - slide 1
01 / 29Cell Division
1 / 17

Télécharger la présentation

Cell Division
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

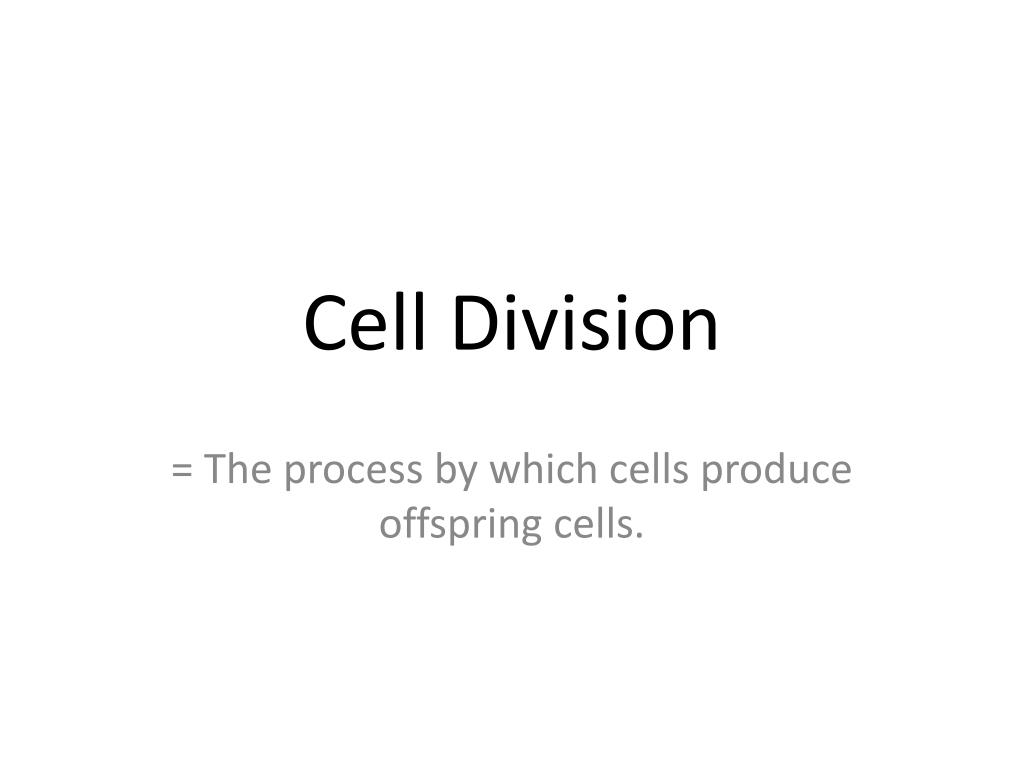

  1. Cell Division = The process by which cells produce offspring cells.

  2. Prokaryotic Cells • Binary fission = Division of prokaryotic cells into two offspring cells. • Steps: 1. One chromosome, a circular piece of DNA along with its proteins that is attached to the cell membrane, makes a copy of itself (replication). • 2. The cell continues to grow until it is about twice its original size. • 3. The cell wall forms between the two chromosomes and the cell splits into two new cells.

  3. Eukaryotic Cells • 1. Somatic cells of the body divide by the process called the Cell Cycle. It consists of Interphase, Mitosisand Cytokinesis.

  4. Interphase – Cell spends most of its lifetime in interphase G1 phase – the cell grows to mature size. The cell has divided in the previous step and is appx ½ of its mature size S phase – A copy of DNA in the cell is made – this is for the new cell G2 phase – cell prepares for cell division by making more organelles – it is going to need enough for two new cells G0 – some cells go from G1 to G0. These cells do not divide so they do not need a copy of DNA ex. nerve cells

  5. M phase or Mitosis = Nuclear division process that divides the nucleus in half • Results in 2 new cells with genetic material that is identical to that of the original cell. • The 2 offspring cells are about equal in size. • Each receives a copy of the cells chromosomes. • Each receives half of the cells cytoplasm and organelles.

  6. 4 phases: • 1. Prophase- DNA shortens and coils into rod-shaped chromosomes. • Nucleolus and nuclear membrane breakdown and disappear. • Micotubules start to extend from centriole. These microtubles are now called Spindle Fibers

  7. 2. Metaphase • Spindle fibers move chromosome to center of the dividing cell.

  8. 3. Anaphase • The chromatids of each chromosome separate at the centromere and slowly move, centromere first, toward the opposite poles of the cell. (Now the chromatids are considered individual chromosomes. )

  9. 4. Telophase • After chromosomes reach opposite poles, they uncoil. • The spindle fibers disassemble. • The nuclear envelope forms around each set of chromosomes and a nucleolus forms within each.

  10. Cytokinesis = The cytoplasm divides. • In animals, a cleavage furrow forms in the middle of the two poles, pinching the cell into 2 new cells by way of microfilaments. • In plants, a cell plate is formed by which vesicles from the Golgi Apparatus fuse at the midline of the cell.

  11. 2. Reproductive cells divide by the process of Meiosis. • Meiosis = Cell division that reduces the number of chromosomes by half in new cells. • Starts after G1, S and G2. • Includes two divisions. • Only occurs in reproductive organs of animals. • Results in 4 new cells, each with half of the original number of chromosomes.

  12. Meiosis I : steps • 1. Prophase 1 – DNA shortens and coils into rod-shaped chromosomes. • Nucleolus and nuclear membrane disappear. • Spindle fibers form. • * Homologous chromosomes pair up in a process called synapsis.

  13. Synapsis = The pairing of homologous chromosomes during meiosis. • Tetrad = A pair of homologous chromosomes lined up so that the genes on one chromosome are near the corresponding genes on the other homologue. • Crossing over = The exchange of pieces of chromosomes that occurs during synapsis. • Crossing over allows genetic material to be exchanged between maternal and paternal chromosomes and results in genetic recombination. • Genetic recombination = Process of mixing up genetic information which produces new combinations of it.

  14. 2. Metaphase I • Tetrads randomly line up along the midline. (ie. Some maternal chromosomes go to one pole and some paternal chromosomes go to the same pole.) • Independent assortment = Random alignment and separation of homologous pairs of chromosomes.

  15. Example of Independent Assortment

  16. 3. Anaphase I • Each homologous chromosome, made of 2 sister chromatids attached by a centromere, move to opposite poles of the cell.

  17. 4. Telophase I • Chromosomes reach the ends of the cell and cytokinesis begins. • Meiosis I results in two haploid cells.

  18. Meiosis II – • This starts with the products of Meiosis I; no copying of DNA occurs. • Sometimes it begins after nuclear membrane forms and sometimes it begins without the nuclear membrane reforming.

  19. Meiosis II : steps • 1. Prophase II – Spindle fibers form and move chromosomes toward midline.

  20. 2. Metaphase II • Chromosomes move to midline.

  21. 3. Anaphase II • Chromatids separate and move toward opposite poles.

  22. 4. TelophaseII • Nuclear membrane reforms around chromosomes of 4 new cells.

  23. Cytokinesis II • Occurs next and 4 new cells are formed, each with half of the original number of chromosomes.

  24. Meiosis

  25. 2 Forms of Meiosis in humans • 1. Spermatogenesis= Production of sperm cells that occurs in human male testes. • Spermatids mature into Spermatozoa = mature sperm cells.

  26. 2. Oogenesis • = Production of mature egg cells that occurs in human female ovaries. • Only one mature egg cell = ova is formed along with three polar bodies due to the unequal division of the cytoplasm.

  27. Meiosis and Mitosis Compared
