  1. This work is licensed under a Creative Commons Attribution-Share Alike 3.0 Unported License. CS 479, section 1:Natural Language Processing Lecture #29: PCFG Transformations Thanks to Dan Klein of UC Berkeley for many of the materials used in this lecture.

  2. Announcements • Homework 0.3 • Due Monday • Final Project Choice • Send in email Monday (was today) • Final Project • Three options: • Propose (possibly as a team) • No proposal – just decide • Project #4 • Project #5 • Project #4 Help Session • Tuesday at 4pm in CS Conf. Room

  3. Parsing Outline • Introduction to parsing natural language;Probabilistic Context-Free Grammars (PCFGs) • Independence Assumptions • Parsing Algorithm: Probabilistic CKY • PCFG Transformations • Markov grammars and other generative models • (Extra) Agenda-Based Parsing • Dependency Parsing

  4. How to use Unary Productions

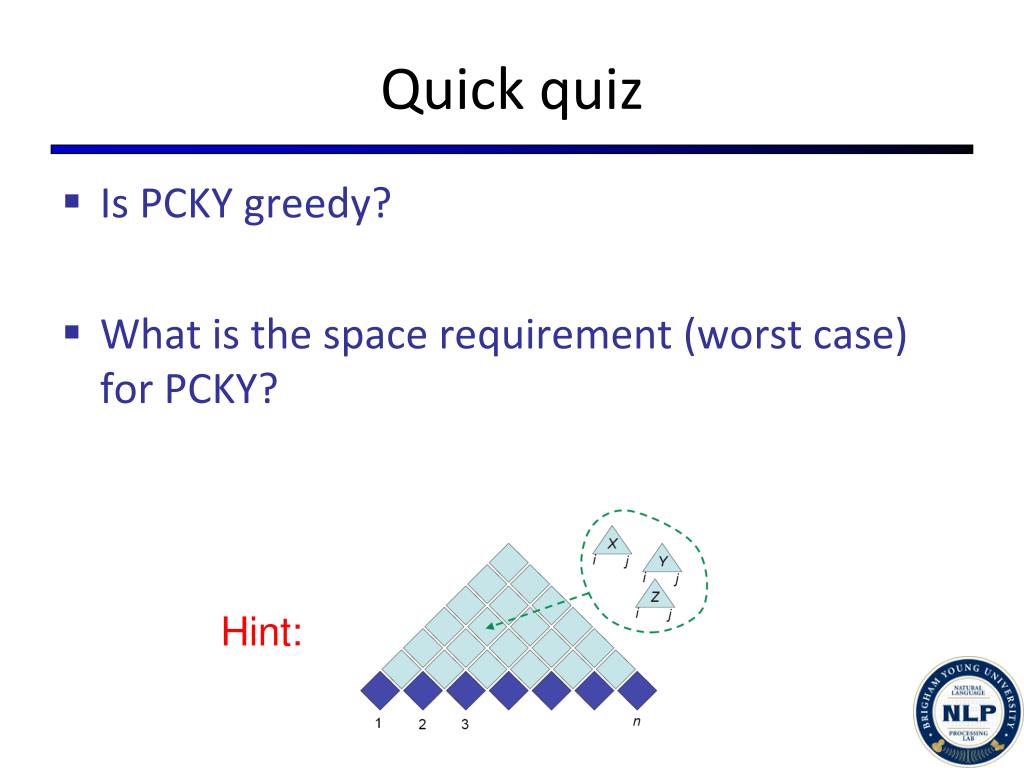

  5. Quick quiz • Is PCKY greedy? • What is the space requirement (worst case) for PCKY? Hint:

  6. Objectives • Explore how to improve a Treebank PCFG by changing the independence assumptions while remaining in the PCFG formalism • Introduce binarization and Markovization; evaluate! • Further guidance for Project #4

  7. Independence Assumptions • How can we overcome the inappropriately strong independence assumptions in a Treebank PCFG? • Constraint: stay in the PCFG framework! • We can relax independence assumptions by encoding dependencies into the non-terminal symbols.

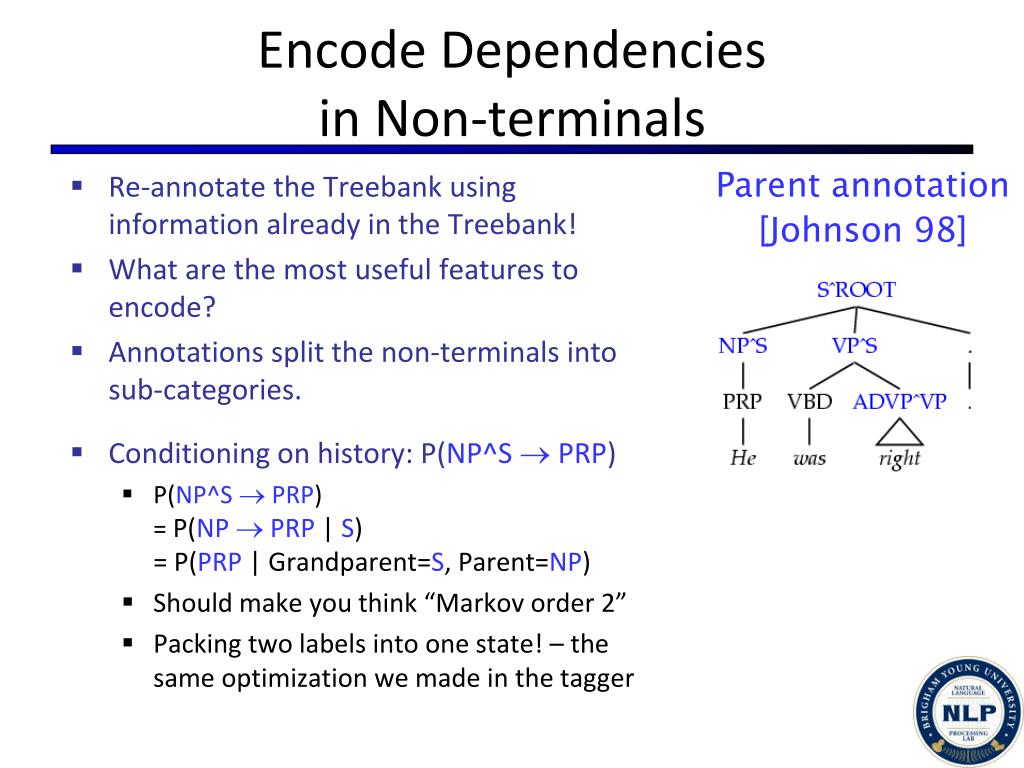

  8. Encode Dependenciesin Non-terminals Parent annotation [Johnson 98] • Re-annotate the Treebank using information already in the Treebank! • What are the most useful features to encode? • Annotations split the non-terminals into sub-categories. • Conditioning on history: P(NP^S  PRP) • P(NP^S  PRP)= P(NP  PRP | S)= P(PRP | Grandparent=S, Parent=NP) • Should make you think “Markov order 2” • Packing two labels into one state! – the same optimization we made in the tagger

  9. Another Example:Marking Possessive NPs • Percolating important info. upwards: P(NP-POS NNP POS) • Isn’t history conditioning • P(NP-POS NNP POS) =P(NNP POS | NP-POS) • Making information from inside available to influence outside by pretending it came from outside. • Feature grammars vs. annotation • Can think of a symbol like NP^NP-POS as NP [parent:NP, +POS] • Many grammar formalisms do this: GPSG, HPSG, LFG, …

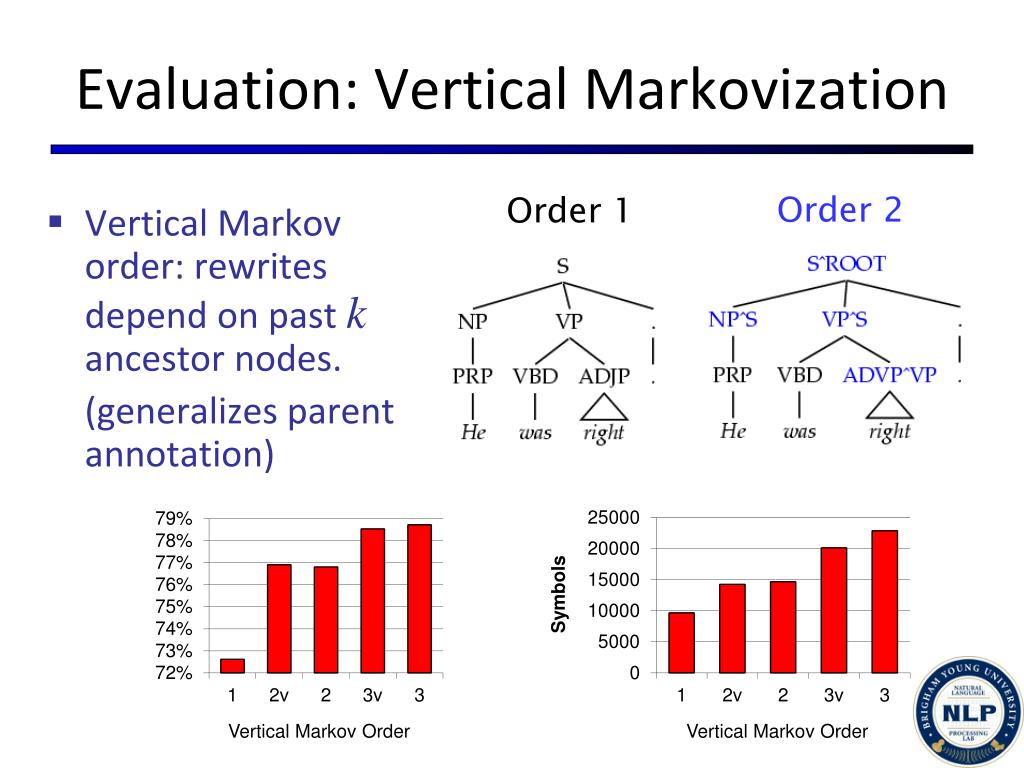

  10. Evaluation: Vertical Markovization • Vertical Markov order: rewrites depend on past k ancestor nodes. (generalizes parent annotation) Order 2 Order 1

  11. Binarization of N-ary Rules • Often we want to write non-binary grammar rules such as: • We also observe these sorts of constituents in the Treebank. • But PCKY requires Chomsky Normal Form • We can still work with these rules by introducing new intermediate symbols into our grammar: VP  VBD NP PP PP VP @VPVBD  VBD @VPVBD NP  NP binarizing top-down (as it were)from the left @VPVBD NP PP  PP PP

  12. Binarization These may look like rules, But they’re just names!

  13. Horizontal Markovization HorizontalMarkovization Order 1 Binarized

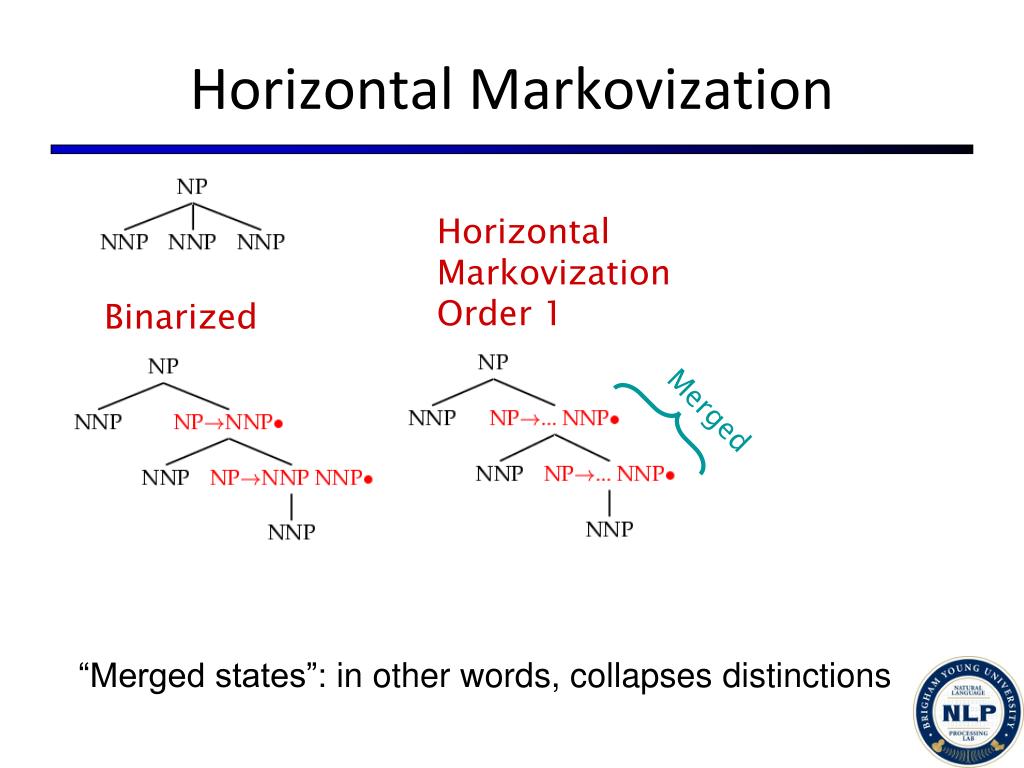

  14. Horizontal Markovization HorizontalMarkovization Order 1 Binarized Merged “Merged states”: in other words, collapses distinctions

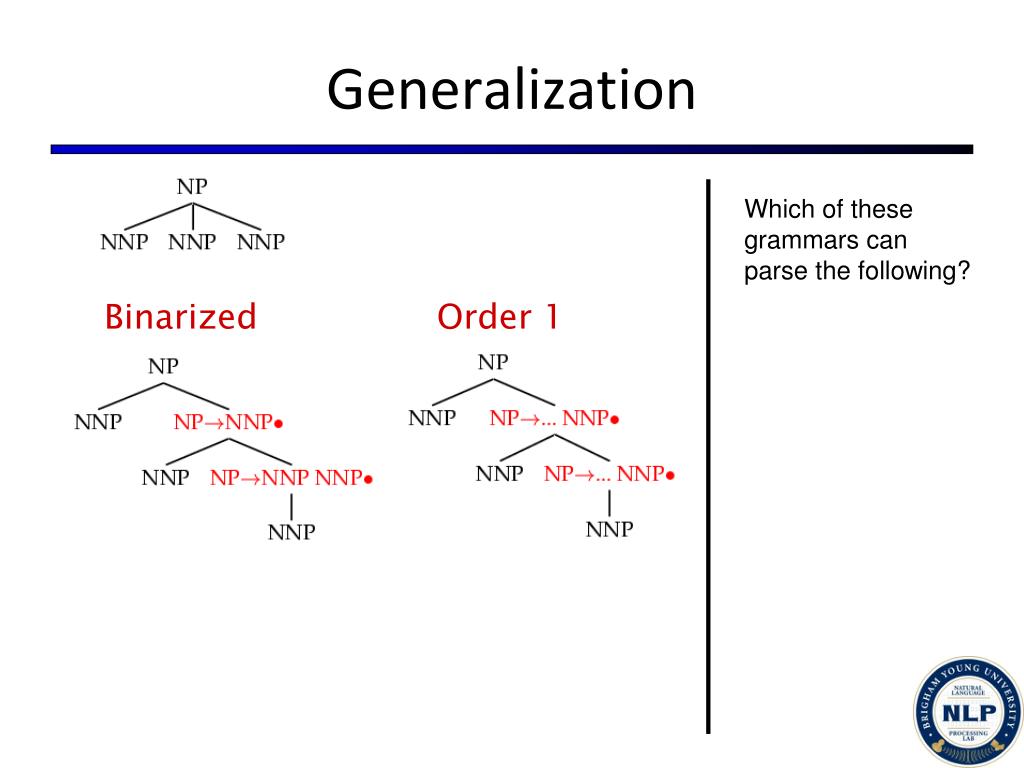

  15. Generalization Which of these grammars can parse the following? Binarized Order 1

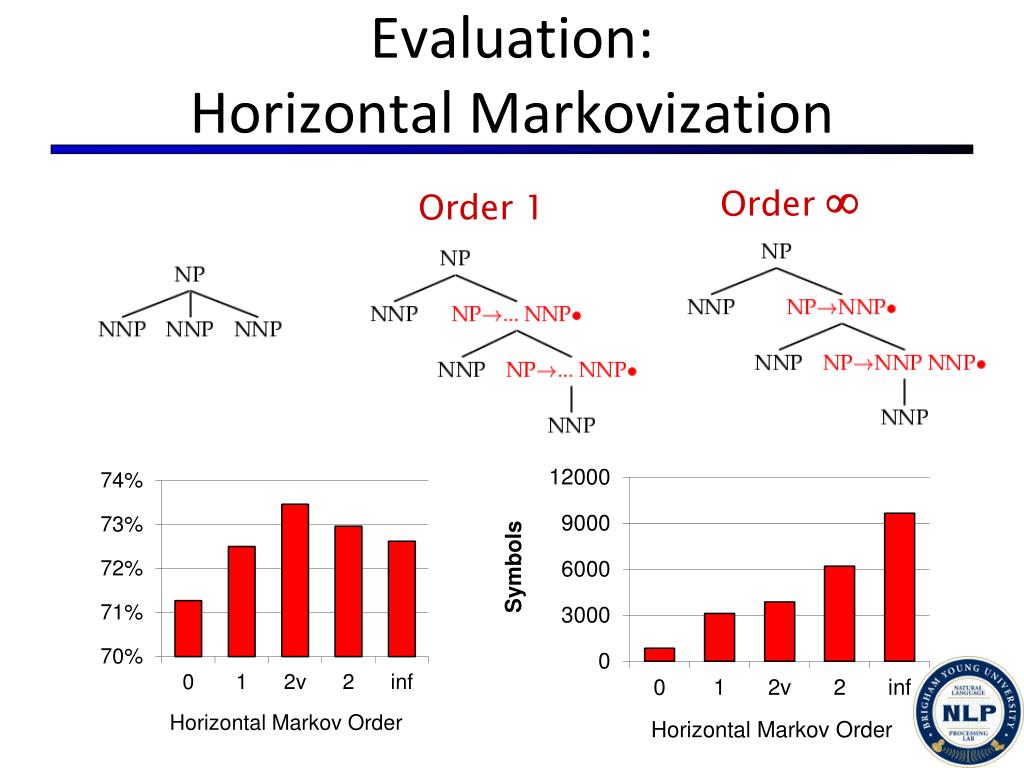

  16. Evaluation:Horizontal Markovization Order  Order 1

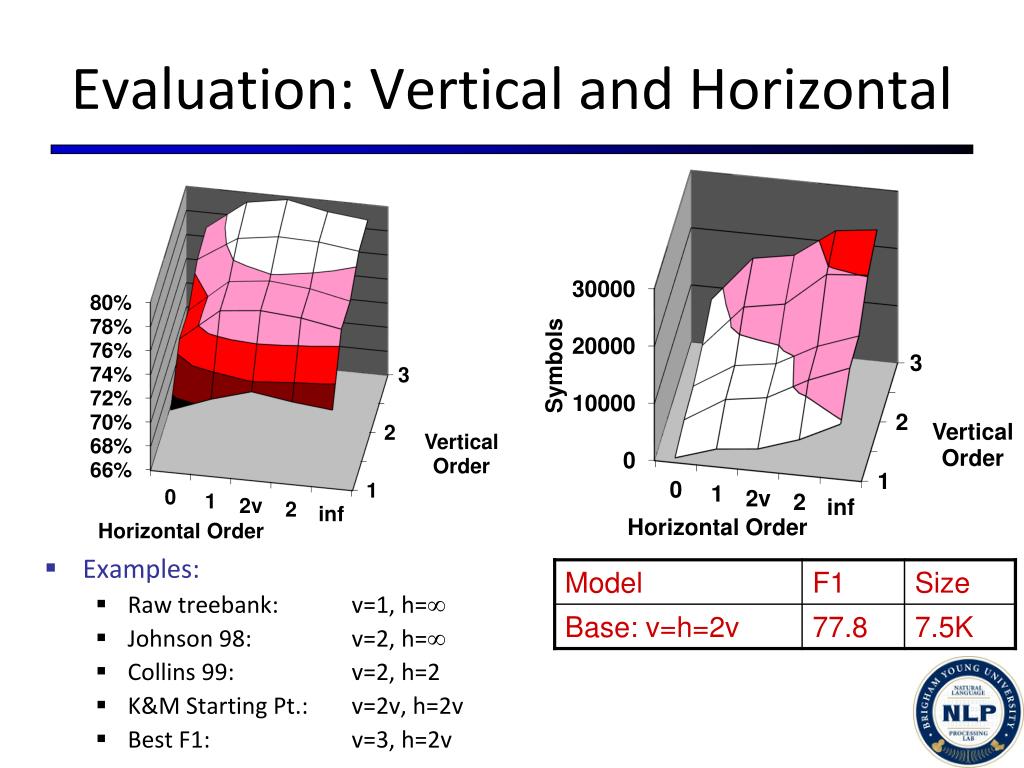

  17. Evaluation: Vertical and Horizontal • Examples: • Raw treebank: v=1, h= • Johnson 98: v=2, h= • Collins 99: v=2, h=2 • K&M Starting Pt.: v=2v, h=2v • Best F1: v=3, h=2v

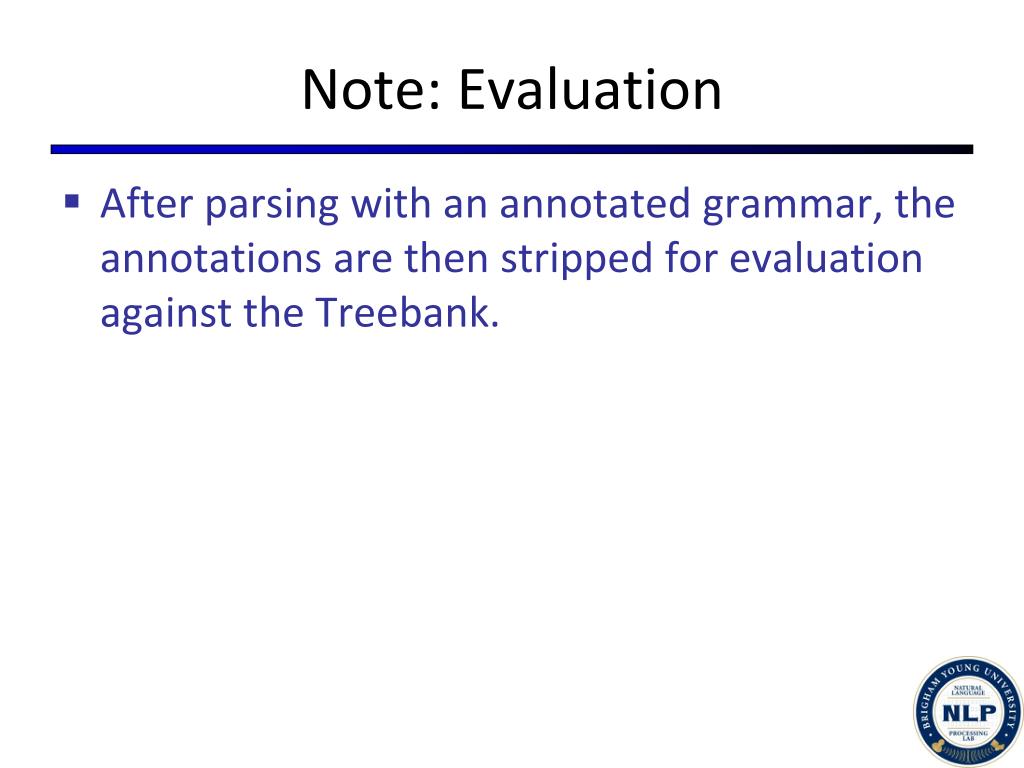

  18. Note: Evaluation • After parsing with an annotated grammar, the annotations are then stripped for evaluation against the Treebank.

  19. Project #4 • S-expression Reader • Tree Train / Learn Vertical markovization Legend: Binarization You implement Horizontal markovization You invoke provided helper classes • Binary, Annotated Tree Count local trees • Rule countsin Grammar, Lexicon • PCFG in CNF

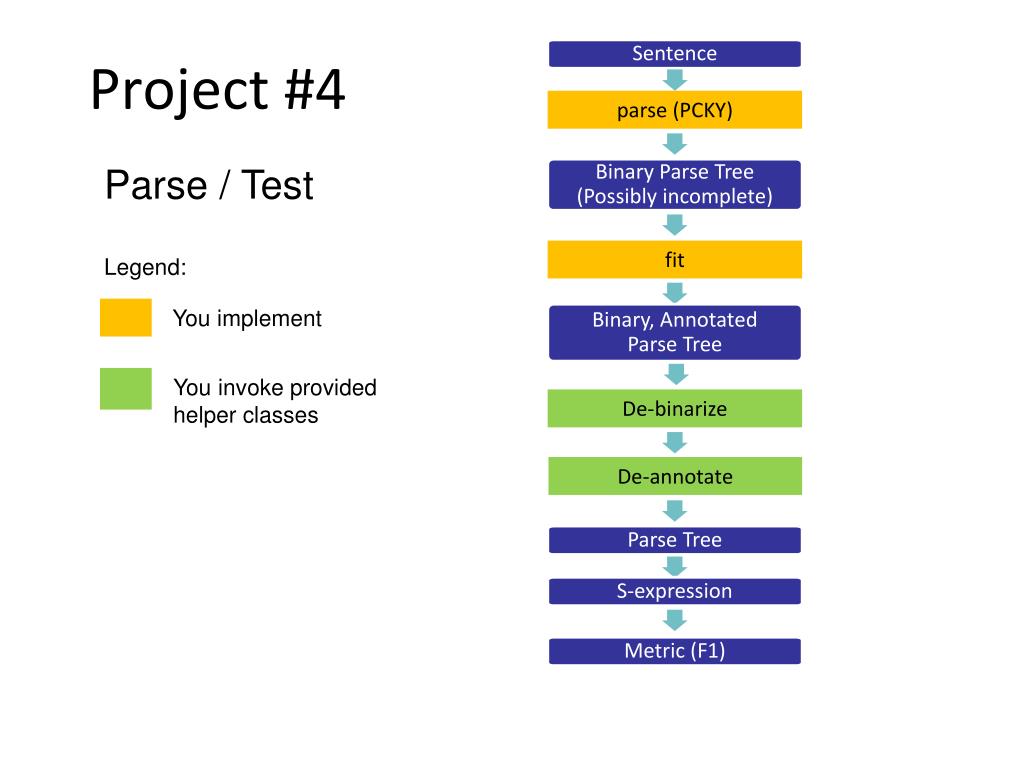

  20. Project #4 • Sentence parse (PCKY) Parse / Test • Binary Parse Tree (Possibly incomplete) fit Legend: You implement • Binary, AnnotatedParse Tree You invoke provided helper classes De-binarize De-annotate • Parse Tree • S-expression • Metric (F1)

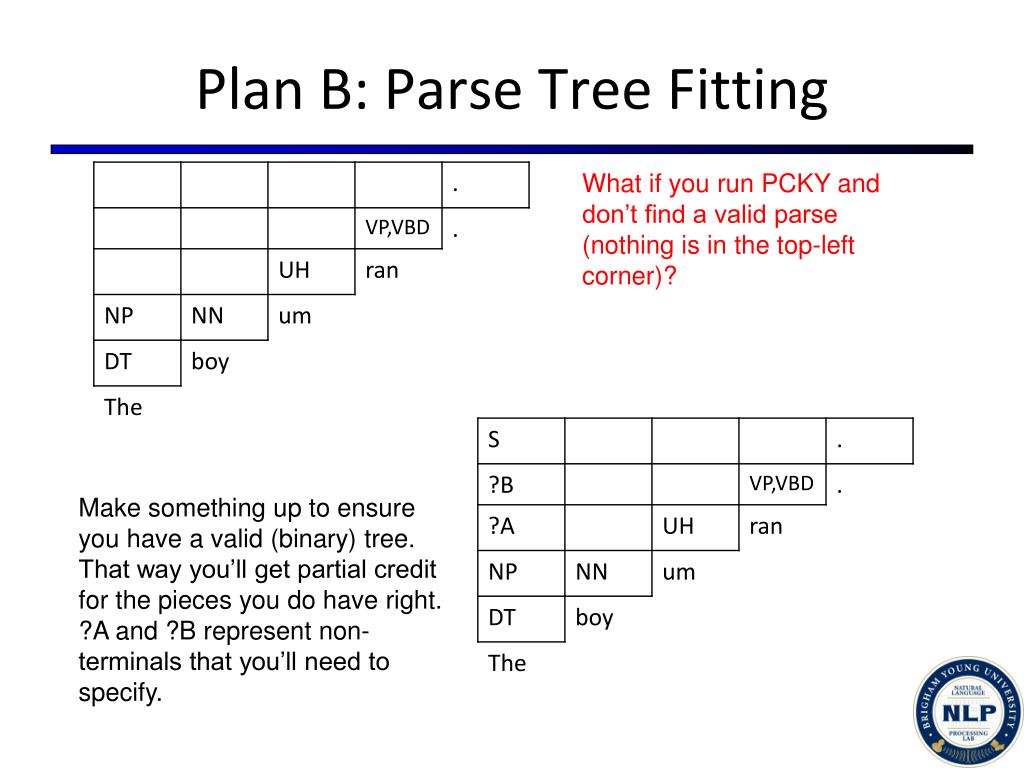

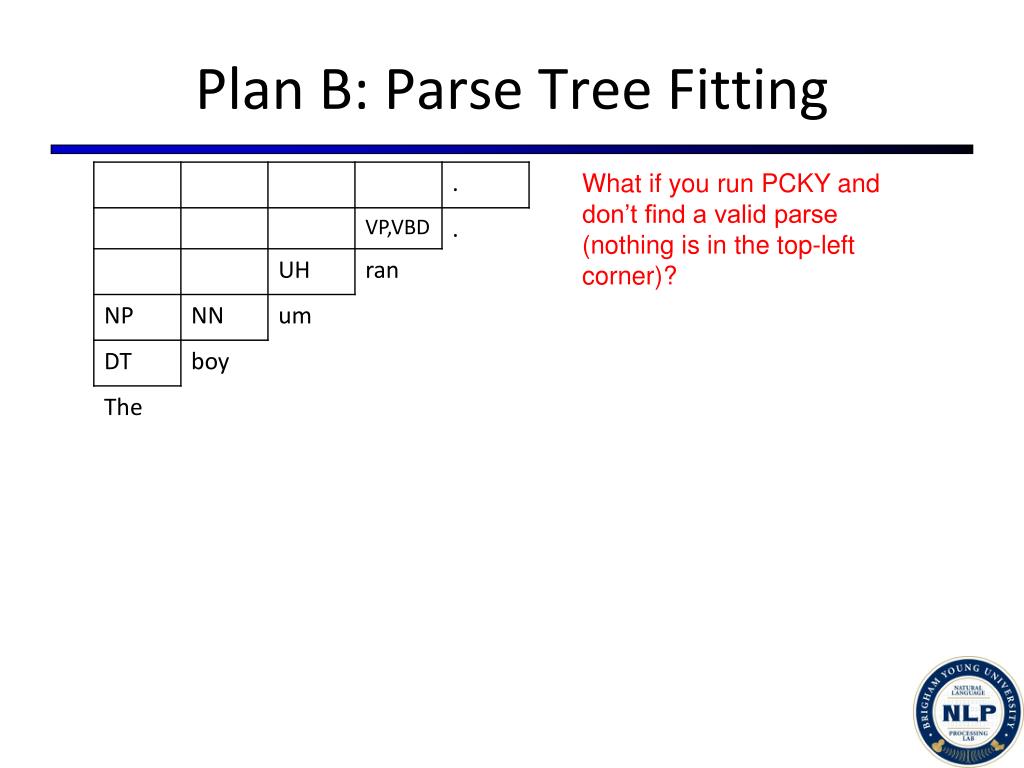

  21. Plan B: Parse Tree Fitting What if you run PCKY and don’t find a valid parse (nothing is in the top-left corner)?

  22. Plan B: Parse Tree Fitting What if you run PCKY and don’t find a valid parse (nothing is in the top-left corner)? Make something up to ensure you have a valid (binary) tree. That way you’ll get partial credit for the pieces you do have right. ?A and ?B represent non-terminals that you’ll need to specify.

  23. Next • Leaving the PCFG framework: • Markov Grammars
