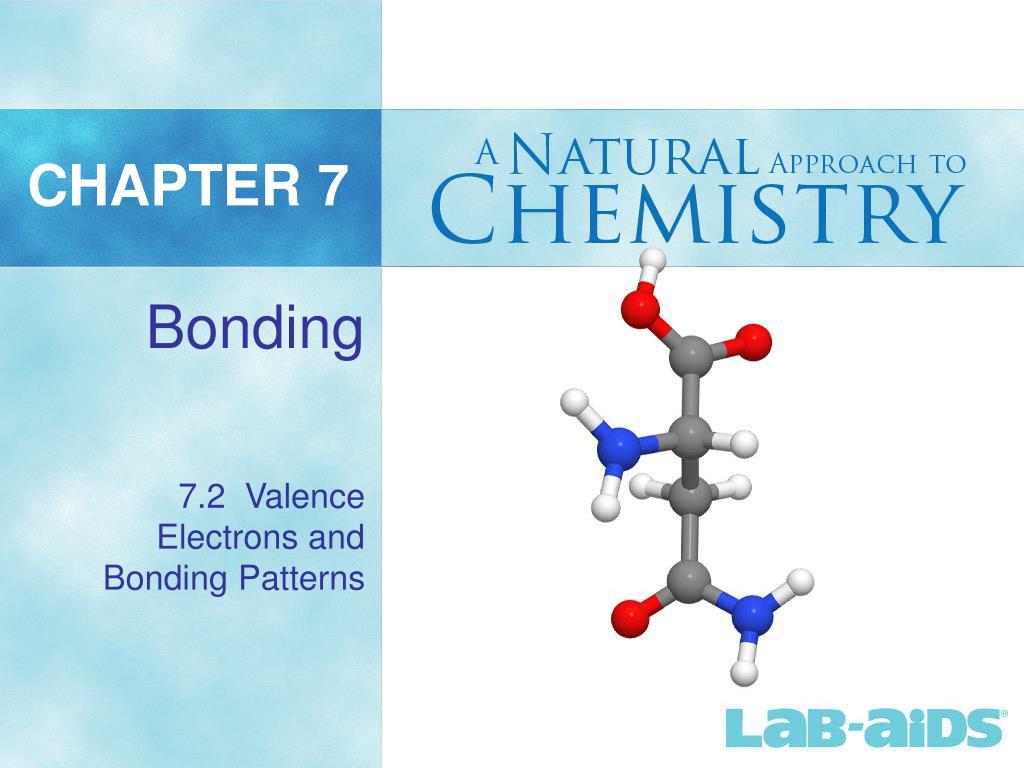

  1. CHAPTER 7 Bonding 7.2 Valence Electrons and Bonding Patterns

  2. What we have seen so far… Valence electrons are responsible for chemical bonding.

  3. What we have seen so far… Valence electrons are responsible for chemical bonding. The Lewis dot diagram represents each valence electron as a dot around the atom symbol. Lewis dot diagram for carbon 1s22s22p2 4 valence electrons

  4. What we have seen so far… Valence electrons are responsible for chemical bonding. The Lewis dot diagram represents each valence electron as a dot around the atom symbol. Electronegativity helps to determine the bond type. Difference in electronegativity = 0.89

  5. The octet rule Oxygen ends up with 8 valence electrons.

  6. H, Li, Be, and B form bonds to reach two valence electrons. octet rule: rule that states that elements transfer or share electrons in chemical bonds to reach a stable configuration of eight valence electrons.

  7. Ionic bonds

  8. Ionic bonds Electron configuration of ions 8 valence electrons

  9. Ionic bonds Electron configuration of ions Same configuration as neon (a noble gas)

  10. Ionic bonds Electron configuration of ions

  11. Ionic bonds Write the electron configuration for a magnesium ion (Mg2+).

  12. Ionic bonds Write the electron configuration for a magnesium ion (Mg2+). Asked: Electron configuration of Mg2+ Given: Mg, atomic number of 12, charge of +2 Relationships:The electron configuration of magnesium is 1s22s22p63s2.

  13. Ionic bonds Write the electron configuration for a magnesium ion (Mg2+). Asked: Electron configuration of Mg2+ Given: Mg, atomic number of 12, charge of +2 Relationships: The electron configuration of magnesium is 1s22s22p63s2. Solve: Mg must lose two electrons to become Mg2+. Therefore it loses the pair of 3s2 electrons. Answer: The electron configuration of Mg2+ is 1s22s22p6, which is identical to neon.

  14. Ionic formulas Ionic substances typically form crystals. A crystal is a large group of oppositely charged ions arranged in a regular pattern.

  15. Ionic formulas Total charge of zero Calcium chloride, CaCl2 Two chloride ions for each calcium

  16. Ionic formulas What is the correct formula for calcium oxide, a compound used in making paper and pottery, and adjusting the pH of soils?

  17. Ionic formulas What is the correct formula for calcium oxide, a compound used in making paper and pottery, and adjusting the pH of soils? Asked: The formula for the ionic compound calcium oxide Given:Calcium oxide is made from calcium and oxygen ions. Calcium forms +2 ions and oxygen forms –2 ions. Relationships: Ca2+ and O2– must combine in a ratio that will balance out the positive and negative charges.

  18. Ionic formulas What is the correct formula for calcium oxide, a compound used in making paper and pottery, and adjusting the pH of soils? Asked: The formula for the ionic compound calcium oxide Given: Calcium oxide is made from calcium and oxygen ions. Calcium forms +2 ions and oxygen forms –2 ions. Relationships: Ca2+ and O2– must combine in a ratio that will balance out the positive and negative charges. Solve: The charge on one Ca2+ ion will balance out with the charge on one O2– ion. Therefore the ratio is 1:1 and the formula is CaO.

  19. Covalent bonds

  20. Covalent bonds Unpaired electrons (form bonds) Paired electrons (do NOT form bonds) Lewis dot diagrams Valence electrons 3 4 5 6 Electrons available for bonding 3 4 3 2

  21. Covalent bonds All atoms have 1 bond. All atoms have 4 bonds. All atoms have 2 bonds. All atoms of the same element form the same number of bonds.

  22. Covalent bonds Bonds form in such a way that each atom in the compound achieves the same number of valence electrons as the closest noble gas atom.

  23. Covalent bonds

  24. Covalent bonds Electrons are transferred so that each element has 8 valence electrons and has the same configuration as the closest noble gas. The light elements H, Li, Be, and B prefer to have 2 valence electrons. Ion formation Atoms gain or lose one or more electrons to reach the same electron configuration as the closest noble gas, with 8 valence electrons. octet rule: rule that states that elements transfer or share electrons in chemical bonds to reach a stable configuration of eight valence electrons.
