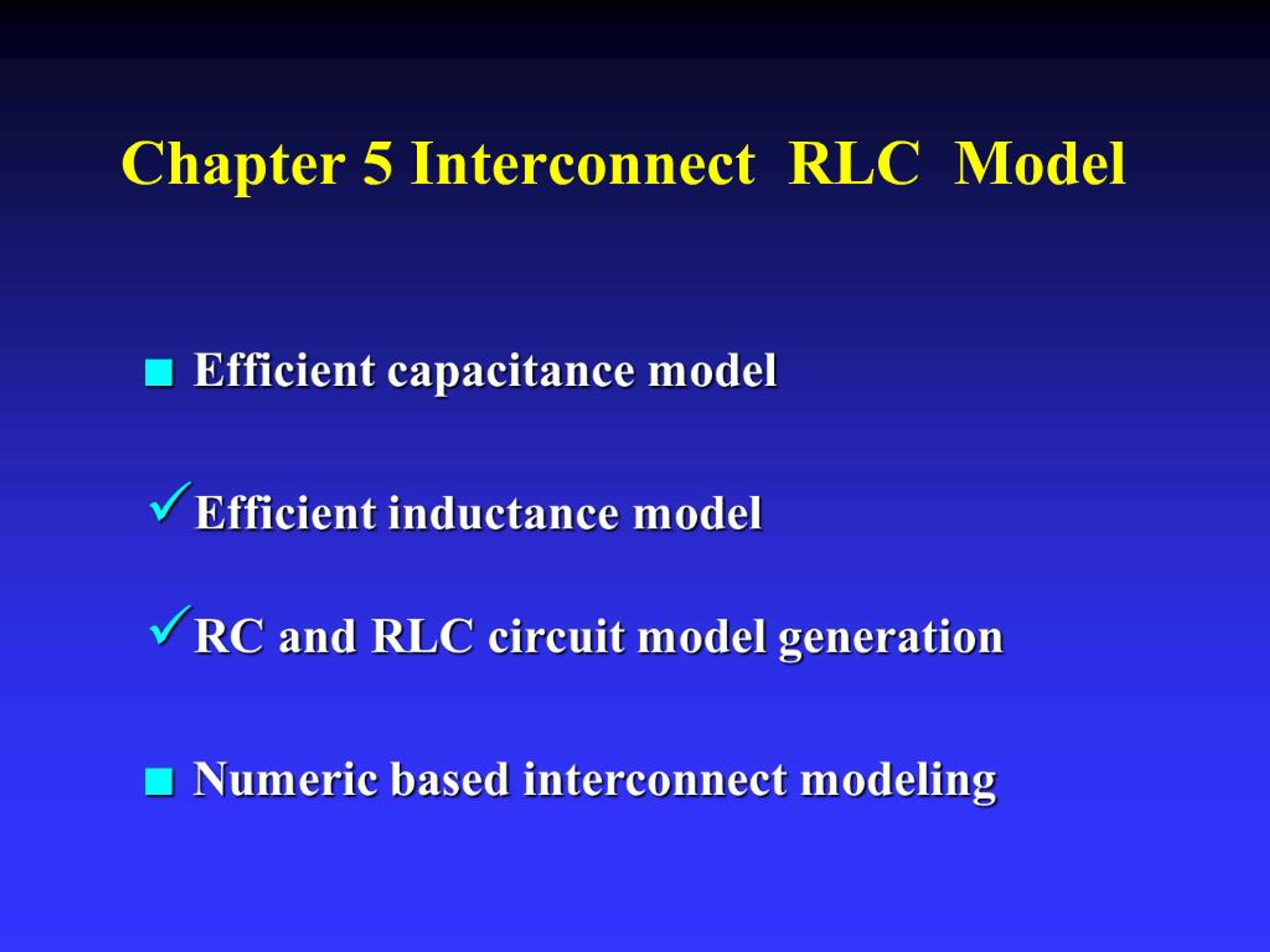

Chapter 5 Interconnect RLC Model

Is RC Model still Sufficient? . Interconnect impedance is more than resistanceZ ? R j?L? ? 1/trOn-chip inductance should be considered When ?L becomes comparable to R as we move towards Ghz designs. Candidates for On-Chip Inductance. Wide clock treesSkews are different under RLC and RC mo
