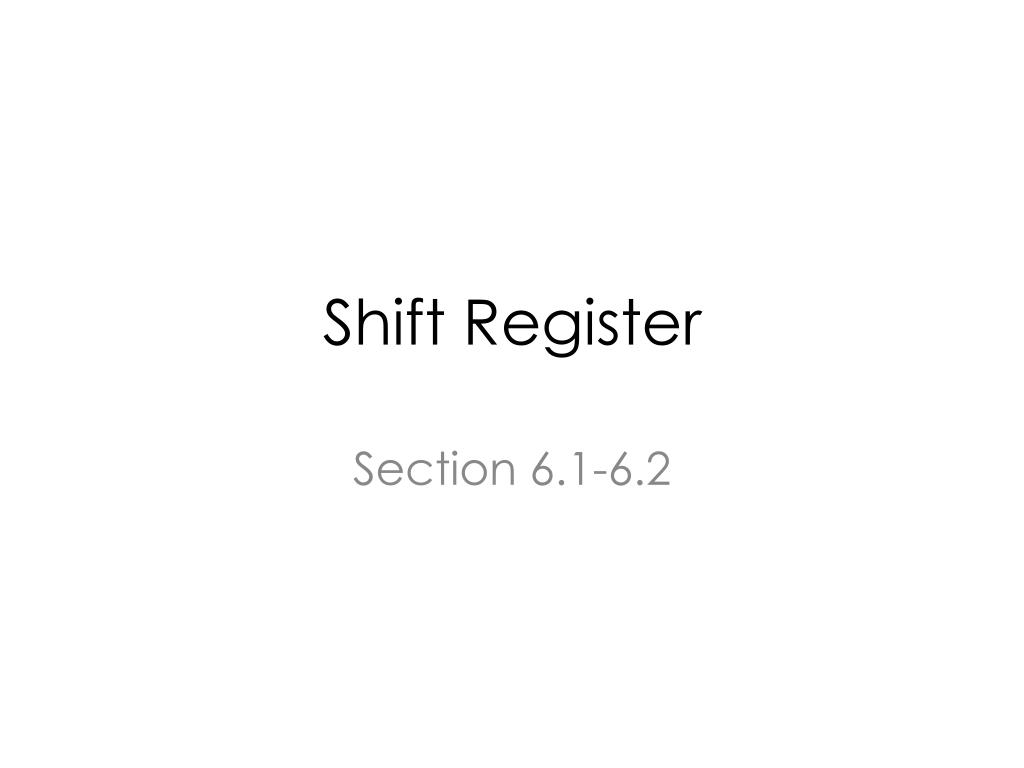

1. Shift Register Section 6.1-6.2

2. Register • A register is a group of flip-flops, each one of which is capable of storing one bit of information. • Issues of the circuit to the right. • You do not have an option hold the output when you don’t want to outputs updated. 4 D flip-flops=4 bits of storage=4-bit register

3. 4-bit Register with Parallel Load Control

4. Load=“1”→Update I0 is fed to DFF when Load is a 1. “0” “1” “1” “0” “I0” “I0”

5. Load=“0”→Hold! A0 is fed to DFF when Load is a 0. So the output is holding! “1” “0” “0” “A0” “A0” “0” We will revisit this idea when we study the universal shift register.

6. Four-Bit Serial Shift Register 1 2 3 4 Q of DFF1 gets SI after the first rising edge of the CLK Q of DFF2 gets SI after the second rising edge of the CLK Q of DFF3 gets SI after the third rising edge of the CLK Q of DFF4 gets SI after the fourth rising edge of the CLK

7. Linear Feedback Shift Register Exclusive OR

8. Content of Four-Bit Shift Register

9. Block Diagram of a Universal Shift Register This is called the universal shift register because it has both shifts and parallel load capabilities.

10. Functionality of the Universal Shift Register Clear: to clear the register to 0. CLK: to synchronize the operations. {S1,S0} for mode control. A_par: register output I_par: register input MSB_inand LSB_in: serial inputs

11. Detail Implementation

12. Four-to-one-line Mux

13. Four-to-one-line Mux 0 0 0 0 I2 I2 I2 1 0 1 0 1 0

14. Mode Control

15. S0=0, S1=0 [No Change Mode] S0=0, S1=0

16. S0=1, S1=0 [Shift Right Mode] S1=0 , S0=1

17. S0=0, S1=1 [Shift Left Mode] S1=1 , S0=0

18. S0=1, S1=1 [Parallel Load Mode] S1=1 , S0=1

19. Breadboard Implementation Universal shift regsiter Random Number Generator

20. Waveform Random A3 A2 A1 A0 CLK

21. 4-Bit Universal Shift Register

22. Behavioral Vs. Structural Description • Behavioral Description • Behavior model of a shift register • Describe the operation of the register without a preconceived structure. • Random number generator • Binary values of msb_in, lsb_in, i_par • Structural Description • Models the circuits in terms of a collection of components such as gates, flip-flops…

23. Behavioral Model of Shift Regsiter

24. Test Bench Test all input combinations by flipping {S1, S0} 1. Generate random number With matlab Read random number at the neg edge of the clock Read numbers to i_par[3:0],msb_in, lsb_in at the negedge of t_clock

25. [s1,s0=[1,1], Load i_par=0111 a_par=0111

26. [s1,s0]=[0,0], No Change i_par=0111 a_par=0011

27. [s1,s0]=[1,0], Shift Left 1101 1011 LSB_in

28. [s1,s0]=[0,1], Shift Right

29. Synthesized Schematic

30. Structural Modeling of a 4-Bit Universal Shift Register Q clr clk select i3 i1 i0 i2

31. Waveform Load No Change Shift Right Shift Left

32. 4-bit Universal Shift Register

33. Verilog Code of Each Stage

34. In-Class Exercise

35. Load=“1”→Update I0 is fed to DFF when Load is a 1. “0” “1” “1” “0” “I0” “I0”

36. Load=“0”→Hold! A0 is fed to DFF when Load is a 0. So the output is holding! “1” “0” “0” “A0” “A0” “0” We will revisit this idea when we study the universal shift register.

37. S0=0, S1=0 [No Change Mode] S0=0, S1=0

38. S0=1, S1=0 [Shift Right Mode] S1=0 , S0=1

39. S0=0, S1=1 [Shift Left Mode] S1=1 , S0=0

40. S0=1, S1=1 [Parallel Load Mode] S1=1 , S0=1

41. If time permits

42. Serial Transfer Using Shift Register Information in A is made to circulate by connecting SO to SI.

44. Parallel Transfer Versus Serial Transfer (Serial Transfer) Take multiple clock cycles to transfer data. Assume n=4, each shift Register has 4 DFF. Parallel Transfer Transfer all the bit in one clock cycle. Require combinatorial circuits.

45. Augend, Addend & Sum 1011 +1001 ______ 10100 Augend Addend Sum

46. Serial Adder Assuming a shift-right register, the left most position becomes available for storage after the second rising edge of the clock. 1 0 (Augend) 1 1 Feed “1” to z at the next rising edge of the CLK (Addend) Note that The sum can be stored in a third register. But if you want to save shift register, you can store it in A since more and more slots in SRA become available.

47. Serial Adder At the end of T4 S3 S2S1S0A3 Co D2D1D0B3 A3A2A1A0 B3B2B1B0 ________________ CoS3S2S1S0

48. Allowing the Serial Adder to Accumulate T3 T2T1T0S3 Ro X2X1X0D3 Co S3 S2 S1S0 D3D2D1D0 ________________ Ro T3 T2 T1 T0

49. Accumulate with a Shift Register • A, B and D, each represents a 4 bit sequence. • We want to perform A+B+D • Store A in shift register A. • Store B in shift register B. • Allow the CLK to go on for a couple of cycles. • Store the sum bits of A+B in Shift A and allow D to enter shift register B. • Allow more cycles of CLK. • Add D to A+B, and allow A+B+C to enter shift register A.
