  1. Chapter 5 SQL

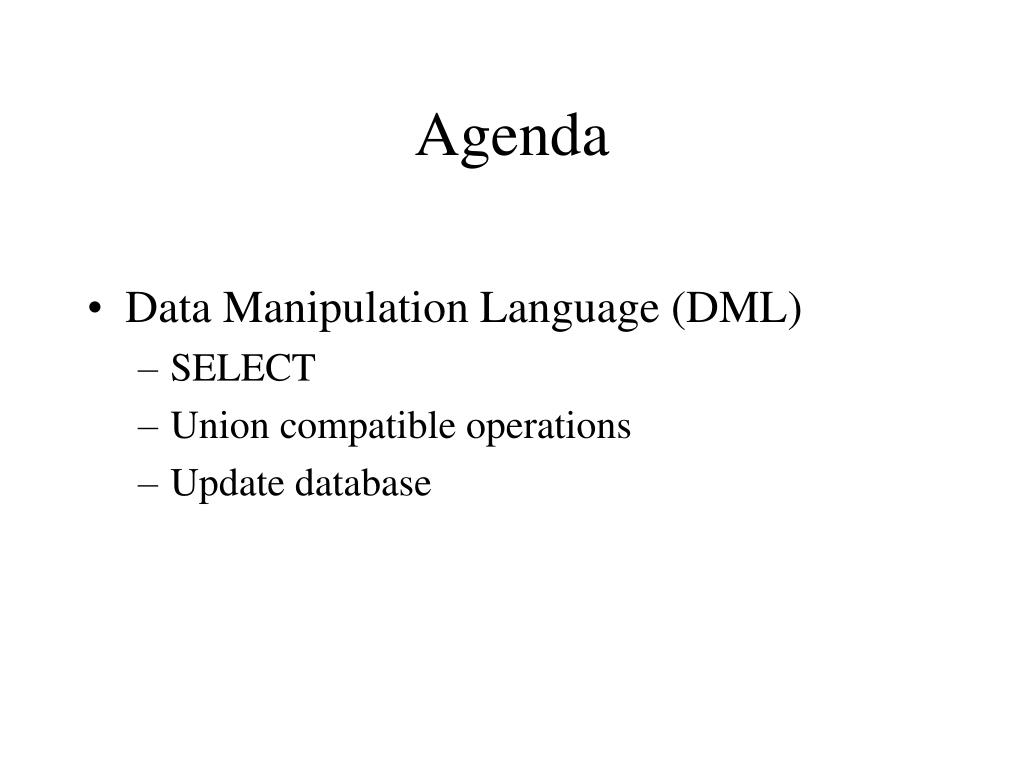

  2. Agenda • Data Manipulation Language (DML) • SELECT • Union compatible operations • Update database

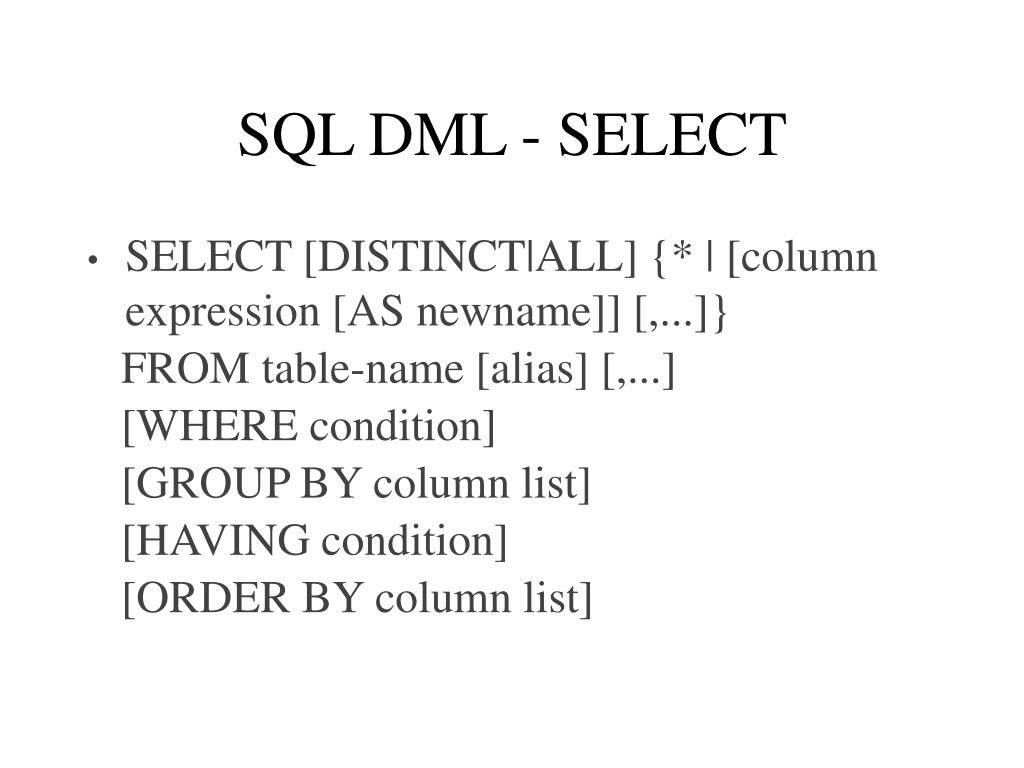

  3. SQL DML - SELECT • SELECT [DISTINCT|ALL] {* | [column expression [AS newname]] [,...]} FROM table-name [alias] [,...] [WHERE condition] [GROUP BY column list] [HAVING condition] [ORDER BY column list]

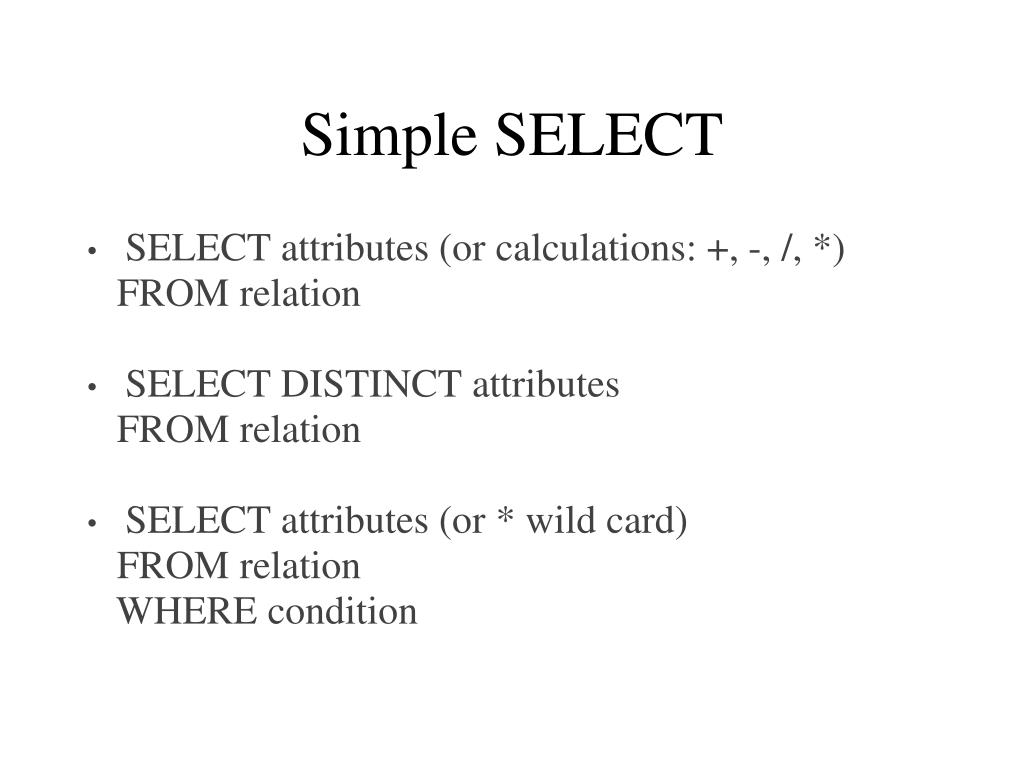

  4. Simple SELECT • SELECT attributes (or calculations: +, -, /, *) FROM relation • SELECT DISTINCT attributes FROM relation • SELECT attributes (or * wild card) FROM relation WHERE condition

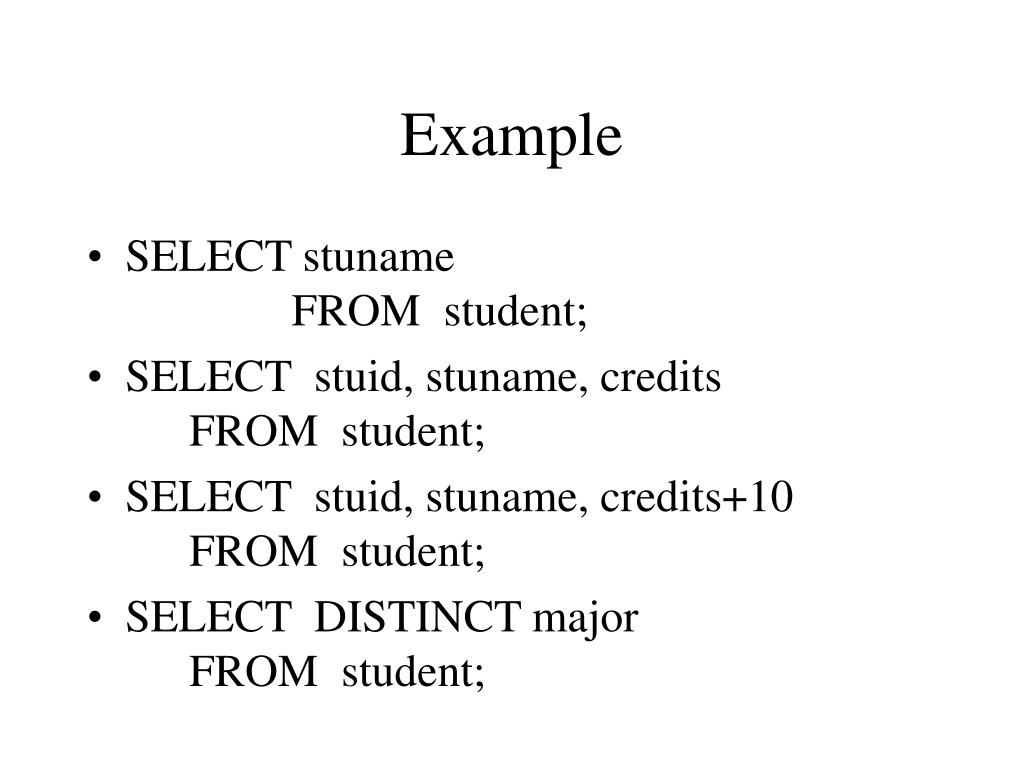

  5. Example • SELECT stuname FROM student; • SELECT stuid, stuname, credits FROM student; • SELECT stuid, stuname, credits+10 FROM student; • SELECT DISTINCT major FROM student;

  6. SELECT * FROM student; • SELECT stuname, major, credits FROM student WHERE stuid = ‘S114’; • SELECT * FROM faculty WHERE dept = ‘MIS’;

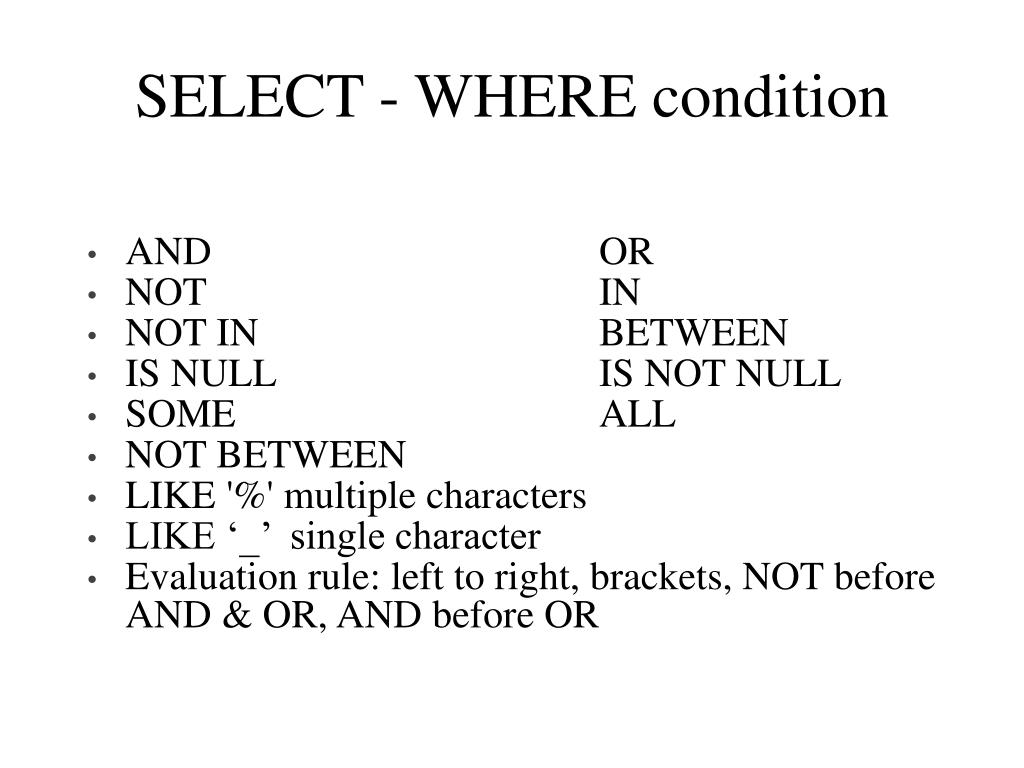

  7. SELECT - WHERE condition • AND OR • NOT IN • NOT IN BETWEEN • IS NULL IS NOT NULL • SOME ALL • NOT BETWEEN • LIKE '%' multiple characters • LIKE ‘_’ single character • Evaluation rule: left to right, brackets, NOT before AND & OR, AND before OR

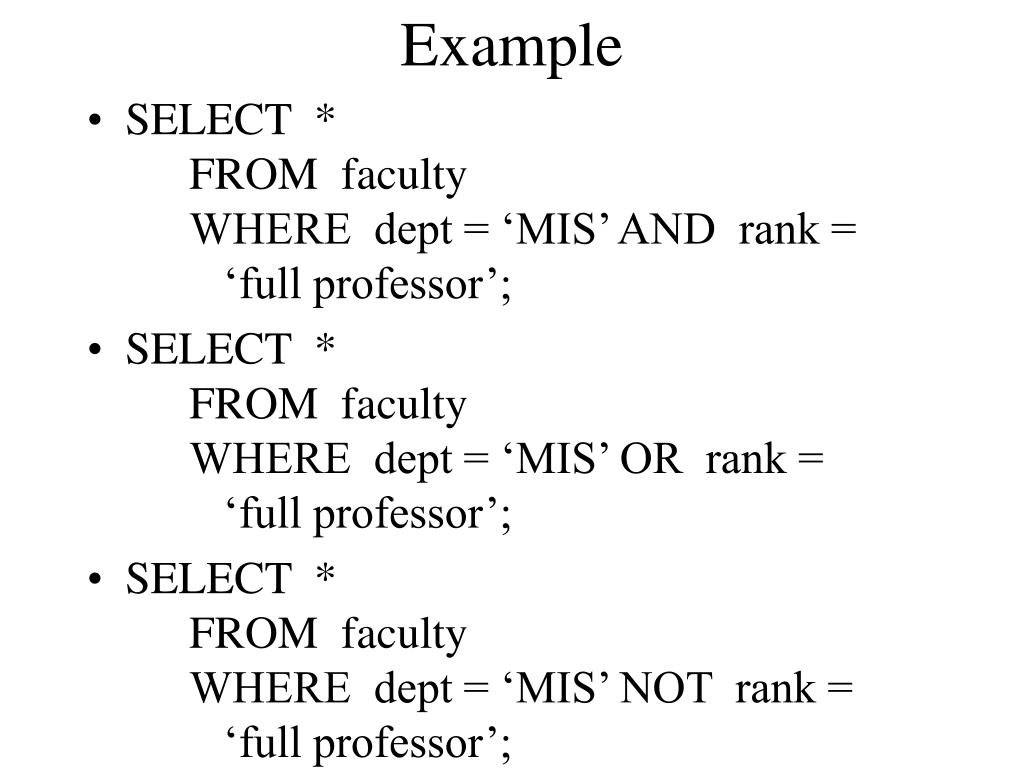

  8. Example • SELECT * FROM faculty WHERE dept = ‘MIS’ AND rank = ‘full professor’; • SELECT * FROM faculty WHERE dept = ‘MIS’ OR rank = ‘full professor’; • SELECT * FROM faculty WHERE dept = ‘MIS’ NOT rank = ‘full professor’;

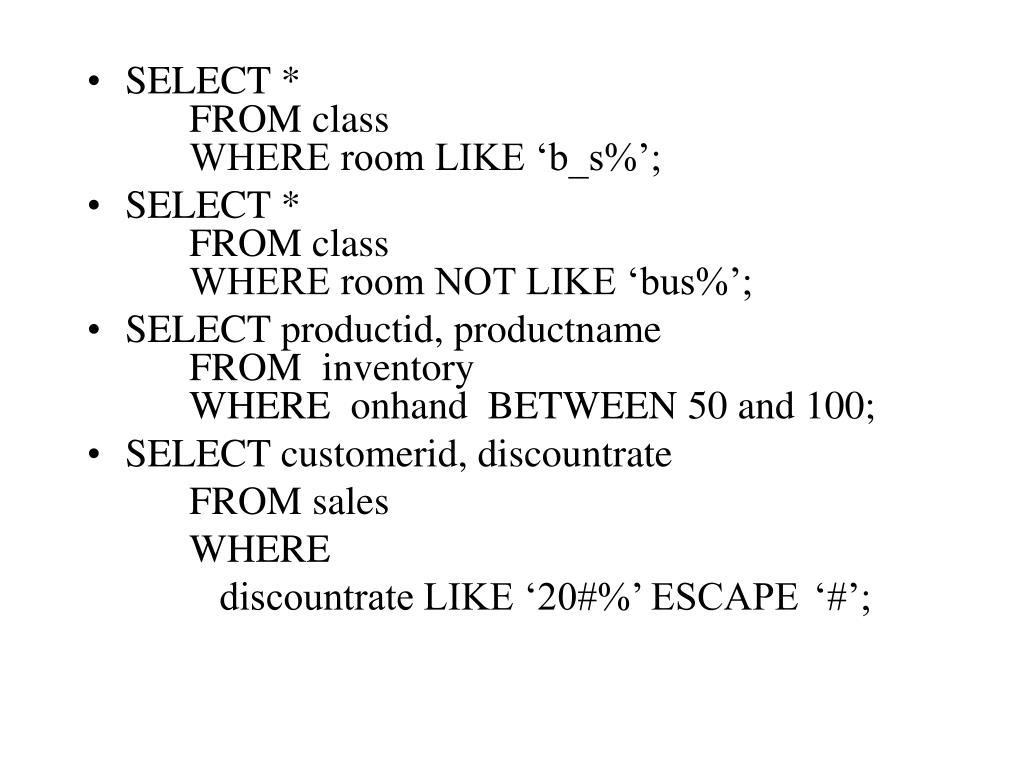

  9. SELECT * FROM class WHERE room LIKE ‘b_s%’; • SELECT * FROM class WHERE room NOT LIKE ‘bus%’; • SELECT productid, productname FROM inventory WHERE onhand BETWEEN 50 and 100; • SELECT customerid, discountrate FROM sales WHERE discountrate LIKE ‘20#%’ ESCAPE ‘#’;

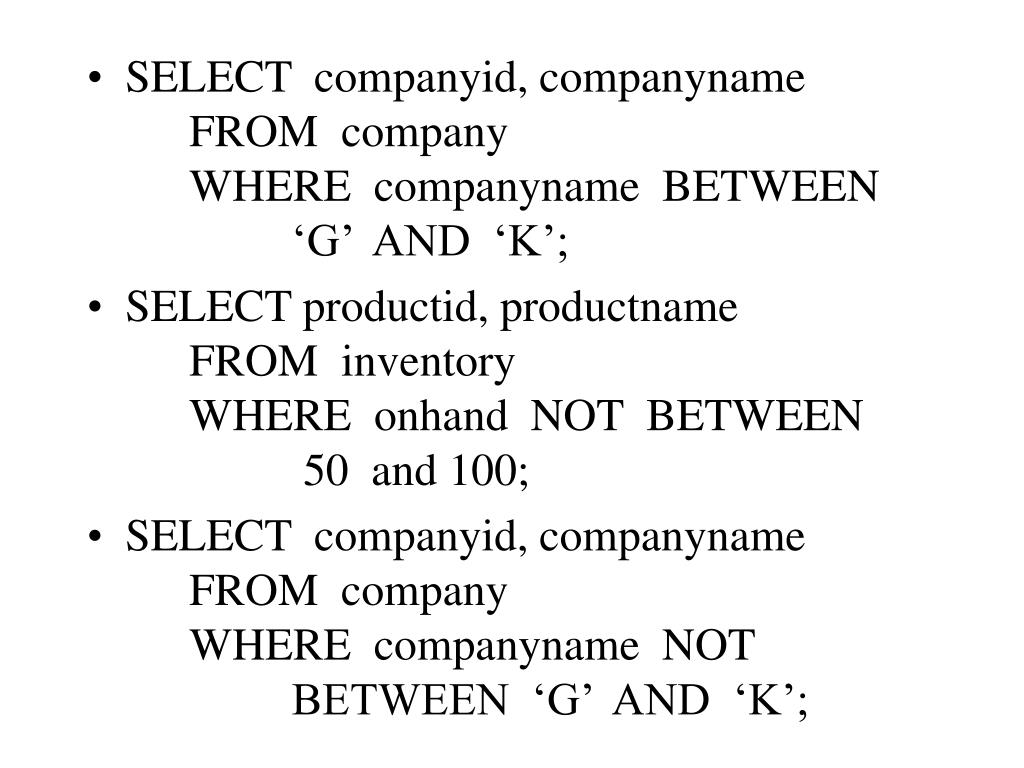

  10. SELECT companyid, companyname FROM company WHERE companyname BETWEEN ‘G’ AND ‘K’; • SELECT productid, productname FROM inventory WHERE onhand NOT BETWEEN 50 and 100; • SELECT companyid, companyname FROM company WHERE companyname NOT BETWEEN ‘G’ AND ‘K’;

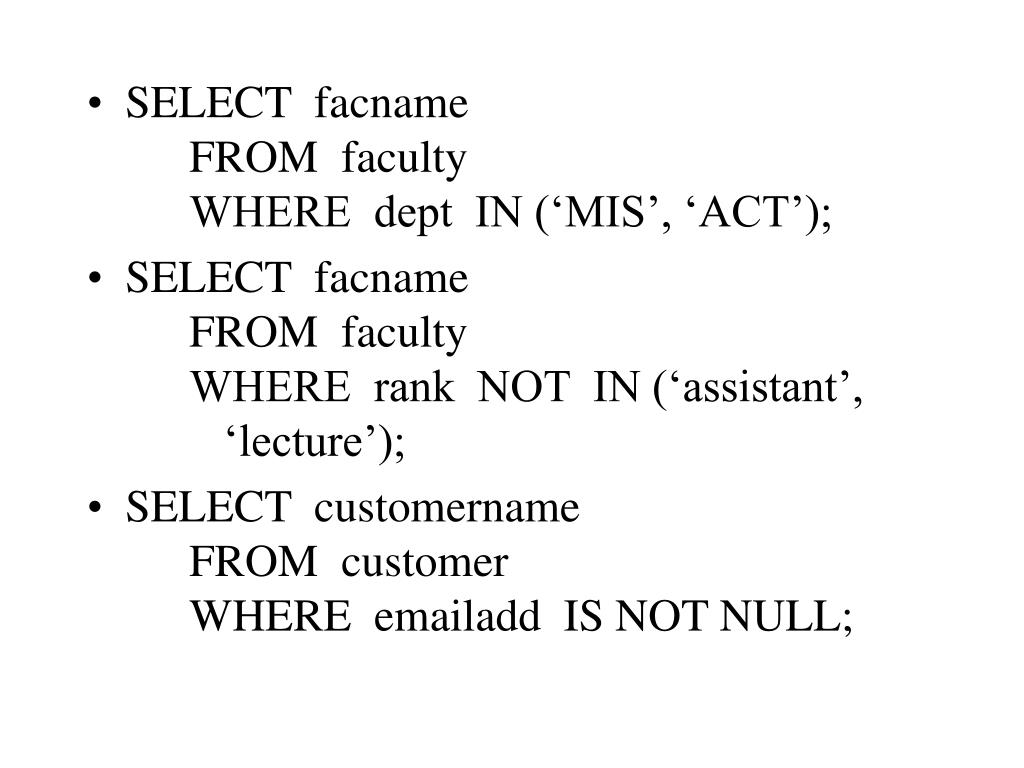

  11. SELECT facname FROM faculty WHERE dept IN (‘MIS’, ‘ACT’); • SELECT facname FROM faculty WHERE rank NOT IN (‘assistant’, ‘lecture’); • SELECT customername FROM customer WHERE emailadd IS NOT NULL;

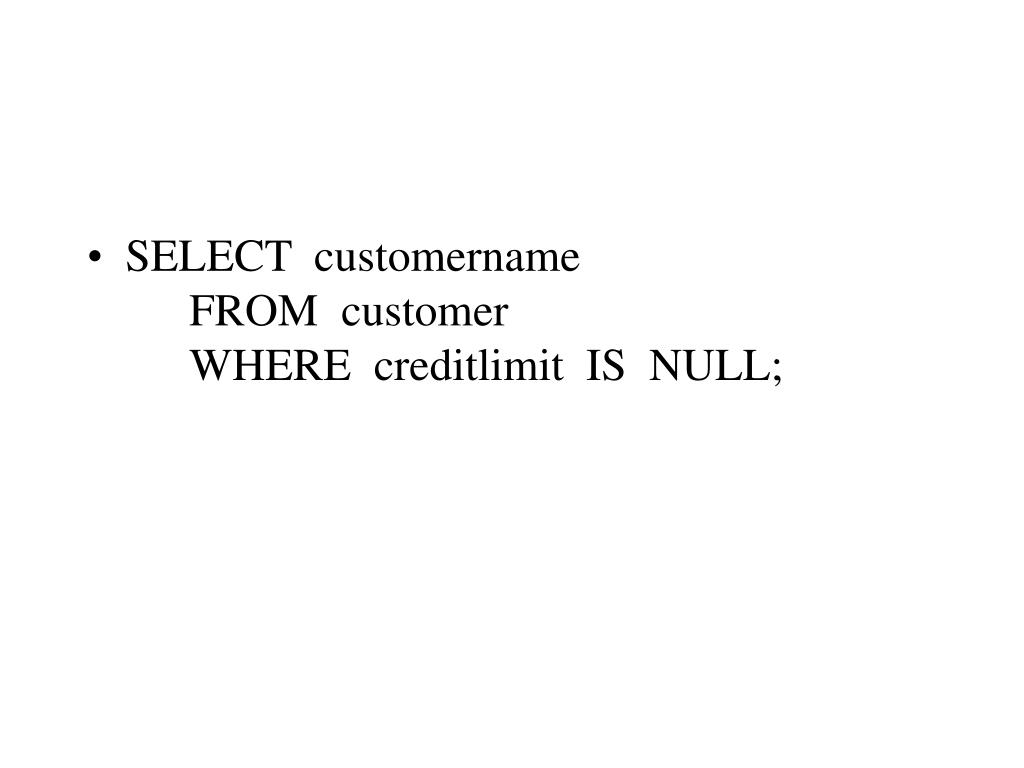

  12. SELECT customername FROM customer WHERE creditlimit IS NULL;

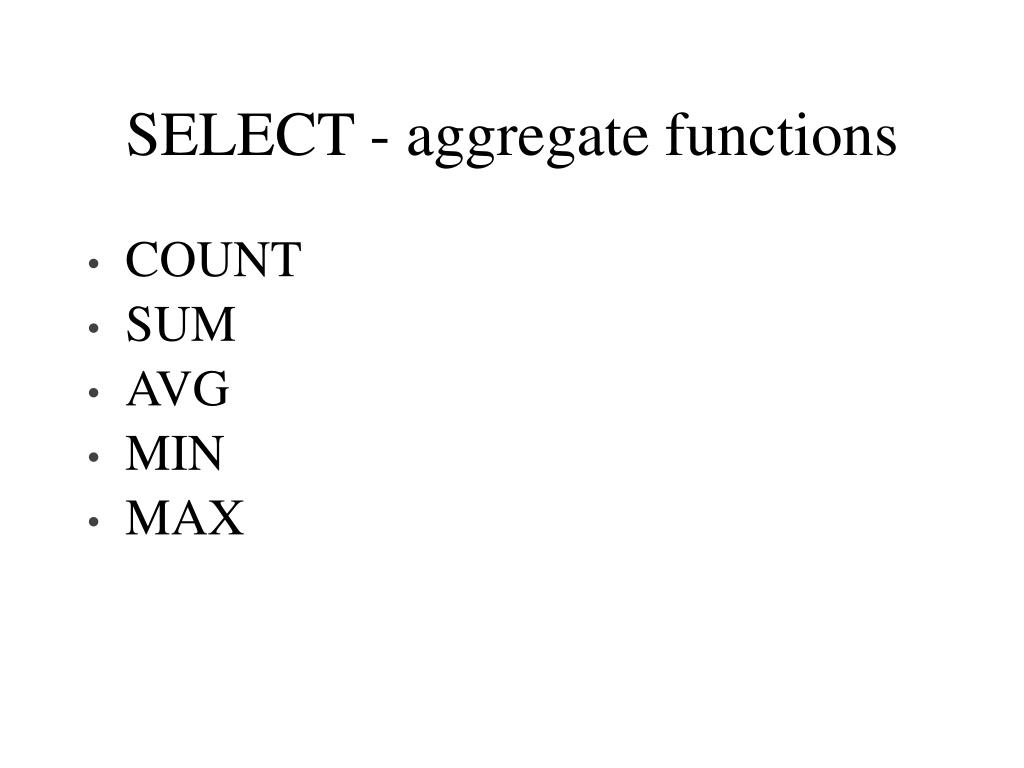

  13. SELECT - aggregate functions • COUNT • SUM • AVG • MIN • MAX

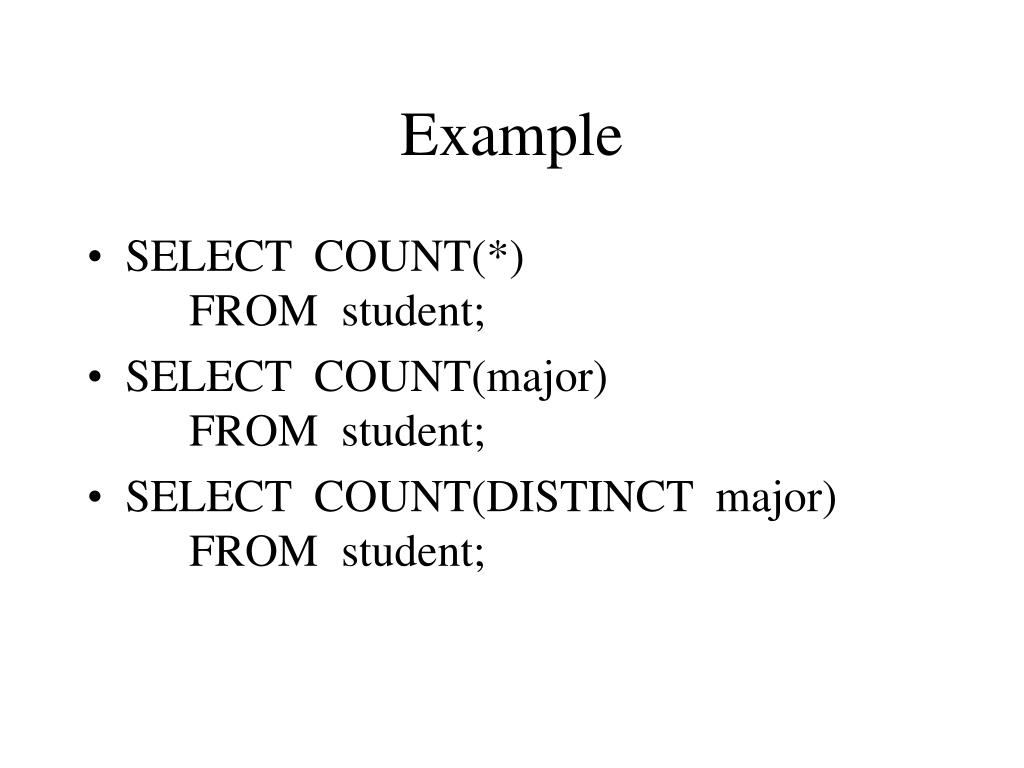

  14. Example • SELECT COUNT(*) FROM student; • SELECT COUNT(major) FROM student; • SELECT COUNT(DISTINCT major) FROM student;

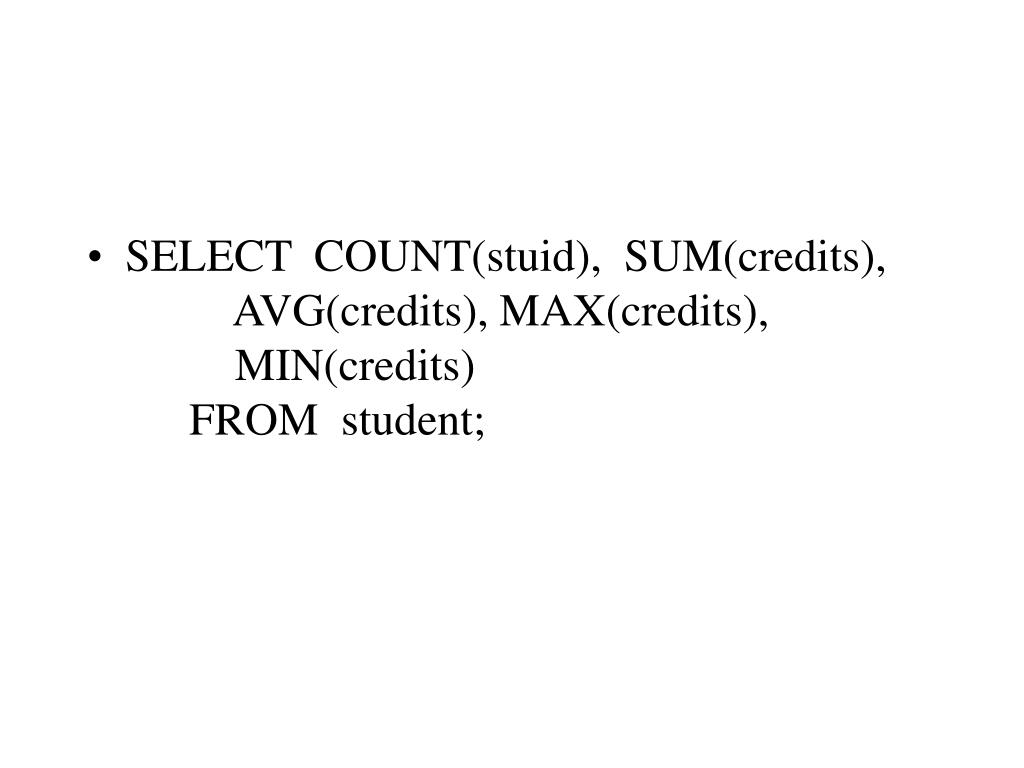

  15. SELECT COUNT(stuid), SUM(credits), AVG(credits), MAX(credits), MIN(credits) FROM student;

  16. How many different guests have made bookings for August 2004? • Hotel (hotelno, hotelname, city) • Room (roomno, hotelno, type, price) • Booking (hotelno, guestno, datefrom, dateto, roomno) • Guest (guestno, guestname, guestaddress)

  17. How many different guests have made bookings for August 2004? • SELECT COUNT(DISTINCT guestno) • FROM booking • WHERE (datefrom <= ‘8/31/04’) AND • (dateto >= ‘8/1/04’);

  18. SELECT - GROUP • GROUP BY • HAVING

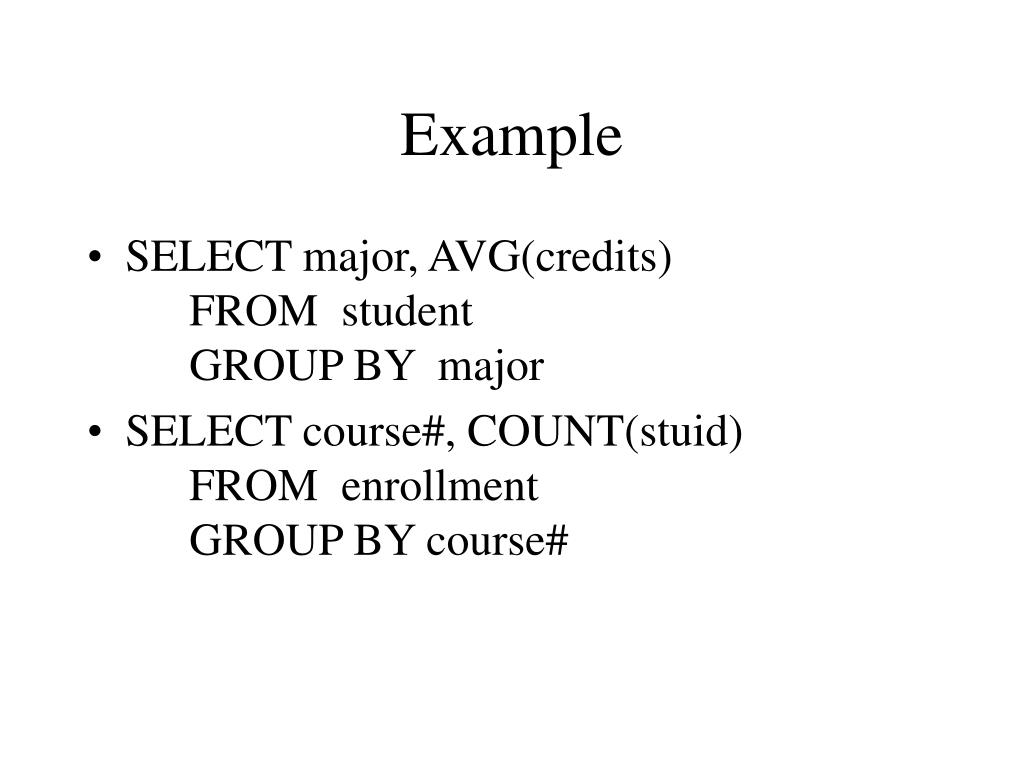

  19. Example • SELECT major, AVG(credits) FROM student GROUP BY major • SELECT course#, COUNT(stuid) FROM enrollment GROUP BY course#

  20. Example • SELECT major, AVG(credits) FROM student GROUP BY major HAVING COUNT(*) > 2; • SELECT course#, COUNT(stuid) FROM enrollment GROUP BY course# HAVING COUNT(*) > 2;

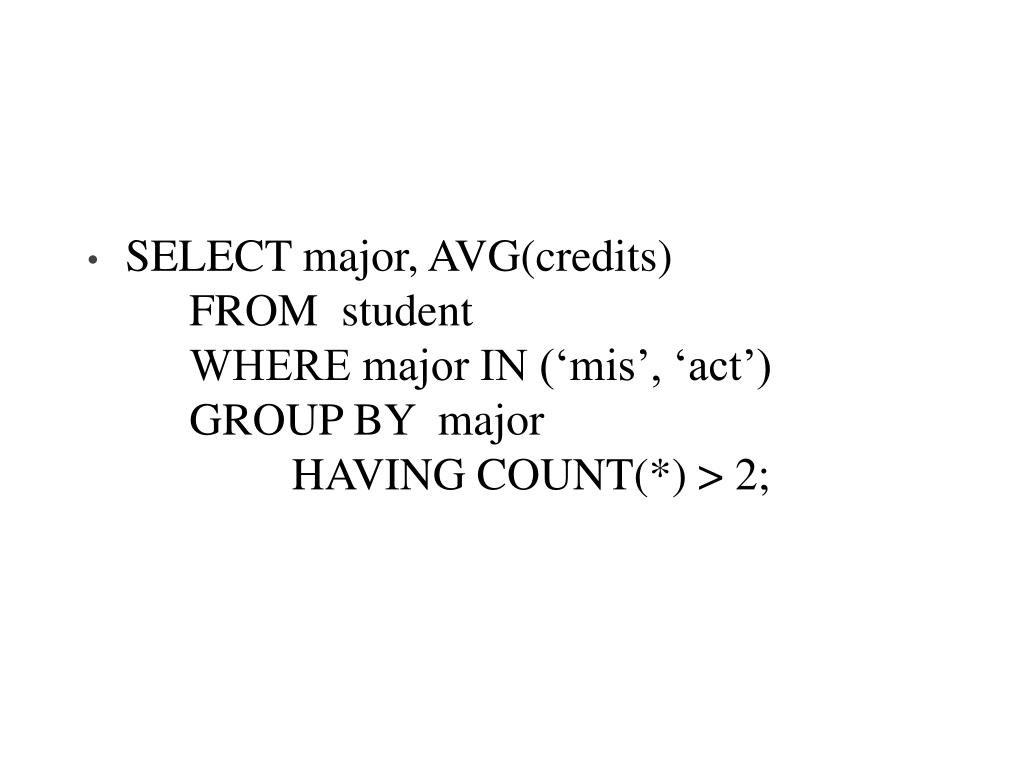

  21. SELECT major, AVG(credits) FROM student WHERE major IN (‘mis’, ‘act’) GROUP BY major HAVING COUNT(*) > 2;

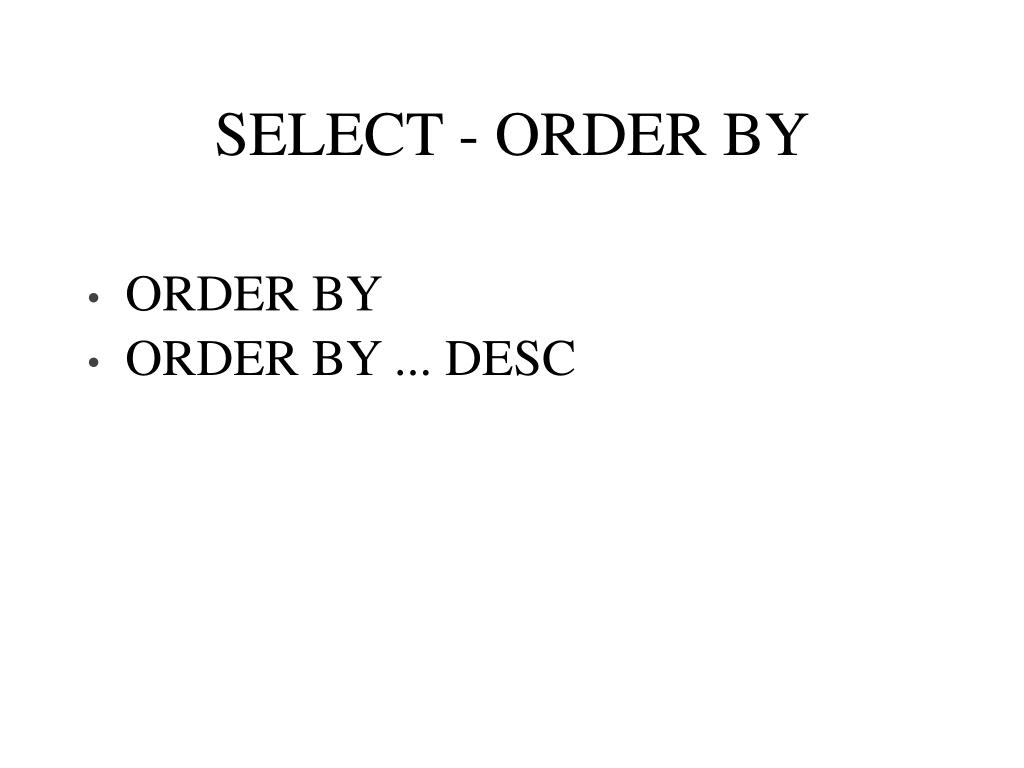

  22. SELECT - ORDER BY • ORDER BY • ORDER BY ... DESC

  23. Example • SELECT facname, rank FROM faculty ORDER BY facname; • SELECT facname, rank FROM faculty ORDER BY rank DESC, facname;

  24. SELECT - JOIN Tables • Multiple tables in FROM clause • MUST have join conditions!!!

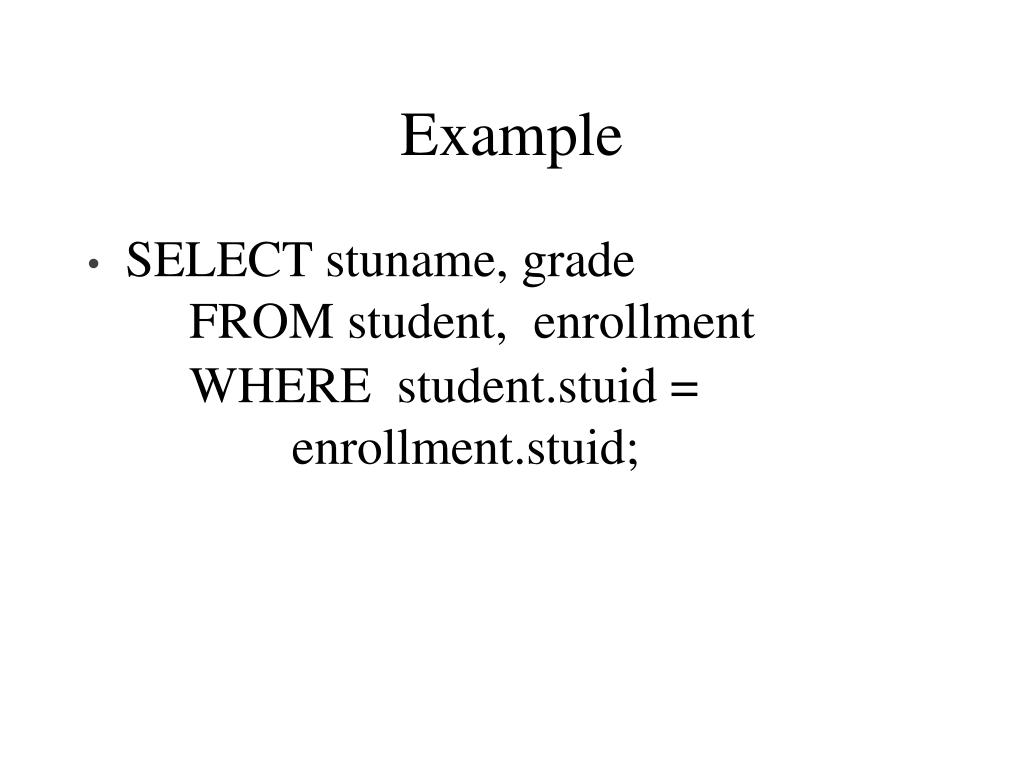

  25. Example • SELECT stuname, grade FROM student, enrollment WHERE student.stuid = enrollment.stuid;

  26. List course#, stuname and major for faculty number is equal to f114 • SELECT enrollment.course#, stuname, major FROM class, enrollment, student WHERE class.course# = enrollment.course# AND enrollment.stuid = student.stuid AND facid = ‘F114’ ORDER BY enrollment.course#;

  27. OUTER JOINS • RIGHT JOIN • LEFT JOIN • FULL JOIN • Appending (+) to the optional column (null) in the join condition (Oracle)

  28. Example • List the faculty member who does not teach any class • SELECT f.facid, f.facname FROM class c, faculty f WHERE c.facid (+) = f.facid AND c.course# is null ORDER BY f.facname; (right outer join)

  29. List the faculty member who does not teach any class • SELECT f.facid, f.facname FROM class c RIGHT JOIN faculty f ON c.facid = f.facid WHERE c.course# is null ORDER BY f.facname; (right outer join)

  30. List the student name and major who is not enrolled in any class • SELECT s.stuname, major FROM student s, enrollment e WHERE s.stuid = e.stuid (+) AND e.stuid is null ORDER BY s.stuname; (left outer join)

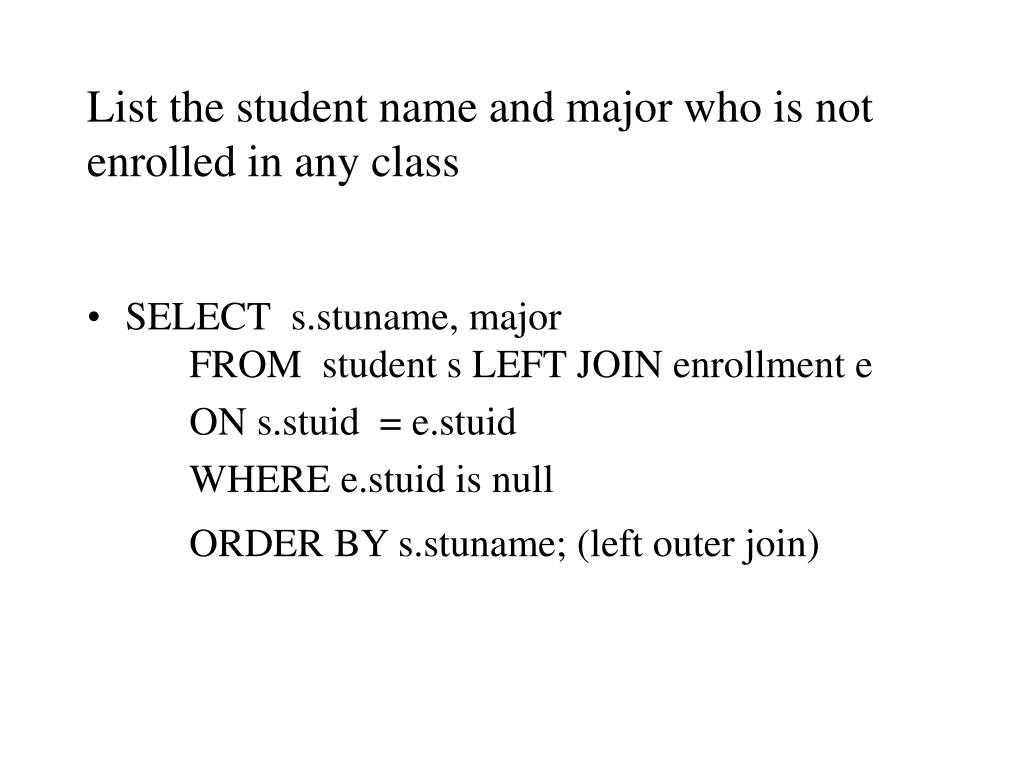

  31. List the student name and major who is not enrolled in any class • SELECT s.stuname, major FROM student s LEFT JOIN enrollment e ON s.stuid = e.stuid WHERE e.stuid is null ORDER BY s.stuname; (left outer join)

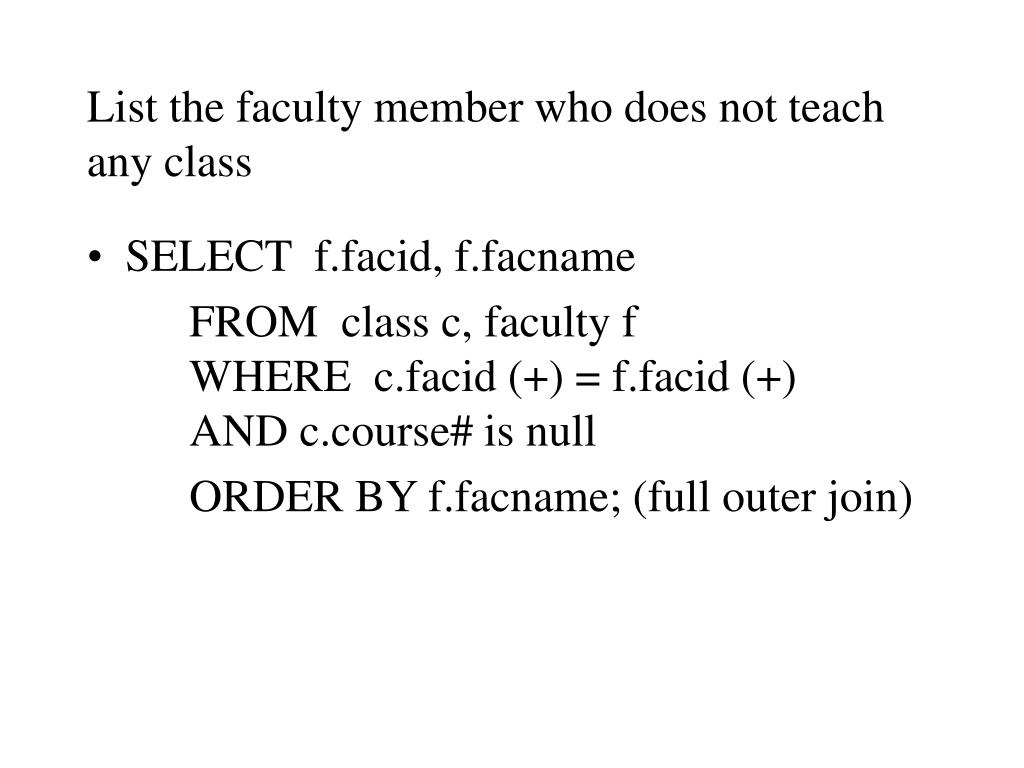

  32. List the faculty member who does not teach any class • SELECT f.facid, f.facname FROM class c, faculty f WHERE c.facid (+) = f.facid (+) AND c.course# is null ORDER BY f.facname; (full outer join)

  33. List the faculty member who does not teach any class • SELECT f.facid, f.facname FROM class c FULL JOIN faculty f ON c.facid = f.facid WHERE c.course# is null ORDER BY f.facname; (full outer join)

  34. Example • List the number of room in each hotel in London. • Hotel (hotelno, hotelname, city) • Room (roomno, hotelno, type, price) • Booking (hotelno, guestno, datefrom, dateto, roomno) • Guest (guestno, guestname, guestaddress)

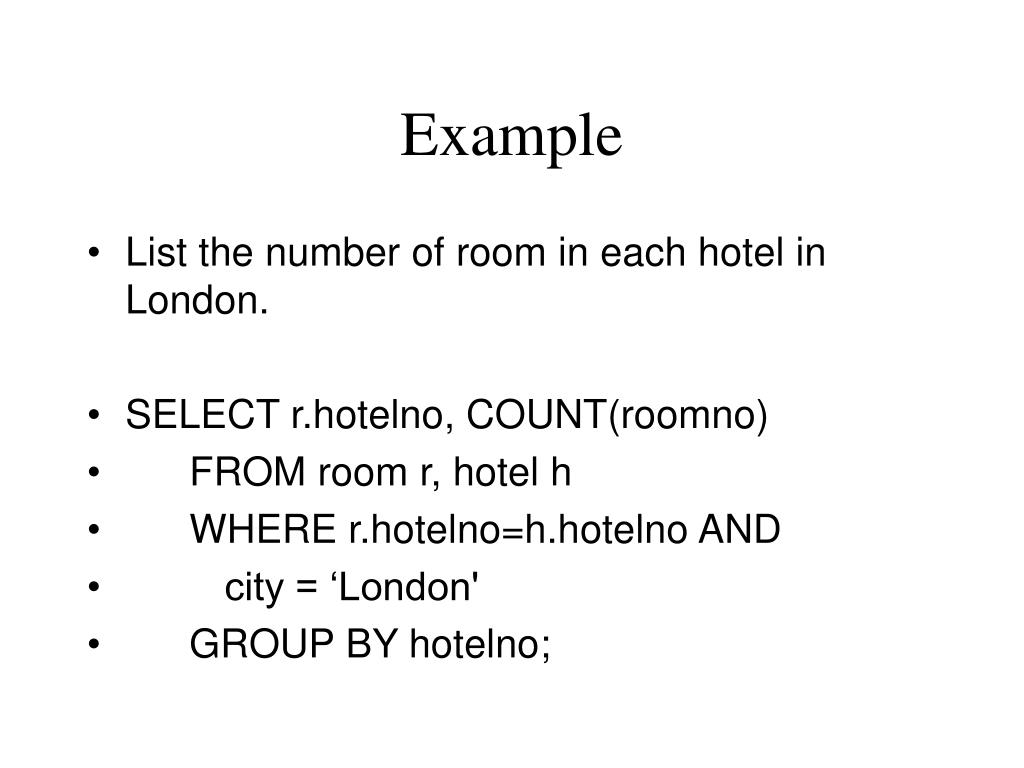

  35. Example • List the number of room in each hotel in London. • SELECT r.hotelno, COUNT(roomno) • FROM room r, hotel h • WHERE r.hotelno=h.hotelno AND • city = ‘London' • GROUP BY hotelno;

  36. Union Compatible Operations • UNION • MINUS or EXCEPT • INTERSECT • Union compatible operator [ALL] [CORRESPONDING][BY column,..] (ALL includes duplicated rows in the result) • Used between SELECT commands

  37. Example • SELECT stuid, stuname FROM sacstudent UNION SELECT stuid, stuname FROM chicostudent; • SELECT * • FROM sacstudent UNION CORRESPONDING BY stuid, stuname SELECT * FROM chicostudent;

  38. SELECT stuid, stuname FROM sacstudent EXCEPT SELECT stuid, stuname FROM chicostudent; • (SELECT stuid, stuname FROM sacstudent) INTERSECT (SELECT stuid, stuname FROM chicostudent) ORDER BY 2;

  39. Column Alias • SELECT prodid, prodname, (salesprice - goodofcost) profit FROM product ORDER BY prodid; • SELECT prodid, prodname, (salesprice - goodofcost) AS profit FROM product ORDER BY prodid;

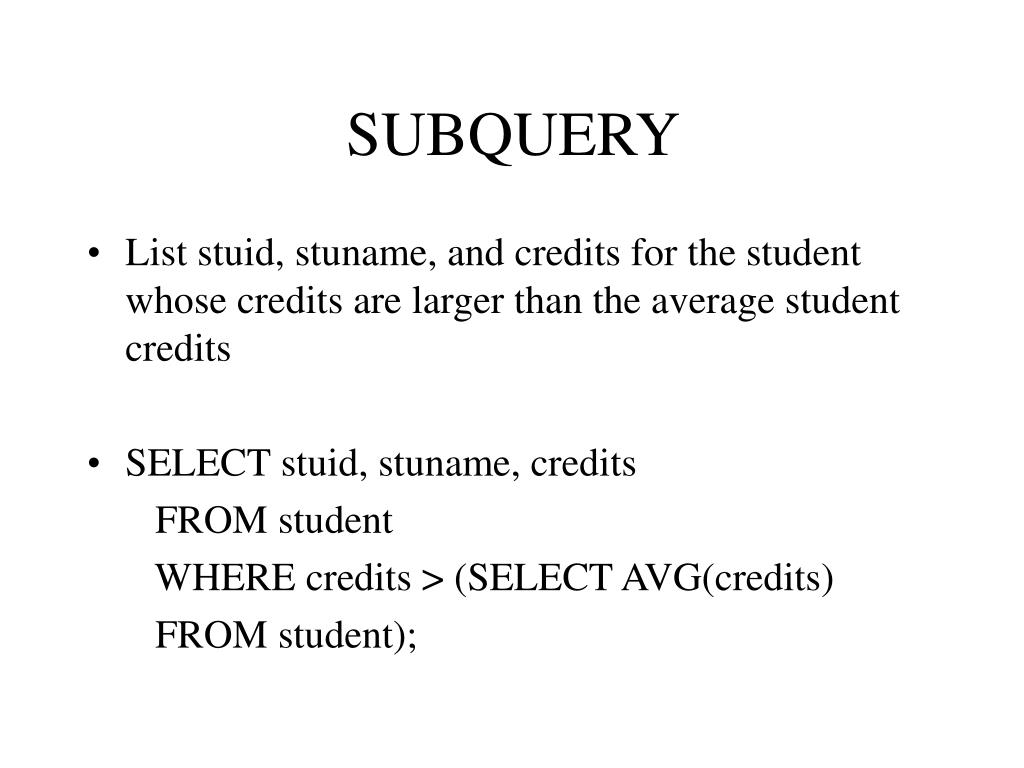

  40. SUBQUERY • List stuid, stuname, and credits for the student whose credits are larger than the average student credits • SELECT stuid, stuname, credits FROM student WHERE credits > (SELECT AVG(credits) FROM student);

  41. List stuid, stuname, and major of those student who is enrolled in a class • SELECT stuid, stuname, major FROM student WHERE stuid IN (SELECT stuid FROM enrollment);

  42. List stuid, stuname, and major of those student who is not enrolled in a class • SELECT stuid, stuname, major FROM student WHERE stuid NOT IN (SELECT stuid FROM enrollment)

  43. Example • What is the most commonly booked room type for all hotels in London? • Hotel (hotelno, hotelname, city) • Room (roomno, hotelno, type, price) • Booking (hotelno, guestno, datefrom, dateto, roomno) • Guest (guestno, guestname, guestaddress)

  44. Find the type with its number of rooms of every room in London • SELECT type, COUNT(type) AS y FROM booking b, hotel h, room r WHERE r.roomno = b.roomno AND r.hotelno = b.hotelno AND b.hotelno = h.hotelno AND city = 'London' GROUP BY type

  45. What is the most commonly booked room type for all hotels in London? • SELECT type, MAX(y) • FROM • (SELECT type, COUNT(type) AS y • FROM booking b, hotel h, room r • WHERE r.roomno = b.roomno AND r.hotelno = b.hotelno AND • b.hotelno = h.hotelno AND • city = 'London' • GROUP BY type) • GROUP BY type;

  46. EXIST • Find student name and major who is enrolled in a class • SELECT s.stuname, major FROM student s WHERE EXIST (SELECT * FROM enrollment e WHERE s.stuid = e.stuid);

  47. NOT EXIST • Find student name and major who is not enrolled in a class • SELECT s.stuname, major FROM student s WHERE NOT EXIST (SELECT * FROM enrollment e WHERE s.stuid = e.stuid);

  48. SOME • Find stuid, stuname, major, and credits of the student whose credits are greater than some mis students’ credits • SELECT stuid, stuname, major, credits FROM student WHERE credits > SOME (SELECT credits FROM student WHERE major=‘mis’);

  49. ANY • Find stuid, stuname, major, and credits of the student whose credits are greater than any mis student’s credits • SELECT stuid, stuname, major, credits FROM student WHERE credits > ANY (SELECT credits FROM student WHERE major=‘mis’);

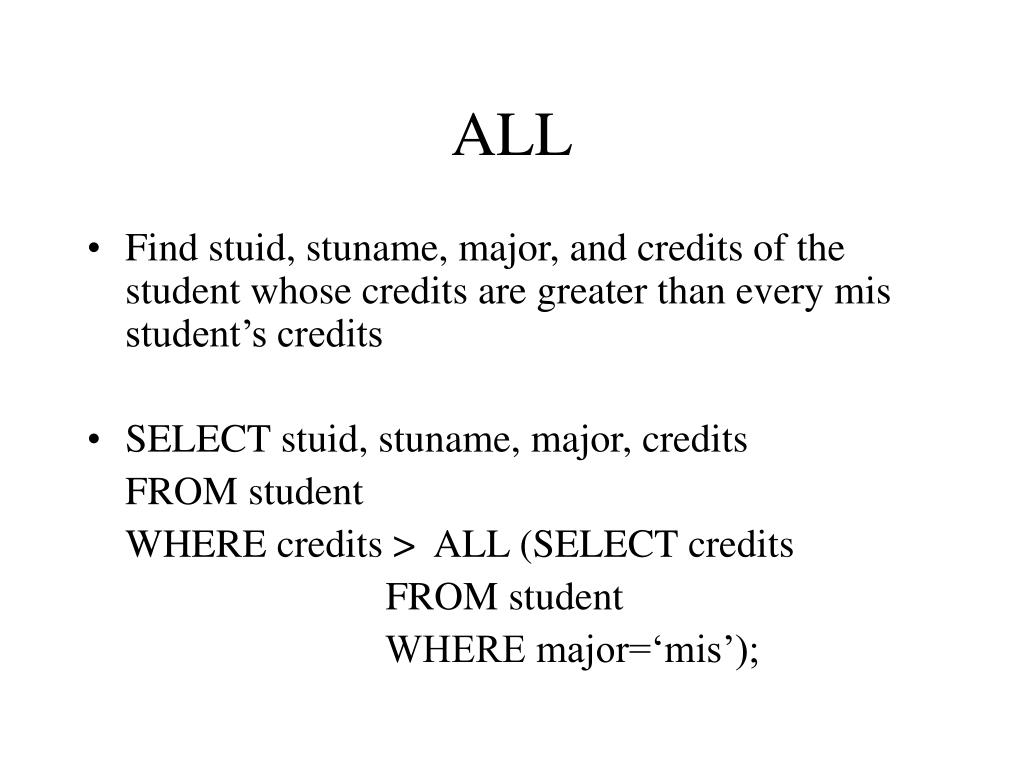

  50. ALL • Find stuid, stuname, major, and credits of the student whose credits are greater than every mis student’s credits • SELECT stuid, stuname, major, credits FROM student WHERE credits > ALL (SELECT credits FROM student WHERE major=‘mis’);
