  1. MIPv6 Firewall TraversalDesign Considerations Prepared by Hannes Tschofenig, Qiu Ying, Xiaoming Fu, Niklas Steinleitner, Gabor Bajko

  2. RFC 4487 • RFC 4487 describes scenarios where • the Mobile Node is in a Network Protected by Firewall(s) • the Correspondent Node is in a Network Protected by Firewall(s) • the HA is in a Network Protected by Firewall(s) • the MN moves to a Network Protected by Firewall(s) • MIPv6 Signaling Messages • BUHA = {Src=CoA, Dst=HA, HoA, ... } • HoTI = {Src=HoA, Dst=CN, rH} • HoT = {Src=CN, Dst=HoA, rH, …} • CoTI = {Src=CoA, Dst=CN, rC} • CoT ={Src=CN, Dst=CoA, rC, …} • BUCN = {Src=CoA, Dst=CN, HoA, …} • BACN = {CN, CoA, HoA, …}

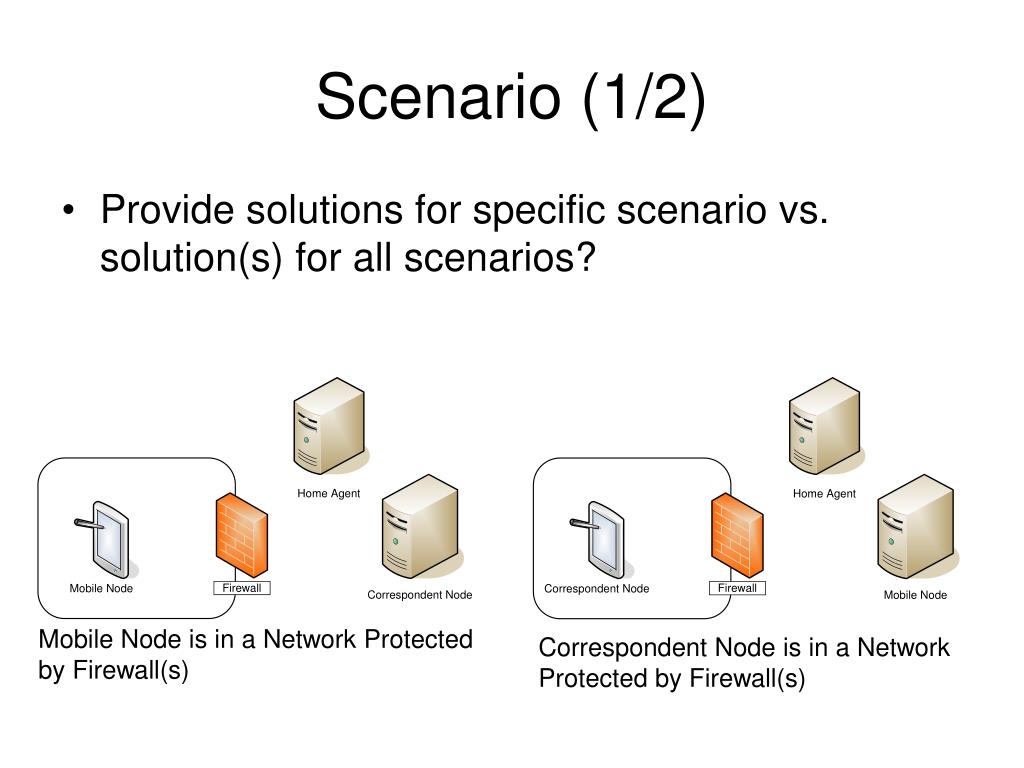

  3. Scenario (1/2) • Provide solutions for specific scenario vs. solution(s) for all scenarios? Mobile Node is in a Network Protected by Firewall(s) Correspondent Node is in a Network Protected by Firewall(s)

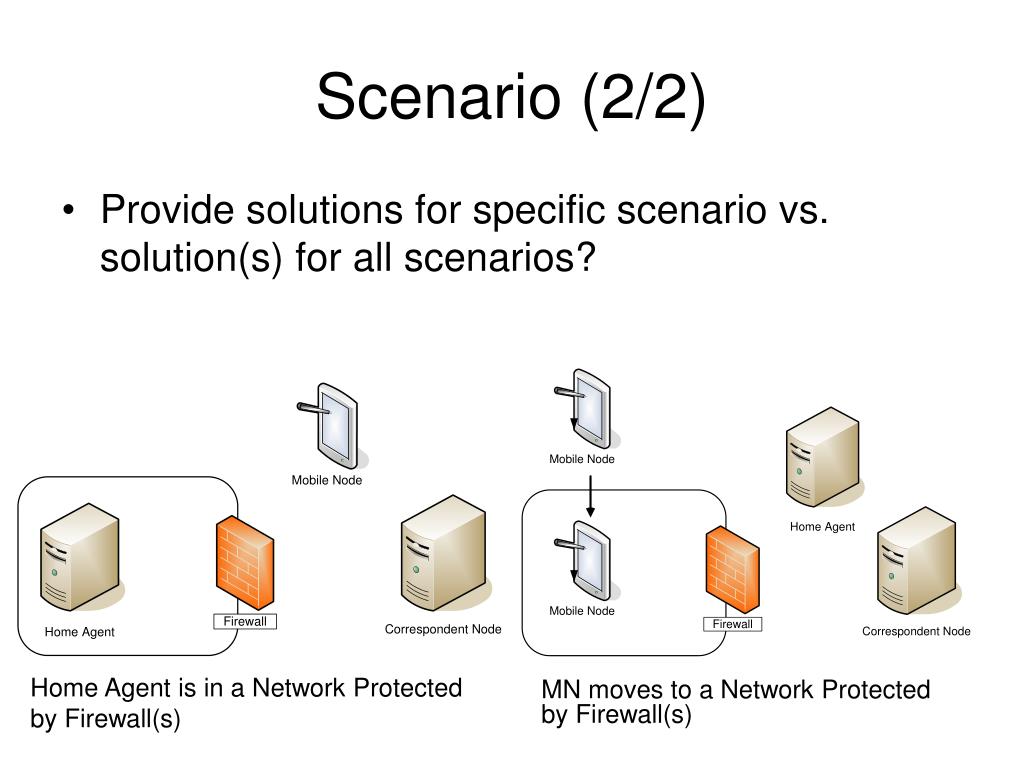

  4. Scenario (2/2) • Provide solutions for specific scenario vs. solution(s) for all scenarios? Home Agent is in a Network Protected by Firewall(s) • MN moves to a Network Protected by Firewall(s)

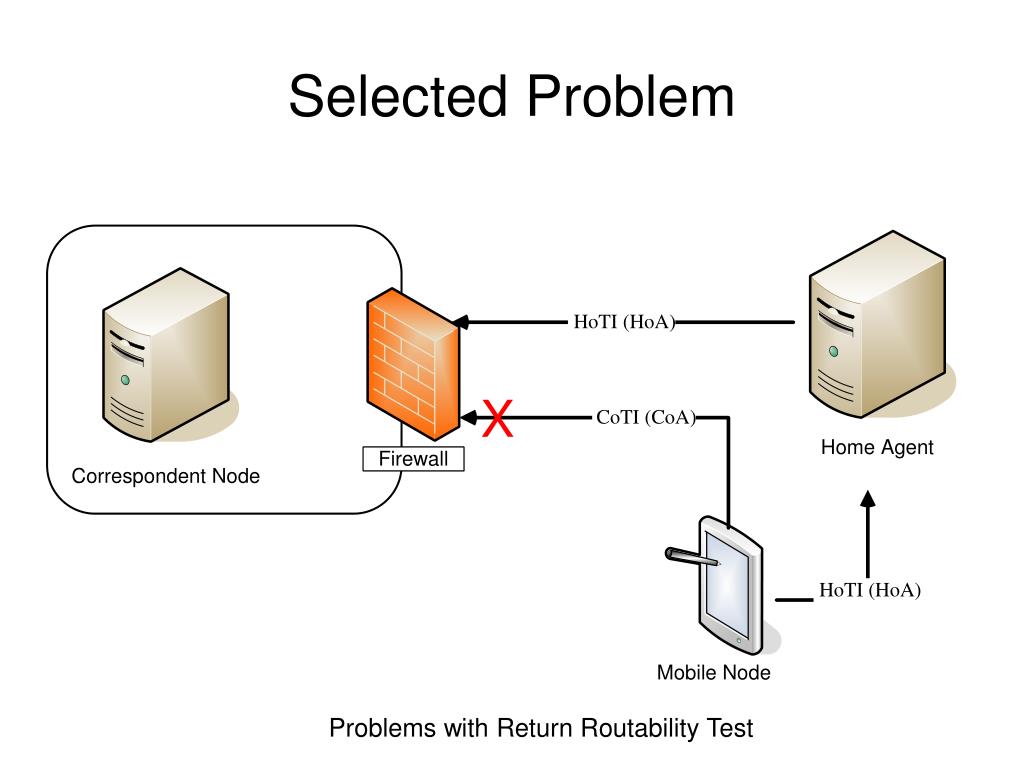

  5. Selected Problem Problems with Return Routability Test

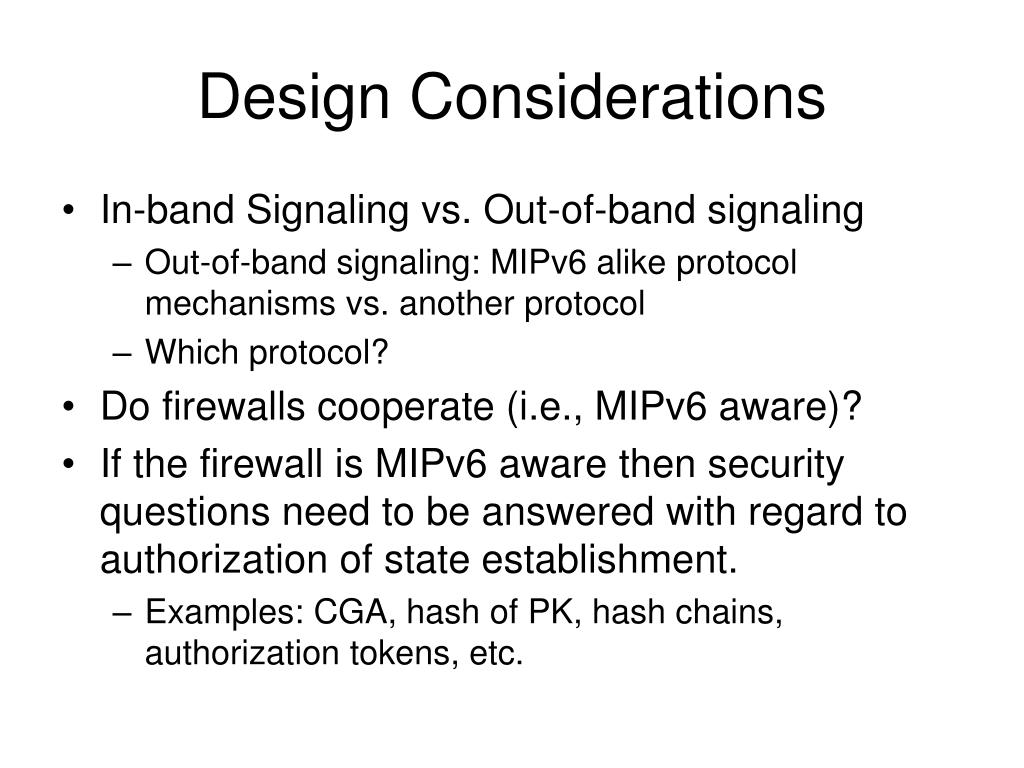

  6. Design Considerations • In-band Signaling vs. Out-of-band signaling • Out-of-band signaling: MIPv6 alike protocol mechanisms vs. another protocol • Which protocol? • Do firewalls cooperate (i.e., MIPv6 aware)? • If the firewall is MIPv6 aware then security questions need to be answered with regard to authorization of state establishment. • Examples: CGA, hash of PK, hash chains, authorization tokens, etc.

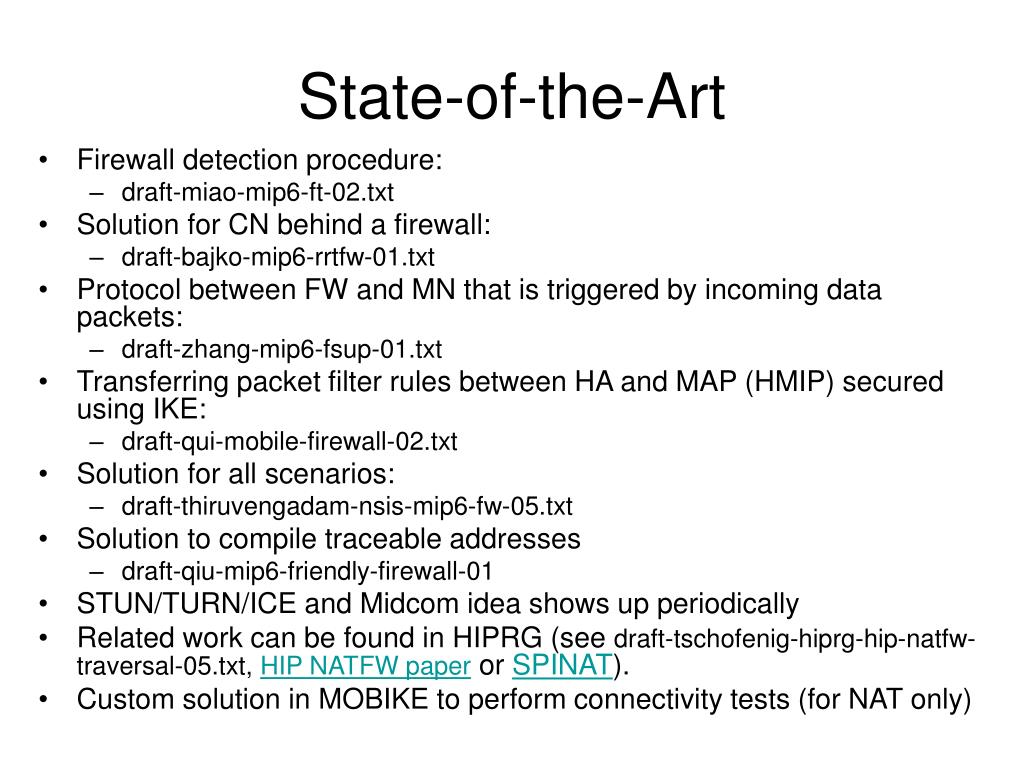

  7. State-of-the-Art • Firewall detection procedure: • draft-miao-mip6-ft-02.txt • Solution for CN behind a firewall: • draft-bajko-mip6-rrtfw-01.txt • Protocol between FW and MN that is triggered by incoming data packets: • draft-zhang-mip6-fsup-01.txt • Transferring packet filter rules between HA and MAP (HMIP) secured using IKE: • draft-qui-mobile-firewall-02.txt • Solution for all scenarios: • draft-thiruvengadam-nsis-mip6-fw-05.txt • Solution to compile traceable addresses • draft-qiu-mip6-friendly-firewall-01 • STUN/TURN/ICE and Midcom idea shows up periodically • Related work can be found in HIPRG (see draft-tschofenig-hiprg-hip-natfw-traversal-05.txt, HIP NATFW paper or SPINAT). • Custom solution in MOBIKE to perform connectivity tests (for NAT only)

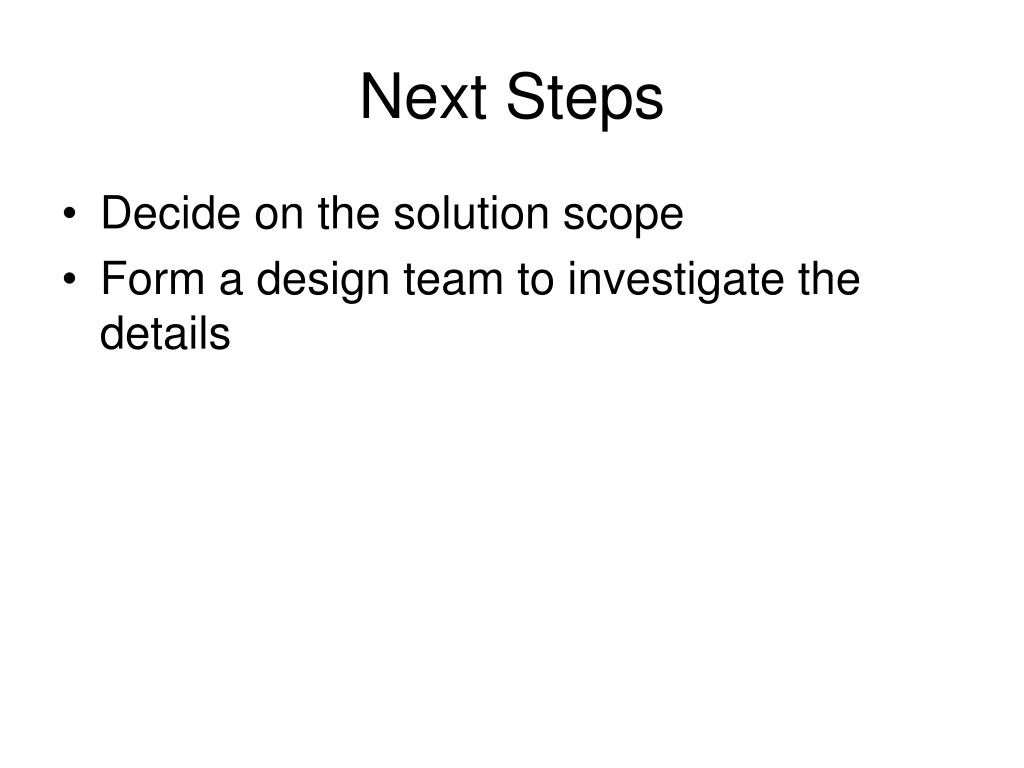

  8. Next Steps • Decide on the solution scope • Form a design team to investigate the details
