JFET (Junction Field Effect Transistor)

JFET (Junction Field Effect Transistor). Unipolar device (one polarity of charge carrier). Voltage controlled (gate voltage controls drain current). High input impedance ( 10 9 -10 12 ). No minority carrier storage. Source and drain are interchangeable in most

bian
Télécharger la présentation

JFET (Junction Field Effect Transistor)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. JFET (Junction Field Effect Transistor) • Unipolar device (one polarity of charge carrier) • Voltage controlled (gate voltage controls drain current) • High input impedance (109-1012 ) • No minority carrier storage • Source and drain are interchangeable in most low-frequency applications

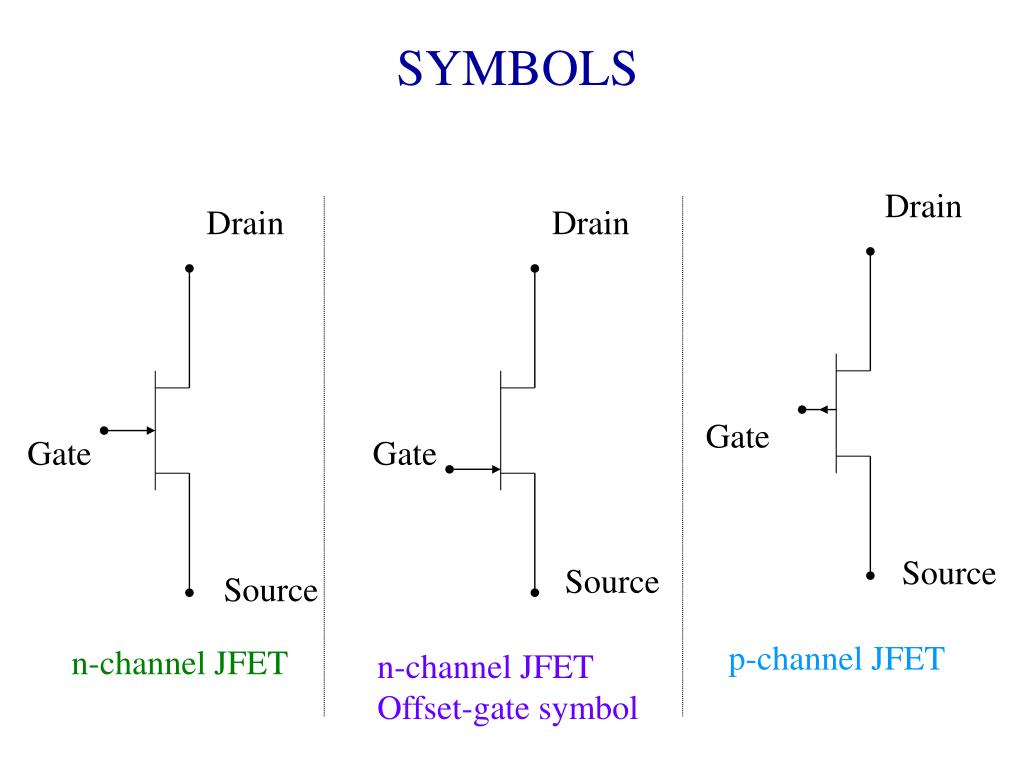

  2. Drain Drain Drain Gate Gate Gate Source Source Source SYMBOLS p-channel JFET n-channel JFET n-channel JFET Offset-gate symbol

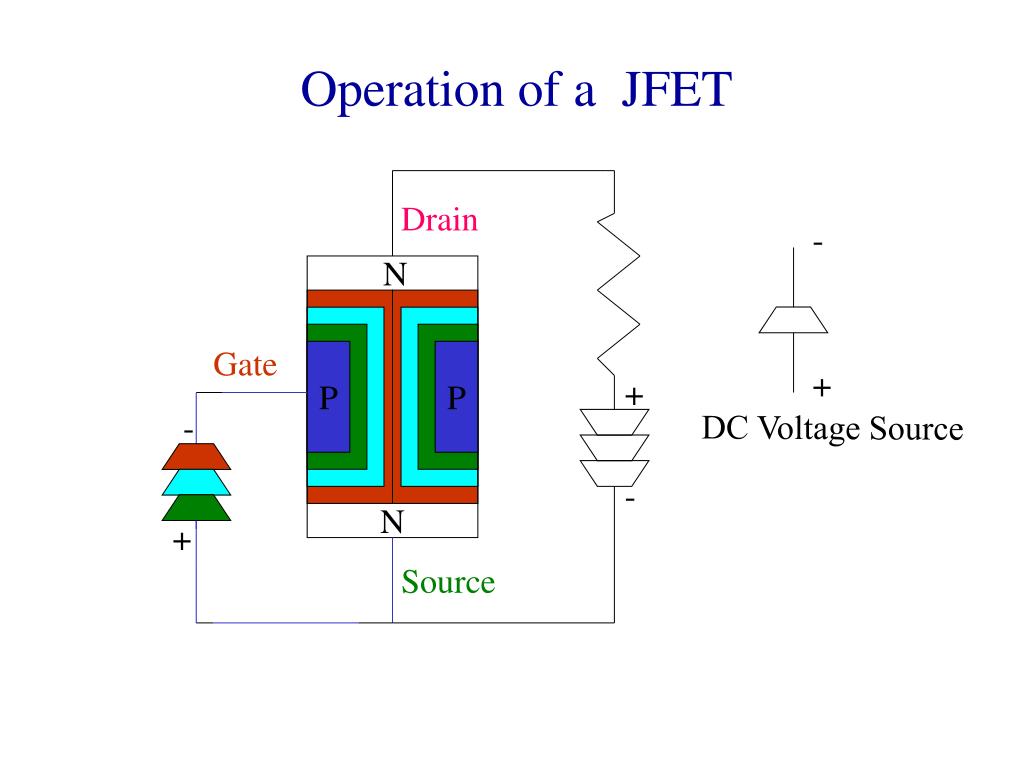

  3. Operation of a JFET Drain - N Gate P P + + - DC Voltage Source - N + Source
