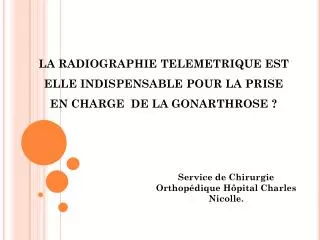

  1. LA RADIOGRAPHIE TELEMETRIQUE EST ELLE INDISPENSABLE POUR LA PRISE EN CHARGE DE LA GONARTHROSE ? Service de Chirurgie Orthopédique Hôpital Charles Nicolle.

  2. INTRODUCTION • Pathologie fréquente • C’est la cause la plus fréquente de douleur du genou après 50 ans. • La gonarthrose est la plus fréquente des arthroses (3 fois plus fréquente que la coxarthrose). • Elle est bilatérale dans 2/3 des cas. • Traitement : • Age • Stade de l’arthrose • Conditions socio-économiques • Déformation +++

  3. Radiographie Télémétrique RTM : « Gold Standard » • Déformation frontale : • Axe Mécanique (angle HKA)

  4. BUT Peut-on se passer de la RTM ?

  5. MATÉRIEL ET MÉTHODE • 30 patients (60 genoux) • Choisis au hasard. • Plusieurs mesures. • SPSS 16.fr • Corrélation de Pearson.

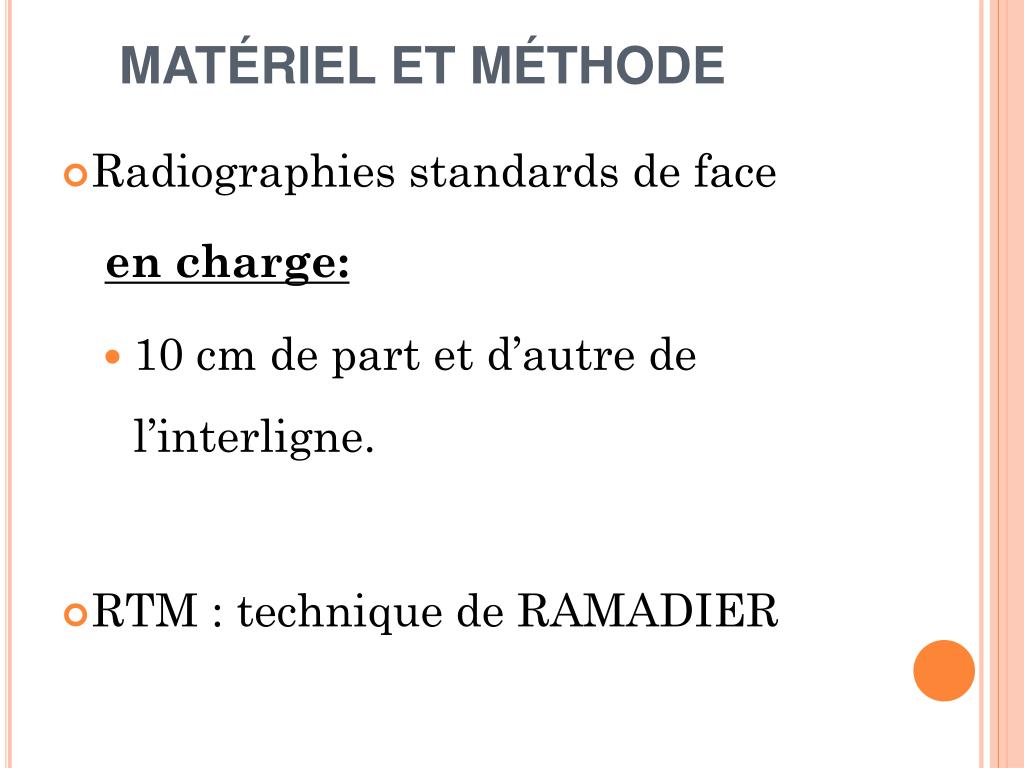

  6. MATÉRIEL ET MÉTHODE • Radiographies standards de face en charge: • 10 cm de part et d’autre de l’interligne. • RTM : technique de RAMADIER

  7. MATÉRIEL ET MÉTHODE Profil strict : scopie • superposition des condyles. • Marquer l’empreinte du pied

  8. MATÉRIEL ET MÉTHODE • Tourne de 90° • Cliché de FACE STRICT

  9. MATÉRIEL ET MÉTHODE

  10. MATÉRIEL ET MÉTHODE • Angle HKA

  11. MATÉRIEL ET MÉTHODE 10 cm • Angle : axe anatomique • Centre du genou- centre du fémur à 10 cm • Centre du genou- centre du tibia à 10 cm 10 cm

  12. RÉSULTATS

  13. RÉSULTATS La corrélation est significative au niveau 0,01

  14. RÉSULTATS La corrélation est significative au niveau 0,01

  15. DISCUSSION • RTM : Gold Standard. • Examen Coûteux. Arthritis & Rheumatism Vol.55,No.2 April 15, 2006, pp 306-313 • Irradiation du Bassin +++ 50 fois > Rx Standard ( Arthritis & Rheumatism Vol.55,No.2 April 15, 2006, pp 306-313 Osteoarthritis and Cartilage (2007) 15, 844-845) • Disponibilité The Knee 15 (2008) 480-485 • Temps d’exploration. The Knee 01107 (2008)

  16. DISCUSSION Rx standard: Peu coûteux Irradiation Pratique courante

  17. OSTEOARTHRITIS and CARTILAGE Corrélation statistique significative AXE MECANIQUE = AXE ANATOMIQUE 1997 Arthritis & Rheumatism 2006 The Knee 2008

  18. DISCUSSION • Corrélation indépendante • Nature de la déformation : Varus / Valgus • Importance de la déformation.

  19. DISCUSSION • Corrélation dépendante : • Technique • Qualité de la radiographie : FACE STRICTE.

  20. Valgus: 7° Varus: 2°

  21. CONCLUSION FACE STRICTE • Rx de face en charge. • Peut remplacer la RTM pour le calcul de la déformation frontale. • La RTM : est nécessaire pour la planification d’un éventuel geste de correction

  22. MERCI
