  1. Hellenic National Meteorological ServiceDivision of Climatology & ApplicationsAthanasios D. Sarantopoulos, Ph.D.Electrical & Computer Engineer sarantopoulos@gmail.comGeorgios Kalogeras 27-30 November 2007, Tarragona, Spain

  2. Data-related Activities at HNMS 27-30 November 2007, Tarragona, Spain

  3. In memory of innocent fire victims

  4. HNMS • Founded in 1931 • Operates under the auspices of the Hellenic Ministry of Defence/Air Force General Staff Mission: To provide meteorological support to • National Defence • National Economy for the safety of life and property 27-30 November 2007, Tarragona, Spain

  5. DIRECTOR LieutenantGeneral Inspection Department Legal Counsel National Meteorological Center Secretariat Marine Meteorological Center School of Meteorology Public Relations DEPUTY DIRECTOR DIVISION A DIVISION B DIVISION C DIVISION D DIVISION E DIVISION F Numerical Forecasting Climatology & Applications Rendering Services Technical Support Operational Support of Meteorological Observations Telecommunication and Informatics Organizational Chart 27-30 November 2007, Tarragona, Spain

  6. 27-30 November 2007, Tarragona, Spain Observation Network

  7. Meteorological Stations currently in operation Personnel TYPE N civilian military Manual synoptic 71   climatic 11  (part-time)‏ - Total manual 82 AWS 20 Total 102 Statistics • Over 150 MS have been established since 1900 • Some were closed due to resource reallocations 27-30 November 2007, Tarragona, Spain

  8. Synoptic Meteorological Stations Facts • 71 record measurements at 00, 06, 12, 18UTC • ~ 35 MS record measurements at 03, 09, 15, 21 UTC • Main meteorological parameters recorded: • Pressure • Temperature • Humidity • Wind • Visibility • Cloudiness • Precipitation • Present & past weather • 44 MS measure sun duration • 7 MS measure radiation • 24 MS measure ground temperature 27-30 November 2007, Tarragona, Spain

  9. 27-30 November 2007, Tarragona, Spain Locations of Synoptic Met Stations Alexandroupoli Drama Serres Chrysoupoli Florina Mikra Trikala (Imathias)‏ Limnos Kastoria Potidaia Kozani Mytilini Konitsa Larisa Trikala Ioannina Aghialos Skyros Skiathos Corfu Lamia Arta Hios Aegean Sea Aktio Agrinio Desfina Tanagra Samos Nafpaktos Tatoi Filadelfeia Ikaria Mesologi Eleusina Spata Piraeus Mykonos Araxos Helliniko Leros Argostoli Velo Andravida Syros Argos Kastelorizo Naxos Kos Pyrgos Astros Zakynthos Tripoli Paros Ionian Sea Rodos Kalamata Milos Santorini Astypalaia Methoni Kythira Kasos Karpathos Heraklio Kasteli Siteia Souda Zaros Rethymno Ierapetra Tympaki Gortys

  10. 27-30 November 2007, Tarragona, Spain Stations with Radiation measurements Trikala (Imathias)‏ Aegean Sea Arta Aliartos Filadelfeia Andravida Velo Argos Ionian Sea Tympaki

  11. 27-30 November 2007, Tarragona, Spain Stations with Sun Duration measurements Alexandroupoli Chrysoupoli Serres Makedonia Limnos Trikala (Imathias)‏ Kastoria Mytilini Larisa Konitsa Aghialos Ioannina Skyros Corfu Lamia Arta Hios Aegean Sea Tanagra Samos Agrinio Aliartos Filadelfeia Spata Araxos Patra Helliniko Argostoli Velo Andravida Naxos Argos Pyrgos Tripoli Zakynthos Rodos Ionian Sea Kalamata Santorini Methoni Kythira Souda Heraklio Siteia Kasteli Rethymno Ierapetra Tympaki

  12. 27-30 November 2007, Tarragona, Spain Climatic Met Stations Xanthi Kavala • 11 climatic Met Stations measure these main meteorological parameters: • Temperature • Humidity • Precipitation • observations are not always reliable Arahova Aegean Sea Aigio Stefani Aigina Ionian Sea Spetses Diavolitsi Sparti Gytheio Hania

  13. 27-30 November 2007, Tarragona, Spain Automatic Weather Stations

  14. 27-30 November 2007, Tarragona, Spain 20 AWS were installed in Attica for meteorological support of the Athens 2004 Olympic Games 30 highly skilled scientists and engineers were hired New computer system Schinias Kotroni Dekelia N.Filadelfeia Olympic Stadium Ilion South Evoikos Gulf Rafina Dafni ATHENS Goudi Panathinaiko Stadium Psitallia Alimos Ag. Kosmas Helliniko Markopoulo Equestrian Saronic Gulf Voula Markopoulo Shooting Egina Flevopoula Laurio Cape Sounion

  15. 27-30 November 2007, Tarragona, Spain Inactive Meteorological Stations

  16. 27-30 November 2007, Tarragona, Spain Closed Met Stations 20 years of data or more Soufli Komotini Kavala (Amygdaleonas)‏ Thasos Ptolemaida Sedes Edessa Limnos Kalampaka Volos Skopelos Domokos Aidipsos Kymi Arta (town)‏ Aegean Sea Aliartos Halkida Lidoriki Leukada Fourni Patra Kalabrita Leonidio Ionian Sea Karpathos (town)‏ Vamos Anogia Tzermiades Palaioxora Synoptic MS Climatic MS

  17. 27-30 November 2007, Tarragona, Spain Time-Series Facts

  18. 71 Synoptic Stations in use with data passed QC Station Data Period * Station Data Period * Station Data Period * KONITSA 1975-2003 ALEXANDROUPOLI 1951-2003 TRIPOLI 1957-2003 PAROS 1975-2003 ARAXOS 1955-2003 TANAGRA 1957-2003 DRAMA 1975-2003 MYTILINI 1955-2003 RETHYMNO 1957-2003 KASTELI 1976-2003 HERAKLIO 1955-2003 SOUDA 1958-2003 ZAROS 1976-2003 RODOS 1955-2003 ELEYSINA 1958-2003 ARTA 1976-2003 NAXOS 1955-2003 ANDRAVIDA 1959-2003 NOTE: • Monthly data in paper form are available for most MS for the period 1900-1955 • Time-series have some gaps ASTYPALAIA 1977-2003 CORFU 1955-2003 MACEDONIA 1959-2003 NAFPAKTOS 1977-2003 KITHIRA 1955-2003 TYMPAKI 1959-2003 POTIDAIA 1977-2003 HELLINIKO 1955-2003 SITEIA 1960-2003 KASTORIA 1980-2003 SKYROS 1955-2003 FLORINA 1961-2003 TRIKALA IMATHIAS 1980-2003 MILOS 1955-2003 DESFINA 1961-2003 LARISA 1955-2003 ARGOSTOLI 1970-2003 ARGOS 1980-2003 SAMOS 1955-2003 LAMIA 1970-2003 IKARIA 1980-2003 KOZANI 1955-2003 SYROS 1970-2003 KOS 1981-2003 FILADELFEIA 1955-2003 KARPATHOS (airport)‏ 1971-2003 MESOLOGI 1982-2003 LIMNOS 1956-2003 ZAKYNTHOS 1982-2003 AKTIO 1971-2003 METHONI 1956-2003 CHRYSOUPOLI 1984-2003 SERRES 1971-2003 IOANNINA 1956-2003 LEROS 1985-2003 HIOS 1973-2003 AGRINIO 1956-2003 KASOS 1986-2003 TRIKALA 1973-2003 TATOI 1956-2003 SKIATHOS 1986-2003 SPATA 1974-2003 KALAMATA 1956-2003 KASTELORIZO 1986-2003 THIRA 1974-2003 AGHIALOS 1956-2003 VELO 1987-2003 ASTROS 1974-2003 PEIRAUS 1956-2003 MYKONOS 1989-2003 PYRGOS 1975-2003 IERAPETRA 1956-2003 GORTYS 1975-2003

  19. 27-30 November 2007, Tarragona, Spain Inactive Synoptic Stations Station Data Period SEDES 1955-1972 SKOPELOS 1956-2003 KAVALA (AMYGDALEONAS)‏ 1956-1984 ALIARTOS 1967-1997 KARPATHOS (City)‏ 1971-1995 KORINTHOS 1970-1984 RAFINA 1972-1983 EDESSA 1975-2003 MEGARA 1975-1991 LEONIDIO 1981-2003 MARATHONAS 1986-2000 NOTES: Historical monthly values in paper form are available for most MS from 1900 to ~1955 Some time-series have gaps

  20. Active Climatic Stations Inactive Climatic Stations Station Data Period Station Data Period * Station Data Period PATRA 1955-2002 HANIA 1961-2003 TYRINTHA 1975-1991 KOMOTINI 1955-1983 AIGINA 1974-2003 NAUPLIO 1975-1988 KYMI 1956-1990 SPETSES 1974-2003 ORESTIADA 1975-1982 VOLOS 1956-1988 SPARTI 1974-2003 TZERMIADES 1975-1994 ARTA (Town)‏ 1961-1995 AIGIO 1974-2003 FARSALA 1975-1992 SOYFLI 1973-2003 DIAVOLITSI 1974-2003 FIHTIA 1975-1986 FOURNI 1974-2003 XANTHI 1975-2003 VAMOS 1975-1996 LEUKADA FTHIOTIDAS‏ 1974-1990 STEFANI 1975-2003 DOMOKOS 1975-1997 ARAXOVA 1976-2003 KALAVRITA 1975-1997 KALAMPAKA 1974-1997 KAVALA 1976-2003 LEUKADA 1975-1997 AIDIPSOS 1974-1997 GYTHEIO 1979-2003 LIDORIKI 1975-1995 PALAIOXORA 1974-1997 ANABRYTA 1975-1986 HALKIDA 1974-1994 AYLIOTES 1975-1991 VITINA 1974-1978 OREOI 1979-1989 NOTES: Data have passed quality control till 1997 Monthly data in paper form available for most MS from 1930 to 1970 They might not form complete time-series. PAIANIA 1974-1983 POLYGYROS 1979-1982 ANOGEIA 1975-1997 KARPENISI 1981-1990 PTOLEMAIDA 1975-1997 SKOTINA 1983-1993 THASOS 1975-1997 KARDITSA 1988-1991 KARISTOS 1975-1993 27-30 November 2007, Tarragona, Spain

  21. 27-30 November 2007, Tarragona, Spain Quality Control of Observations

  22. 27-30 November 2007, Tarragona, Spain Quality Control Methods of Meteorological Observations Levels of quality control: • Real-time • Non real-time • Manual Real-time Quality Control Procedures • 35 MS are connected online to HNMS • First level real-time quality control done at the station • On-site quality control procedures include: • Missing values check • Syntax control • Cross error checking (limit check)‏ • Observations: • Are transmitted automatically and stored to an auxiliary database • Data stored permanently after they pass successfully quality control

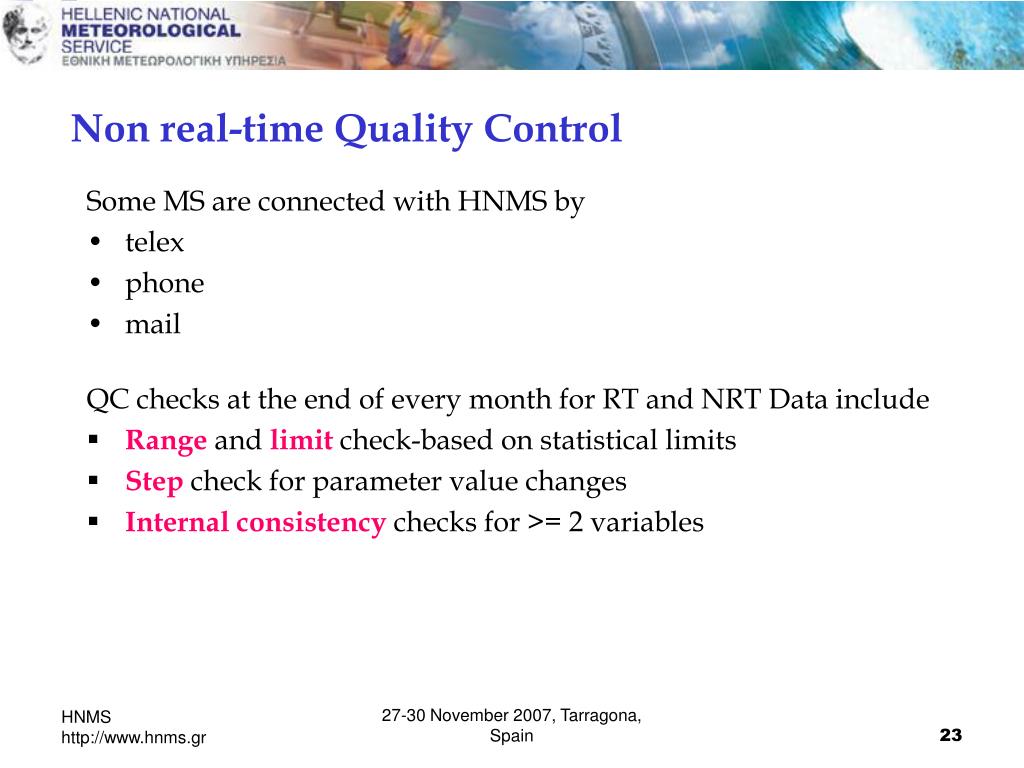

  23. 27-30 November 2007, Tarragona, Spain Non real-time Quality Control SomeMS are connected with HNMS by • telex • phone • mail QC checks at the end of every month for RT and NRT Data include • Range and limit check-based on statistical limits • Step check for parameter value changes • Internal consistency checks for >= 2 variables

  24. 27-30 November 2007, Tarragona, Spain Human Quality Control • HQC: final phase of QC • Examination of erroneous or suspicious data • Based on generated error lists • Correction done by experienced observers • Final data passed HQC successfully stored in a permanent database

  25. 27-30 November 2007, Tarragona, Spain Database

  26. 27-30 November 2007, Tarragona, Spain Technical Characteristics of DB: • Empress version 8.62 • HP-UX Server (model RX5670)‏ • 4 processors • 8 GB memory • 2 disks (mirrored)‏ • 0.5TB capacity • MARS2 (Meteorological Archiving Retrieval System)‏ Features: • RDBMS • JDBC • ODBC • DSQL • C++ • SPSS scripts • 15 clients

  27. Future Planning

  28. 27-30 November 2007, Tarragona, Spain In progress • By the end of 2008 • 17newAWS will be incorporated into existing network • 35stations will be converted to hybrid (semi-automatic) • Newly-purchased automated instruments will replace old meteorological instruments • Inventory of data

  29. - 36 existing stations will be connected to existing telecommunication system- New computer system and software will be installed - METSTATION, already running on 35 sites, will be extended - Small databases will be developed at stations - Improvement of quality control procedures (1st level RT QC at station level)- Measurement data will be inputted automatically to HNMS database- Upgrading of existing database- Climatological database will be developed - A web-based interface will be developed with generation of Climatological data reports capabilities Plans for 2008-2009

  30. 27-30 November 2007, Tarragona, Spain By 2012 Observation network will • be expanded to include • 140 automatic weather stations • semi-automatic (hybrid)‏ only stations • use automatic meteorological instruments New weather stations will be established for • wind • radiation measurements

  31. What we need • Help in data rescue techniques • Tested systems did yield good results • 25% success rate-scanned documents/Papyrus Software • perhaps focus in preserving images of data records in picture (jpg) format? • Participate in specialized workgroups to gain know-how • Allocate specialized personnel for data rescue activities? (Data inventory activities underway) • Establish a Data Resque Department? (Already have a Quality Control Department just for verification of weather forecasts) • Training and international collaborations • Ideas 27-30 November 2007, Tarragona, Spain

  32. Air Force General Staff(ΓΕΑ/Δ3/3)Mr. Georgios KalogerasDr. Manolis Anadranistakis (Director of Climatology-Applications Division, HNMS)Mrs. Anna MamaraDr. Manola BrunetMrs. Maite Suarez Special thanks to…
