Collaborative Design Innovation in LED

DESCRIPTION

Our mission is to develop energy efficient , environmentally friendly lighting solutions for indoor and outdoor applications. Collaborative Design Innovation in LED. Contents. LED Driver Selection Criteria Collaborative approach to achieve end application goal Collaboration Scope

1 / 15

Télécharger la présentation

Collaborative Design Innovation in LED

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Our mission is to develop energy efficient, environmentally friendly lighting solutions for indoor and outdoor applications Collaborative Design Innovation in LED

  2. Contents • LED Driver Selection Criteria • Collaborative approach to achieve end application goal • Collaboration Scope • Harvard – Sylvania Case Study • Conclusions

  3. Driver Key Selection Criteria Cont.

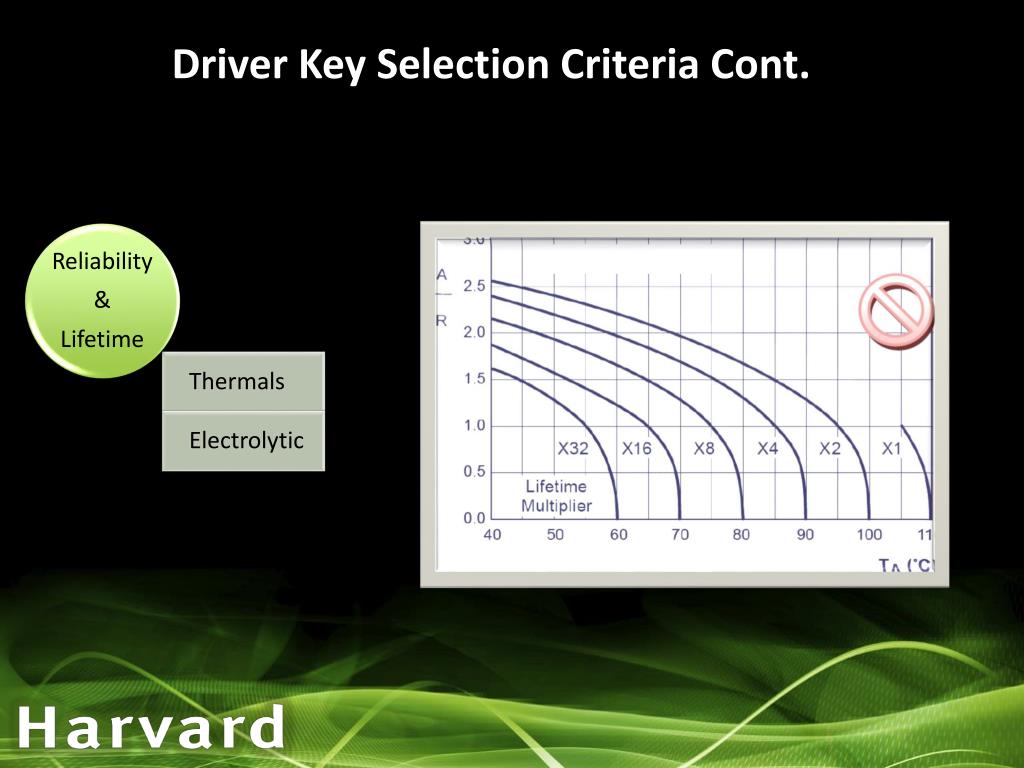

  4. Driver Key Selection Criteria Cont.

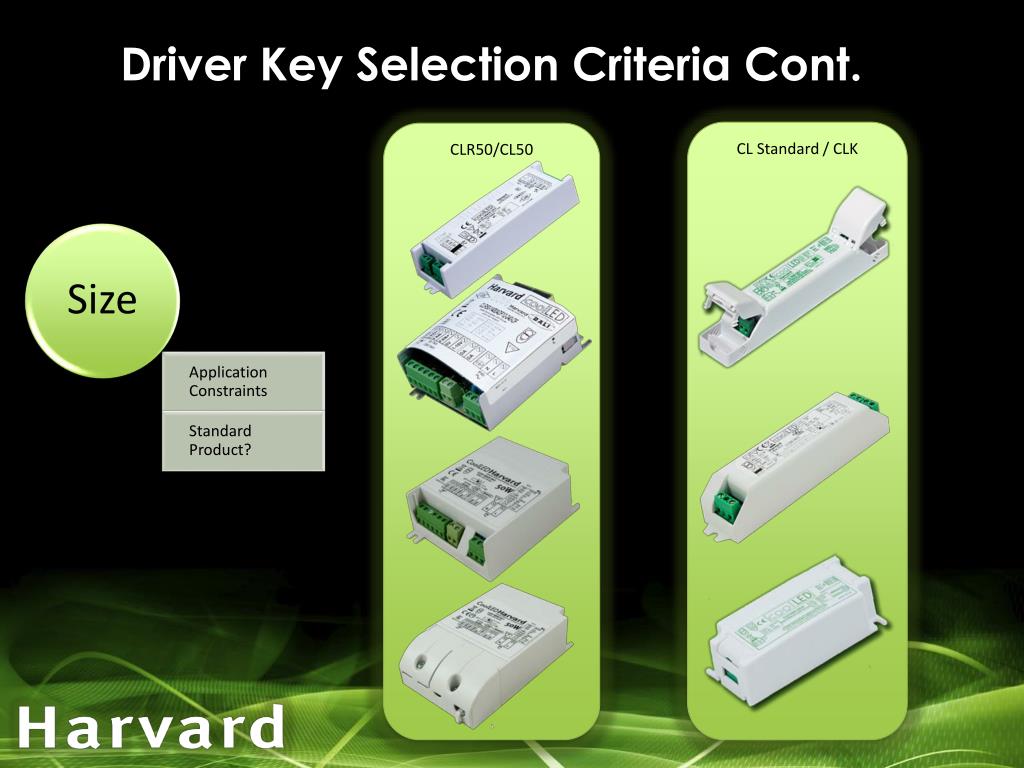

  5. Driver Key Selection Criteria Cont. CL Standard / CLK CLR50/CL50

  6. Driver Key Selection Criteria Cont.

  7. Driver Key Selection Criteria Cont.

  8. Collaboration Scope

  9. Harvard – Havells Sylvania Collaboration • Why? • Mainly Size / Form Factor • Targeted Performance • Interface • Optimum total cost of final product

  10. Harvard – Sylvania Collaboration Cont. • Project: • Develop bespoke LED driver • ~18W power • switchable output • 1-10V dimming • Efficiency >87% • PF > 0.95 • Reliability > 50,000 hours

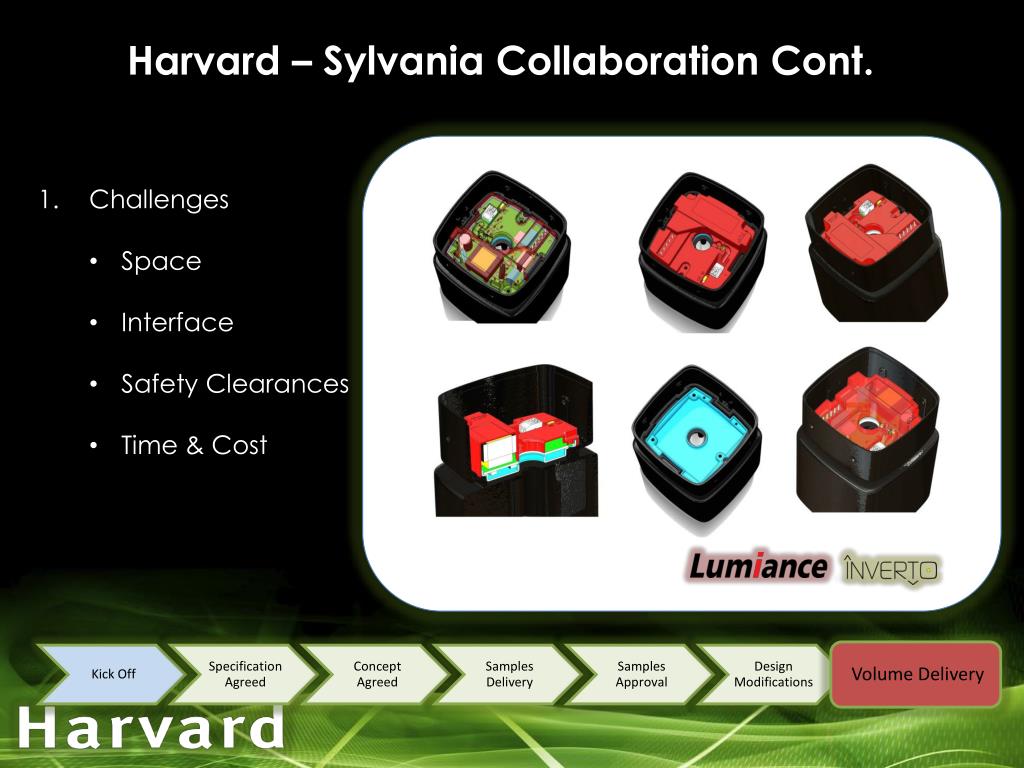

  11. Harvard – Sylvania Collaboration Cont. • Challenges • Space • Interface • Safety Clearances • Time & Cost

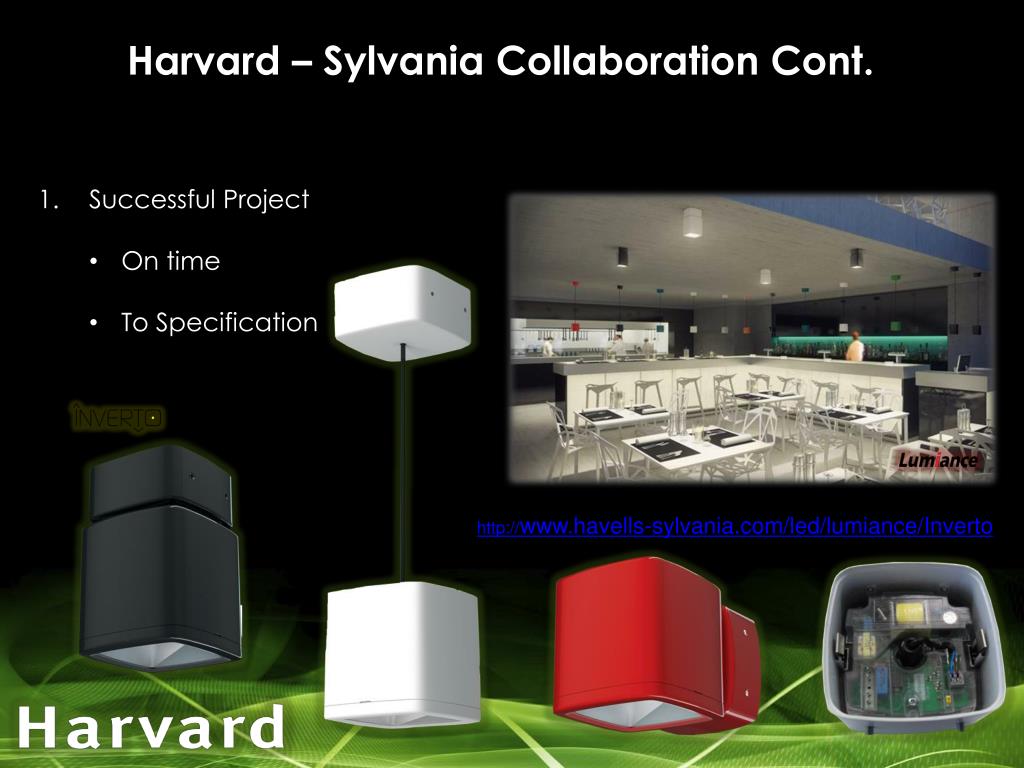

  12. Harvard – Sylvania Collaboration Cont. • Successful Project • On time • To Specification http://www.havells-sylvania.com/led/lumiance/Inverto

  13. Conclusions • Standard product may not be suitable for all applications • Optimisation around the application can be beneficial in certain cases • Close collaboration can yield win-win scenario • Collaboration is easy

  14. Thank you
