Ensure reliable circuit protection by installing in-line fuses close to the positive lead of your power supply to prevent short circuits. Select a fuse with a voltage rating higher than your system's voltage, and ensure the current rating is 1.25 times your system's maximum draw for optimal safety. Consider using "slow-blow" fuses to handle quick current surges while maintaining safety during prolonged high current situations. These guidelines are crucial for effective protection against electrical faults.

braith
Télécharger la présentation

Circuit protection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

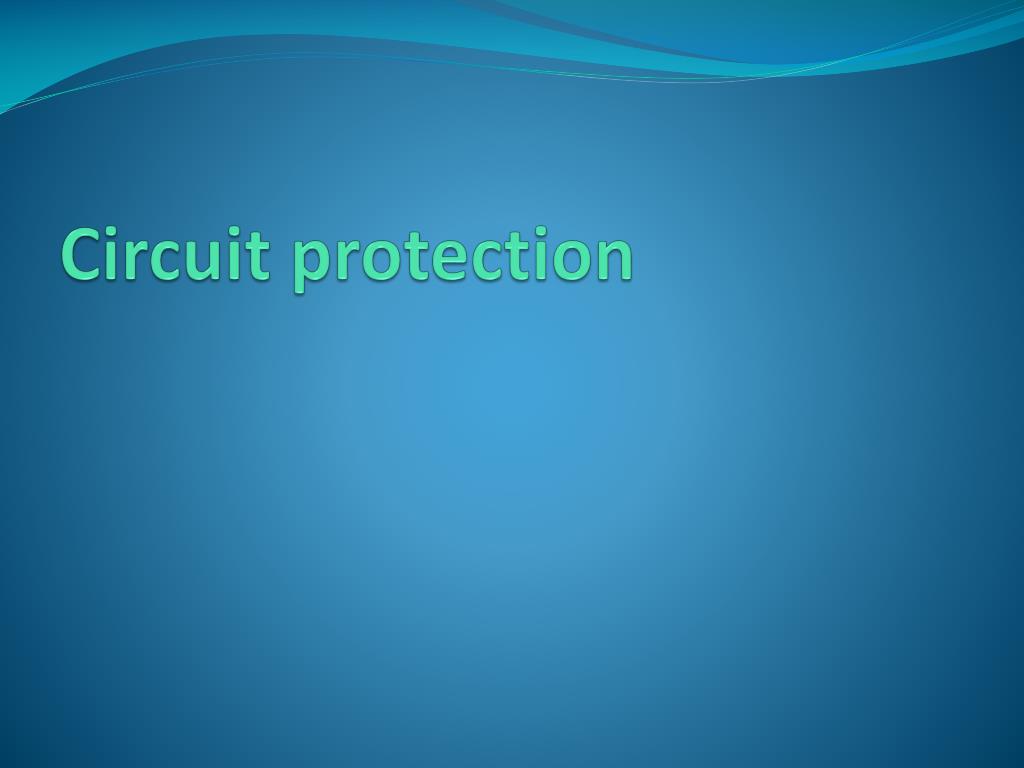

  1. Circuit protection

  2. Fusing • In line fuses placed as close to the positive lead of the power supply must be present to prevent short circuiting • The voltage must be higher than the voltage of your system, and can be as high as you wish • The current rating must be chosen carefully, the standard is 1.25 times the maximum current your system will draw • “Slow blow” fuses are recommended to accommodate quick surges in the circuit, but still provide safety if the high current persists
