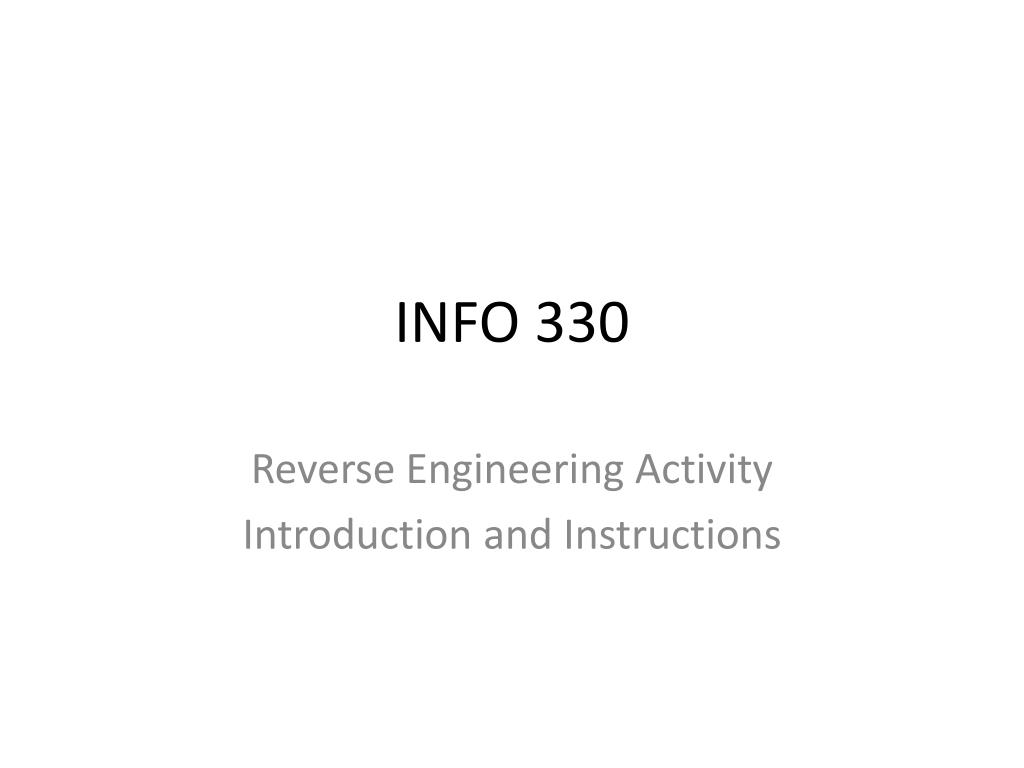

  1. INFO 330 Reverse Engineering Activity Introduction and Instructions

  2. Steps • Dissect the site • Name the areas • Analyze the info areas • Model the info types from the analysis of info areas • Implement the info types in an RDB • Model and implement the Navigation • Turn pages into templates

  3. Part 1 Reverse Engineering Built page Nav Area 4 Data base Content Area Dissected Page Page Template 3 2 1 Nav Area Nav Area Content Area Content Area 5

  4. 1. Dissect the Site

  5. A Web site from the usual perspective All about page design • HTML • CSS • Layout, color, font and image • A focus on Pages

  6. A Web page from our perspective Page Area 1 Area 2 Area 3 Area 3.1 Area 4 A layout of areas

  7. 1.1 Name the areas The Page http://www.dorm-room-biz.com/category/eventsconferences/

  8. 1.1 Name the areas Banner Global Nav Info area: partial views Ads Local nav

  9. 1.1 Name the areas Banner Global Nav Ads Info Area:Full View Local nav

  10. 1.2. Analyze the Info Areas

  11. An Area from our Perspective Banner The database The page Global Nav Info Area Ads • Has info types • Each with some number of items • They are the site’s content • Has access structures • To allow you to ACESS the items • They are the site’s navigation Local nav

  12. p.date c.num 1.2. Analyze the Info Areas p.title p.text.link (e) Navigation (not info) Entities p = post c = comment Areas o = optional cv = controlled vocab p = paras only rt = rich text Links e = external i = internal p.Text (rt)

  13. 1.2. Analyze the Info Areas c.num Navigation (not info) p.title c.name c.image c.date c.Text (p) comment (r) Entities p = post c = comment Areas o = optional cv = controlled vocab p = paras only rt = rich text r = repeats Links e = external i = internal c.name c.email c.site c.text

  14. 2. Model the info types from the analysis of info areas There is lots of room for judgment!

  15. Rich Text • image • p • link(e) • External Link • title • url Info Model Post • title • dateTime • text Comment • name • date • image • email • site • Text (p)

  16. Screen Dissection Activity Snopes.com

  17. Controlled Vocabulary • A list of phrases (one or more words) • Composed by a set process (experts, folksonomy, etc.) • That constrains the values that a (field, attribute, element, etc.) can have • Different than a data type

  18. Sub Areas- Rumor Area t.truth(cv) • Controlled vocabulary • True • Mixture • Undetermined • False • Legend

  19. 1.1 Name the Areas • Go to Snopes.com • Name the areas in the following pages • The home page • A category page (click on a category in the local nav) • A rumor page (click on a rumor on the category page)

  20. 1.2 Analyze the Info Areas • Go to and think about the info areas on these pages • Forever Twinkies (http://www.snopes.com/food/ingredient/twinkies.asp ) • The Microwaved Pet (http://www.snopes.com/horrors/techno/microwavedpet.asp ) • Sources page (http://snopes.com/sources/toogood.htm and http://snopes.com/sources/sources.htm ) • Source Types • Find entities as follows • The main type of info on the page is an entity • Any areas that repeat are separate entities • Any areas that can be re used in different items (in different pages) are separate entities • Name entities. Create a prefix for each entity (for example, the Rumor entity might be “r”) • Label each sub area on the page with an entity and name (for example the area that contains the rumor title might be labeled “r.title”) • Add qualifiers • Anything that comes from a controlled vocab gets (cv) • Anything that is optional gets (o)

  21. 1.2 Analyze the Info Areas • Do further analysis on text areas • If the text area is unformatted (i.e. a single unformatted paragraphs) do nothing more • If the text area contains multiple unformatted paragraphs mark the area with (p) • If the text area contains more than just unformatted paragraphs it is “rich.” Mark the area with (rt) • Label links (inside or outside text areas) • External (e) • Internal (i) • Place boxes very carefully. DO NOT cover non data

  22. Make an info model • Further analyze the text area • Images • Links • Bullets • Bold, underline, italics, etc. • Find and list all controlled vocabularies • Distinguish internal from external links
