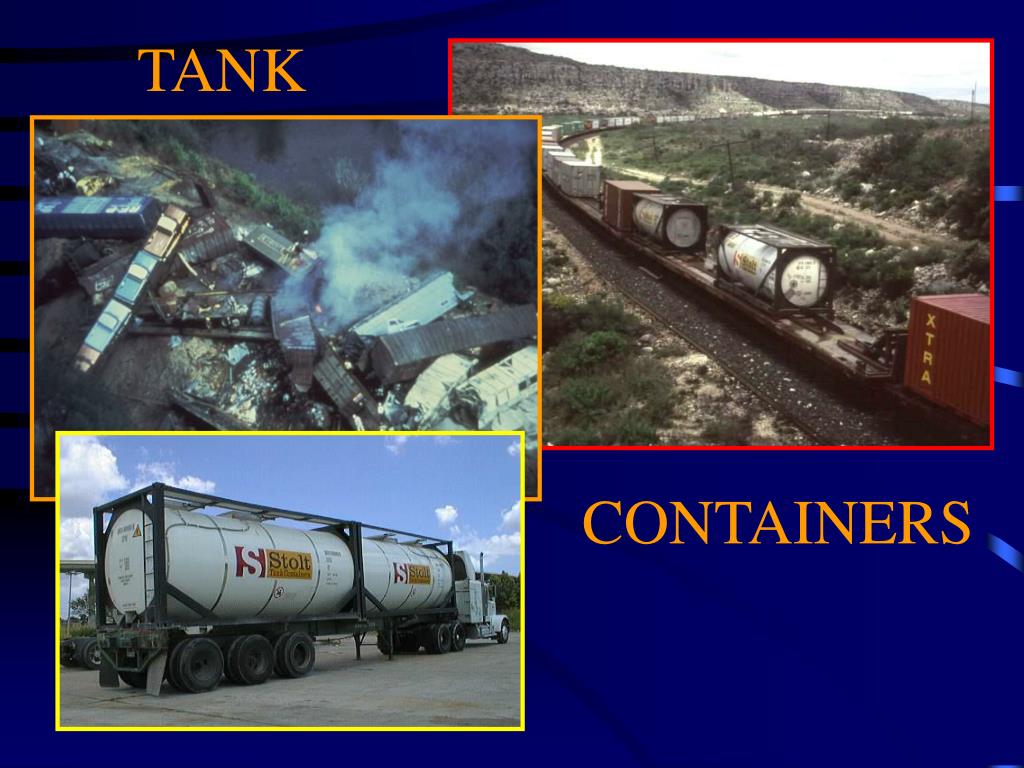

  1. TANK CONTAINERS

  2. GENERAL CLASSES • Non-pressure Tank Container • IM-102 • IM-101 • Pressure Tank Container • Specialized Tank Container • Cryogenic Tank Container • Tube Modules HazMat Certification Study guide

  3. Non-PressureIM 102 IM 102 HazMat Certification Study guide

  4. IM-102 Portable Tanks • Internationally - IMO Type 2 • Maximum Allowable Working Pressure (MAWP) 14.5 to 25.4 psig • Capacities - Up to 6,300 gallons • Materials transported • Corrosives Class 8 • Pesticides Class 6 • Flammables (FP 32 - 140 oF) Class 3 HazMat Certification Study guide

  5. Non-Pressure HazMat Certification Study guide

  6. IM-101 Portable Tanks • Internationally - IMO Type 1 • Maximum Allowable Working Pressure (MAWP) 25.4 to 100 psig • Capacities - Up to 6,300 gallons • Materials transported • Food grade products • Toxic materials Class 6 • Fertilizers Class 5 • Corrosives Class 8 • Flammables (below 32 oF) Class 3 HazMat Certification Study guide

  7. Pressure HazMat Certification Study guide

  8. DOT Spec 51 • Internationally - IMO Type 5 • Internal Pressures from 100 to 500 psig • Capacities up to 5,500 gallons • Materials Transported • LPG Class 2 • Anhydrous Ammonia Class 2 • Bromine • Sodium • Liquids • fuel anti-knock compounds • aluminum alkyles HazMat Certification Study guide

  9. Pressure HazMat Certification Study guide

  10. Cryogenic Portable Tank HazMat Certification Study guide

  11. IMO - Type 7 • Built to DOT Spec 51L standards • Cryogenics • Materials Transported • Argon • Oxygen • Helium • Nitrogen HazMat Certification Study guide

  12. Tube Module HazMat Certification Study guide

  13. Tube Module • Multi cylinders • Cylinders tested to 3000 or 5000 psi • Materials Transported • Hydrogen • Oxygen • Nitrogen • Helium HazMat Certification Study guide

  14. BOX FRAME BEAM FRAME HazMat Certification Study guide

  15. IDENTIFY THE PORTABLE TANK CONTAINER HazMat Certification Study guide

  16. HazMat Certification Study guide
