  1. the best people make cosylab Power Converter Controller Prototype overview Luka Sepetavc (luka.sepetavc@cosylab.com)

  2. Outline • Very quick overview • Hardware prototypes • CWO-3 Cosylab 2010

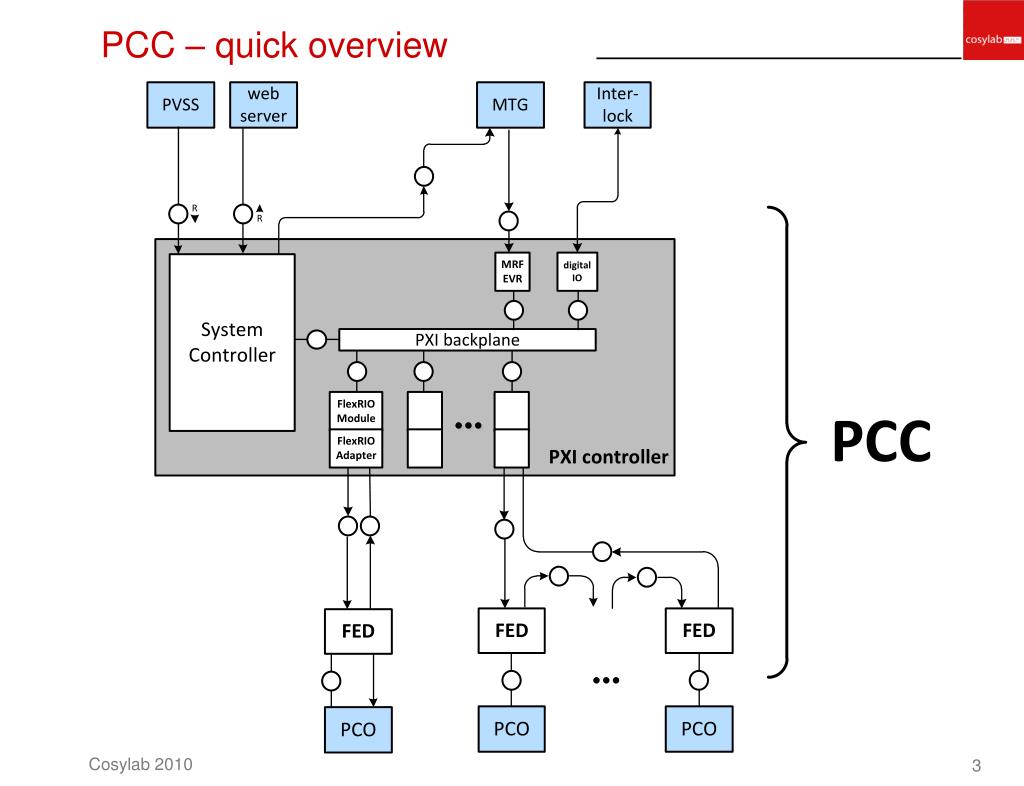

  3. PCC – quick overview Cosylab 2010

  4. Prototypes – fun stuff! Cosylab 2010

  5. PXI controller Cosylab 2010

  6. FlexRIO Adapter Module FlexRIO FPGA Module Cosylab 2010

  7. FlexRIO Adapter Module Cosylab 2010

  8. Real-time serial link • custom developed protocol • 100 Mbit/s transfer rate • high-priority data • low latency, deterministic delay • low-priority data • non-deterministic delay Cosylab 2010

  9. Front End Device (FED) Cosylab 2010

  10. Baseboard, IO board Baseboard IO board DIN backplane connector Cosylab 2010

  11. FED + baseboard Baseboard FED Cosylab 2010

  12. FED + baseboard + IO board19” 3U subrack 2 subracks – front close up of the front panel Cosylab 2010

  13. FED + baseboard + IO boardin a 19” 3U subrack 2 subracks – back close up of the back panel Cosylab 2010

  14. CWO-3 • PCC • full featured sequences and measurements • communication with the PVSS • driver support for serial driven PCOs • ... • FED • new hardware revision of the board • low priority pipes on real-time link • FED status and configuration • ... Cosylab 2010

  15. That’s all  Cosylab 2010
