Improved Assay-dependent Searching of Nucleic Acid Sequence Databases

Improved Assay-dependent Searching of Nucleic Acid Sequence Databases. Jason Gans Los Alamos National Laboratory. O(N 2 ) Thermodynamic alignment.

cardea
Télécharger la présentation

Improved Assay-dependent Searching of Nucleic Acid Sequence Databases

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Improved Assay-dependent Searching of Nucleic Acid Sequence Databases Jason Gans Los Alamos National Laboratory

  2. O(N2) Thermodynamic alignment Define a “reduced” pair-wise free energy function, whose exact O(N2) minimum energy alignment approximates the minimum energy alignment of the near neighbor free energy function, Determine free parameters by simulated annealing-based minimization of evaluated at the alignments produced by Aligned bases Gap regions Temperature

  3. Comparison between approximate O(N2) alignment and O(N3) alignment produced by DINAMelt Server* DDG [kcal mol-1] ~ 0.7 kcal mol-1 ~ 1.9 ºC DTm [ºC] Temperature [ºC] *Markham and Zuker (2005) Nucleic Acids Research, 33, W577-W581

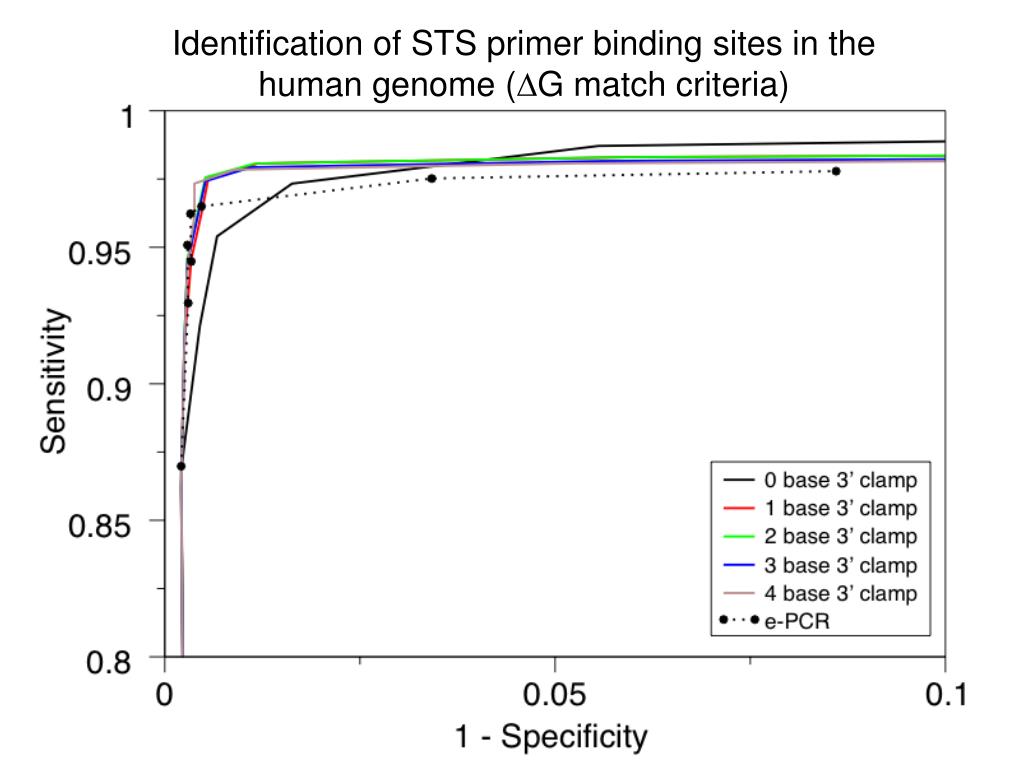

  4. Identification of STS primer binding sites in the human genome (DG match criteria)

  5. ThermonucleotideBLAST implements target splitting and adaptive segmentation Target segmentation Target & query segmentation t = # targets q = # queries w = # workers S/H = time to search one query Cost of target and query segmentation per worker Cost of target segmentation per worker time to load and hash one target

  6. T1000>>Q100>>W10 T1000>>W100>>Q10 Q1000>>T100>>W10 Q1000>>W100>>T10 W200>Q100>>T10 W200>>T100>>Q10
