Presentation Transcript

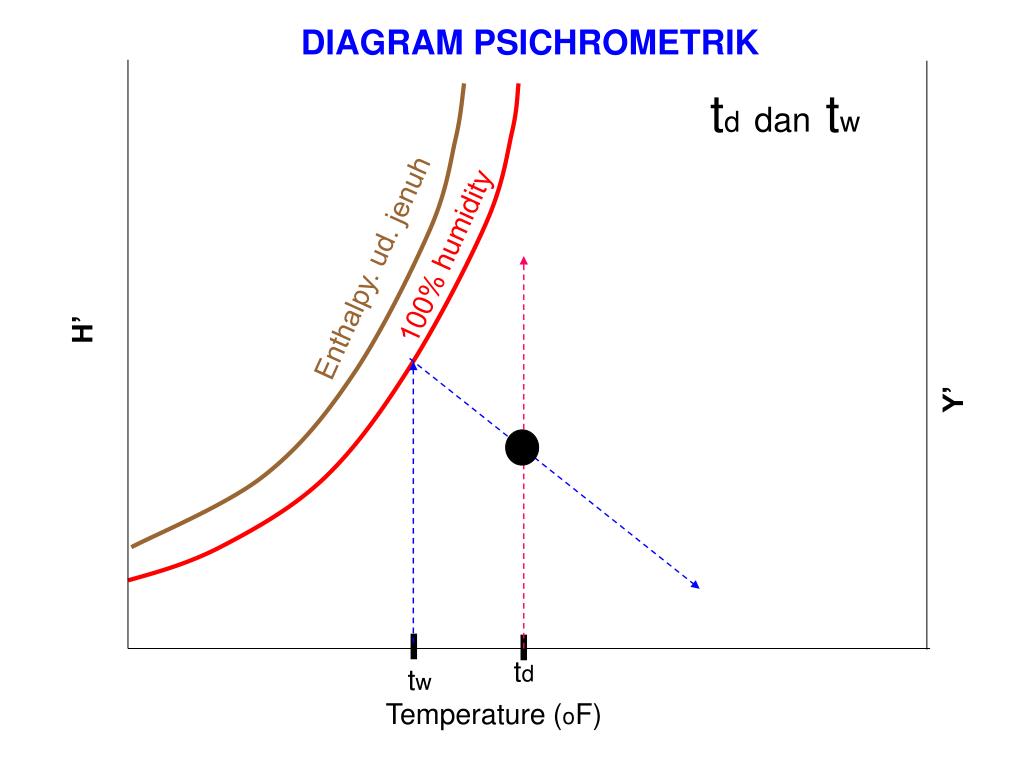

  1. DIAGRAM PSICHROMETRIK tddan tw 100% humidity Enthalpy. ud. jenuh H’ Y’ td tw Temperature (oF)

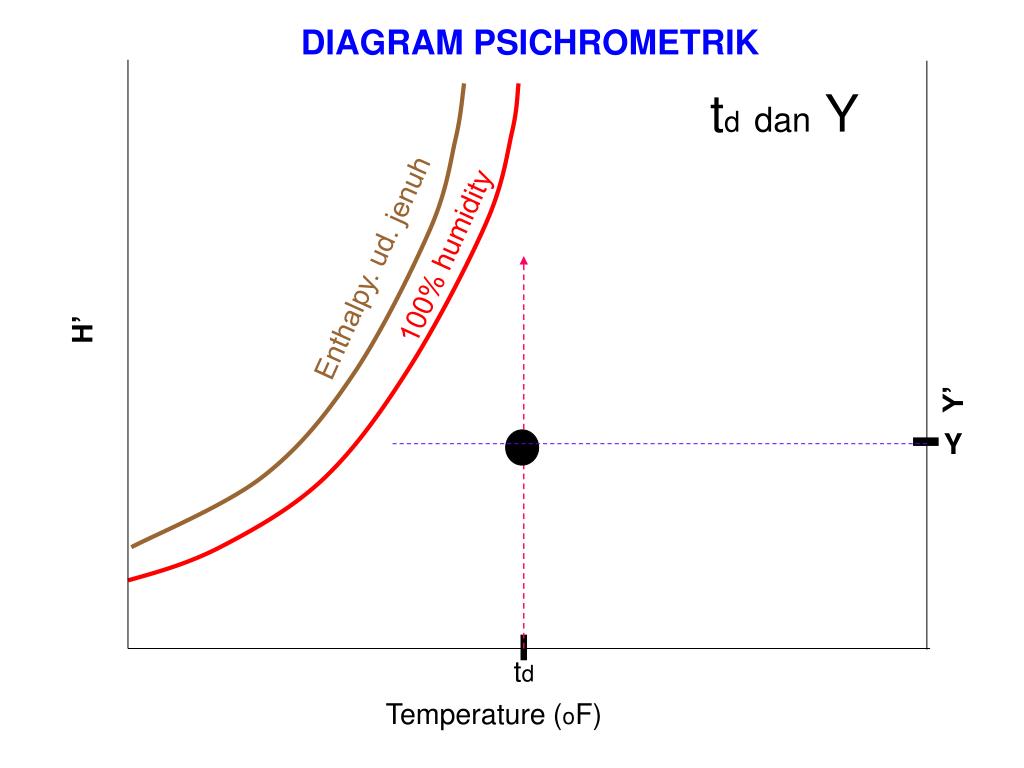

  2. DIAGRAM PSICHROMETRIK tddan Y 100% humidity Enthalpy. ud. jenuh H’ Y’ Y td Temperature (oF)

  3. DIAGRAM PSICHROMETRIK H dan %H %H 100% humidity H H’ Y’ Enthalpy. ud. jenuh Temperature (oF)

  4. DIAGRAM PSICHROMETRIK tdpdan tw 100% humidity Enthalpy. ud. jenuh H’ Y’ tw tDP Temperature (oF)

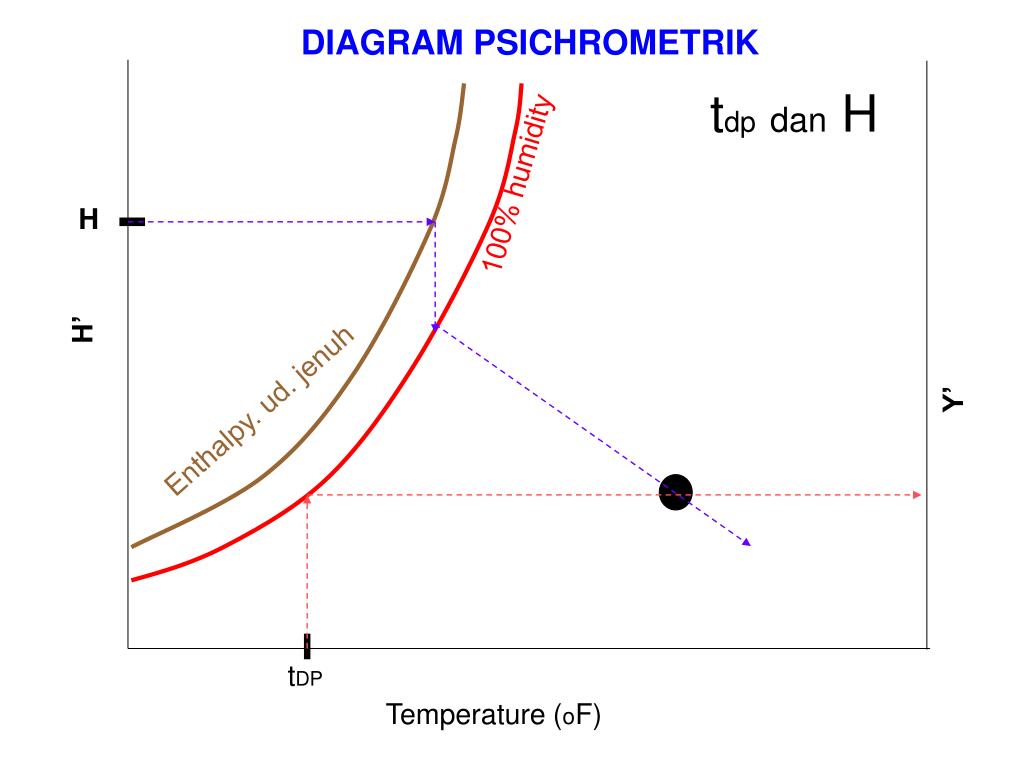

  5. DIAGRAM PSICHROMETRIK tdpdan H 100% humidity H H’ Y’ Enthalpy. ud. jenuh tDP Temperature (oF)

  6. DIAGRAM PSICHROMETRIK H dan Y 100% humidity H H’ Y’ Enthalpy. ud. jenuh Y Temperature (oF)

  7. VH VH = VH(d) + [VH(s) – VH(d) ](%H) H dan VH VH (s) 100% humidity %H Enthalpy. ud. jenuh H H’ Sp vol. ud. krg Y’ VH (d) Sat. humid vol. trial td td Temperature (oF)

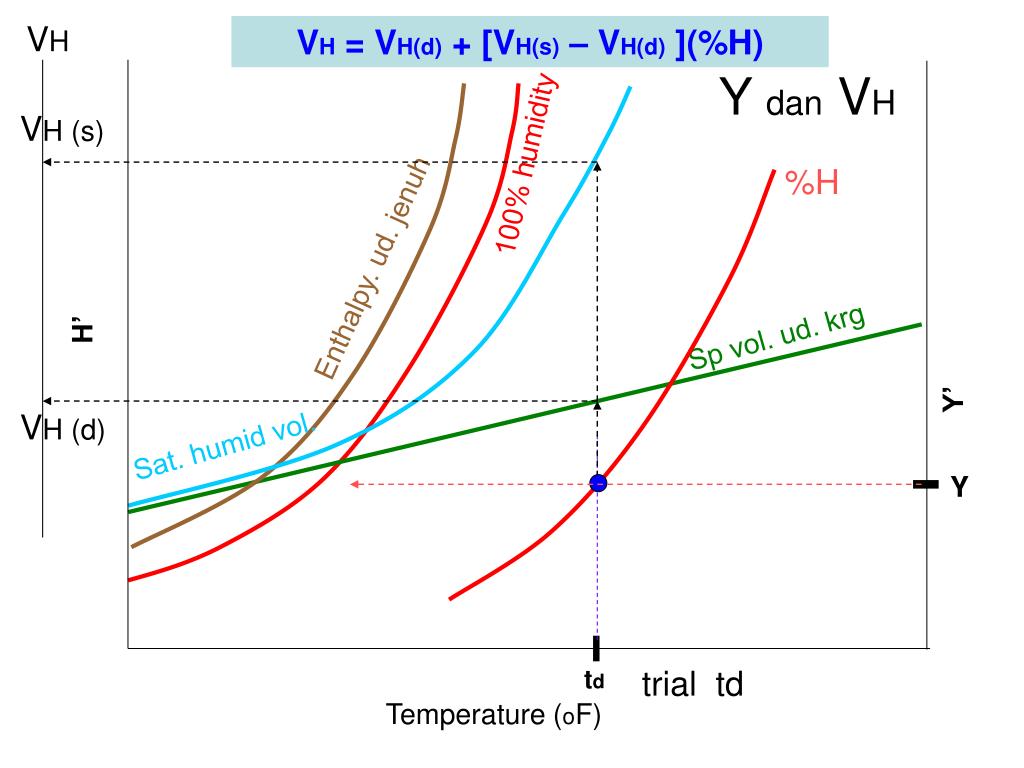

  8. VH VH = VH(d) + [VH(s) – VH(d) ](%H) Y dan VH VH (s) 100% humidity %H Enthalpy. ud. jenuh H’ Sp vol. ud. krg Y’ VH (d) Sat. humid vol. Y trial td td Temperature (oF)
