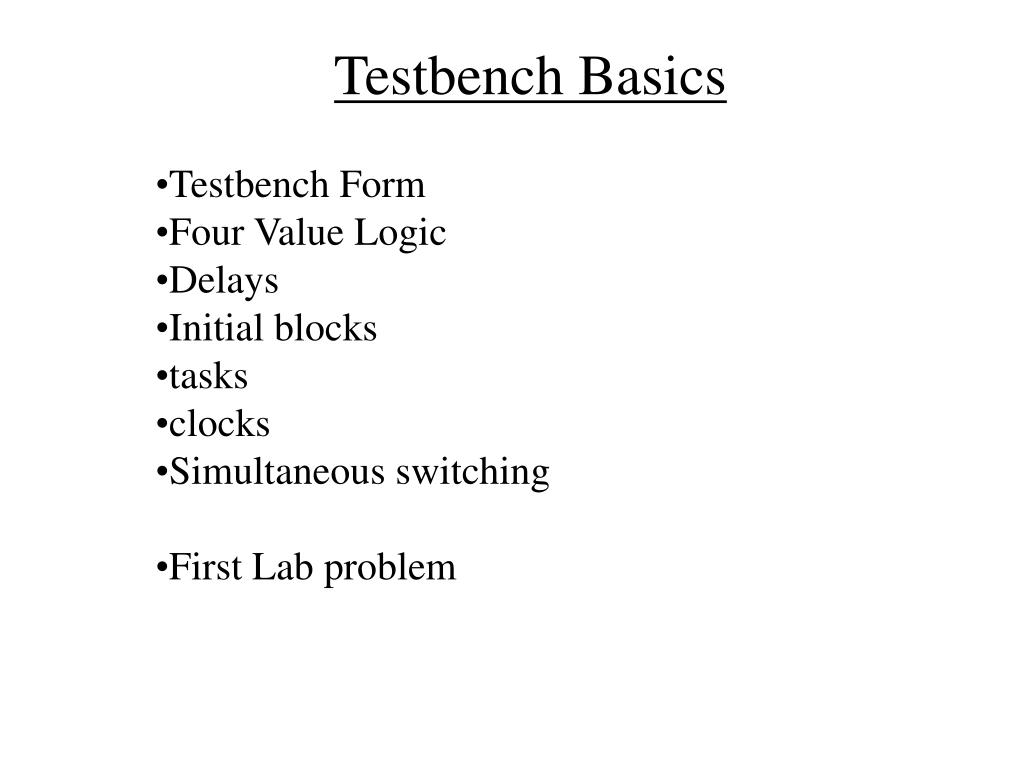

  1. Testbench Basics • Testbench Form • Four Value Logic • Delays • Initial blocks • tasks • clocks • Simultaneous switching • First Lab problem

  2. Simple Testbench Form • Testbench • Top level of simulation • Instantiates all devices under test Testbench (non-synthesizable) registers • Registers • Drive DUT inputs • Hold state unless changed • Non-synthesizable registers settable at any time Device under test (synthesizable) • Wires • sample DUT outputs • DUT changes wire outputs in response to inputs Non-synthesizable Verilog has more flexibility in simulation than Synthesizable Verilog! wires

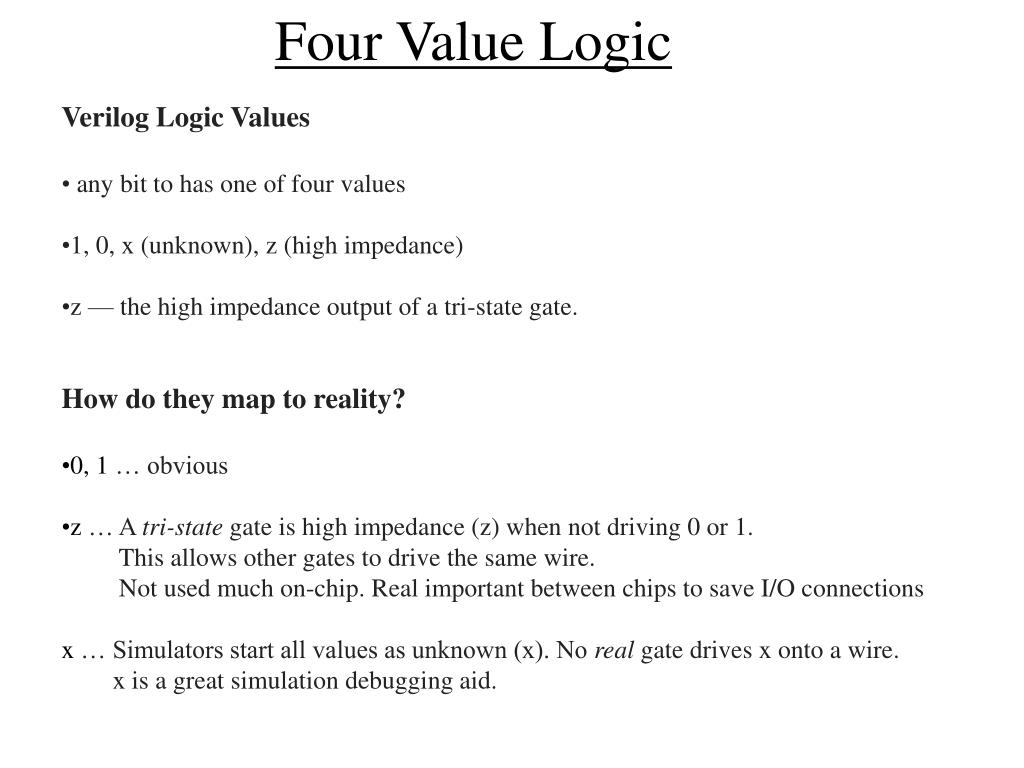

  3. Four Value Logic • Verilog Logic Values • any bit to has one of four values • 1, 0, x (unknown), z (high impedance) • z — the high impedance output of a tri-state gate. • How do they map to reality? • 0, 1 … obvious • z … A tri-state gate is high impedance (z) when not driving 0 or 1. • This allows other gates to drive the same wire. • Not used much on-chip. Real important between chips to save I/O connections • x … Simulators start all values as unknown (x). No real gate drives x onto a wire. • x is a great simulation debugging aid.

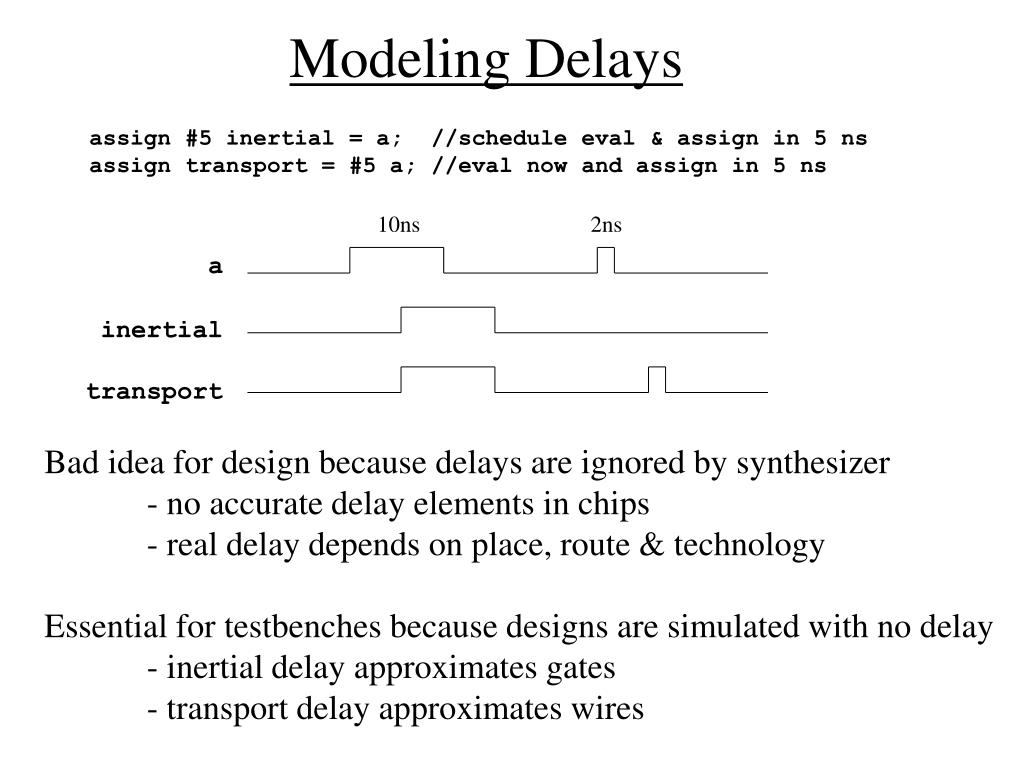

  4. Modeling Delays assign #5 inertial = a; //schedule eval & assign in 5 ns assign transport = #5 a; //eval now and assign in 5 ns 10ns 2ns a inertial transport Bad idea for design because delays are ignored by synthesizer - no accurate delay elements in chips - real delay depends on place, route & technology Essential for testbenches because designs are simulated with no delay - inertial delay approximates gates - transport delay approximates wires

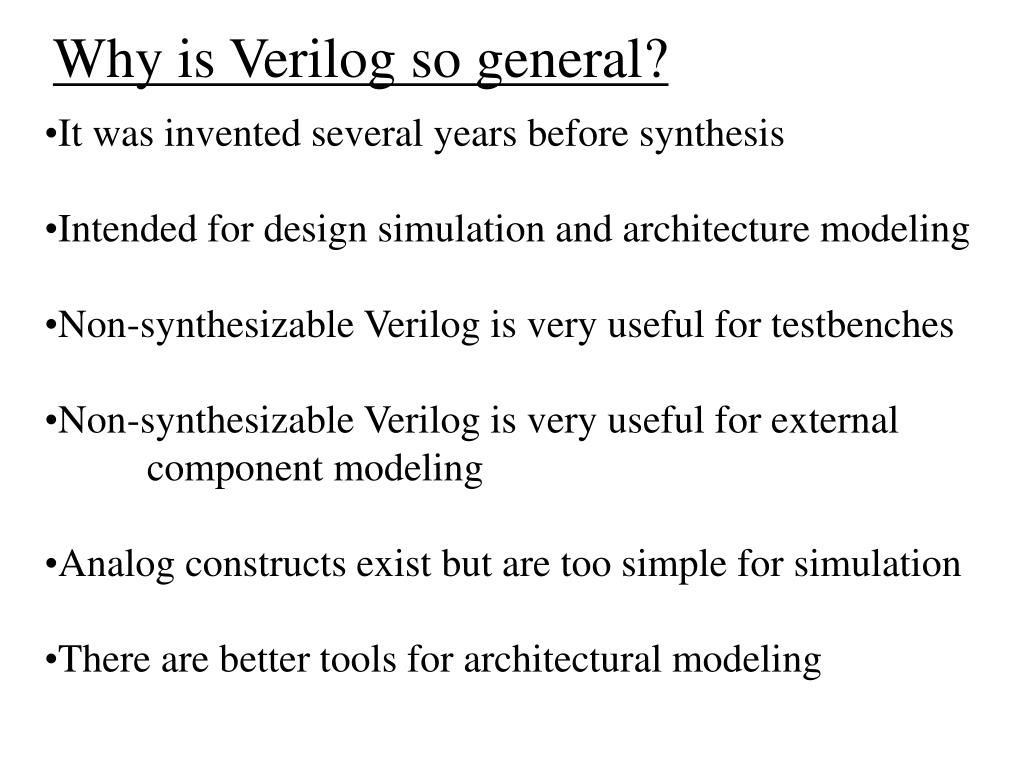

  5. Why is Verilog so general? • It was invented several years before synthesis • Intended for design simulation and architecture modeling • Non-synthesizable Verilog is very useful for testbenches • Non-synthesizable Verilog is very useful for external component modeling • Analog constructs exist but are too simple for simulation • There are better tools for architectural modeling
